Danfoss (Drives) 11201576

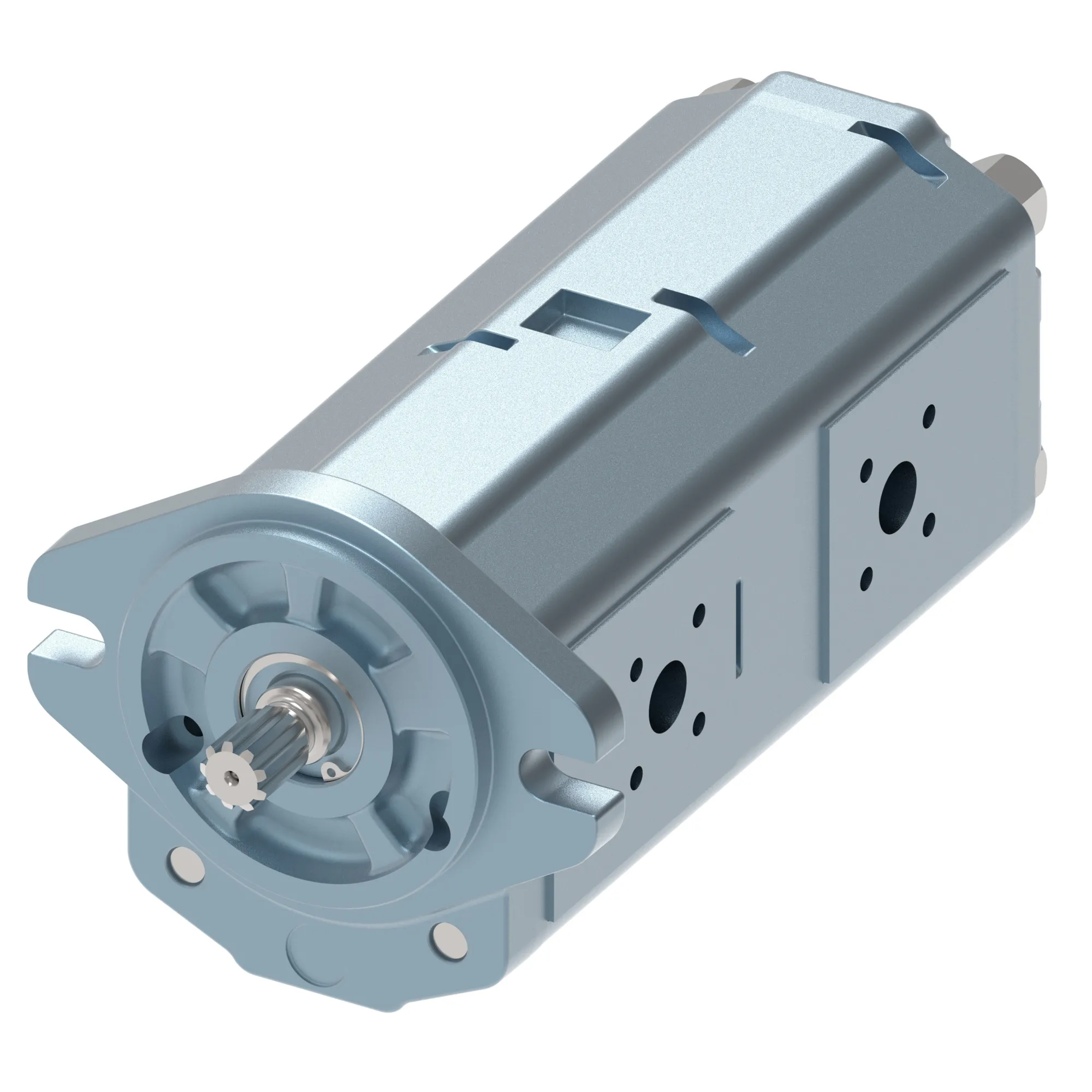

TANDEM=GEAR PUMP GR2+GEAR PUMP GR1 – 11201576
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TANDEM=GEAR PUMP GR2+GEAR PUMP GR1 – 11201576
Specification
| A: Tandem Gr.2+1 Family | SNW2NN + SNP1NN |
|---|---|
| B: 1St Stage Displacement | Displacement 11 cc |
| C: 2Nd Stage Displacement | Displacement 4,3 cc |
| D: Rotation | Product with clockwise rotation |
| E: Project Version | Standard ( without intermediate flange ) |
| F: Mounting Flange | Outrig. 06 parallel Ø3/4 (Ø19. |
| G: Drive Gear | Spline DIN 5482 – B17 x 14 L=14 ( rear tang 8 x 17,46 x L=6,5 ) (type 42) |
| H: Rear Cover | Std Cover for pump |
| I: 1St Stage Inlet Size | 1-1/16-12UN |
| J: 1St Stage Outlet Size | 7/8-14UNF |
| K: 1St Stage Ports Position | Standard from catalogue |
| L: 2Nd Stage Inlet Size | 3/4-16UNF |
| M: 2Nd Stage Outlet Size | 9/16-18UNF |
| N: 2Nd Stage Ports Position | Standard from catalogue |
| O Ring, Inside Diameter | Slash |
| O: Seals | Standard from catalogue |
| Oc Delimiter ( ) | – |
| P: Screws | Standard from catalogue |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve Setting | without valve |
| R: Mark Type | Std Sauer Danfoss Marking |
| S: Mark Position | Std Position Marking |
| Slash Separator | Slash |
