Danfoss (Drives) 11200853

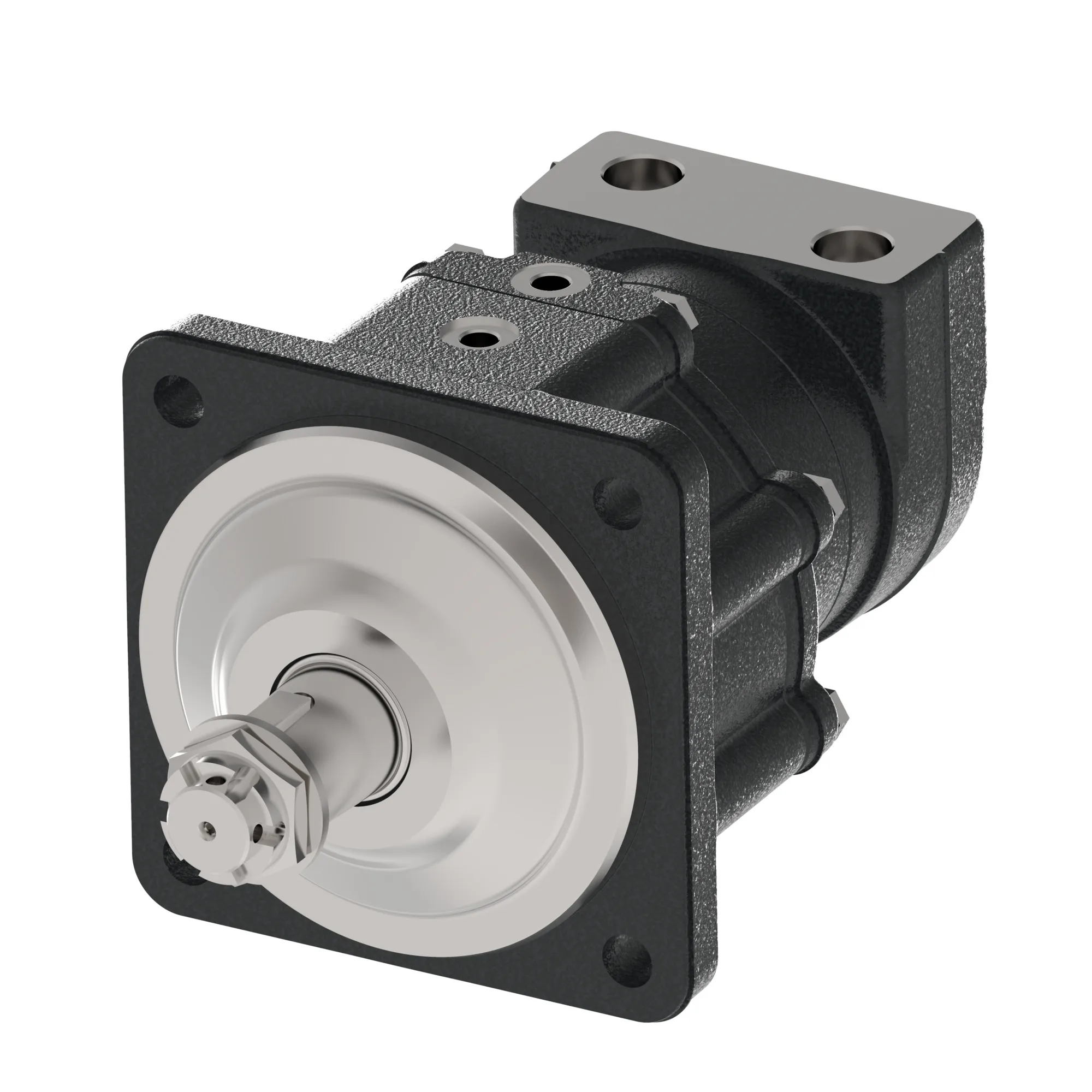

TMT 500 FL HYDRAULIC MOTOR – 11200853
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TMT 500 FL HYDRAULIC MOTOR – 11200853
Specification
| Model Code | TMT-0500-E-BA-G35-AV-1D-F18-A-B-1B-0-A-NN-AAE25-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | TMT Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 500 |
| Geometric Displacement [Cm3/R [In3/R]] | 494.8 [30.19] |
| Motor Type | Motor – Brake |
| Motor Function | Brake – Low release pressure |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 180.0 x 9.0, 224.0, 18.0 [7.09 x 0.35, 8.82, 0.71] |
| Shaft Type | TAPERED |
| Shaft Dimension | Dia. 45 mm, 1:10, 2 x M30 thread in shaft end |
| Shaft Key | Rectangular key, B12 x 8 x 28 mm, DIN 6885 |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 3/4 |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | G 1/4 |
| Painted | Yes |
| Paint Information | Painted, Black, Medium gloss |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | Integrated in shaft seal |
| Shaft Seal | NBR – Standard |
| Seal Kit | 151Z2059 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 00 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
