Danfoss (Drives) 112-1306-006

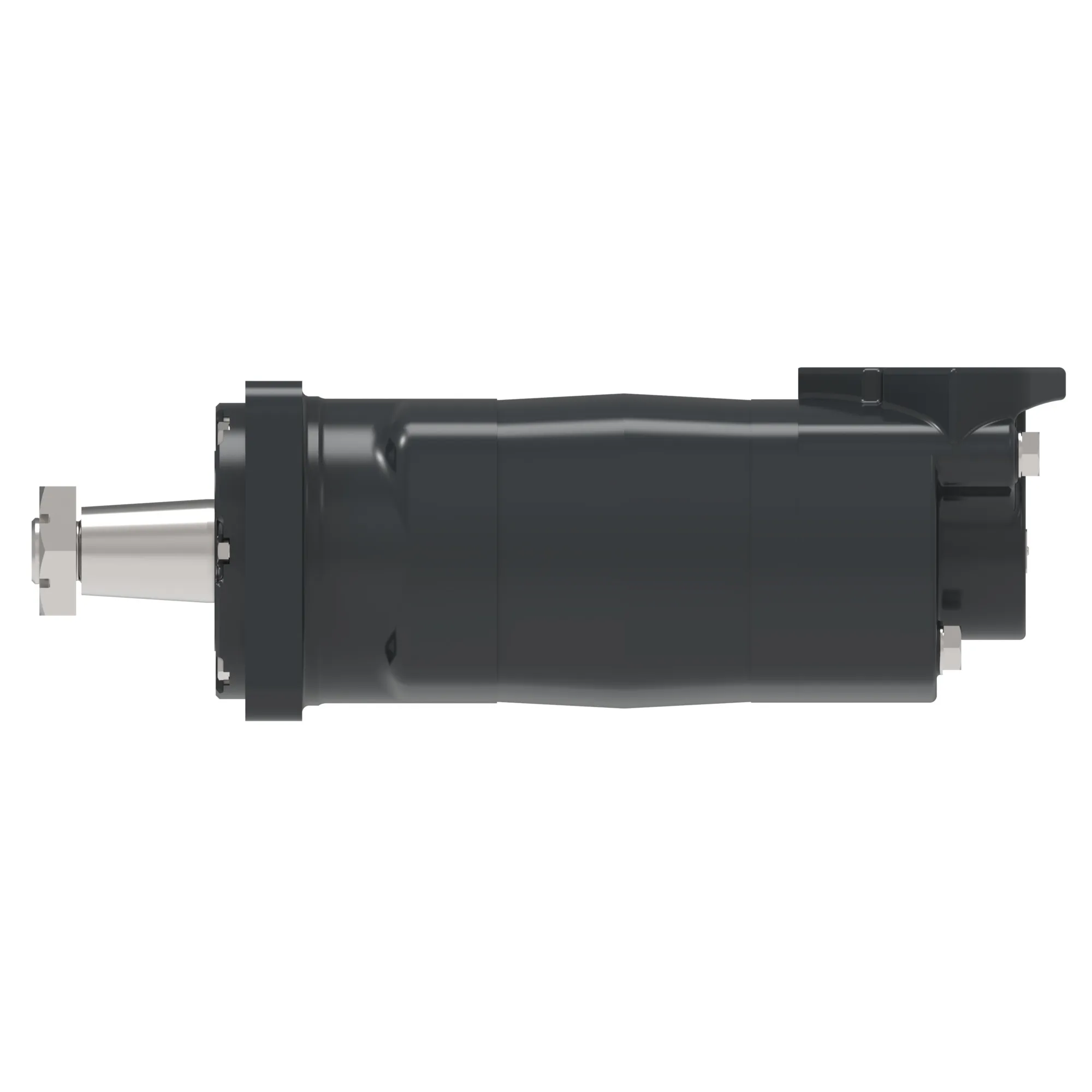

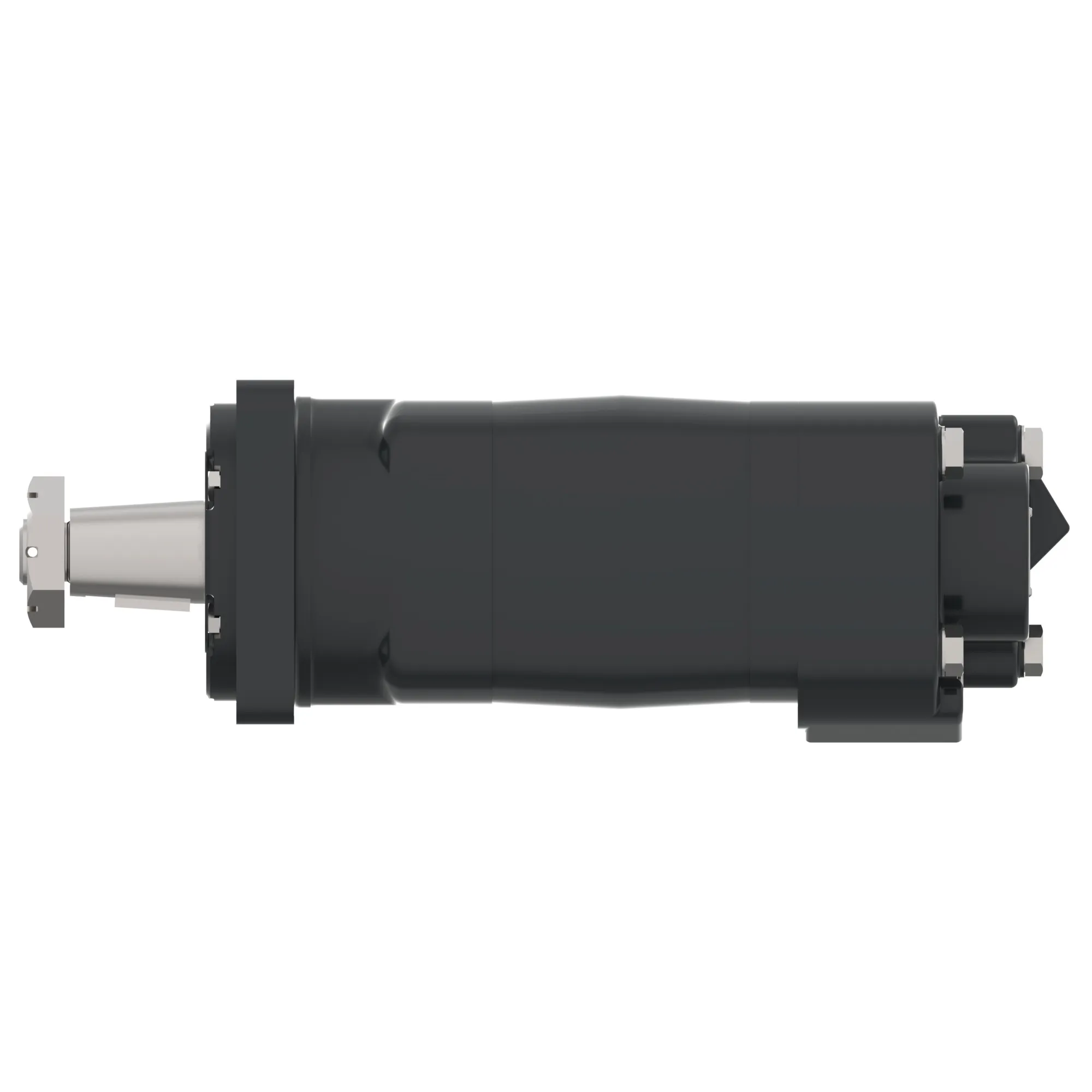

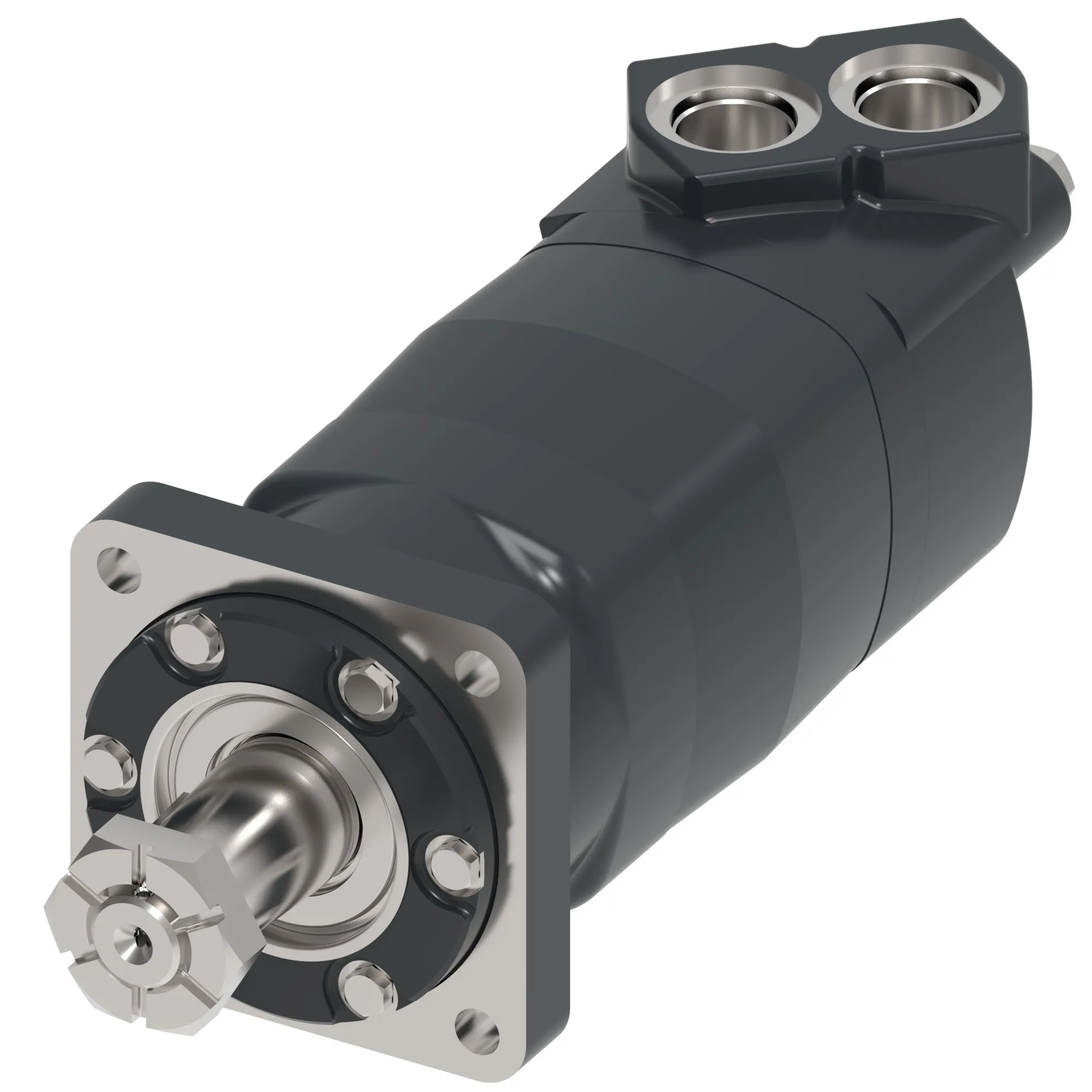

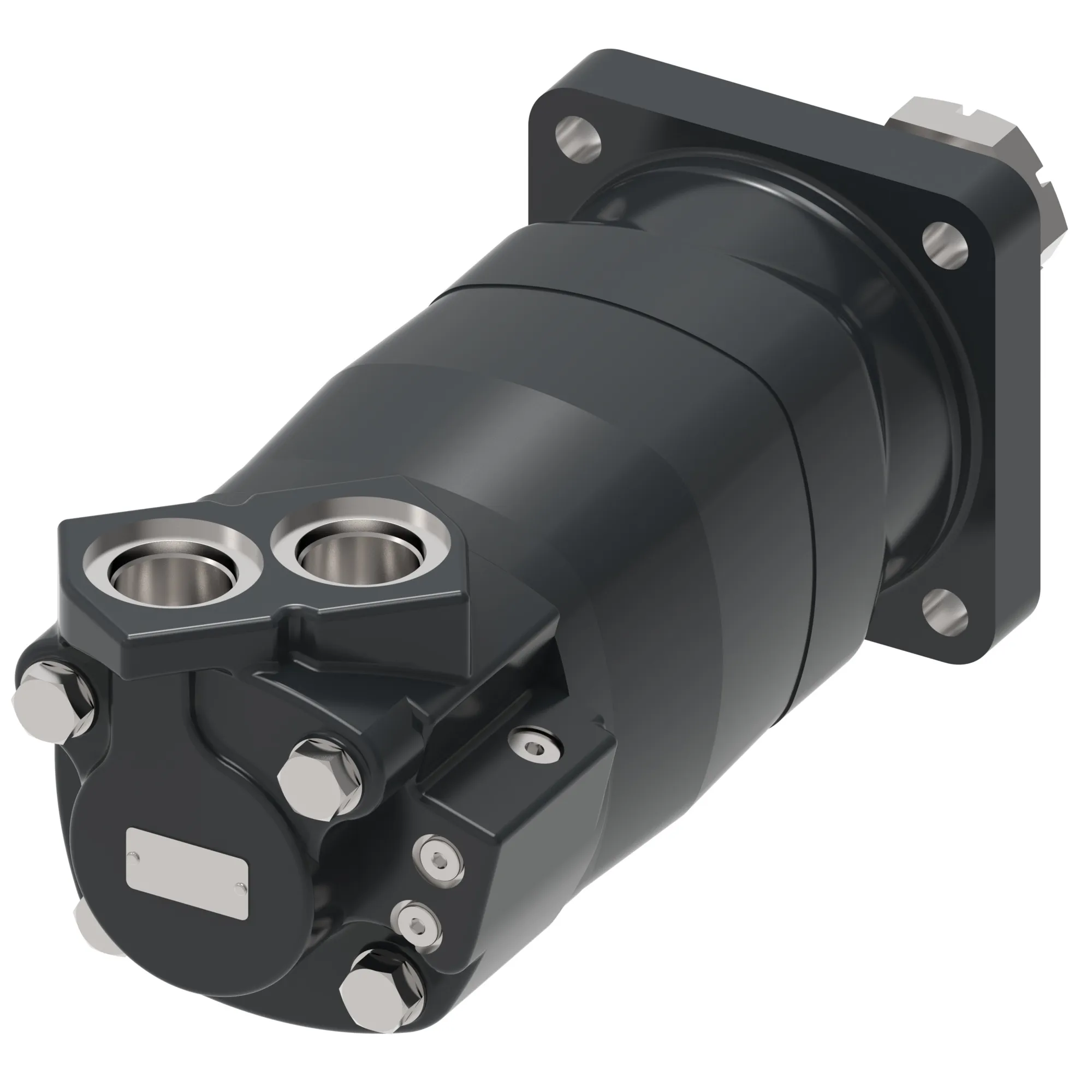

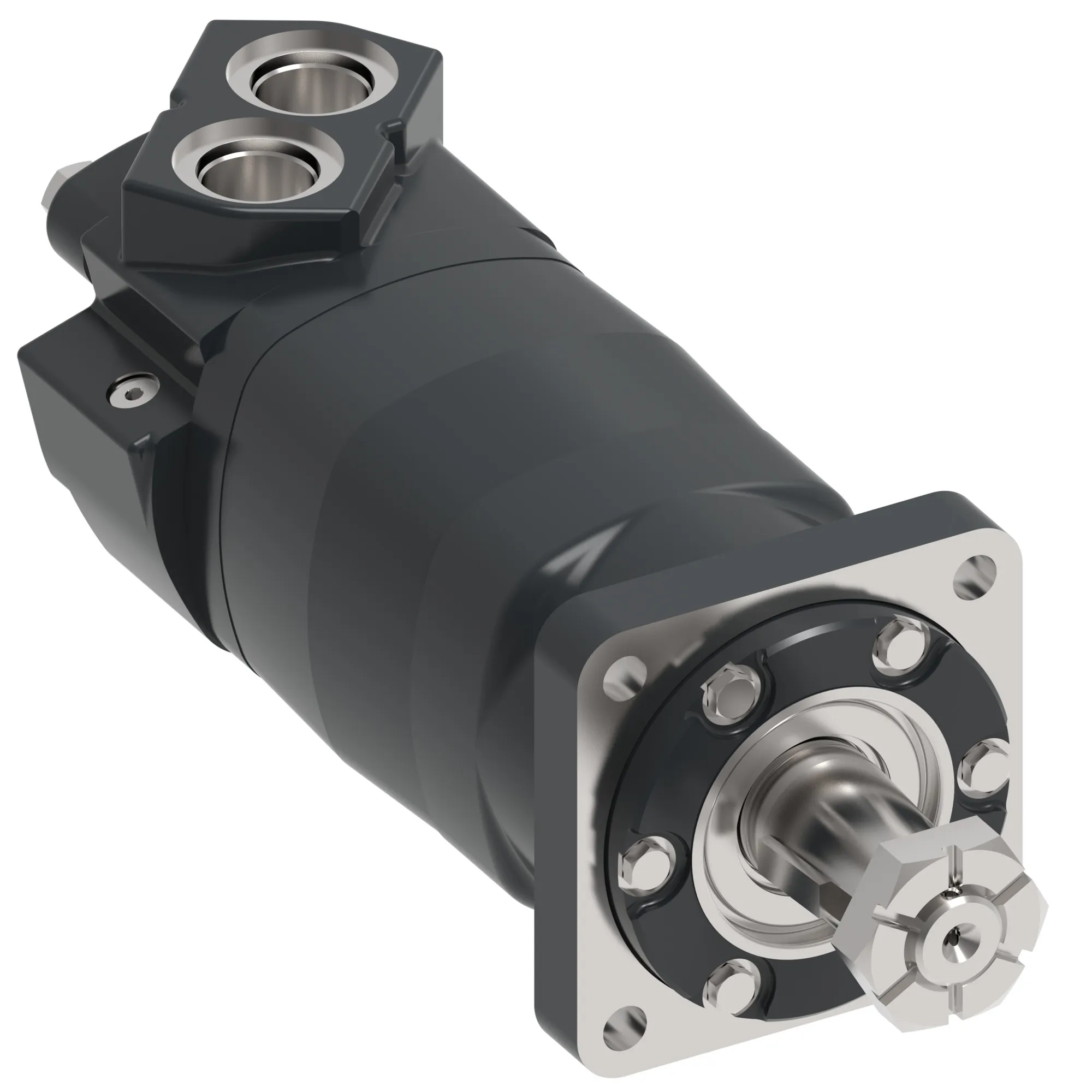

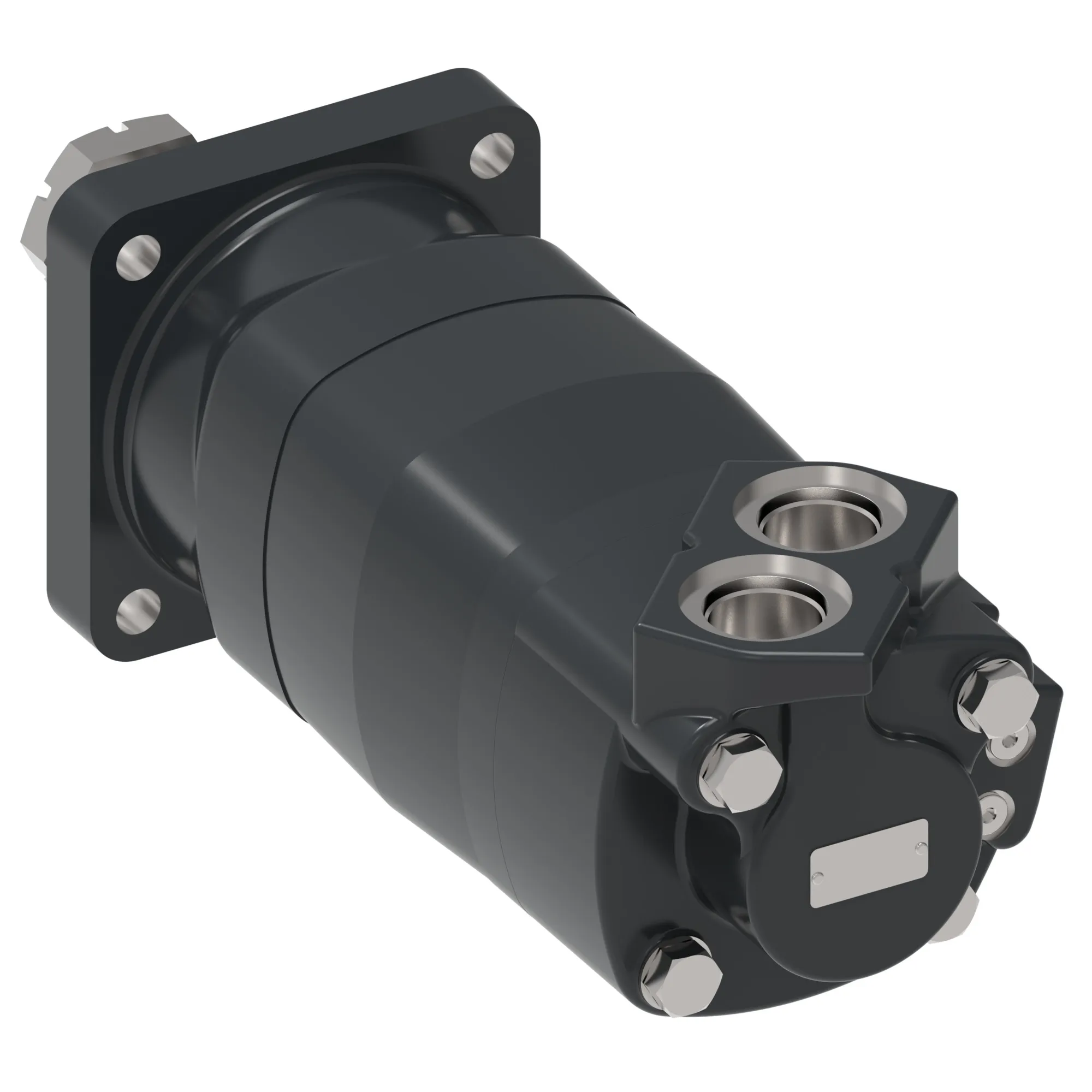

MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AE02AA1300000001200AD00F – 112-1306-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,6000 SERIES 195 [12], M06120AE02AA1300000001200AD00F – 112-1306-006
Specification
| Model Code | M06120AE02AA1300000001200AD00F |
|---|---|
| Motor Series | 6000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 195 |
| Geometric Displacement [Cm3/R [In3/R]] | 195.8 [11.95] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.7, 162.0, 14.4 [5.00 x 0.50, 6.38, 0.57] (SAE CC) |
| Shaft Dimension | Dia. 1 3/4 inch, 1:8 SAE J501, 1 1/4 – 18 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 7/16 x 1 1/4 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 5/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 9/16 – 18 UNF-2B SAE O-Ring port – Spec. Component |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
