Danfoss (Drives) 11198361

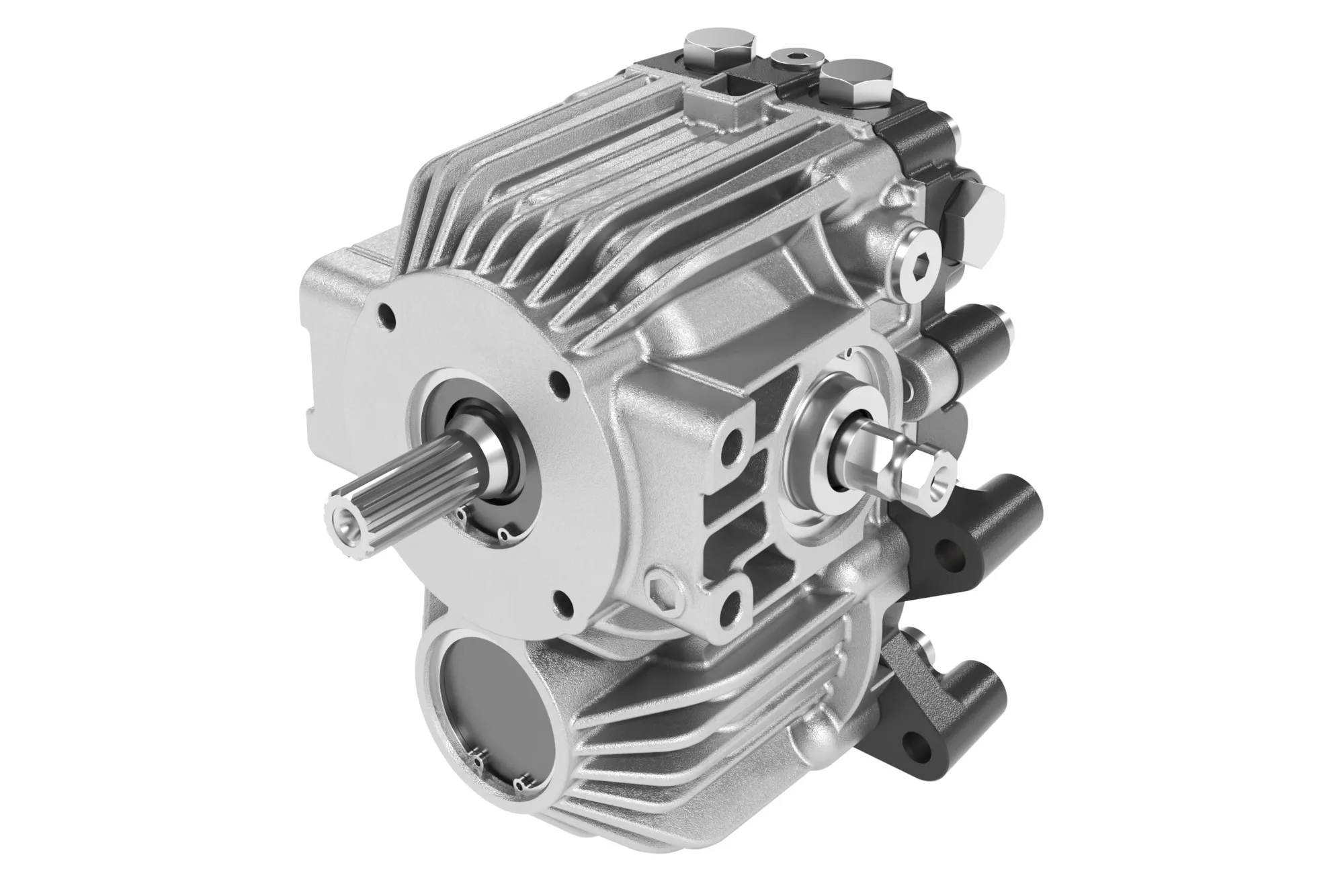

TRANSMISSION LDU 20 U-STYLE CW – 11198361
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRANSMISSION LDU 20 U-STYLE CW – 11198361
Specification
| A: Displacement & Block Type | 021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting |
|---|---|
| B: Rotation | Clockwise rotation |
| C: Valve Plate Pump | CP6.5 0.8 deg index valve plate |
| D: Control Arm Position | Left side, from input shaft view |
| E: Control Arm Configuration | 17mm Square |
| F: Pump Shaft Configuration (Input Shaft/Pto Shaft) | No feature (Input) / JIS 20x18x1.0 (PTO) |
| H: Output Shaft Configuration | JIS 20x18x1.0 |
| J: Centersection Configuration | Drain port : 9.8mm, Charge port : 9.8mm; |
| K: Charge Pump Displacement | None |
| L: Charge Relief Setting | Charge Pressure Relief Setting 7 bar |
| M: Bypass Valve | None |
| N: Check & Relief Valve (Left Hand Side Viewing From Housing) | High Pressure Relief Valve 230 bar [3335 psi] |
| P: Check & Relief Valve (Right Hand Side Viewing From Housing) | High Pressure Relief Valve 230 bar [3335 psi] w/ 0.85 mm orifice |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | LDU Product |
| Y: Special Hardware Feature | Standard |
| Z: Paint And Nametag | No Paint (corrosion protection), Daikin Logo |
