Danfoss (Drives) 11186391

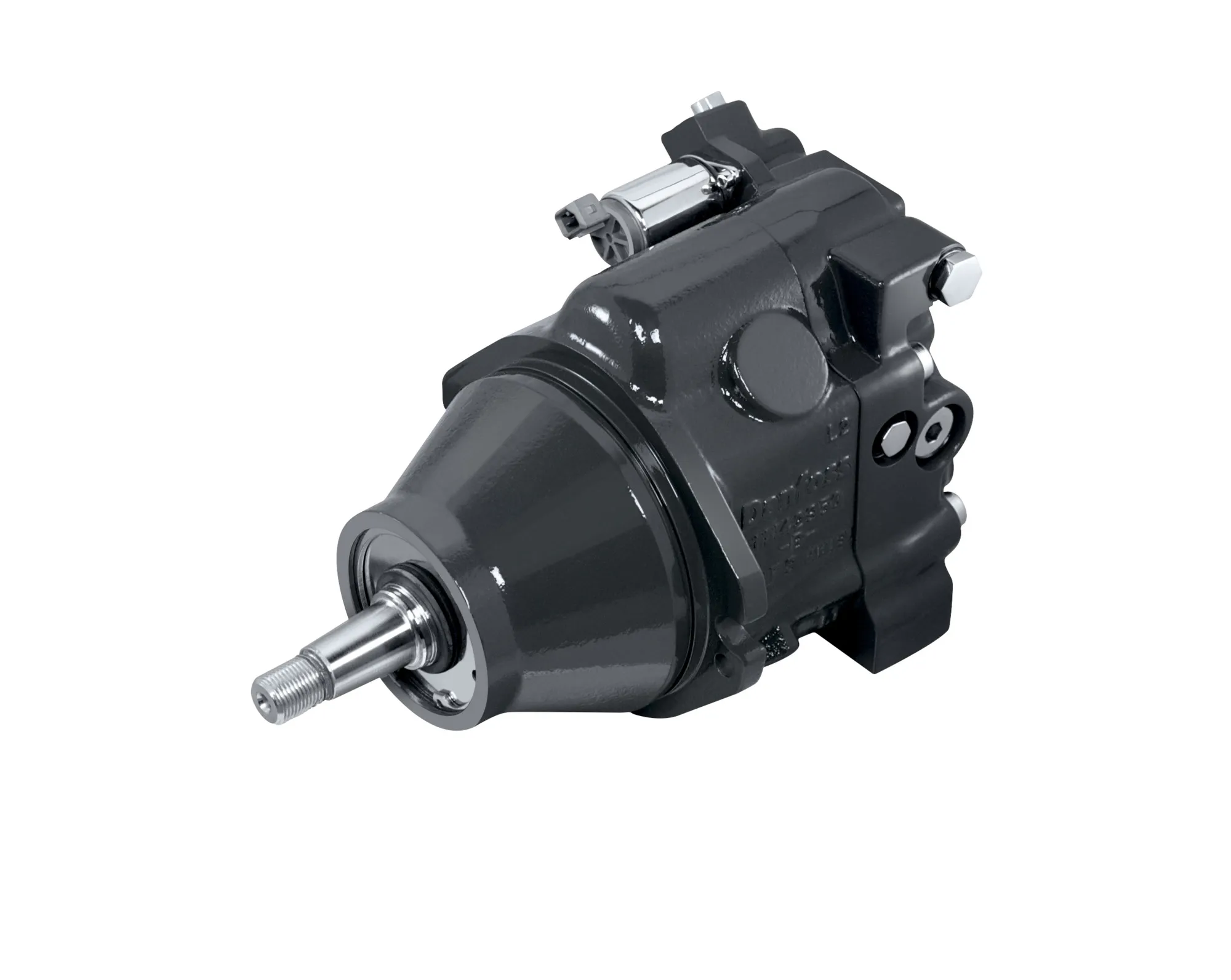

MOTOR-VARIABLE REVERSING CARTRIDGE L – 11186391
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-VARIABLE REVERSING CARTRIDGE L – 11186391
Specification
| Variable Motor Product | L Frame |
|---|---|
| B: Configuration | MOTOR-VARIABLE REVERSING CARTRIDGE |
| C: Base Displ / Speed Ring | 35cc/REVOLUTION (2.14 CU. IN.) -WITH CYLINDER BLOCK SPEED RING |
| D: Shaft | 0.875 inch DIA STRAIGHT KEY, DUST SEAL |
| E: End Cap/Loop Fl/Min Angle A | TWIN RADIAL, 1 1/16-12, ANTI-CAVITATION, A-PORT HIGH PRESSURE, 230 BAROVERPRESSURE PROTECTION, 24 VOLT ELECTRIC SHIFT |
| F: Minimum Displacement Setti | REVERSE DISPLACEMENT 18 DEGREE |
| G: Control Type | HYDRAULIC SINGLE LINE |
| H: Supply Orifice | NONE |
| J: Drain Orifice | NONE |
| K: Spd Snsg/Max Angle Adj | HOUSING WITH SPEED SENSOR KPPG13704, METRIC CASE DRAIN, M18x1.5 |
| L: Max Disp Set | F18 |
| M: Special Hardware | SPECIAL HARDWARE – HIGH CAPACITY ROLLER BEARING |
| N: Special Features | SPECIAL FEATURE – BLACK PAINT, FULL COVERAGE, DANFOSS NAMETAG, LAYOUT Q |
| Proposition 65 | Cancer and Reproductive Harm |
