Danfoss (Drives) 11185293
PUMP-VAR DISPL, CCW S45PVOC_K2 – 11185293
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

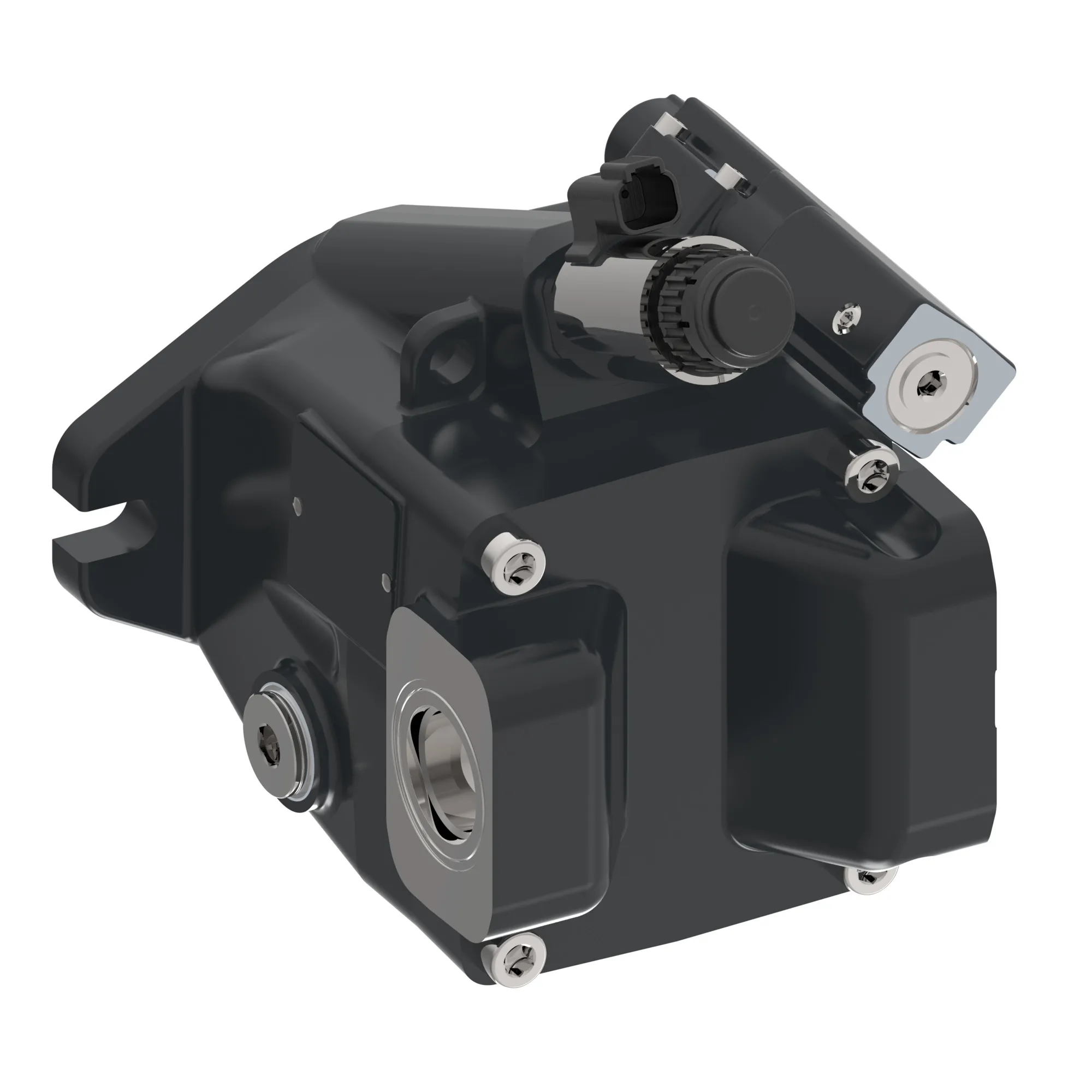

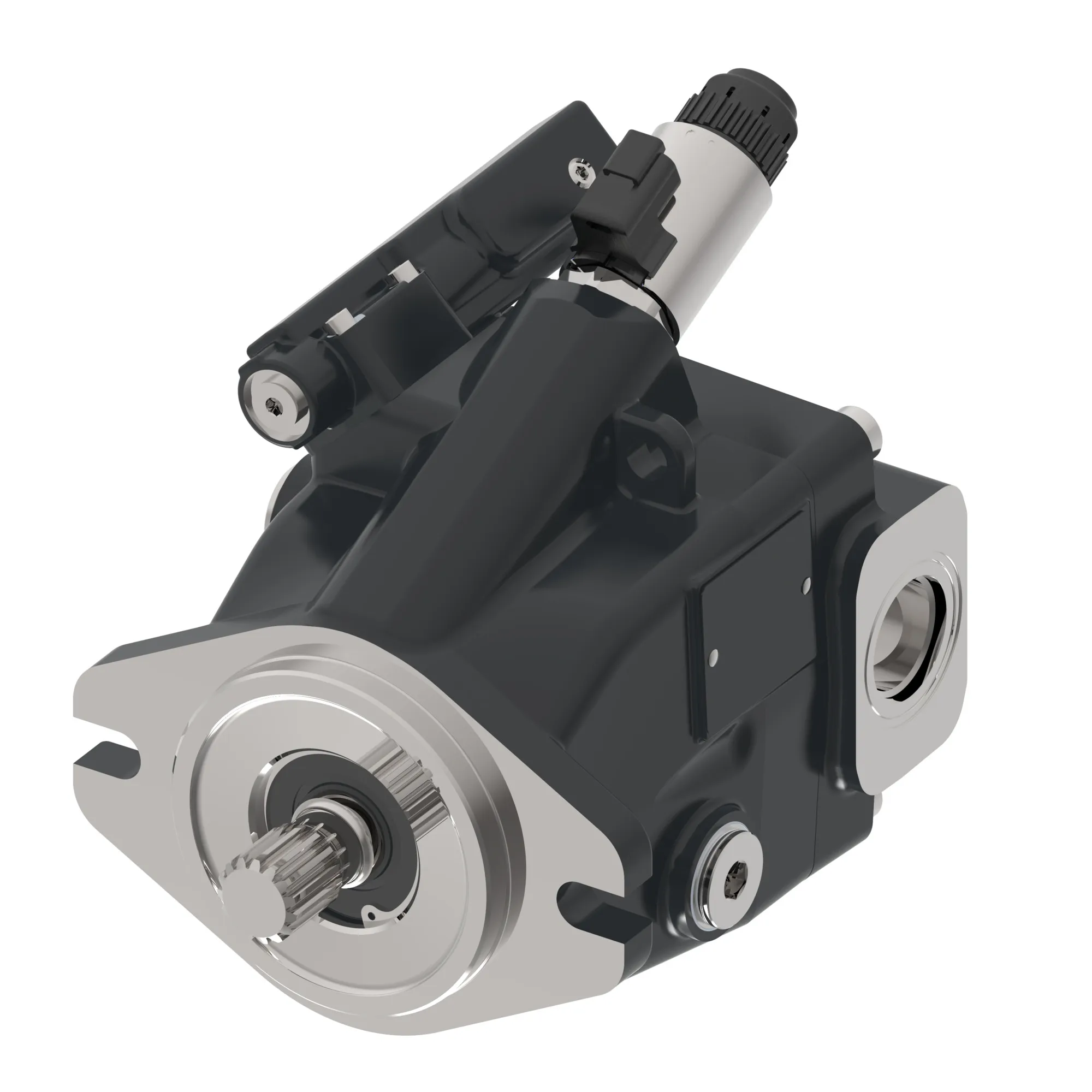

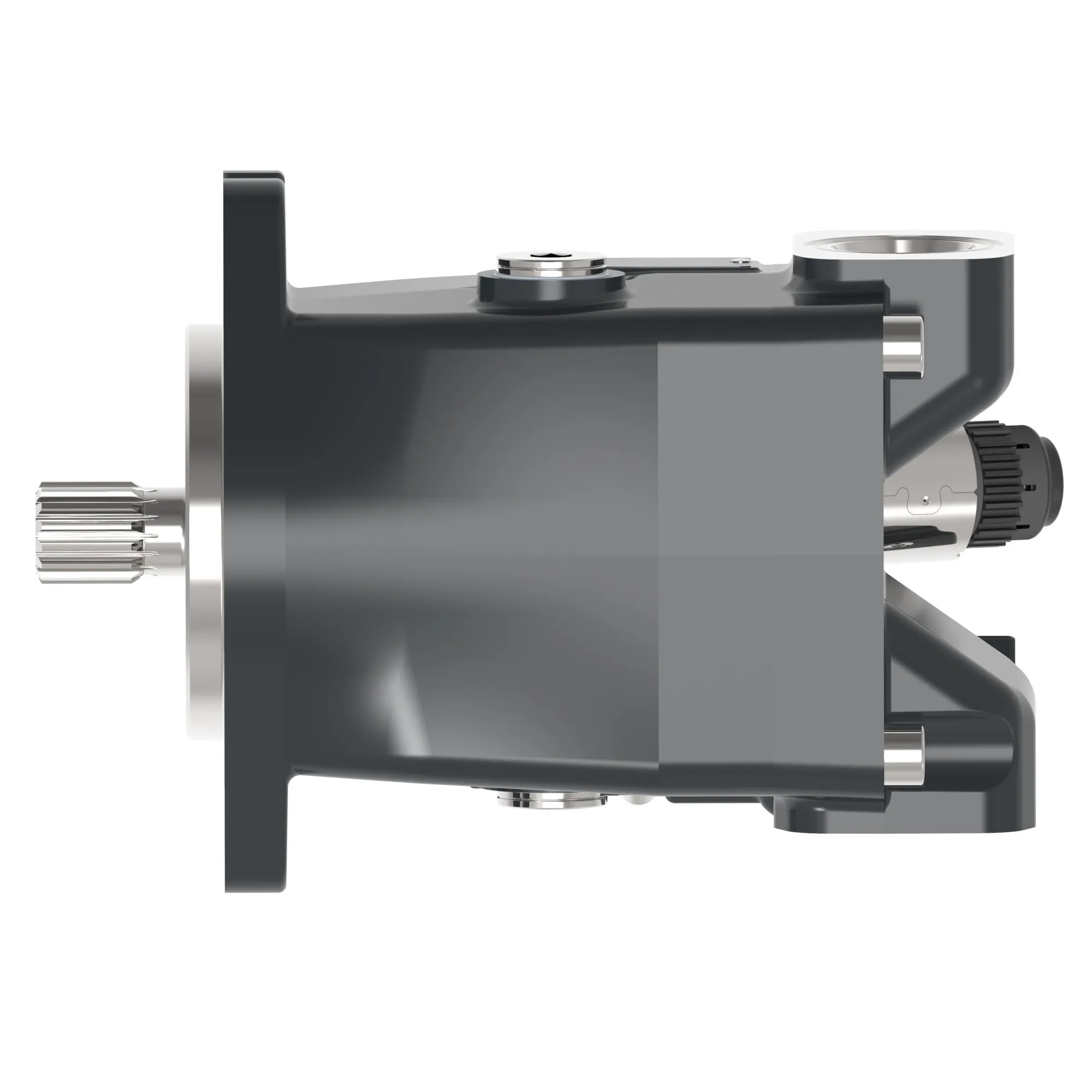

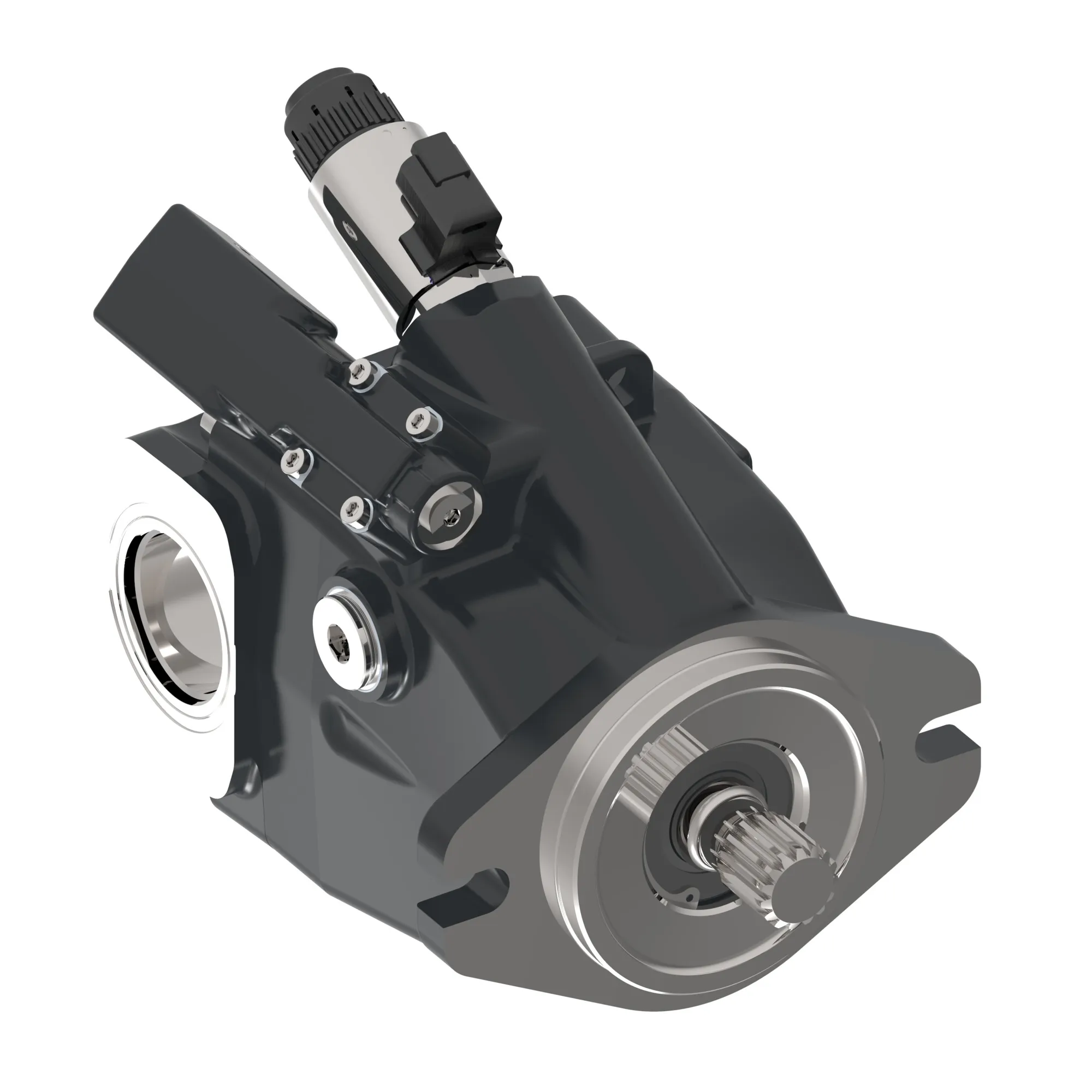

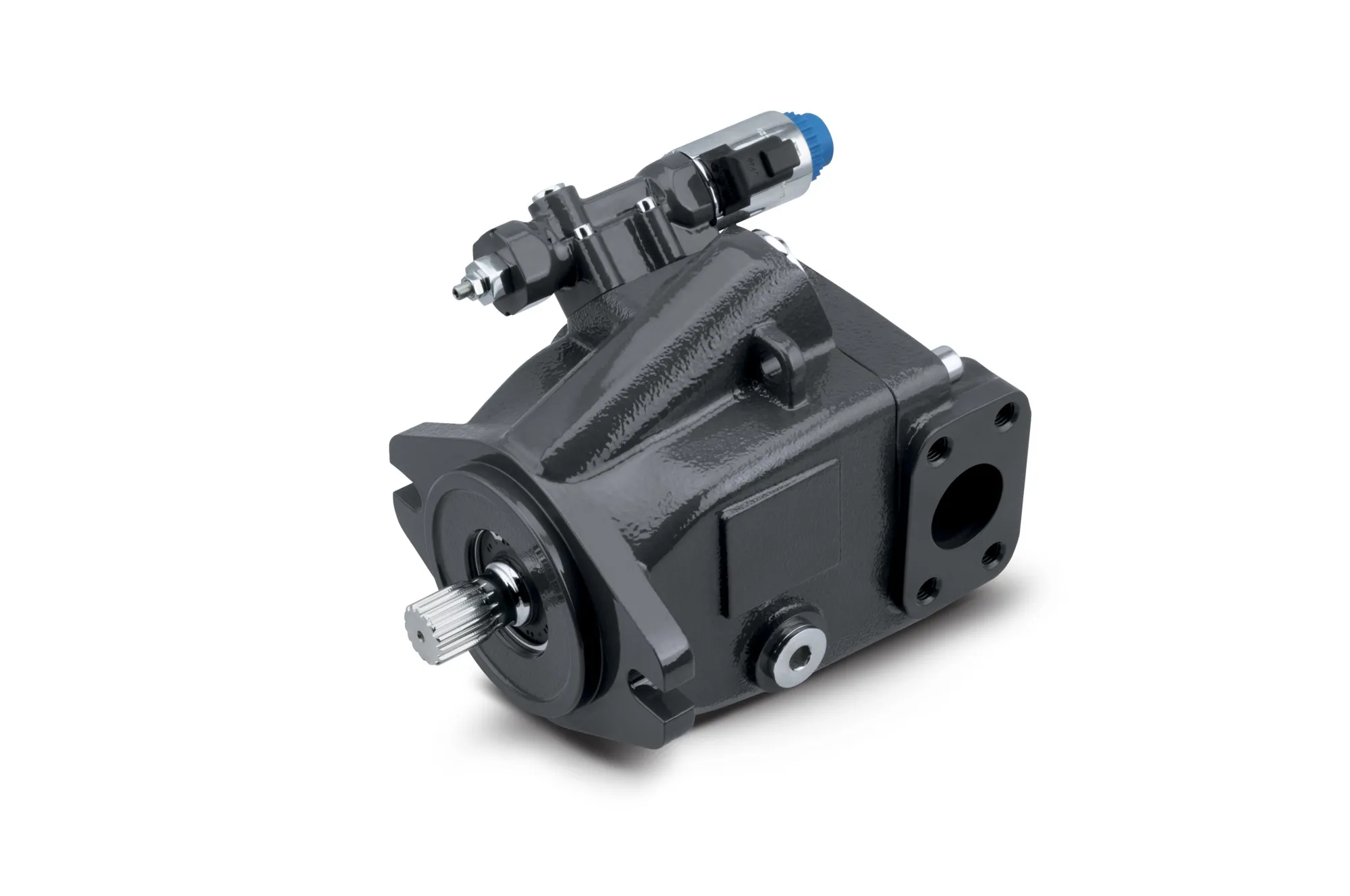

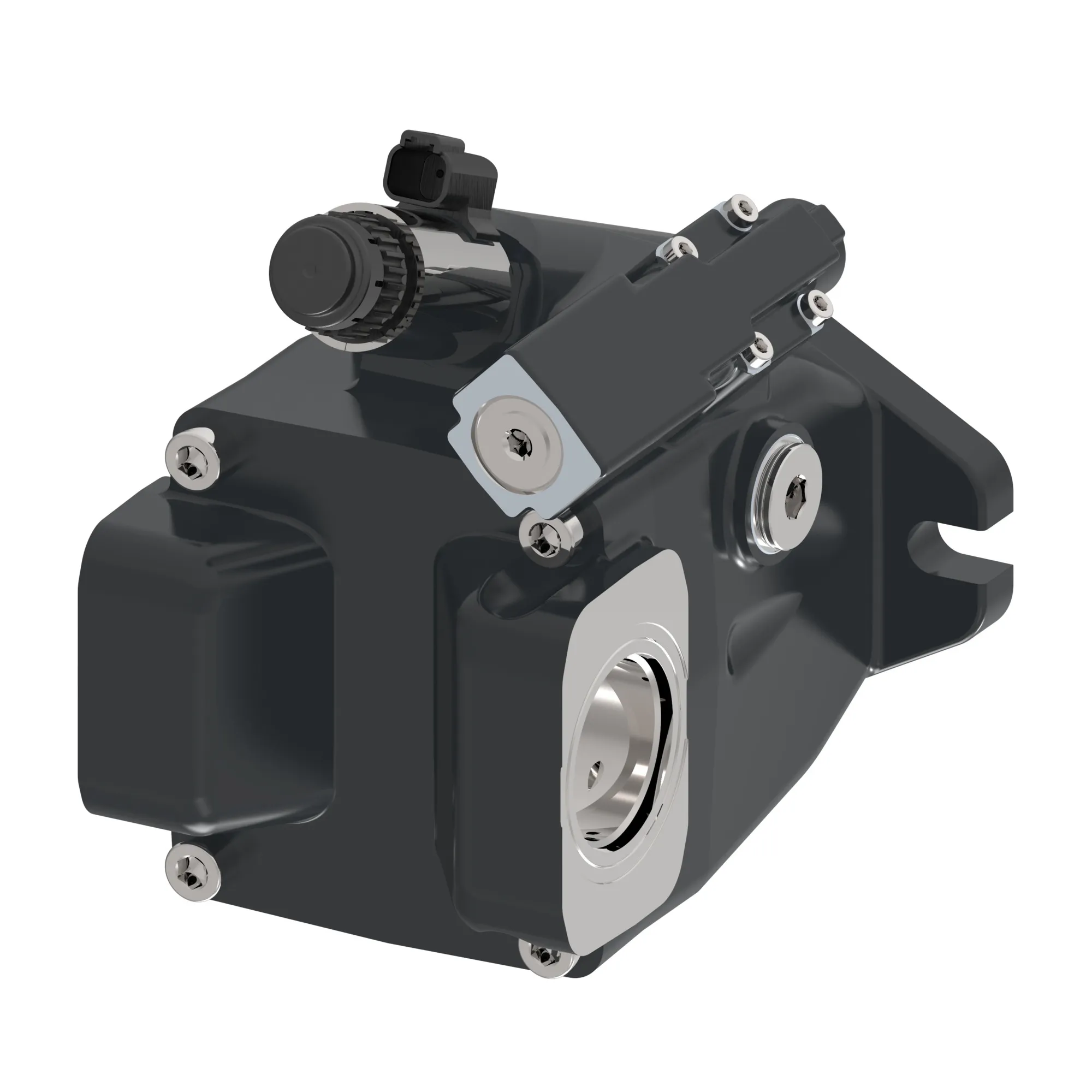

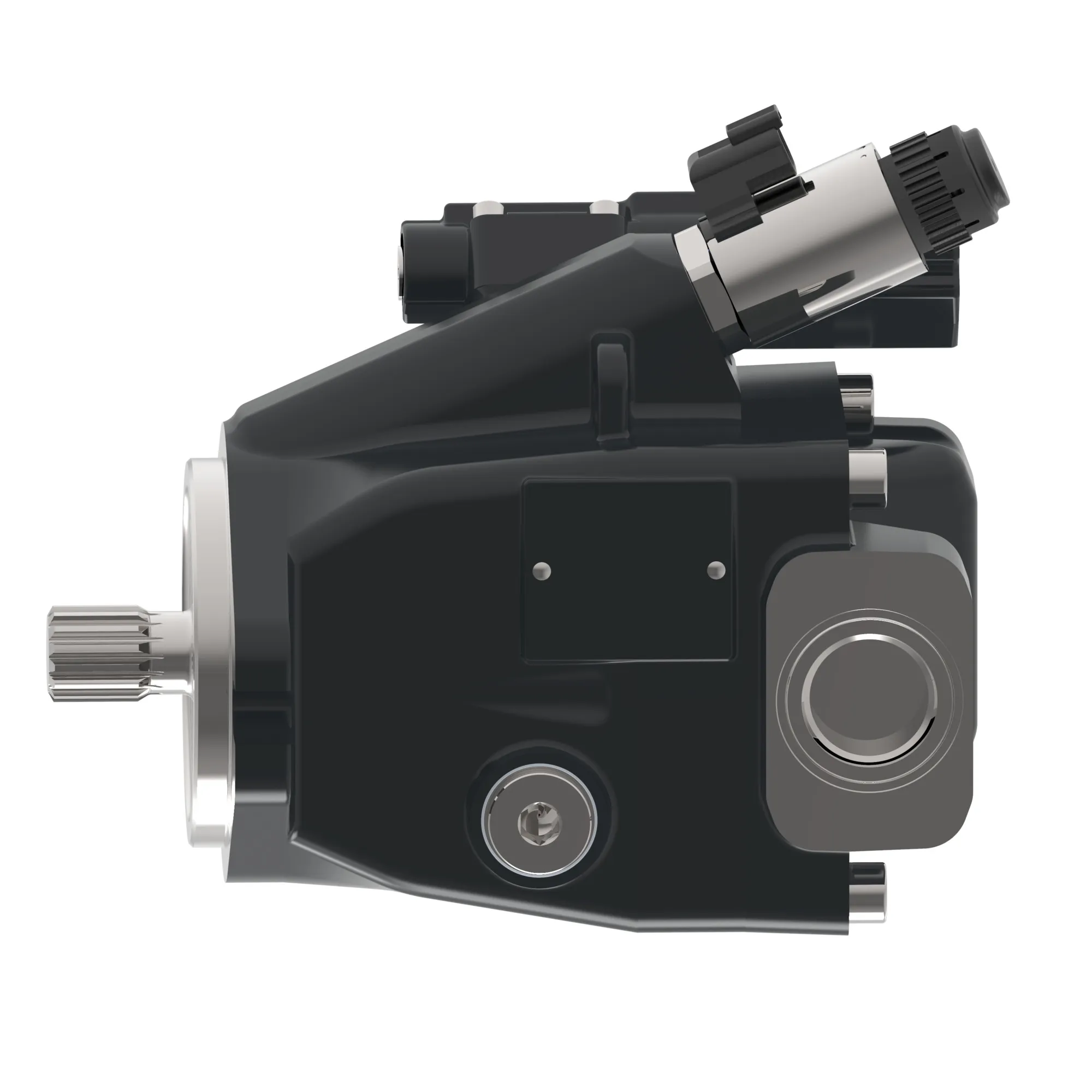

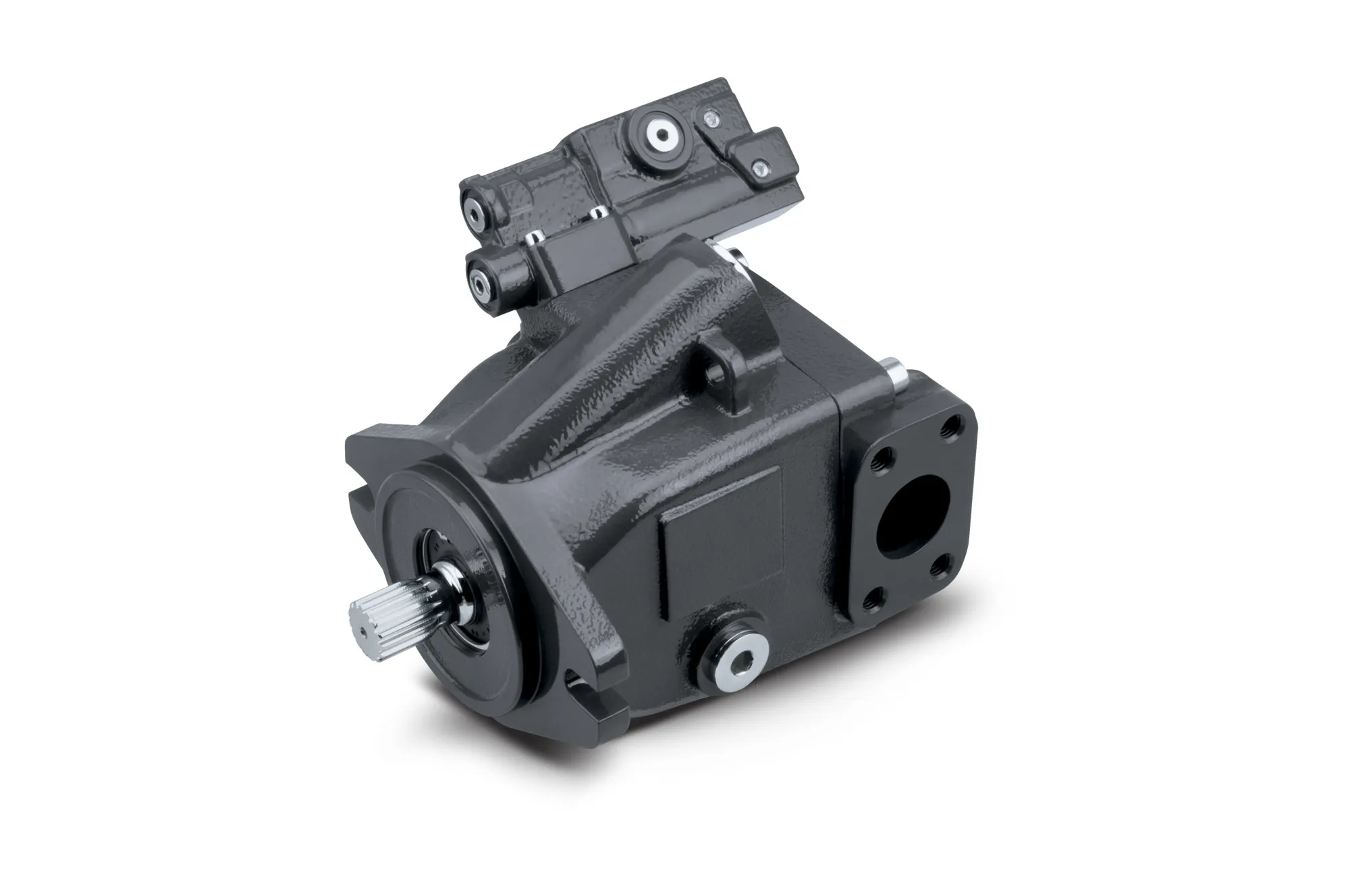

PUMP-VAR DISPL, CCW S45PVOC_K2 – 11185293
Specification
| Frame | K2 frame axial piston open circuit pump |
|---|---|
| Rotation | Counter-clockwise rotation |
| Displacement And Load Life | 45 cc/rev – 310 bar maximum continuous rated pressure |
| Control Type | Electric fan drive control, 12VDC, proportional pressure decreasing functionality (NC), Deutsch connector left [PC pressure range:100-210 bar] |
| Pressure Compensator Setting | 200 bar [2900 psi] |
| Load Sensing Setting | Not applicable |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | 0.8 mm diameter orifice – servo control orifice |
| Gain Orifice | 1.2 mm diameter orifice, fan drive control, gain orifice |
| Shaft, Auxiliary Flange, And Endcap | K1XX=.875SK,NOFLG,RD,CCW, |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports |
| Displacement Limiter | Adjustable displacement limiter set to max flow |
| Special Hardware | Special hardware – none |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
