Danfoss (Drives) 11184128

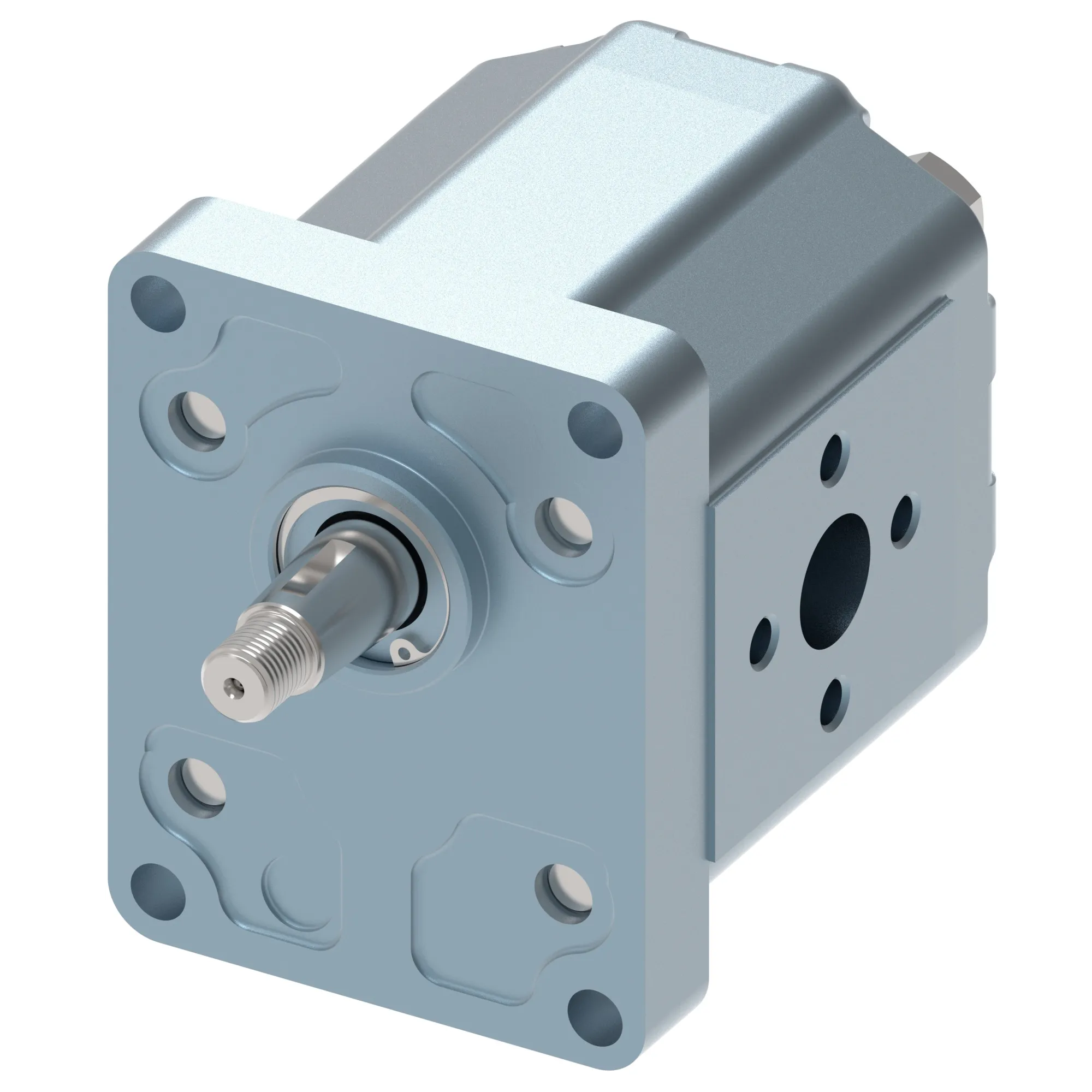

GEAR PUMP GR2 FIXED DISPL WITH VALVE – 11184128
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR PUMP GR2 FIXED DISPL WITH VALVE – 11184128
Specification
| D Size Group2 | Group 2:from 3 to 28 cc |
|---|---|
| Displacement | Displacement 4,0 cc |
| Drive Gear | Splined SAE J498-9T-16/32-Dp Class 1FIT -SC06 |
| E Valve Group2 | Relief valve with external drain |
| F Drain Group2 | Inlet on body – Outlet on body – Drain on cover in vertical position driven gear side |
| Inlet Size | 1/2 GAS |
| Mark Position | Position Marking standard (on the top in relation to drive gear) |
| Mark Type | Standard Marking |
| Mounting Flange | Flange SAE A, pilot Ø82,55 mm and 2 holes for bolts |
| O Ring, Inside Diameter | Slash |
| Outlet Size | 1/2 GAS |
| Ports Position | Standard from catalogue |
| Project Version | Standard Version of Project |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Cover | Cover P+RV exter.vert.dr 3 |
| R O T A T I O N | Product with clockwise rotation |
| Screws | Screws standard |
| Seals | Standard seal |
| Slash Separator | Slash |
| Valve Setting | Setting relief valve, velocity of product per checked setting 3000 rpm and pressure 210 bar with oil ISO VG68 a 40°-50°C |
