Danfoss (Drives) 11183014

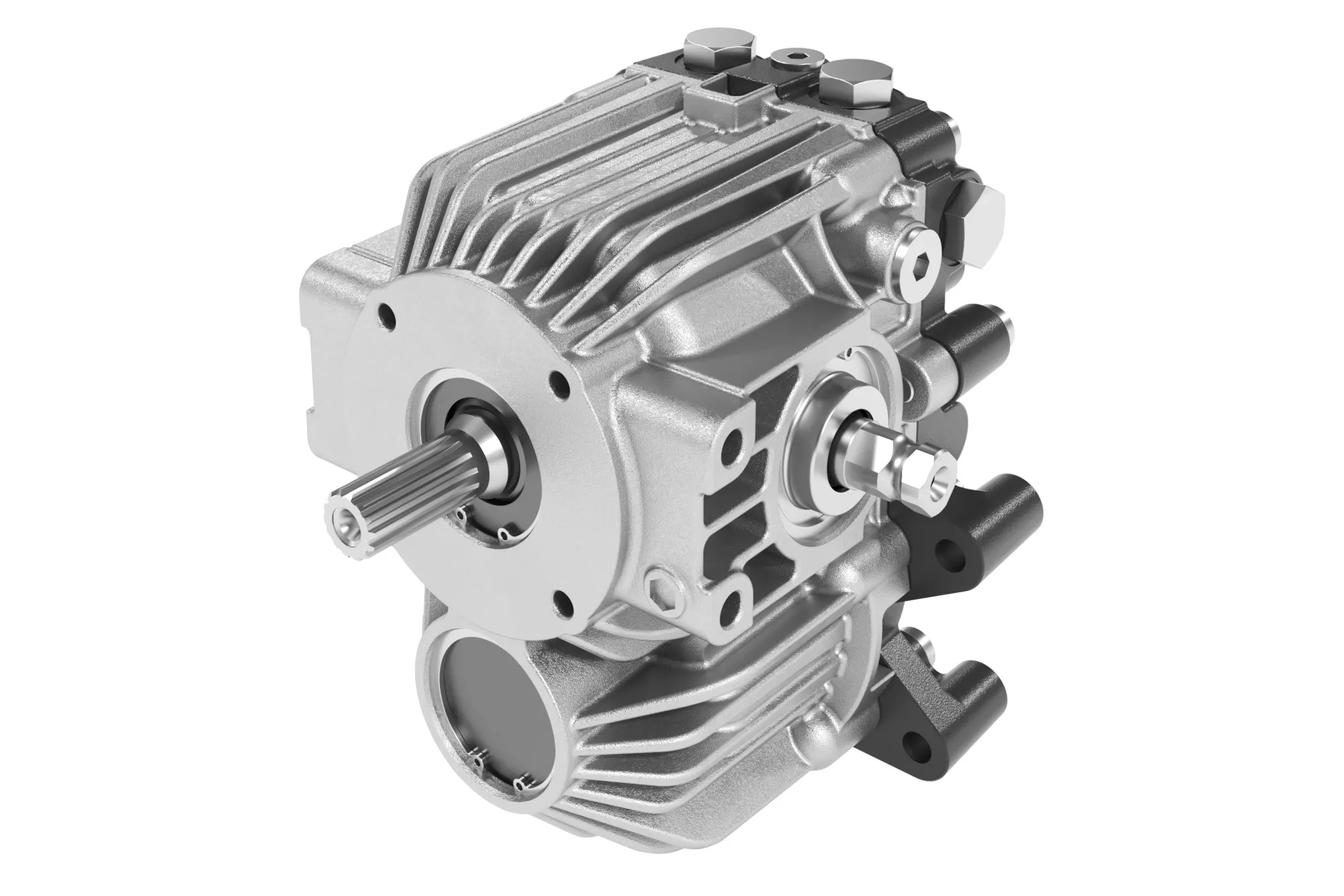

TRANSMISSION LDU21Hb U-STYLE CCW – 11183014
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRANSMISSION LDU21Hb U-STYLE CCW – 11183014
Specification
| A: Displacement & Block Type | 021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting |
|---|---|
| B: Rotation | Counter-clockwise rotation |
| C: Valve Plate Pump | CP6.5 0.8 deg index valve plate |
| D: Control Arm Position | Right side, from input shaft view |
| E: Control Arm Configuration | F: 15mm OD w/ 12mm flat |
| F: Pump Shaft Configuration (Input Shaft/Pto Shaft) | KA: KEY 17MM OD, JIS 22T |
| H: Output Shaft Configuration | C: JIS 18T 15MM OD |
| J: Centersection Configuration | D: DR 8MM, CHG 6MM X2 |
| K: Charge Pump Displacement | None |
| L: Charge Relief Setting | Charge Pressure Relief Setting 7 bar |
| M: Bypass Valve | None |
| N: Check & Relief Valve (Left Hand Side Viewing From Housing) | High Pressure Relief Valve 250 bar [3625 psi] |
| P: Check & Relief Valve (Right Hand Side Viewing From Housing) | 25B: 250BAR W/ 0.7MM ORIFICE×2 |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | LDU Product |
| Y: Special Hardware Feature | Standard |
| Z: Paint And Nametag | No Paint (corrosion protection), Daikin Logo |
