Danfoss (Drives) 11181976

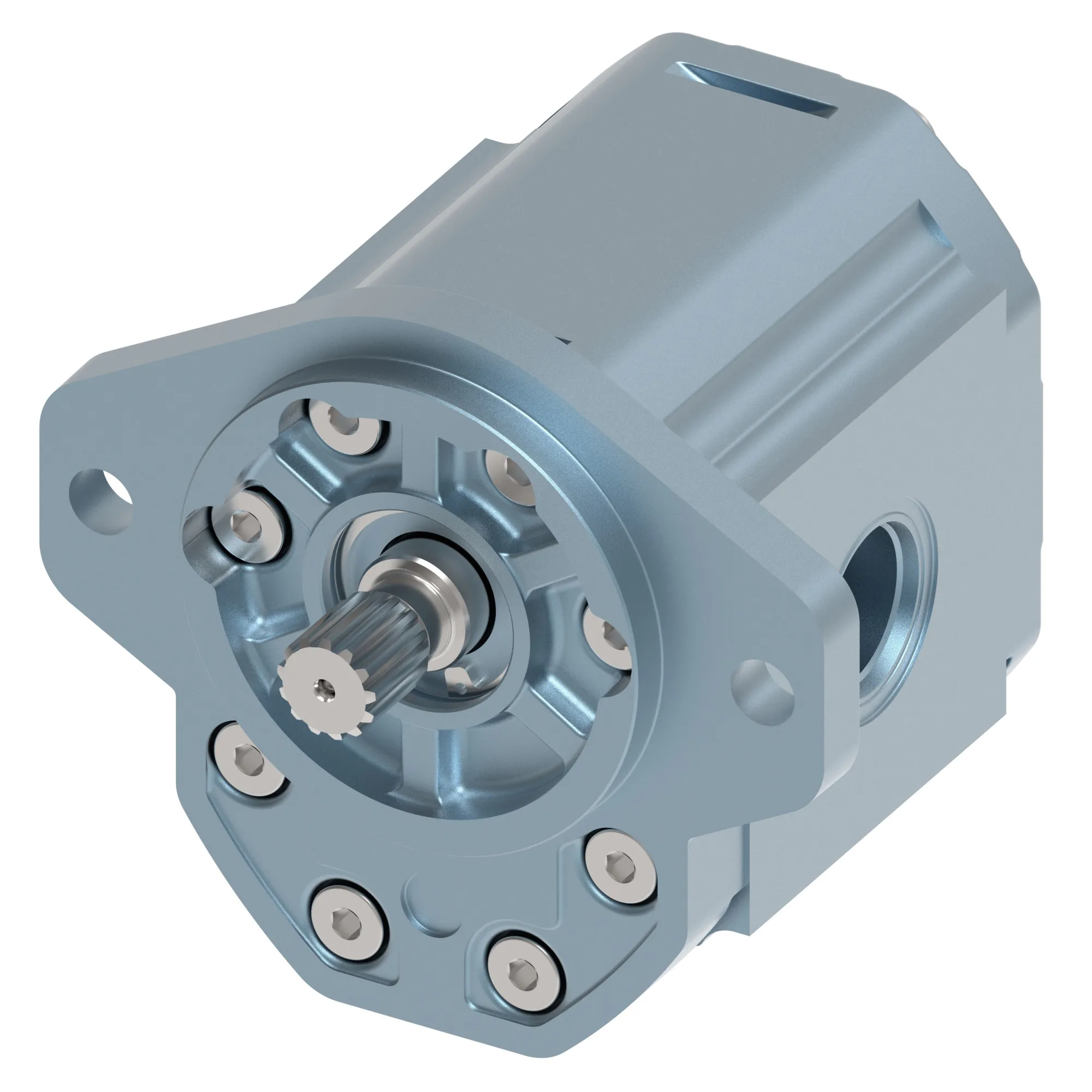

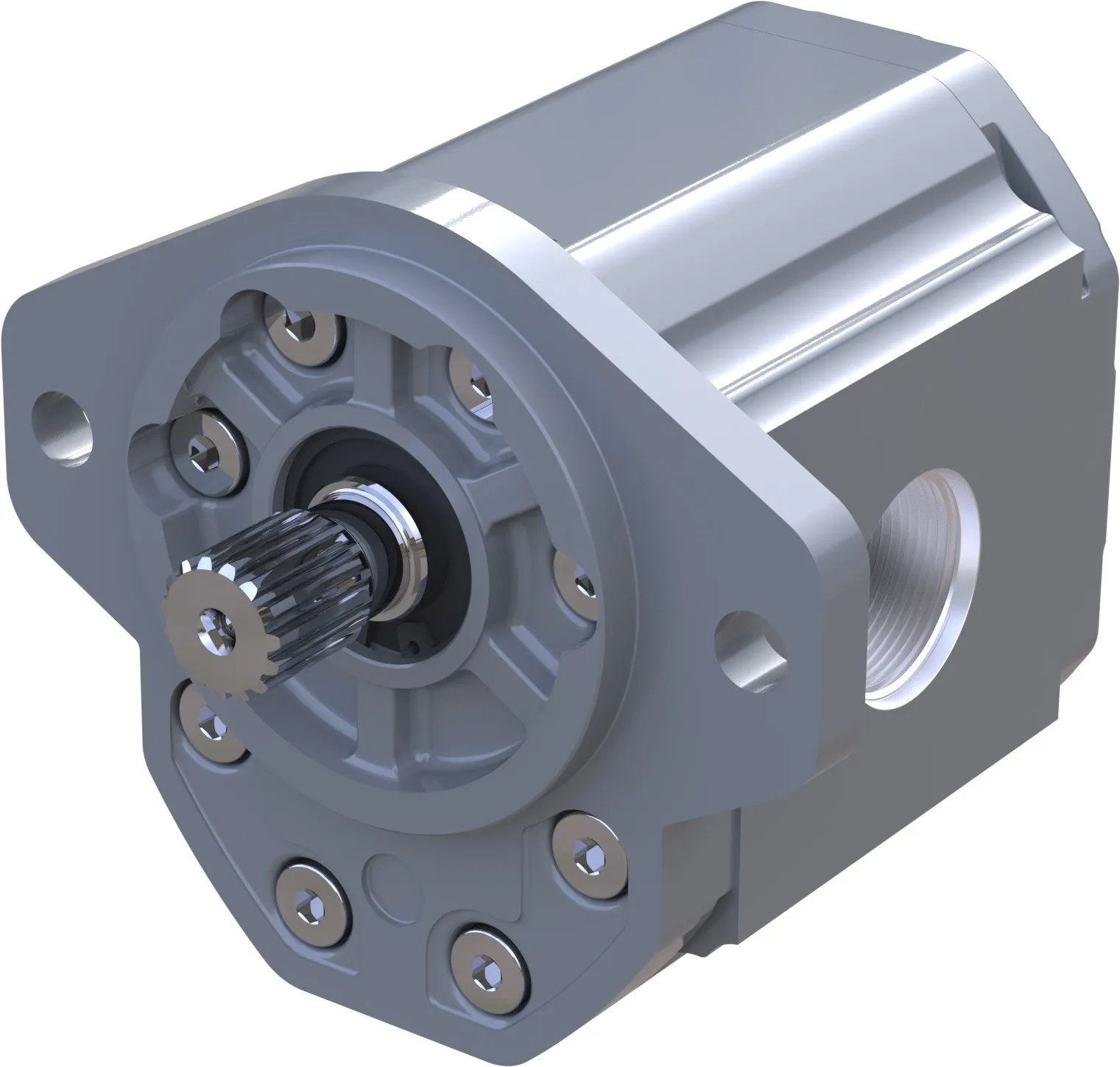

GEAR PUMP GR3 FIXED DISPL – 11181976
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR PUMP GR3 FIXED DISPL – 11181976
Specification
| B: Displacement | Displacement 55 cc |
|---|---|
| C: Rotation | Product with counter-clockwise rotation |
| D Size Group3 | Group3-from 16 to 90cc displ |
| D: Project Version | Standard Version of Project |
| E Valve Group3 | Without valve |
| E: Mounting Flange | Flange with pilot D.105 and 4 holes for bolts |
| F Drain Group3 | Standard or no drain |
| F: Drive Gear | Spline drive DIN 5482 B 28 x 25 L=28 ; rear spline DIN 5482 22 x 19 L=16,5 SC46 |
| G: Rear Cover | Not assigned (with intermediate flange instead cover) |
| H: Inlet Size | 31×30,18×58,72xM10 deep18 Horiz |
| I: Outlet Size | 25×52,37×26,19x M10 hor.20d |
| J: Ports Position | Standard from catalogue |
| K: Seals | Standard seal |
| L: Screws | Product assembled with ‘DACROMET’or ‘GEOMET’ covering screws (+nuts, washers or cap nuts galvanized if listed on the Bill of Materia) (LML) |
| M: Valve Setting | without setting |
| N: Mark Type | WIRTGEN Marking |
| O Ring, Inside Diameter | Slash |
| O: Mark Position | Position Marking standard |
| Proposition 65 | Cancer and Reproductive Harm |
| Slash Separator | Slash |
