Description

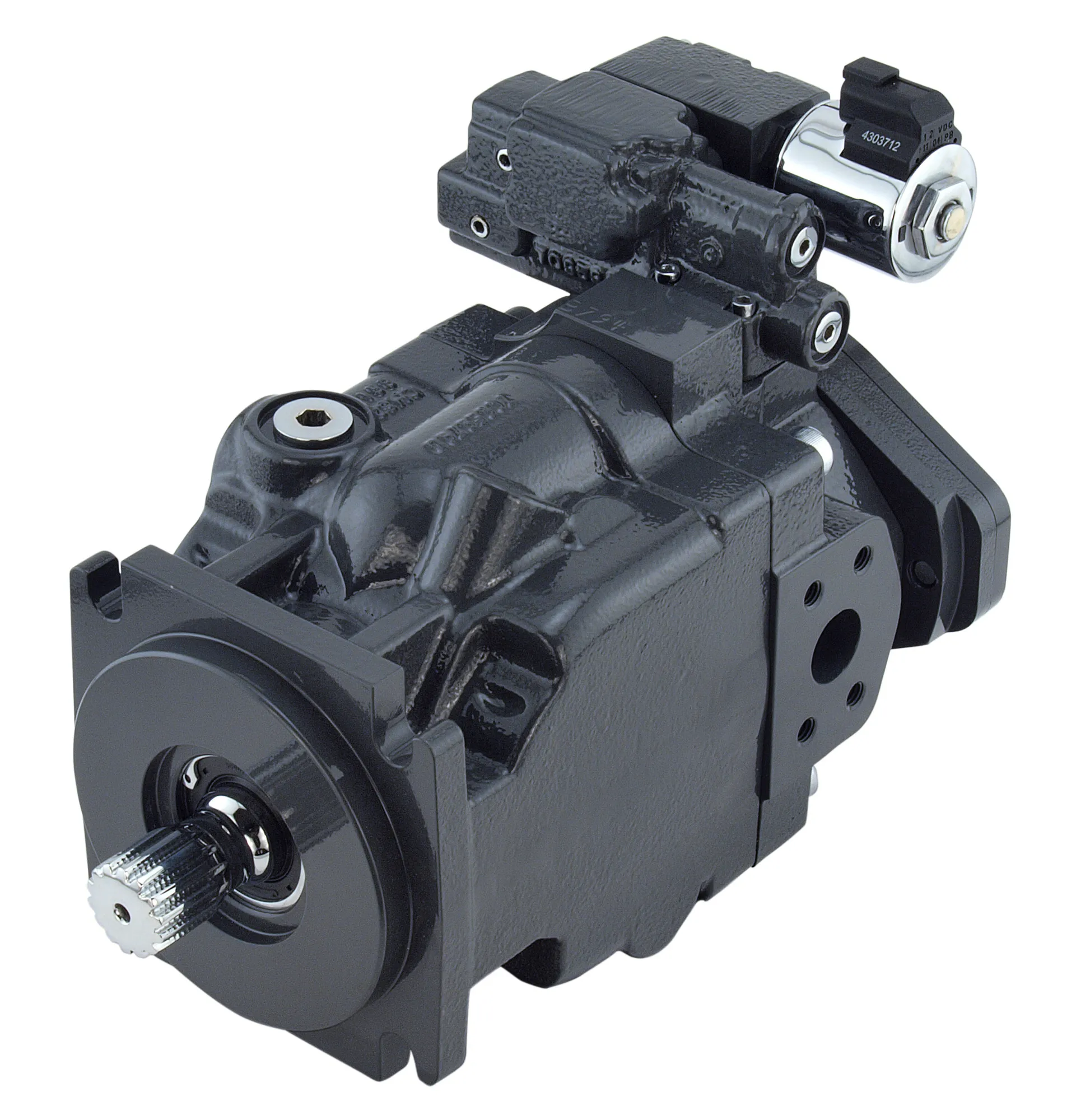

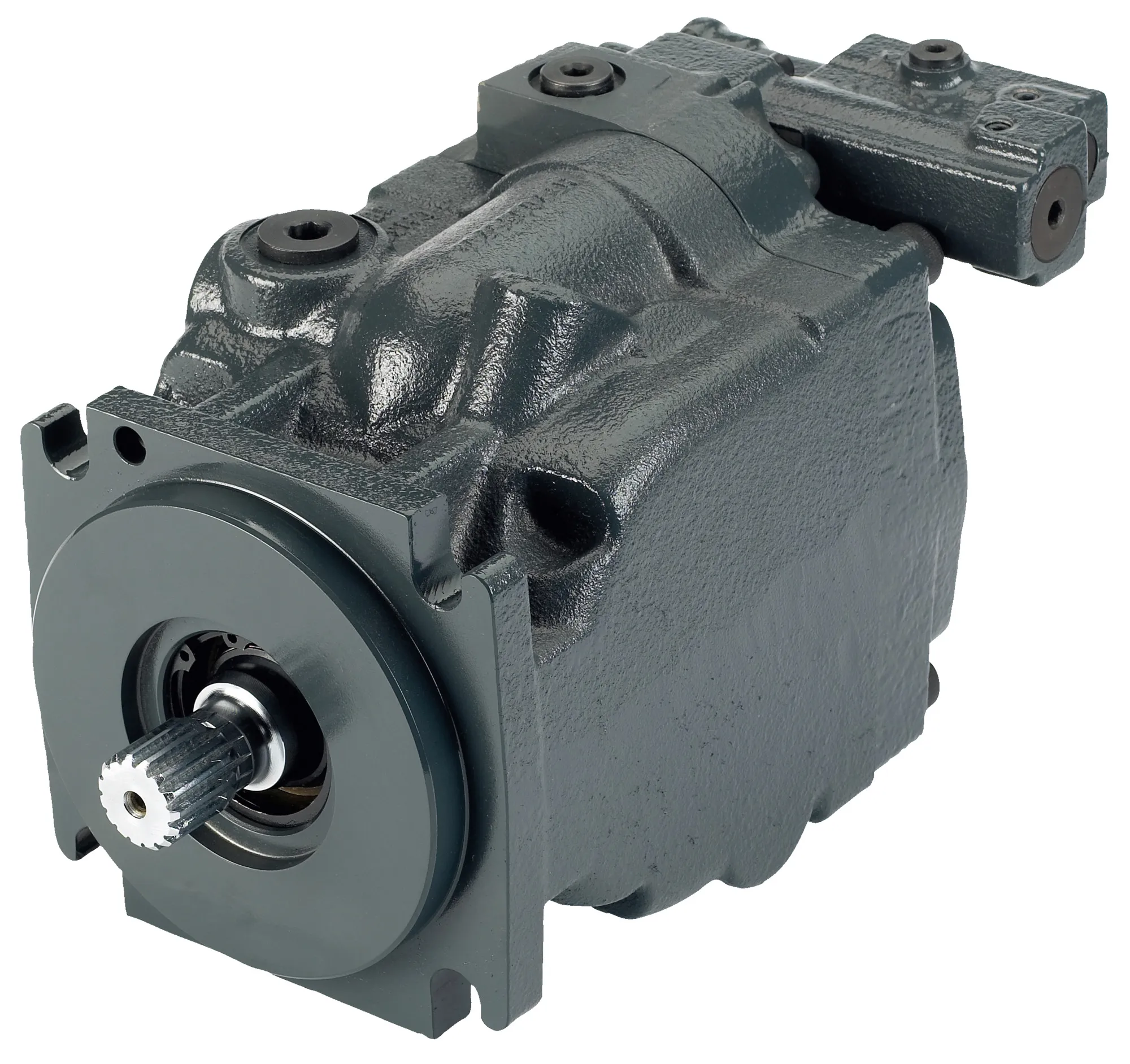

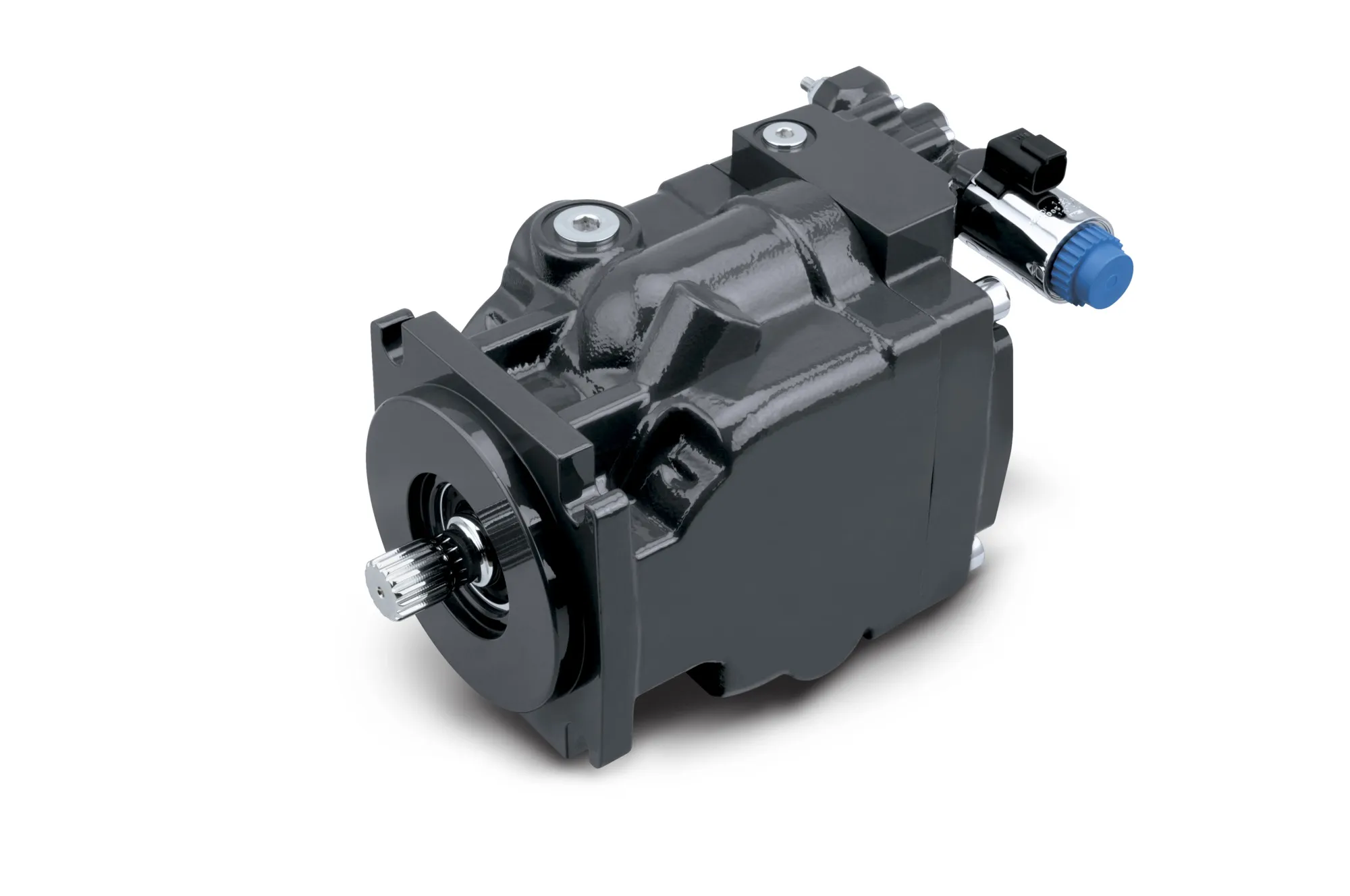

PUMP-VAR DISPL, CCW S45PVOC_J DCA – 11172431
Specification
| Frame | J frame axial piston open circuit pump |
|---|---|
| Rotation | Counter-clockwise rotation |
| Displacement And Load Life | 75 cc/rev – 260 bar maximum continuous rated pressure |
| Control Type | Electric fan drive control, 24VDC, proportional pressure decreasing functionality (NC), Deutsch connector right [PC pressure range:220-310 bar] |
| Pressure Compensator Setting | 280 bar [4060 psi] |
| Load Sensing Setting | Not applicable |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | 0.8 mm diameter, fan drive control, servo choke orifice |
| Gain Orifice | 1.2 mm diameter orifice, fan drive control, gain orifice |
| Shaft, Auxiliary Flange, And Endcap | 14 tooth 12/24 pitch shaft, no auxiliary, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet: 4-bolt splitflange (1 inch port, 0.375 inch threads), with displacement limiter |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports |
| Displacement Limiter | Adjustable displacement limiter set to max flow |
| Special Hardware | Special hardware – none |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
