Danfoss (Drives) 11172353
PUMP-VAR DISPL, CCW S45PVOC_J – 11172353
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

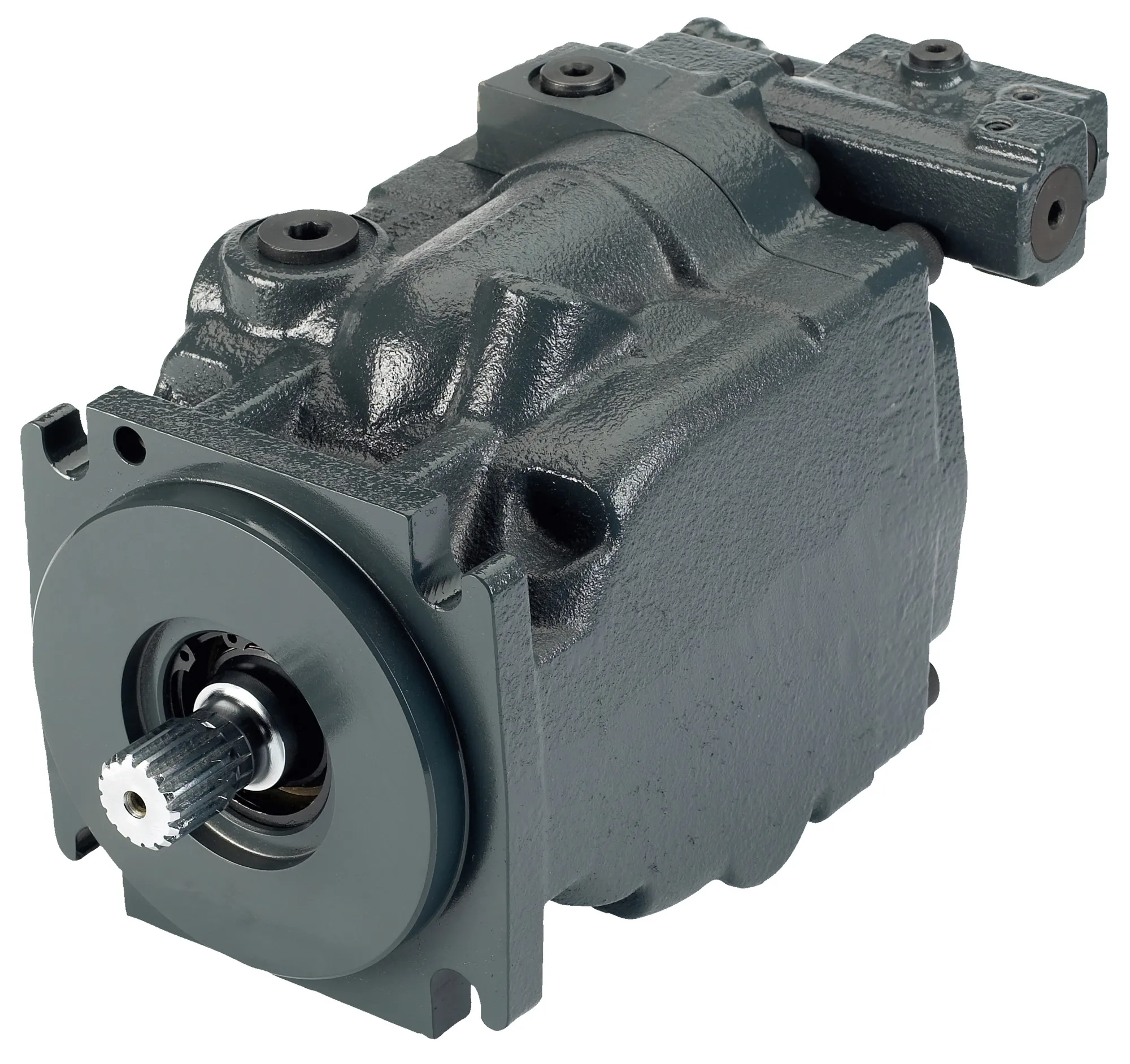

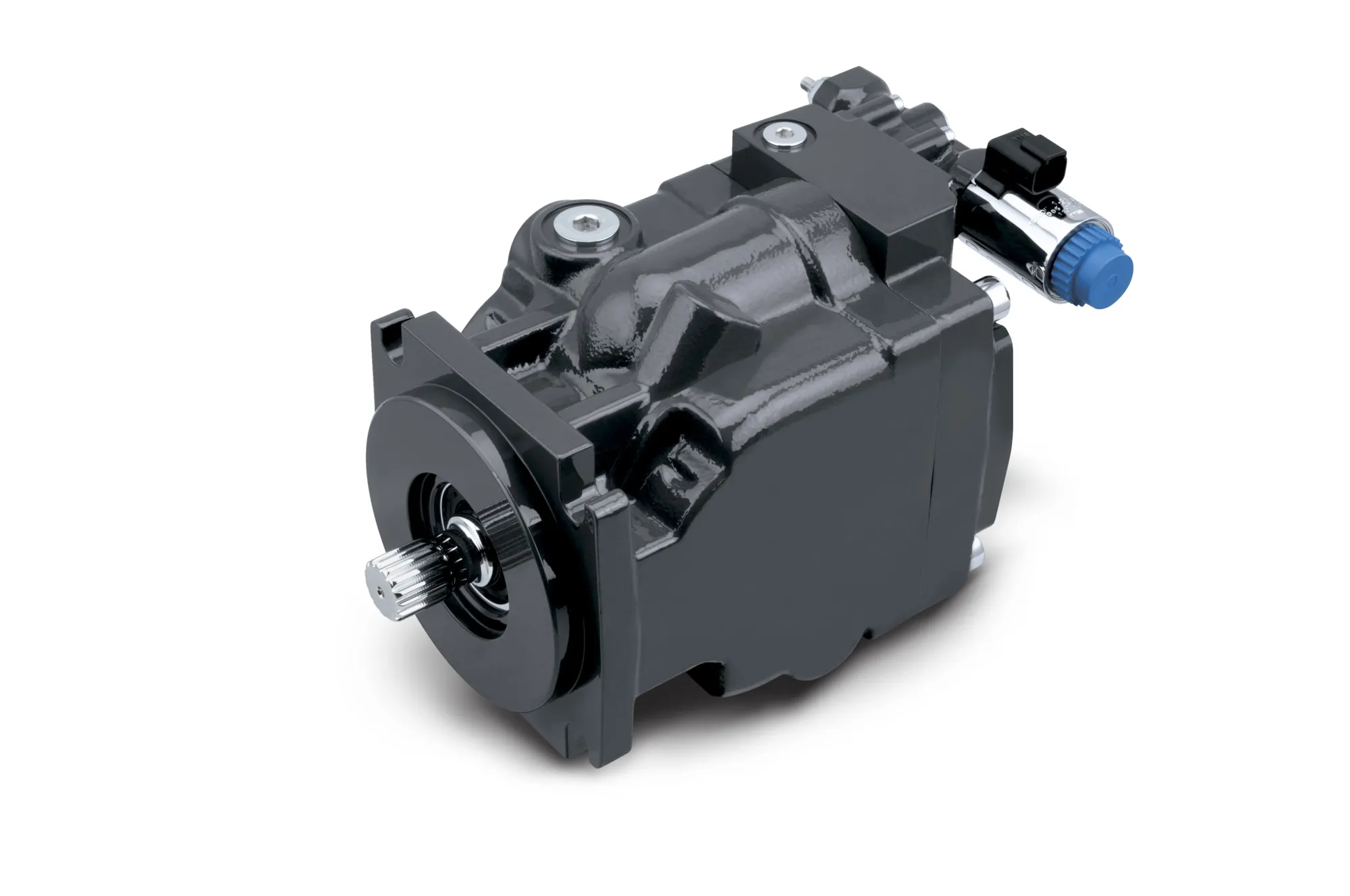

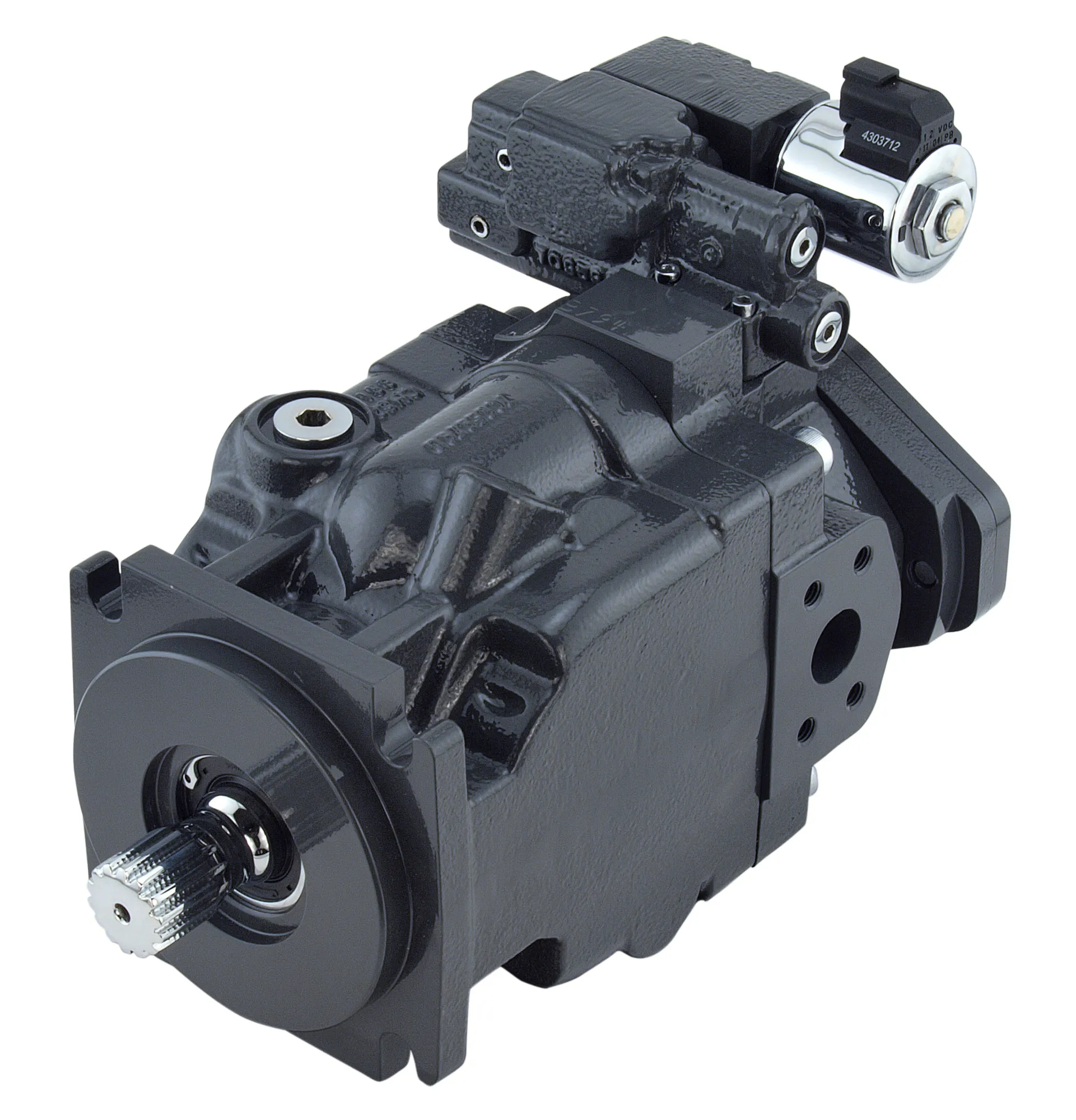

PUMP-VAR DISPL, CCW S45PVOC_J – 11172353
Specification
| Frame | J frame axial piston open circuit pump |
|---|---|
| Rotation | Counter-clockwise rotation |
| Displacement And Load Life | 60 cc/rev – 310 bar maximum continuous rated pressure |
| Control Type | Pressure compensated / load sense capability, electric proportional-solenoid left, 24VDC normally-closed Deutsch [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar] |
| Pressure Compensator Setting | 210 bar [3045 psi] |
| Load Sensing Setting | 18 bar [261 psi] |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | 0.8 mm diameter orifice – servo control orifice |
| Gain Orifice | Standard orifice |
| Shaft, Auxiliary Flange, And Endcap | 15 tooth 16/32 pitch shaft, running cover, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet: 4-bolt splitflange (1 inch port, 0.375 inch threads), with displacement limiter |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-B 4-bolt flange rotated 45 degrees, SAE O-ring ports, angle sensor right |
| Displacement Limiter | None |
| Special Hardware | Special hardware – angle sensor |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
