Danfoss (Drives) 11166867
PVEO32-ACTUATOR-R-S7-1x4AMP-3W.O-12V – 11166867
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

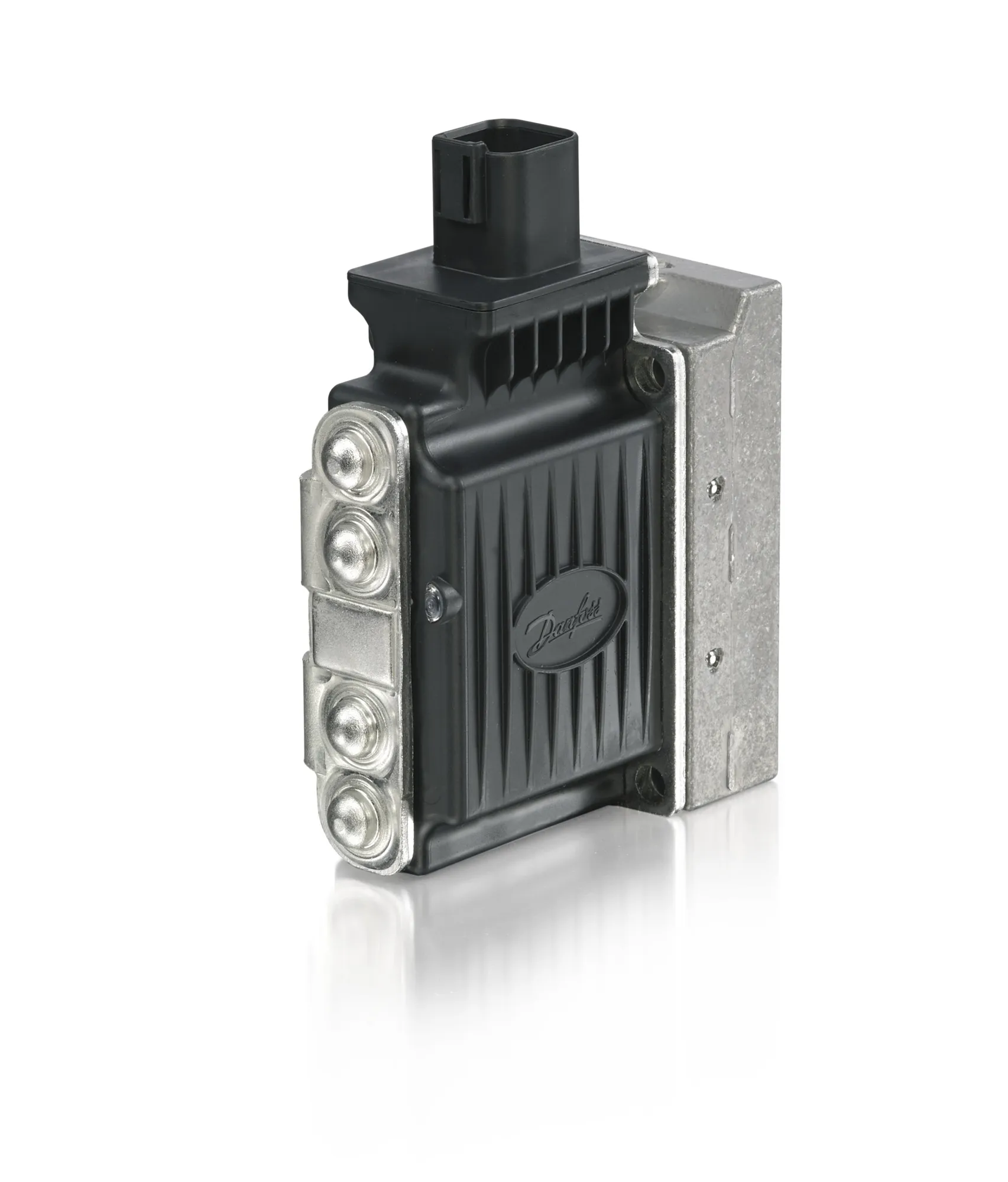

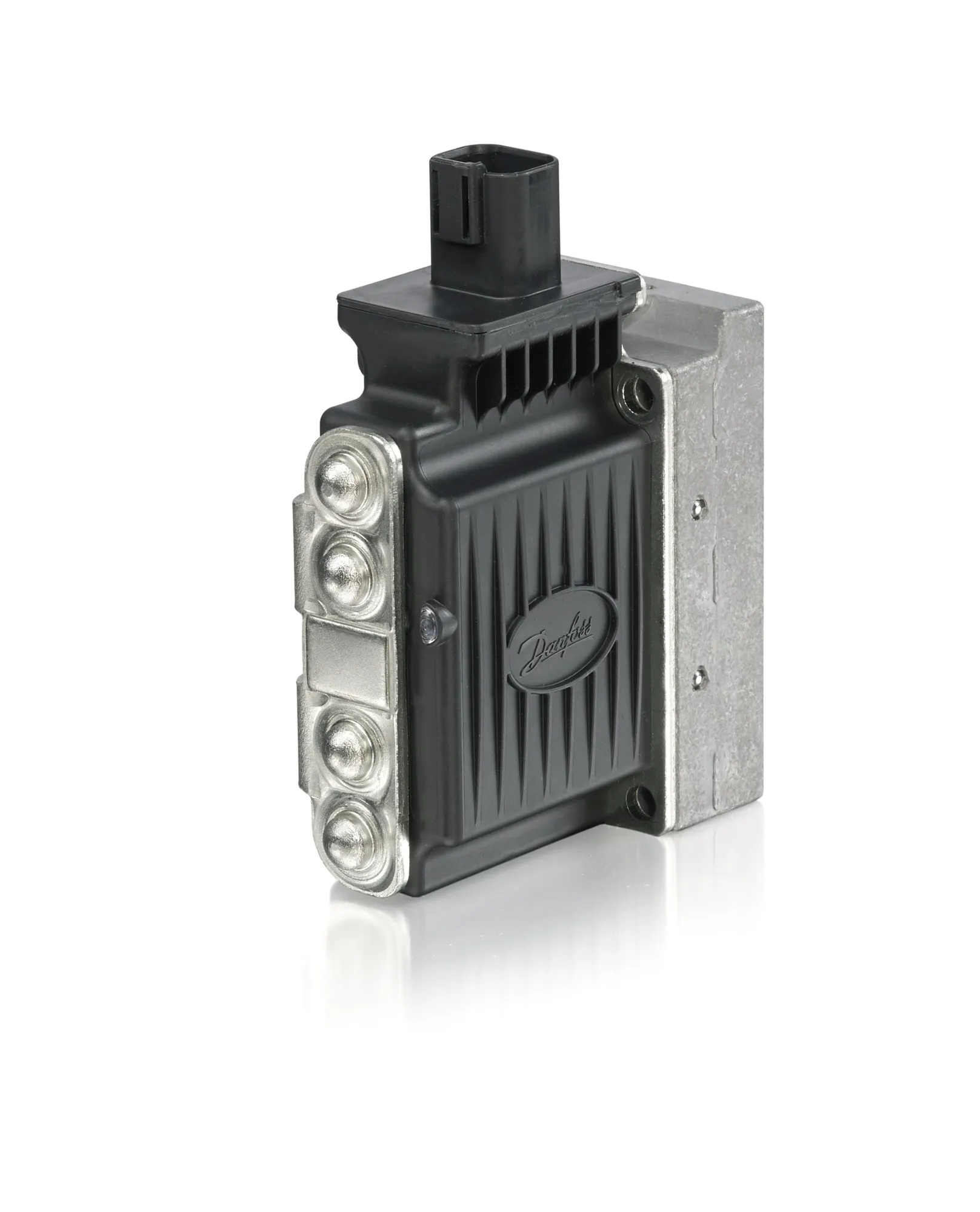

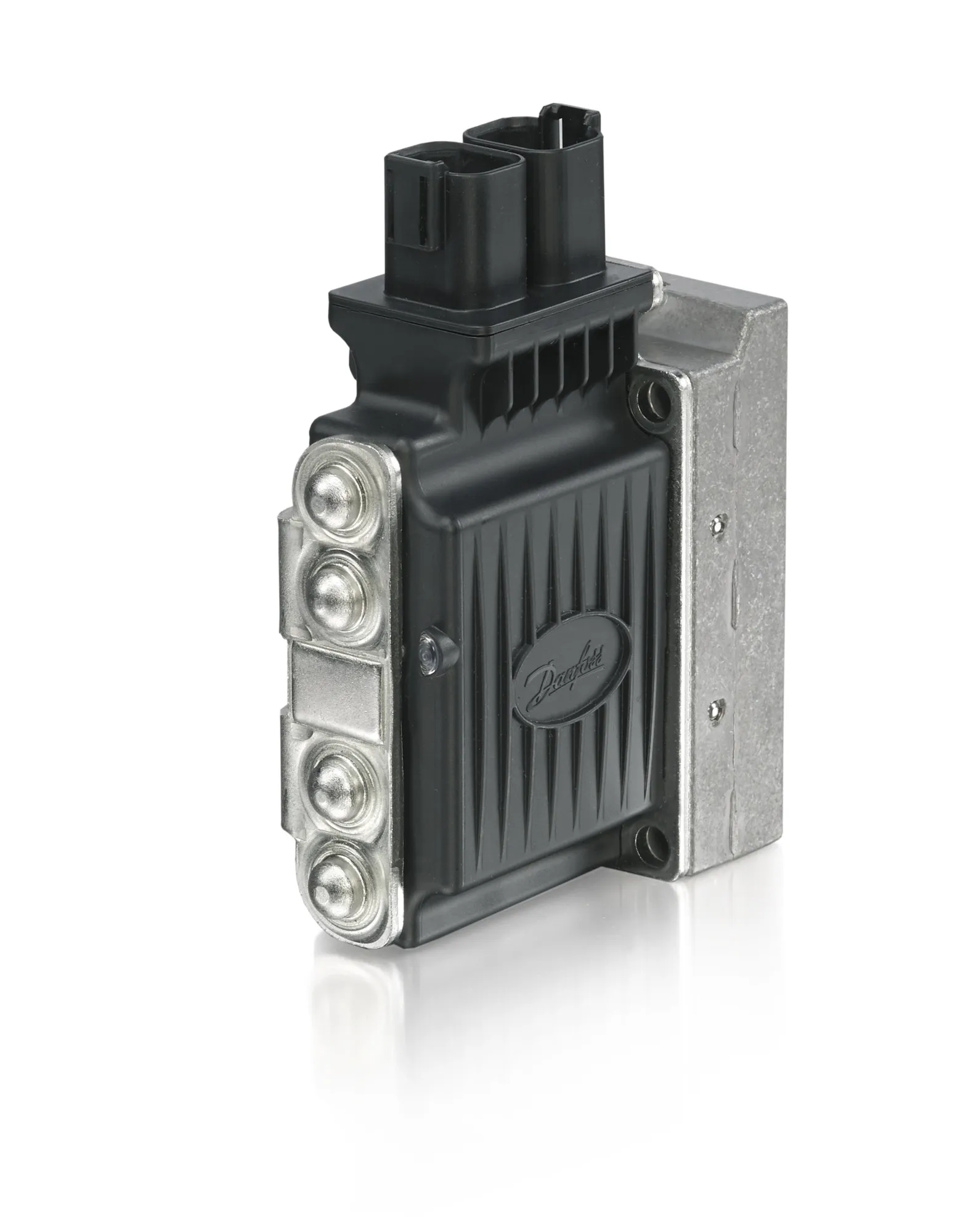

PVEO32-ACTUATOR-R-S7-1x4AMP-3W.O-12V – 11166867
Specification
| A Port Placement | N/A |
|---|---|
| B Port Placement | N/A |
| Can Protocol | N/A |
| Certification | ISO13849 Compliant |
| Coil Power | 5 W |
| Connector Direction | 90 (Up) |
| Connector Type | 1×4 AMP JPT SAAB |
| Control Signal | On/Off |
| De Stroke Reaction A | 350 ms |
| De Stroke Reaction B | 350 ms |
| Digital Type | N/A |
| Disable Function | N/A |
| Ex Application | N/A |
| Extra Function | N/A |
| Fault Reaction & Recovery | N/A |
| Float Direction | N/A |
| Hysteresis | N/A |
| Ip Rating | IP66 |
| Length | 89 |
| Manual Override | N/A |
| Marking | CE |
| Max Oil Consump. Steady State | 0 l/min |
| Max Oil Consumption | 0 l/min |
| Maximum System Pressure Peaks | 60 |
| Minimum Float Position | N/A |
| Nominel A Stroke | 7 |
| Nominel B Stroke | 7 |
| On Stroke Response A | 300 ms |
| On Stroke Response B | 300 ms |
| Output Signal | N/A |
| Outward Side Interface | N/A |
| Pilot Pressure | 13.5 (PVE) |
| Pilot Pressure Full Stroke | N/A |
| Pilot Pressure Neutral | N/A |
| Port Connection Type | N/A |
| Port Size | N/A |
| Primer | N/A |
| Product Category | Standard Part |
| Product Type | N/A |
| Proposition 65 | Cancer and Reproductive Harm |
| Pvdi Connector Coding | N/A |
| Resolution | 1 |
| Valve Side Interface | PVE32 O-Ring |
| Voltage | 12 |
