Description

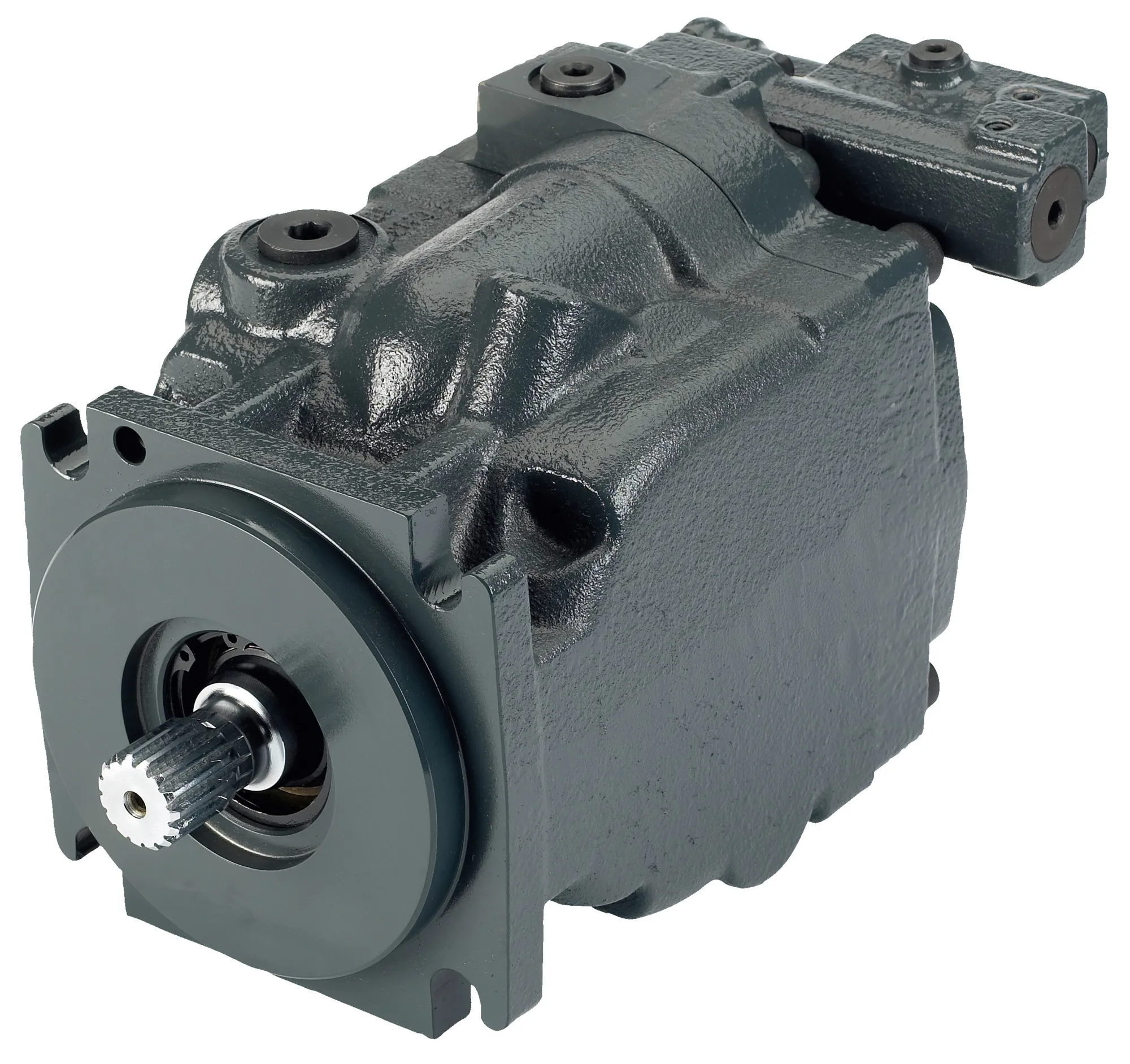

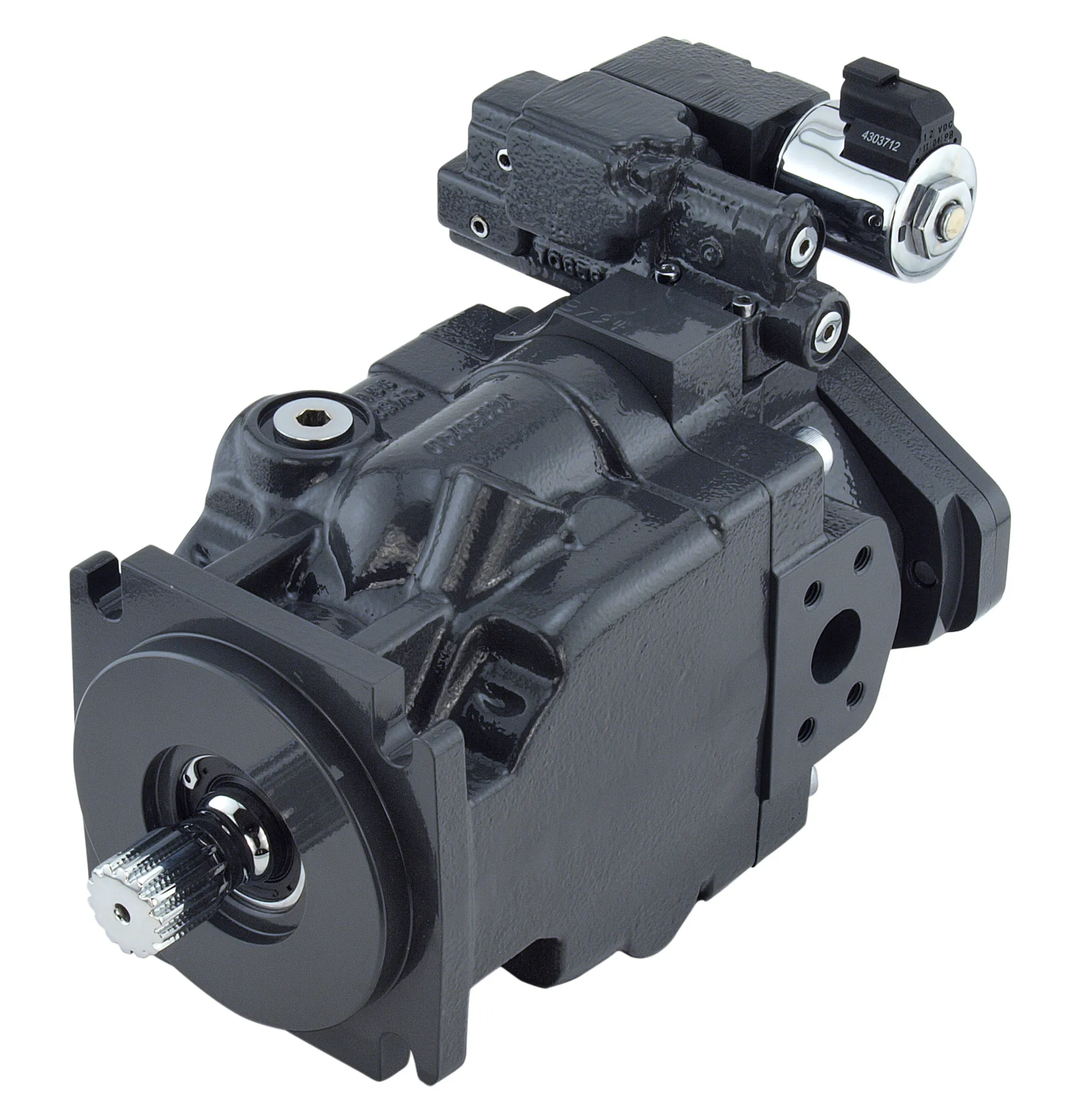

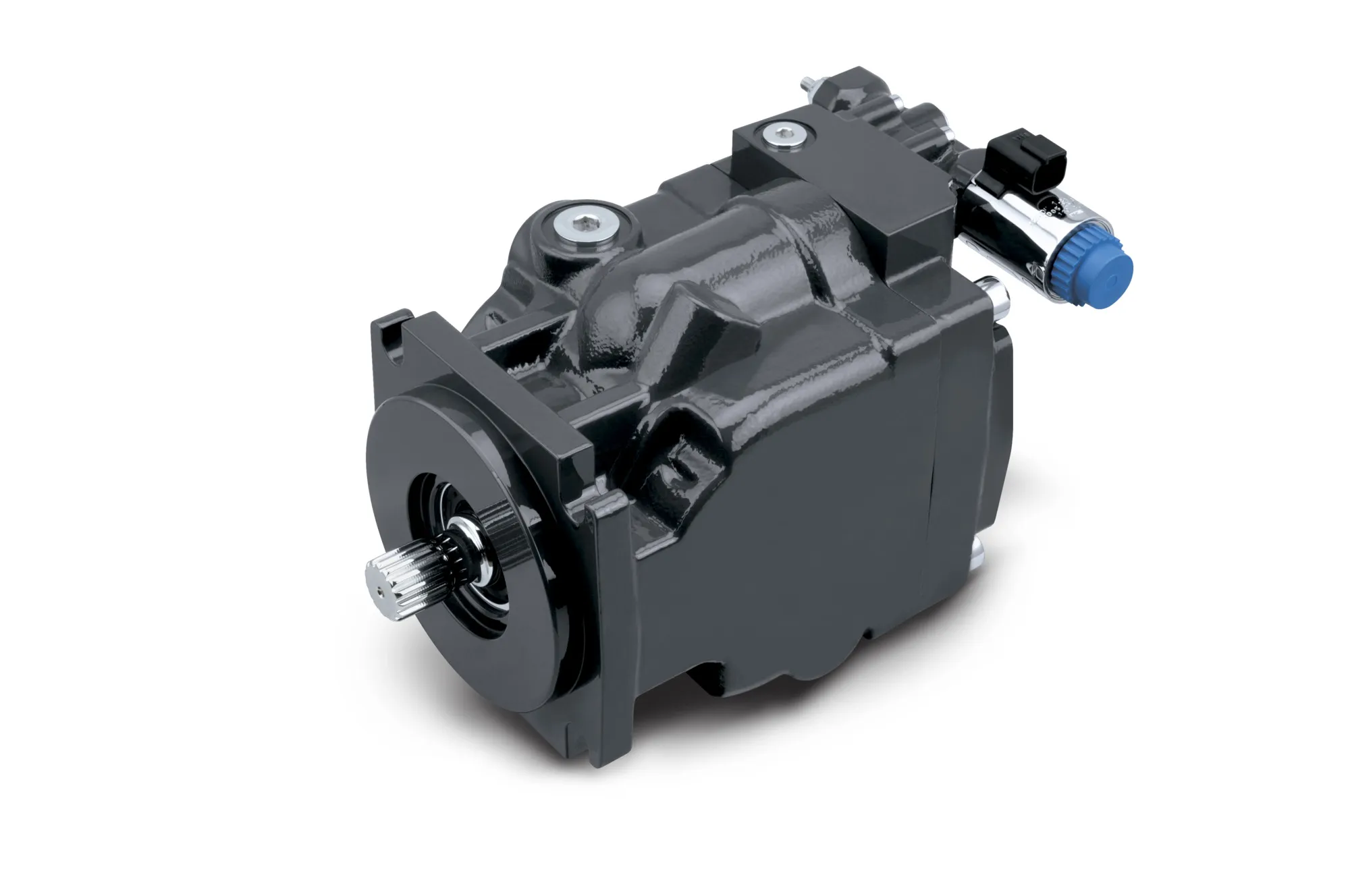

PUMP-VAR DISPL, CCW S45PVOC_J – 11153728
Specification
| Frame | J frame axial piston open circuit pump |
|---|---|
| Rotation | Counter-clockwise rotation |
| Displacement And Load Life | 65 cc/rev – Special servo piston – 260 bar maximum continuous rated pressure |
| Control Type | Electronic torque limiting, pressure compensated, solenoid-left, 12VDC normally-closed Deutsch [PC pressure range: 100-280 bar, LSpressure range: 10-40 bar] |
| Pressure Compensator Setting | 260 bar [3770 psi] |
| Load Sensing Setting | 20 bar [290 psi] |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | None |
| Gain Orifice | Standard gain orifice with 0.8 mm ETL LS signal line orifice |
| Shaft, Auxiliary Flange, And Endcap | 1.25 inch tapered shaft, no auxiliary, radial, inlet: 4-bolt split flange (2.0 inch port, M12 threads), outlet: 4-bolt split flange(1.0 inch port, M10 threads) |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-B 4-bolt flange rotated 45 degrees, SAE O-ring ports, angle sensor left |
| Displacement Limiter | None |
| Special Hardware | Special hardware – angle sensor |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
