Danfoss (Drives) 11146083

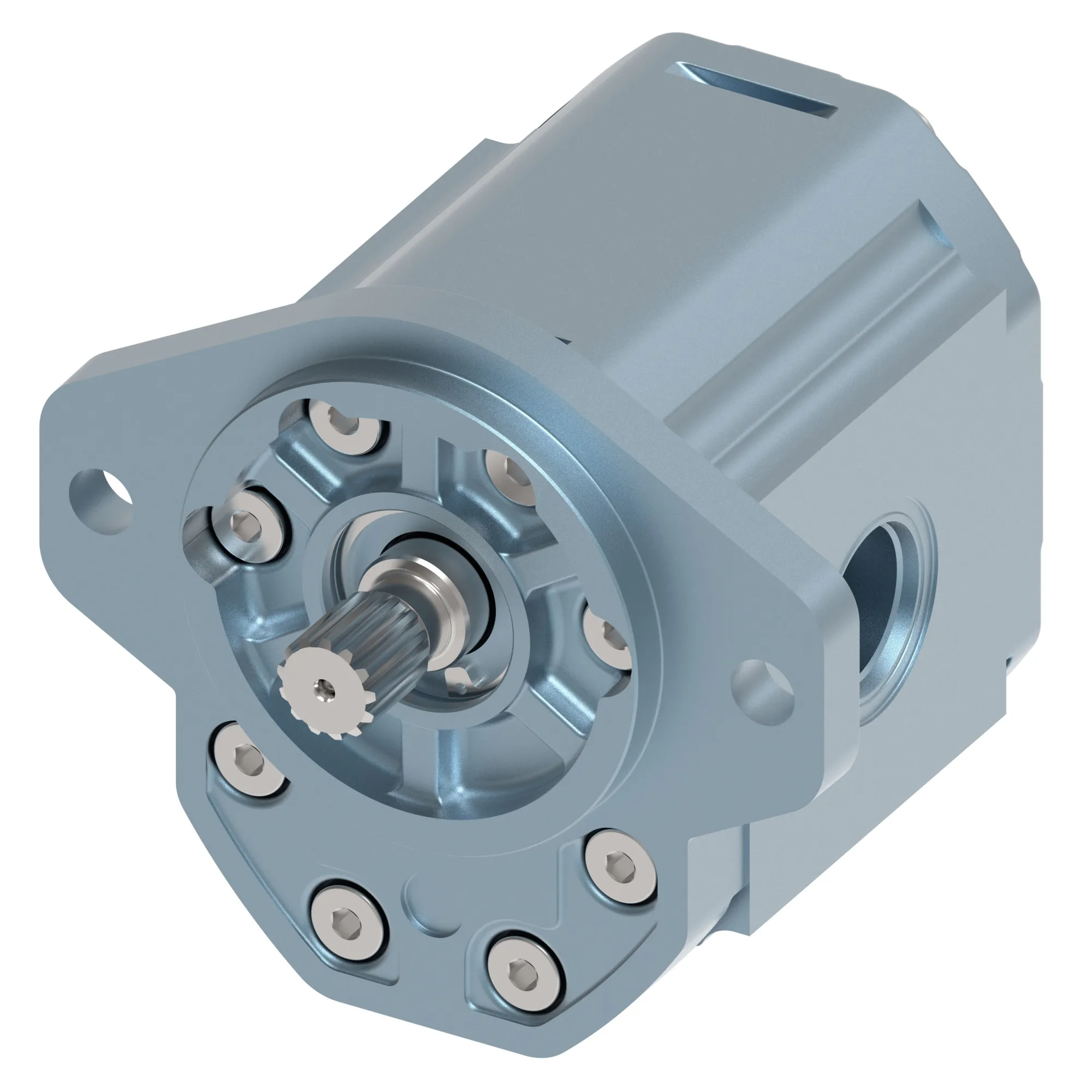

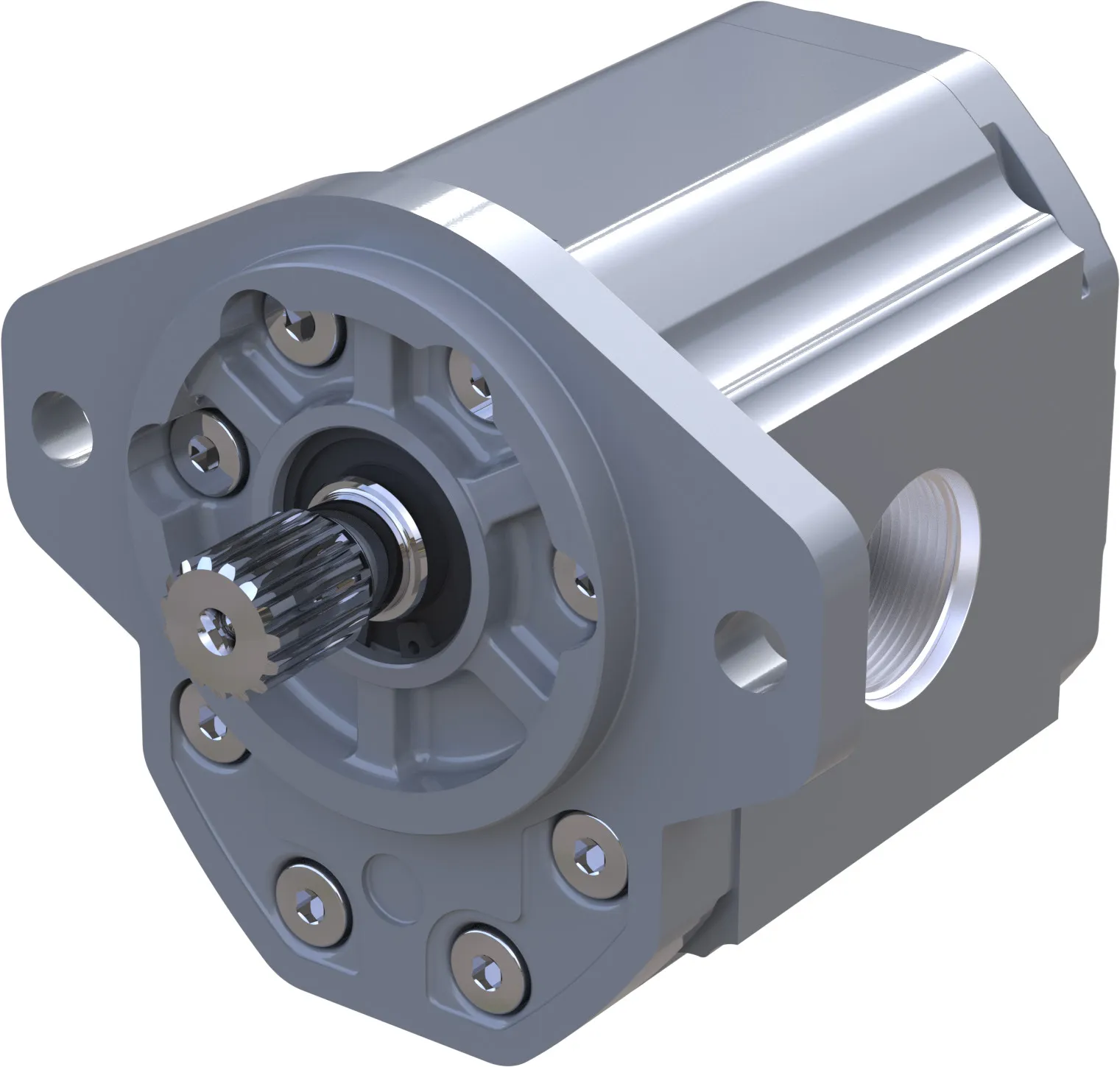

GEAR PUMP GR3 FIXED DISPL – 11146083
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR PUMP GR3 FIXED DISPL – 11146083
Specification
| B: Displacement | Displacement 26 cc |
|---|---|
| C: Rotation | Product with clockwise rotation |
| D: Project Version | Standard Version of Project |
| E: Mounting Flange | Flange female pilot D.50.8 and 4 holes for bolts (98,4×128,1) SC11 |
| F: Drive Gear | Spline drive DIN 5482 B 22 x 19 L=16,5 SC11 |
| G: Rear Cover | Standard cover for pump |
| H: Inlet Size | 25×26,19×52,37×3/8-16UNC |
| I: Outlet Size | 18,5×22,23×47,63×3/8-16UNC |
| J: Ports Position | Standard from catalogue |
| K: Seals | Standard seal |
| L: Screws | Product assembled with ‘DACROMET’or ‘GEOMET’ covering screws (+nuts, washers or cap nuts galvanized if listed on the Bill of Materia) (LML) |
| M: Valve Setting | without setting |
| N: Mark Type | Standard Marking |
| O Ring, Inside Diameter | Slash |
| O: Mark Position | Position Marking standard |
| Proposition 65 | Cancer and Reproductive Harm |
| Single Stage Family | Gr3 Last Stage |
| Slash Separator | Slash |
