Danfoss (Drives) 11113914

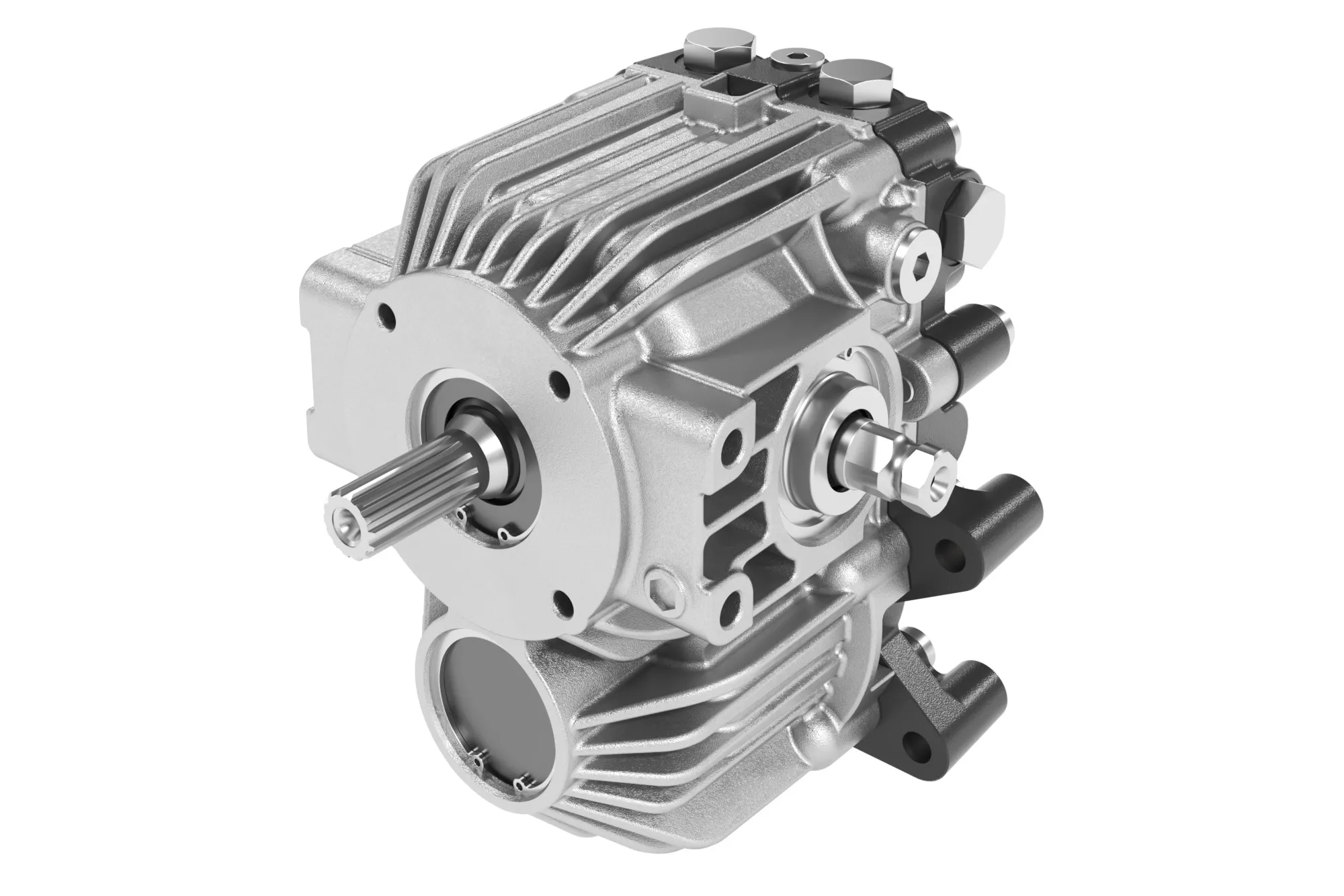

TRANSMISSION LDU20 U-STYLE CW – 11113914
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TRANSMISSION LDU20 U-STYLE CW – 11113914
Specification
| A: Displacement & Block Type | 021 cc/rev displacement at maximum angle, Z-shaft, center sectionmounting |
|---|---|
| B: Rotation | Clockwise rotation |
| C: Valve Plate Pump | CP6.5 0.8 deg index valve plate |
| D: Control Arm Position | Right side, from input shaft view |
| E: Control Arm Configuration | 17mm Square |
| F: Pump Shaft Configuration (Input Shaft/Pto Shaft) | NK: NONE W/CHP, 20MM OD KEY |
| H: Output Shaft Configuration | D:KEY 20MM OD |
| J: Centersection Configuration | Drain port : On Housing Only, Charge port : 9/16-UNF; |
| K: Charge Pump Displacement | 6: 6cc/rev |
| L: Charge Relief Setting | Charge Pressure Relief Setting 7 bar |
| M: Bypass Valve | None |
| P: Check & Relief Valve (Right Hand Side Viewing From Housing) | High Pressure Relief Valve 345 bar [5000 psi] |
| Proposition 65 | Cancer and Reproductive Harm |
| Series | LDU Product |
| Y: Special Hardware Feature | ANN: HOUSING w/CHG |
| Z: Paint And Nametag | Black Paint, Danfoss Nametag, Standard Layout |
