Description

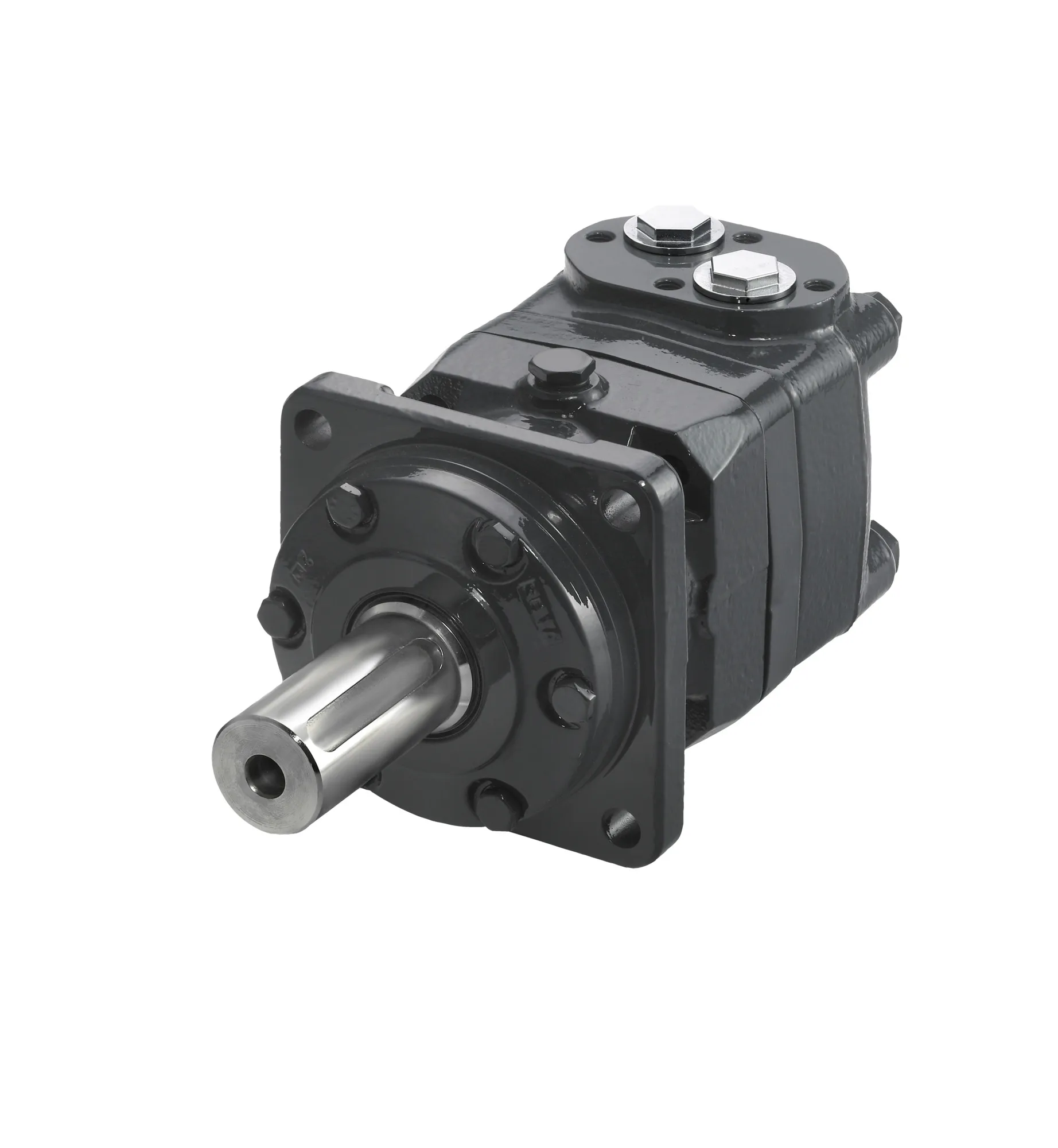

OMT 250 EMD HYDRAULIC MOTOR – 11113707
Specification
| Model Code | OMT-0250-A-NN-C15-AV-2E-B35-A-A-2C-1-N-AA-NNNNN-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | OMT Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 250 |
| Geometric Displacement [Cm3/R [In3/R]] | 251.8 [15.36] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – C |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 11.0, 161.9, 14.4 [5.00 x 0.43, 6.37, 0.57] |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 1 1/2 inch, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | Square key, 3/8 x 2 1/4 inch, B.S. 46 |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port, – |
| Drain Port Dimension | 9/16 – 18 UNF-2B O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 151B0113 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | Speed Sensor ready (EMD) |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 2 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
