Description

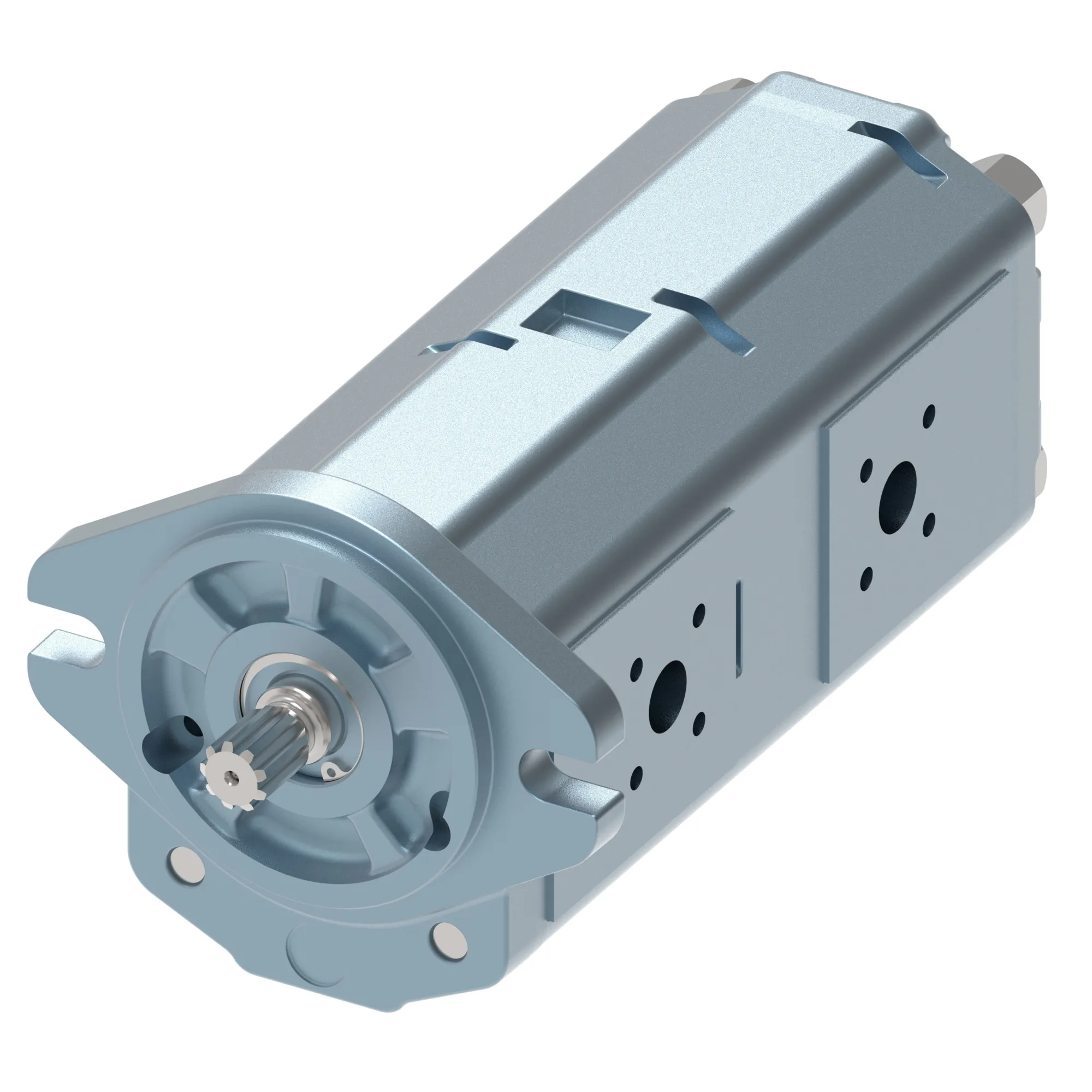

TANDEM GEAR PUMP GR2 FIXED DISPL – 11110647
Specification
| A: Tandem Gr.2 Family | SNW2NN+SNP2NN |
|---|---|
| B: 1St Stage Displacement | Displacement 14 cc |
| C: 2Nd Stage Displacement | Displacement 8,0 cc |
| D: Rotation | Product with clockwise rotation |
| E: Project Version | With SAE intemediate flange |
| F: Mounting Flange | Flange SAE A, pilot D.82,55 and 2 holes for bolts |
| G: Drive Gear | Splined SAE J498-9T-16/32-Dp Class 1FIT – rear spline DIN 5482 – 17 x 14 L=14 (type 36 vers.2) |
| H: Rear Cover | Standard cover for pump |
| I: 1St Stage Inlet Size | 3/4 GAS |
| J: 1St Stage Outlet Size | 1/2 GAS |
| K: 1St Stage Ports Position | Standard from catalogue |
| L: 2Nd Stage Inlet Size | 3/4 GAS |
| M: 2Nd Stage Outlet Size | 1/2 GAS |
| N: 2Nd Stage Ports Position | Standard from catalogue |
| O Ring, Inside Diameter | Slash |
| O: Seals | Standard seal |
| Oc Delimiter ( ) | – |
| P: Screws | Standard screws |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve Setting | without setting |
| R: Mark Type | Std Sauer Danfoss Marking |
| S: Mark Position | Std Position Marking |
| Slash Separator | Slash |
