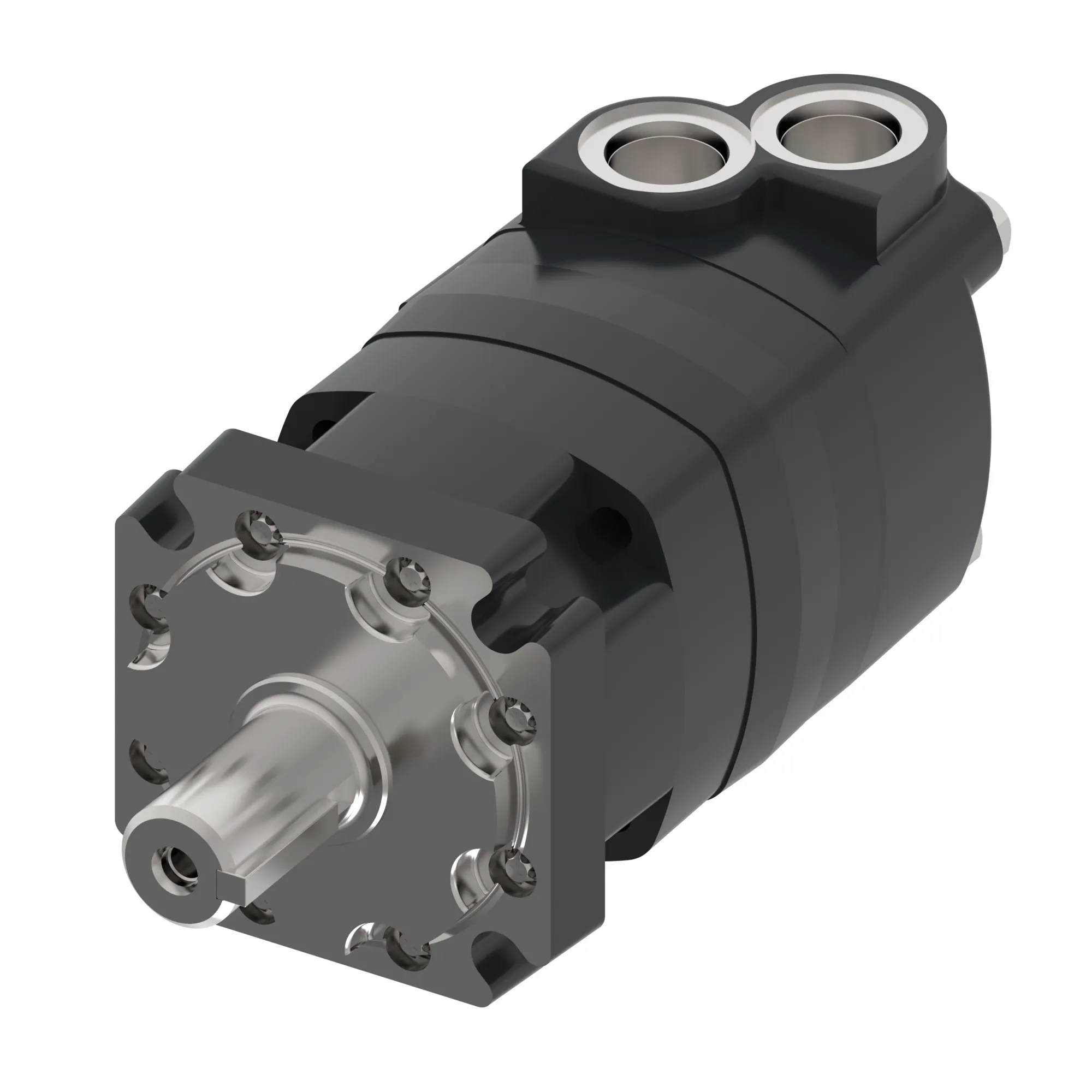

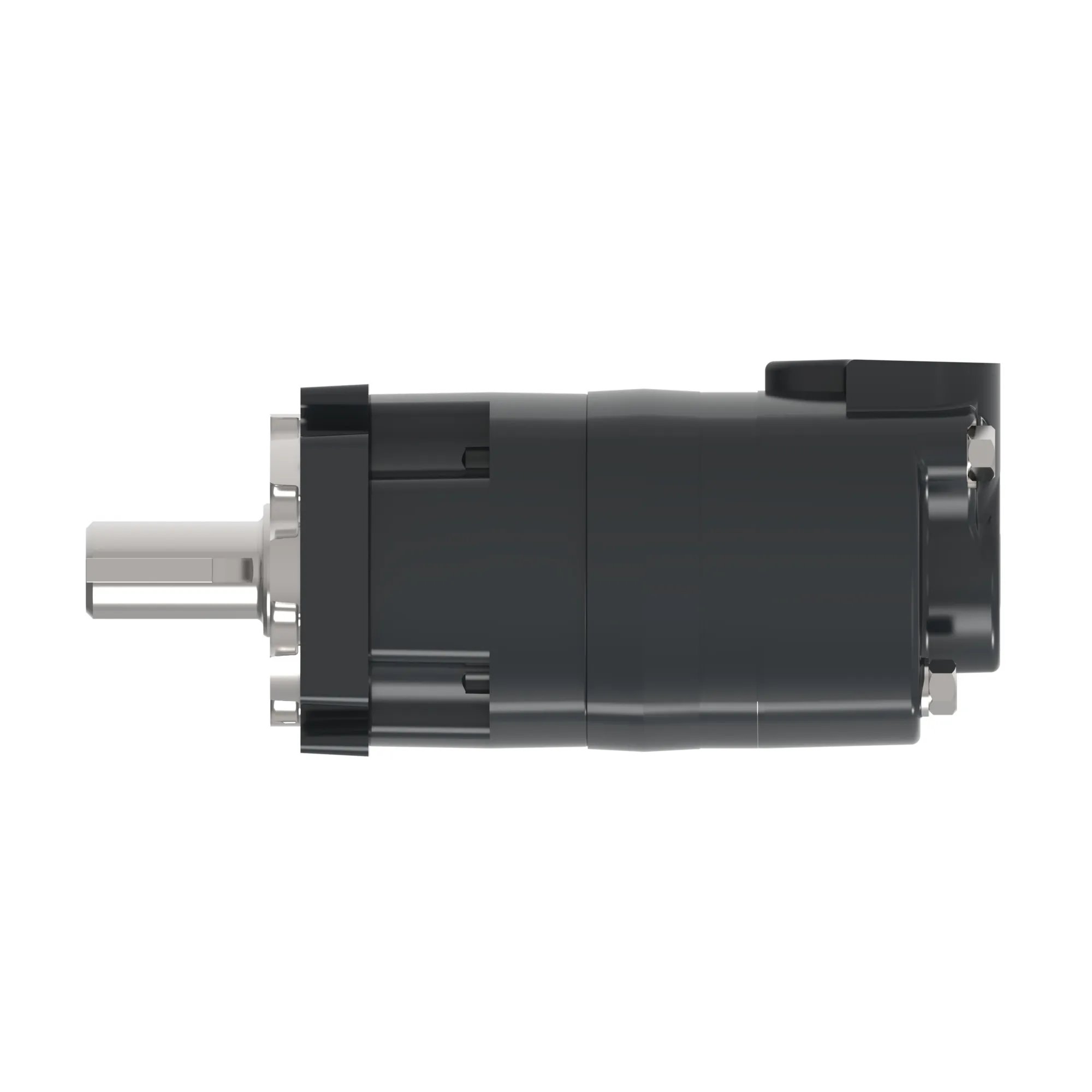

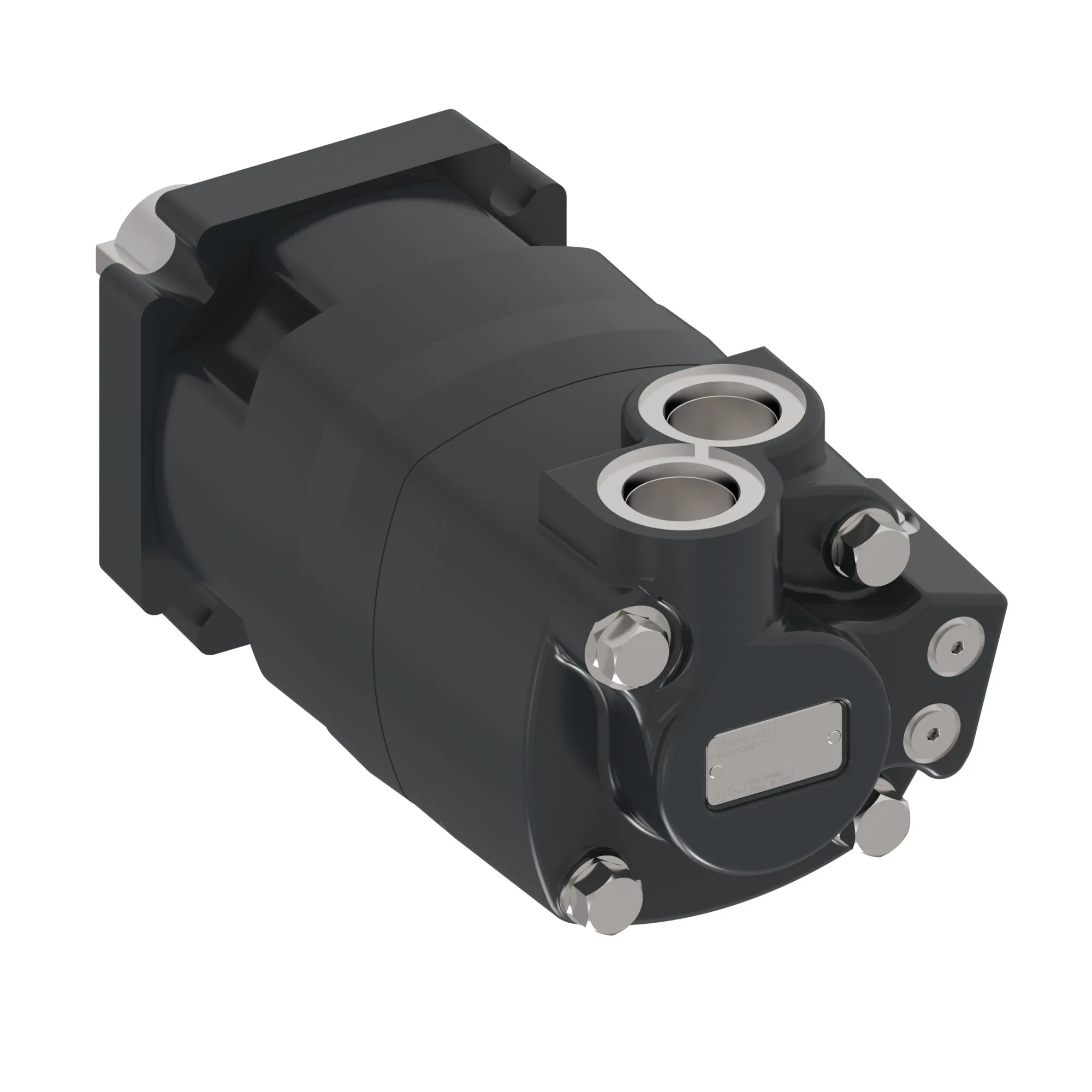

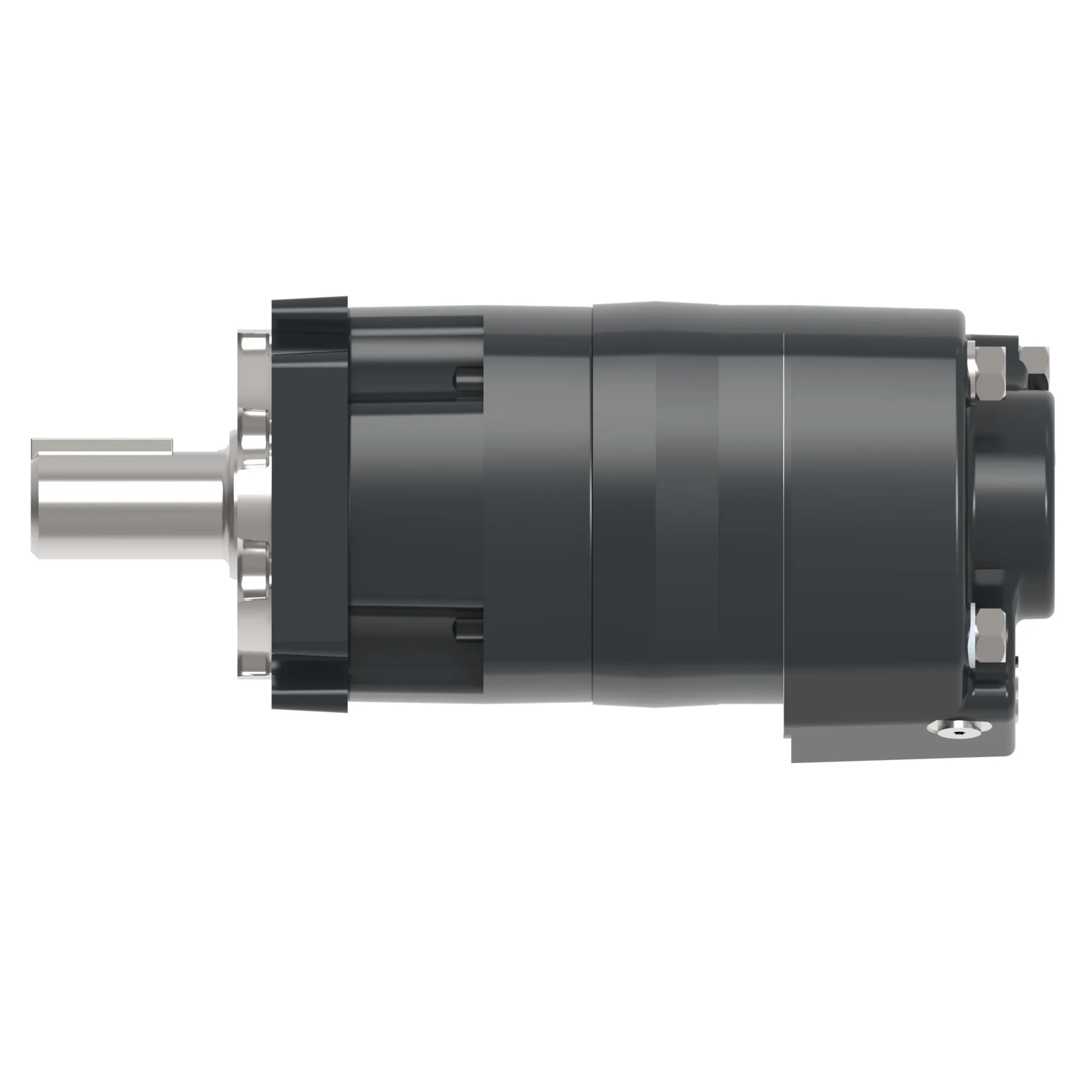

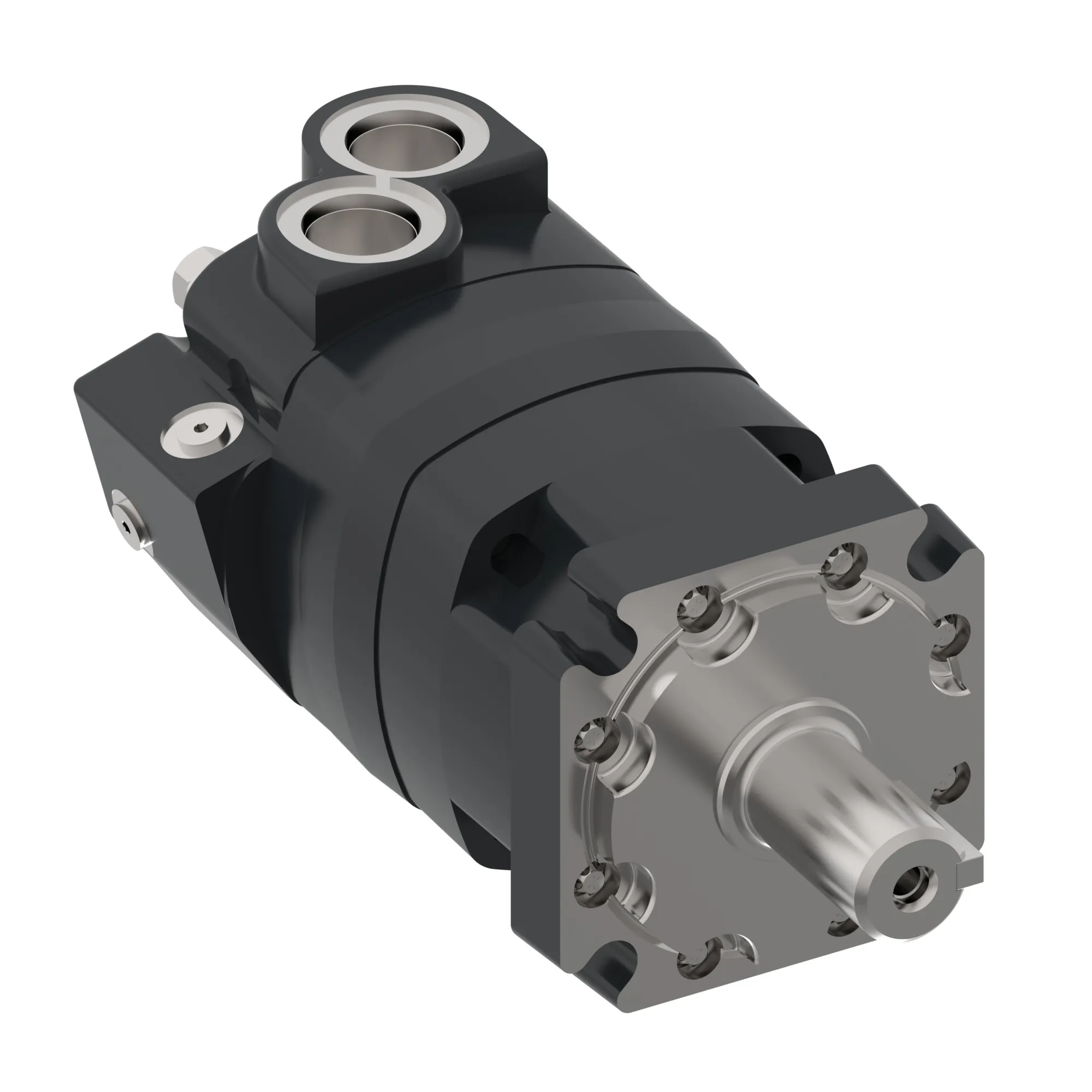

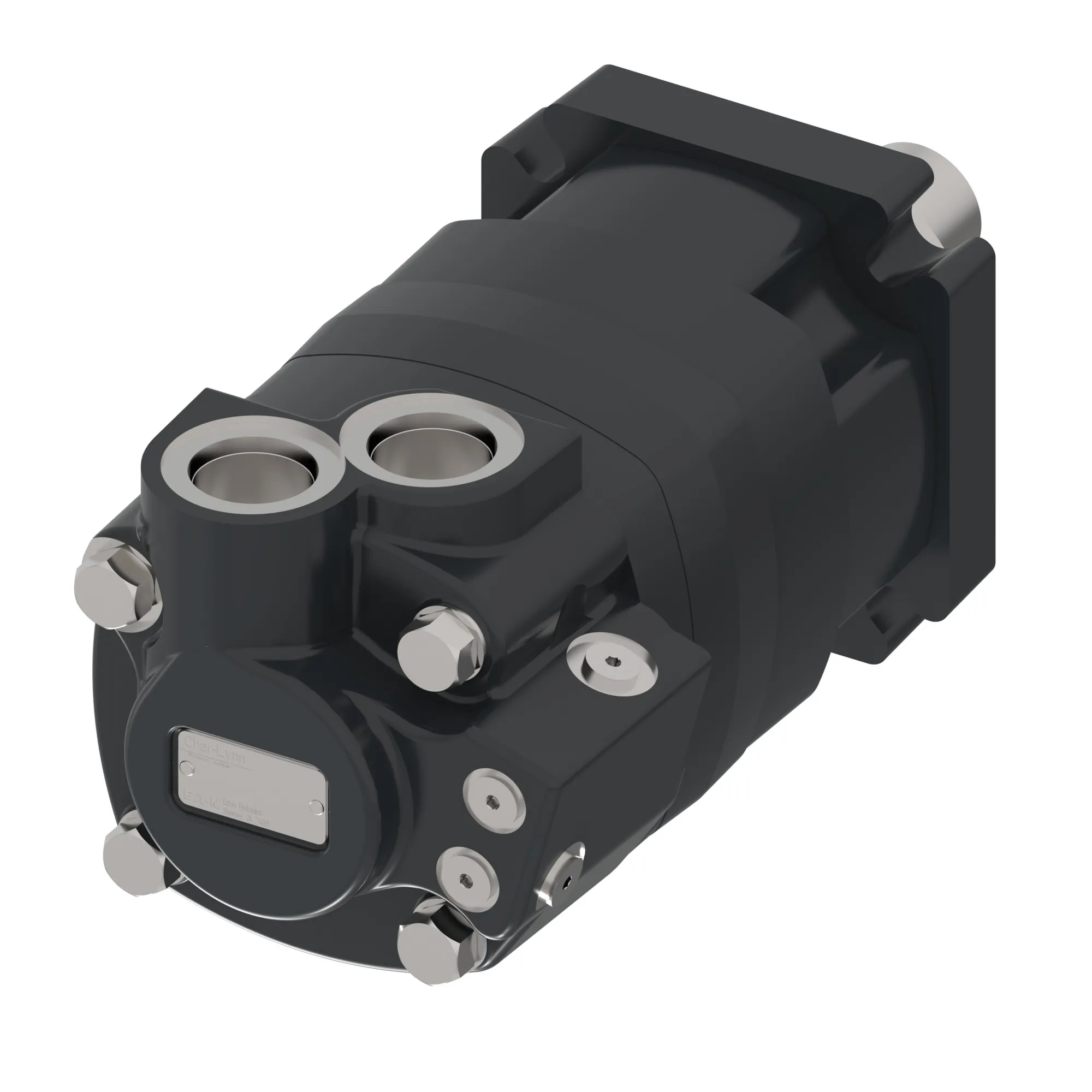

Danfoss (Drives) 111-1057-004
MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AA00AC0300000000000AA00D – 111-1057-004
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AA00AC0300000000000AA00D – 111-1057-004
Specification
| Model Code | M04190AA00AC0300000000000AA00D |
|---|---|
| Motor Series | 4000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 4 B P127 B162 H14 |
| Motor Size | 310 |
| Geometric Displacement [Cm3/R [In3/R]] | 311.8 [19.03] |
| Motor Type | Short |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Short |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.5, 161.9, 14.3 [5.00 x 0.49, 6.38, 0.56] |
| Shaft Type | None |
| Shaft Dimension | n/a |
| Shaft Key | n/a |
| Main Port Thread Type | BSP |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | G 3/4 |
| Drain Port Dimension | G 1/4 |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | n/a |
| Shaft Seal | n/a |
| Seal Kit | 61233-000 |
| Front Bearing Type | n/a |
| Rear Bearing Type | n/a |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 04 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Output Shaft Type | None |
| Seal Options | Standard |
| Series | 4000 series |
| Sub Brand | Char-Lynn |
