Danfoss (Drives) 11099722
TANDEM GEAR PUMP GR2 FIXED DISPL – 11099722
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

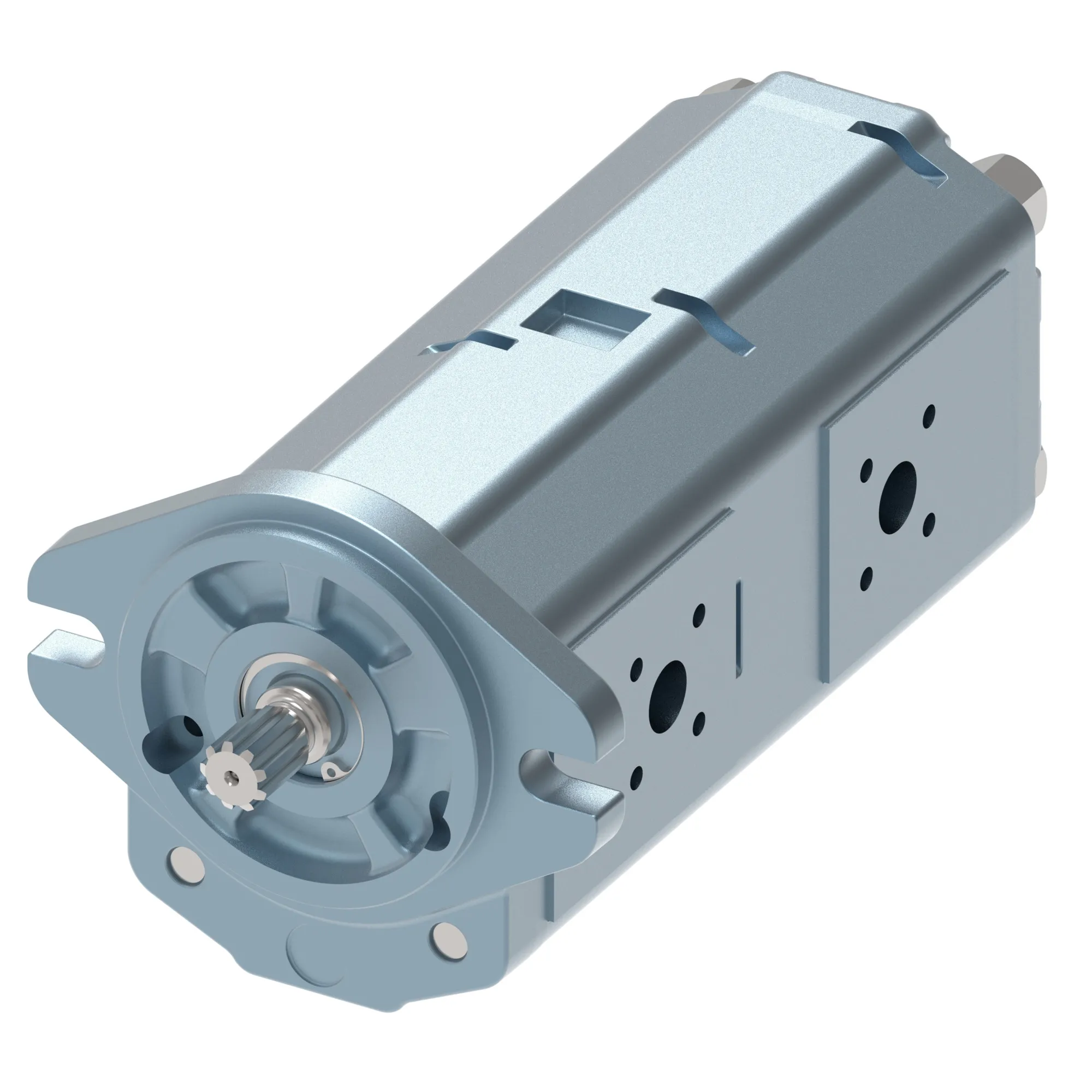

TANDEM GEAR PUMP GR2 FIXED DISPL – 11099722
Specification
| A: Tandem Gr.2 Family | SNW2NN+SNP2NN |
|---|---|
| B: 1St Stage Displacement | Displacement 8,0 cc |
| C: 2Nd Stage Displacement | Displacement 11 cc |
| D: Rotation | Product with counter-clockwise rotation |
| E: Project Version | First stage Std+Second stage short version |
| F: Mounting Flange | Flange with pilot D.52,34 and 2 threaded holes for bolts |
| G: Drive Gear | Taper 1:8 – M12 x 1,25 – Key = 4/3 black steel , (Rear shaft tang) LEG |
| H: Rear Cover | Cover for pump with holes M5 |
| I: 1St Stage Inlet Size | M18x1,5-ISO6149 |
| J: 1St Stage Outlet Size | M18x1,5-ISO6149 |
| K: 1St Stage Ports Position | 1st. stage distance from front flange = 42,5 |
| L: 2Nd Stage Inlet Size | 20x40xM8 (2 holes) |
| M: 2Nd Stage Outlet Size | M18x1,5-ISO6149 |
| N: 2Nd Stage Ports Position | Distance to front flange=39 |
| O Ring, Inside Diameter | Slash |
| O: Seals | Product with VITON shaft seal with dust lip (type BABSL) (LEH) |
| Oc Delimiter ( ) | – |
| P: Screws | Standard screws |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve Setting | without setting |
| R: Mark Type | Std Sauer Danfoss Marking |
| S: Mark Position | Std Position Marking |
| Slash Separator | Slash |
