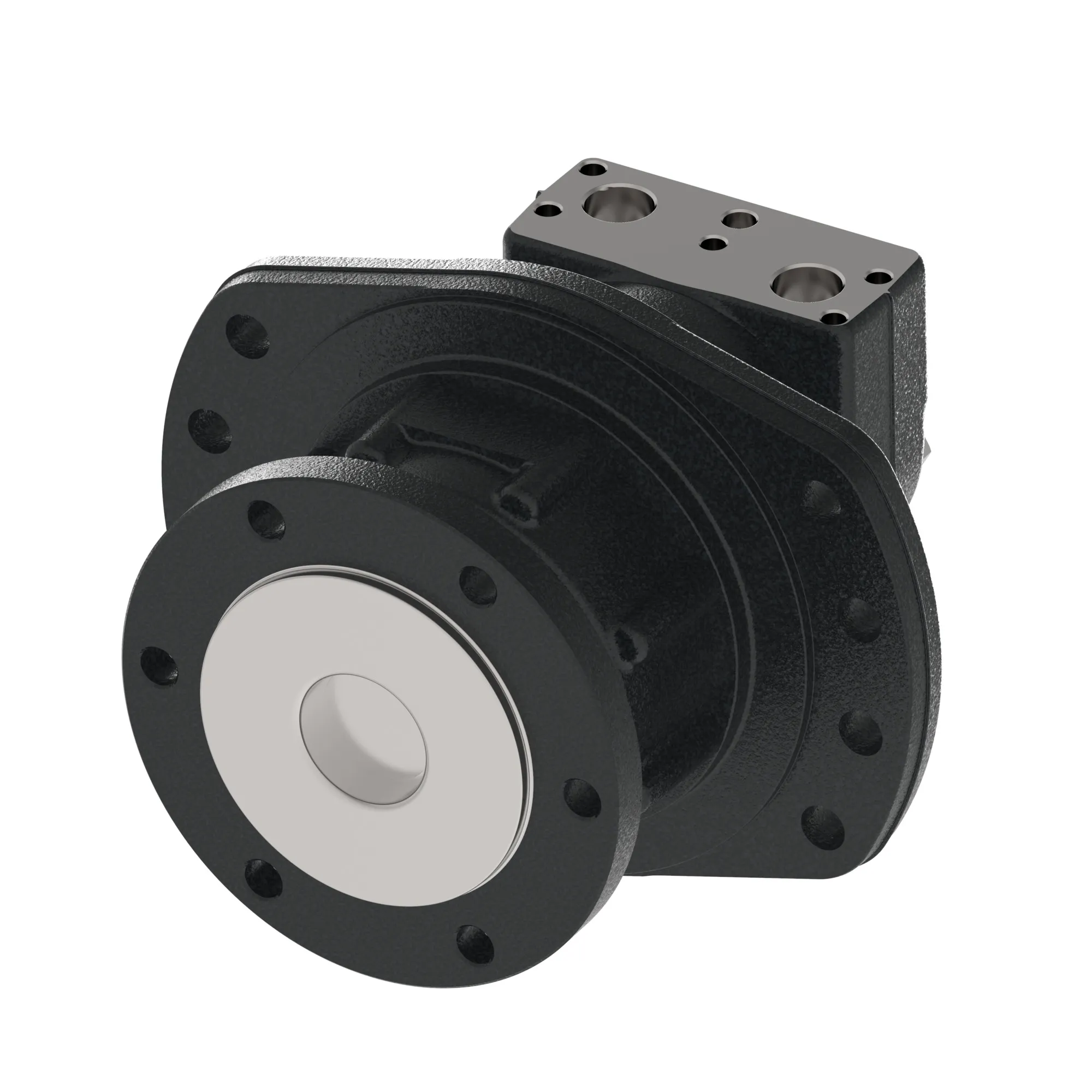

Danfoss (Drives) 11089435
MOTOR-ORBITAL,TMT SERIES 400 [24.4], TMTH-0400-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN – 11089435
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,TMT SERIES 400 [24.4], TMTH-0400-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN – 11089435
Specification
| Brake Release Port Dimension | n/a |
|---|---|
| Check Valve Function | No |
| Design Code | 00 |
| Drain Port Dimension | G 1/4 |
| Dust Seal | Standard plus seal guard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 393.1 [24.00] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 3/4, 5 x M10 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | TMTH-0400-B-NN-W57-AF-1D-K11-A-J-1B-0-N-NN-AAE26-NN-NN-NN-SP-NNN |
| Motor Function | Standard |
| Motor Series | TMTH Series |
| Motor Size | 400 |
| Motor Type | Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69] Rear: 223.9 x 5.0, 265.0, 17.6 [8.82 x 0.20, 10.43, 0.69] |
| Mounting Flange Type | 8 Bolt – Wheel |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | Painted, Black, Medium gloss |
| Painted | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 11131621 |
| Sensor | None |
| Shaft Dimension | Thread Hole Flange: 6 x M16 x 1.5 – BCD 170 mm [6.7 inch] |
| Shaft Key | n/a |
| Shaft Seal | NBR – Standard |
| Shaft Type | Wheel hub |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
