Danfoss (Drives) 11077746

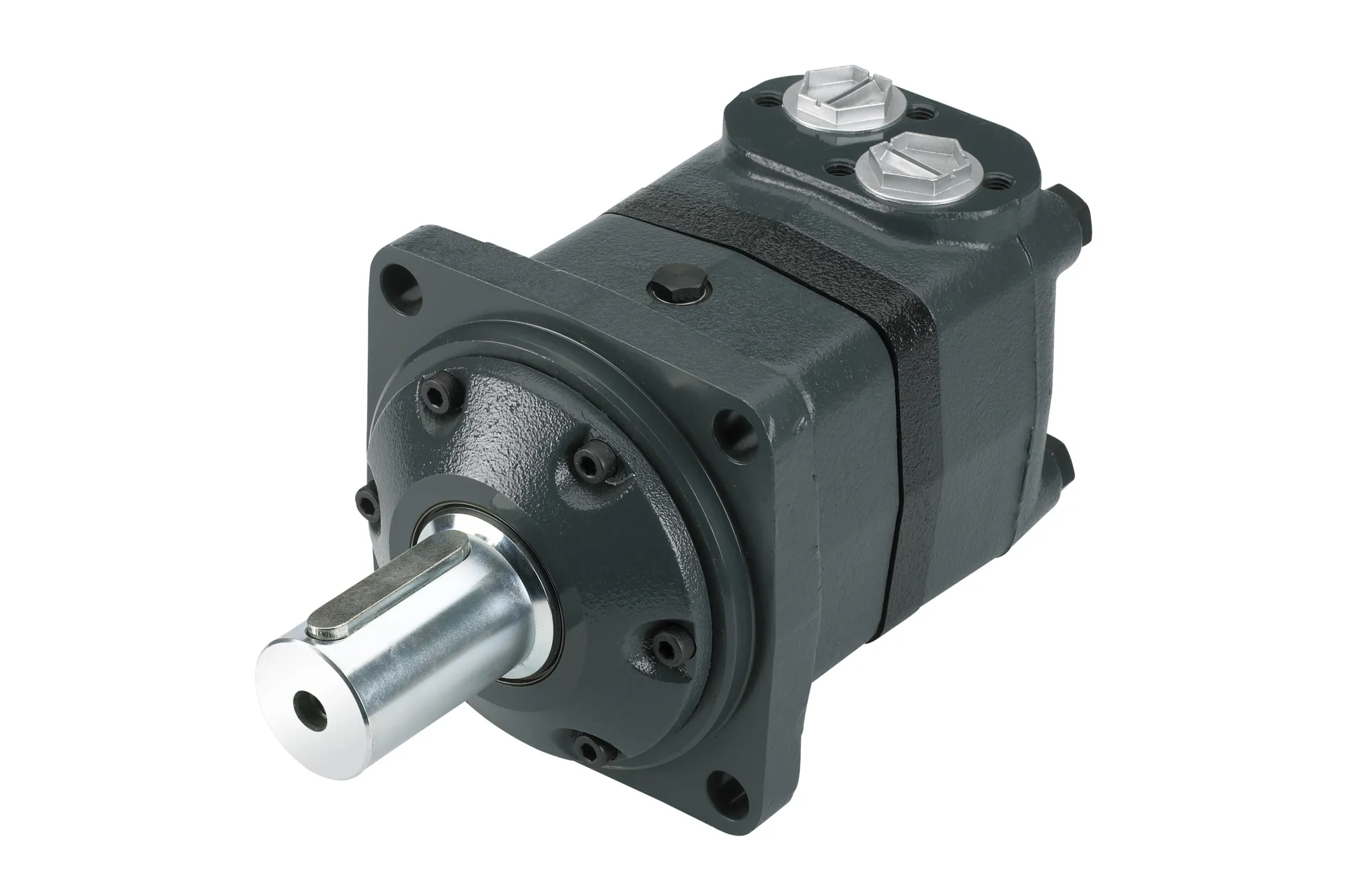

MOTOR-ORBITAL,OMV SERIES 400 [24.4], OMV-0400-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN – 11077746
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,OMV SERIES 400 [24.4], OMV-0400-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN – 11077746
Specification
| Brake Release Port Dimension | n/a |
|---|---|
| Check Valve Function | No |
| Design Code | 2 |
| Drain Port Dimension | G 1/4 |
| Dust Seal | Standard |
| Front Bearing Type | Tapered roller bearing |
| Geometric Displacement [Cm3/R [In3/R]] | 400.9 [24.46] |
| Hydraulic Valve Function | None |
| Main Port Dimension | G 1, 4 x M12 block mounting threads |
| Main Port Style | Sideport – staggered |
| Main Port Thread Type | BSP |
| Model Code | OMV-0400-A-EB-G34-AE-1E-D20-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN |
| Motor Function | Heavy-Duty version, Reinforced parts |
| Motor Series | OMV Series |
| Motor Size | 400 |
| Motor Type | Standard |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 160.0 x 11.0, 200.0, 18.0 [6.30 x 0.43, 7.87, 0.71] |
| Mounting Flange Type | 4 Bolt – Square |
| Name Tag | Danfoss name tag |
| Orbital Gearwheel Set | Standard |
| Orbital Gearwheel Set Type | Geroler |
| Packaging | Single pack |
| Paint Information | Painted, Black, Medium gloss |
| Painted | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Bearing Type | Tapered roller bearing |
| Seal Kit | 151B0162 |
| Sensor | None |
| Shaft Dimension | Dia. 2 1/8 inch, 16T, M12 x 1.75-6H thread in shaft end |
| Shaft Key | n/a |
| Shaft Seal | NBR – Standard |
| Shaft Type | Splined |
| Special Features Assembly | Standard |
| Valve System | Disc valve with valve drive |
