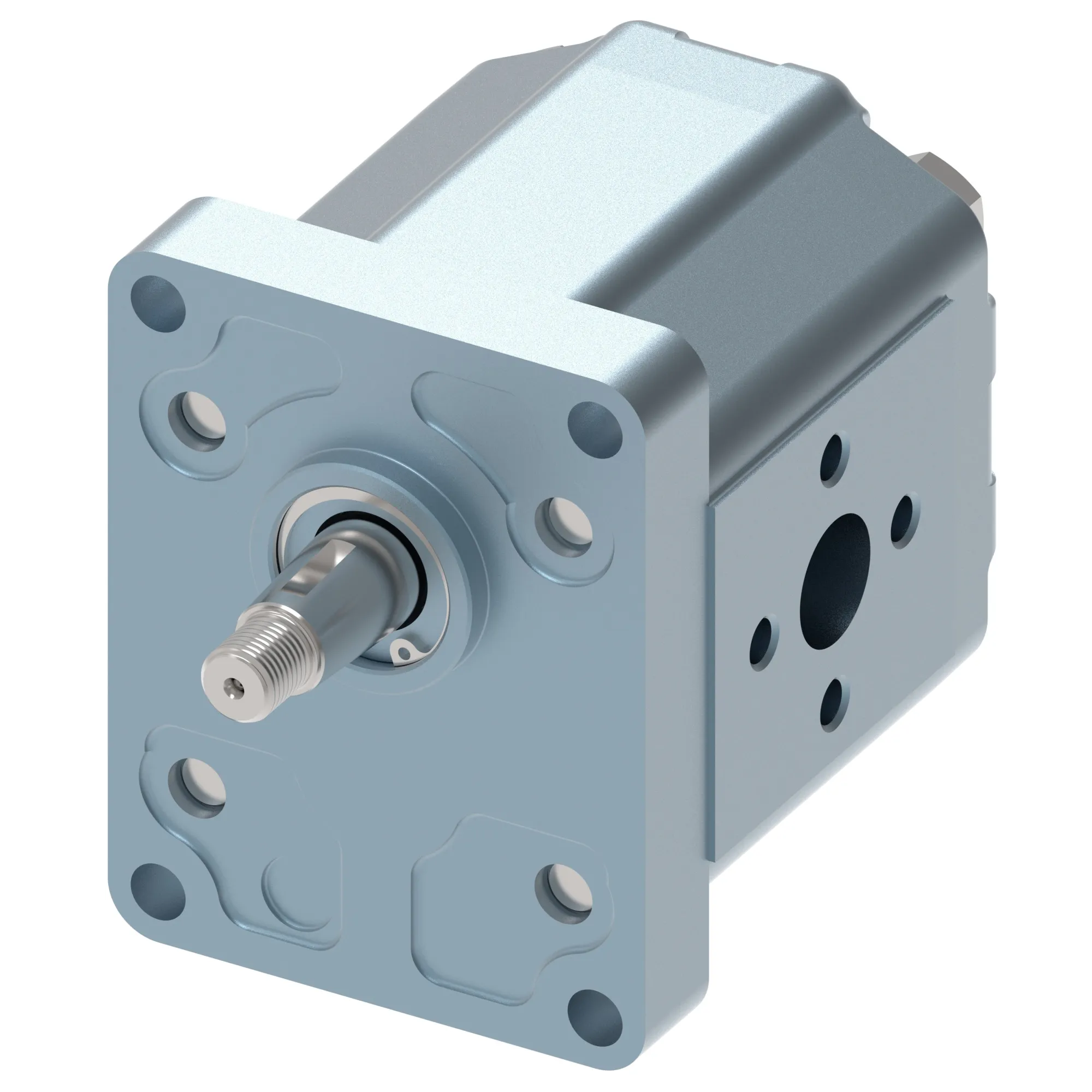

Danfoss (Drives) 11052918
GEAR PUMP GR2 FIXED DISPL – 11052918
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR PUMP GR2 FIXED DISPL – 11052918
Specification
| Displacement | Displacement 4,0 cc |
|---|---|
| Drive Gear | Taper 1:8 – M12 x 1,25 – Key = 4/3,2 CO01 LBD |
| Inlet Size | 1-1/16-12UN |
| Mark Position | Position Marking standard (on the top in relation to drive gear) |
| Mark Type | Standard Marking |
| Mounting Flange | Flange with pilot Ø36,5 mm and 4 holes for bolts |
| O Ring, Inside Diameter | Slash |
| Outlet Size | 7/8-14UNF |
| Ports Position | Standard from catalogue |
| Project Version | Standard Version of Project |
| Proposition 65 | Cancer and Reproductive Harm |
| Rear Cover | Standard cover for pump |
| R O T A T I O N | Product with clockwise rotation |
| Screws | Screws standard |
| Seals | VITON shaft seal with dust lip(LEH+LPD) turned over assembled |
| Single Stage Family | Gr2 Pump |
| Slash Separator | Slash |
| Valve Setting | without setting |
