Danfoss (Drives) 11050431

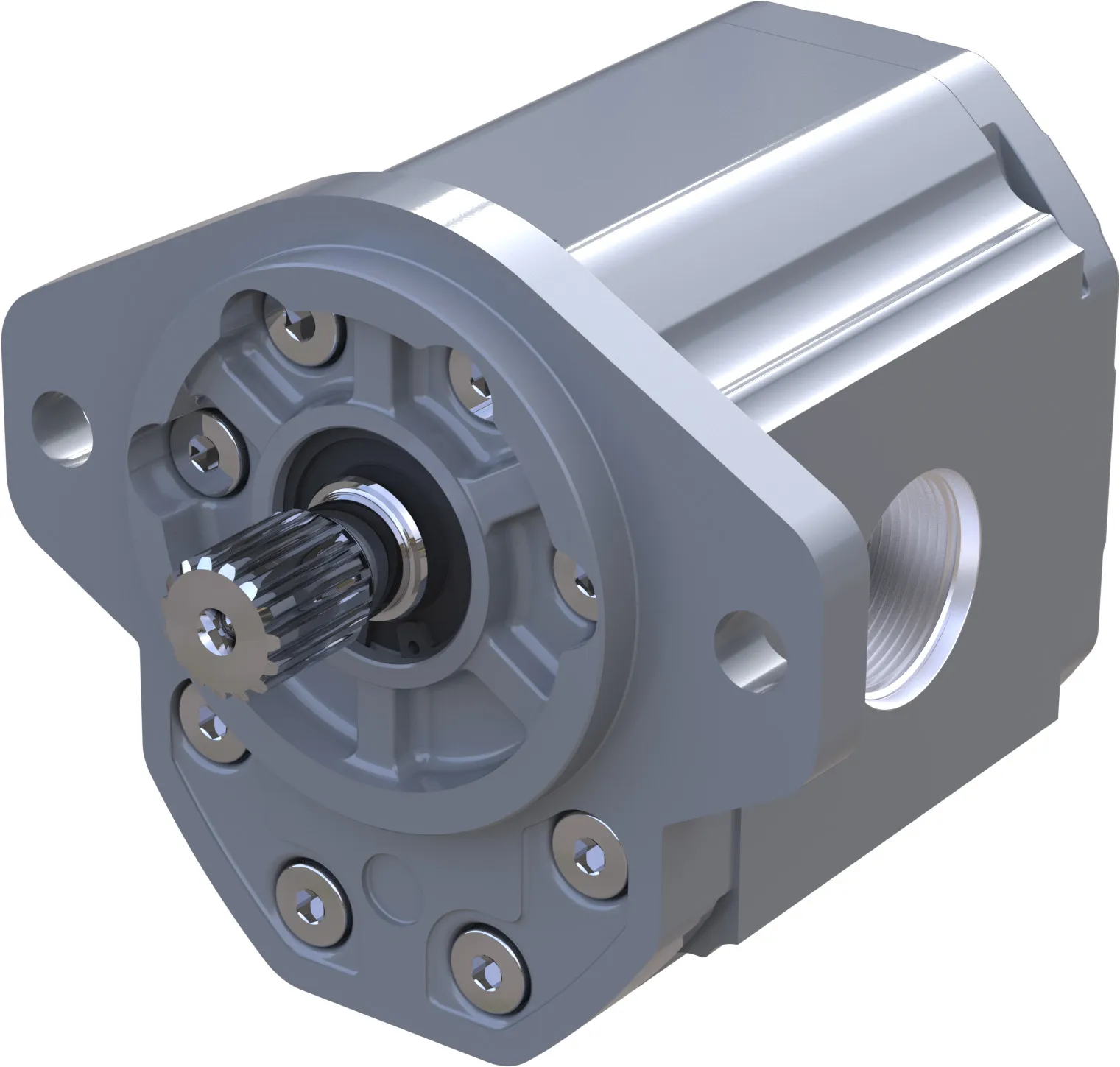

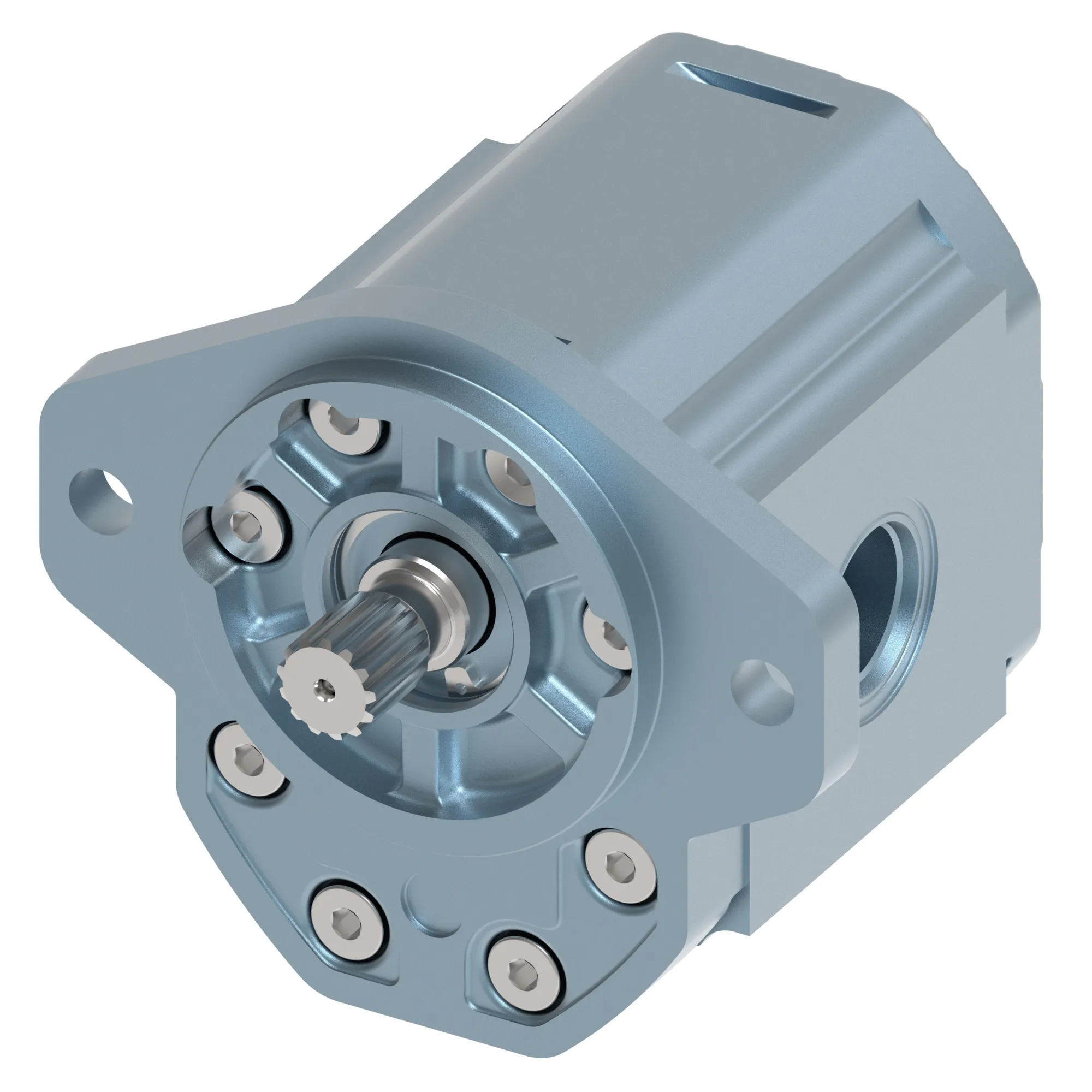

GEAR PUMP GR3 FIXED DISPL – 11050431
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
GEAR PUMP GR3 FIXED DISPL – 11050431
Specification
| B: Displacement | Displacement 48 cc |
|---|---|
| C: Rotation | Product with clockwise rotation |
| D: Project Version | Standard Version of Project |
| E: Mounting Flange | Flange with pilot D.60,3 and 4 holes for bolts |
| F: Drive Gear | Parallel D22+Key 5x5x40+Spline |
| G: Rear Cover | Not assigned (with intermediate flange instead cover) |
| H: Inlet Size | 27x55xM8 |
| I: Outlet Size | 18x55xM8 |
| J: Ports Position | Standard from catalogue |
| K: Seals | Standard seal |
| L: Screws | Screws standard |
| M: Valve Setting | without setting |
| N: Mark Type | Standard Marking |
| O Ring, Inside Diameter | Slash |
| O: Mark Position | Position Marking standard |
| Proposition 65 | Cancer and Reproductive Harm |
| Single Stage Family | Gr3 Main stage |
| Slash Separator | Slash |
