Description

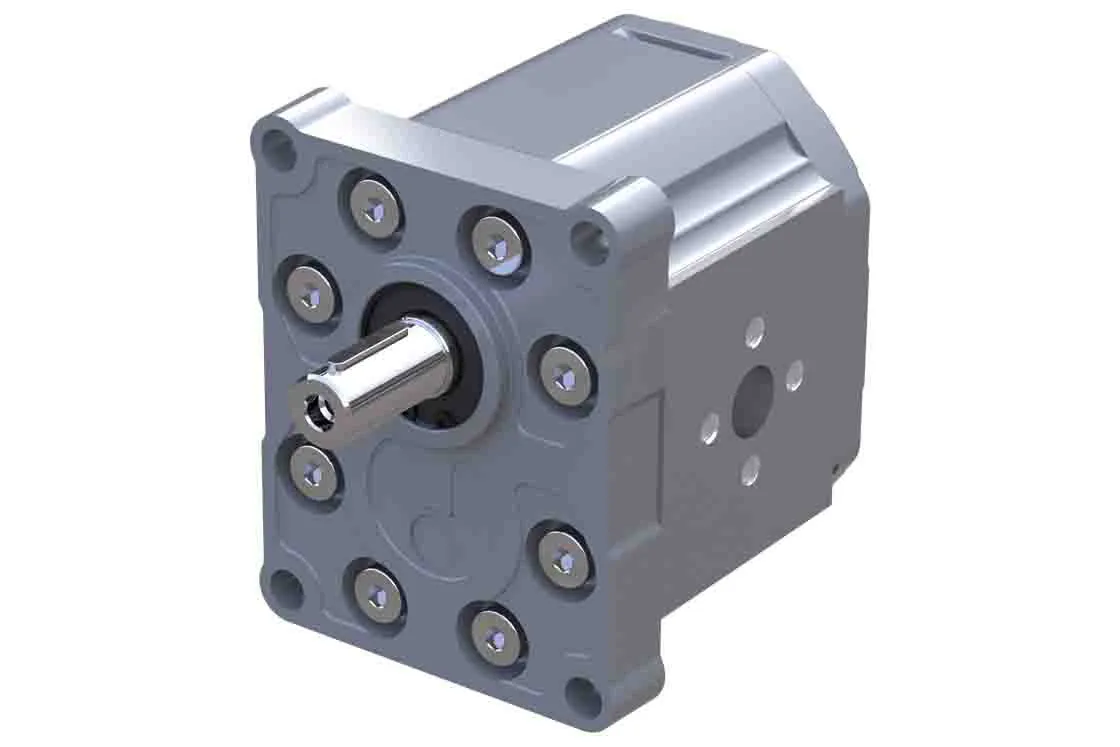

GEAR MOTOR GR3 FAN DRIVE WITH VALVE – 11046690
Specification
| B: Displacement | Displacement 33 cc |
|---|---|
| C: Rotation | Product with counter-clockwise rotation |
| D: Project Version | Generation II |
| E: Mounting Flange | Flange SAE b with pilot D.101,6 and 2 holes for bolts |
| F: Drive Gear | Taper 1:8 – 5/8-18UNF-2A – Key = 6,375 CO07 |
| G: Rear Cover | Cover for motor per proportional valve and axial drain 9/16-18UNF-2B |
| H: Inlet Size | Without outlet |
| I: Outlet Size | 25×26,19×52,37×3/8-16UNC |
| J: Ports Position | Standard from catalogue |
| K: Seals | Standard seal |
| L: Screws | Screws standard |
| M: Valve Setting | Setting proportional valve, type of connector 24 DT Volt and pressure 190 bar with oil ISO VG68 a 40°-50°C |
| N: Mark Type | Standard Marking |
| O Ring, Inside Diameter | Slash |
| O: Mark Position | Position Marking standard |
| Proposition 65 | Cancer and Reproductive Harm |
| Single Stage Family | Mot.ISIS-CI Cov+In.1’1/16-12 |
| Slash Separator | Slash |
