Danfoss (Drives) 11043283

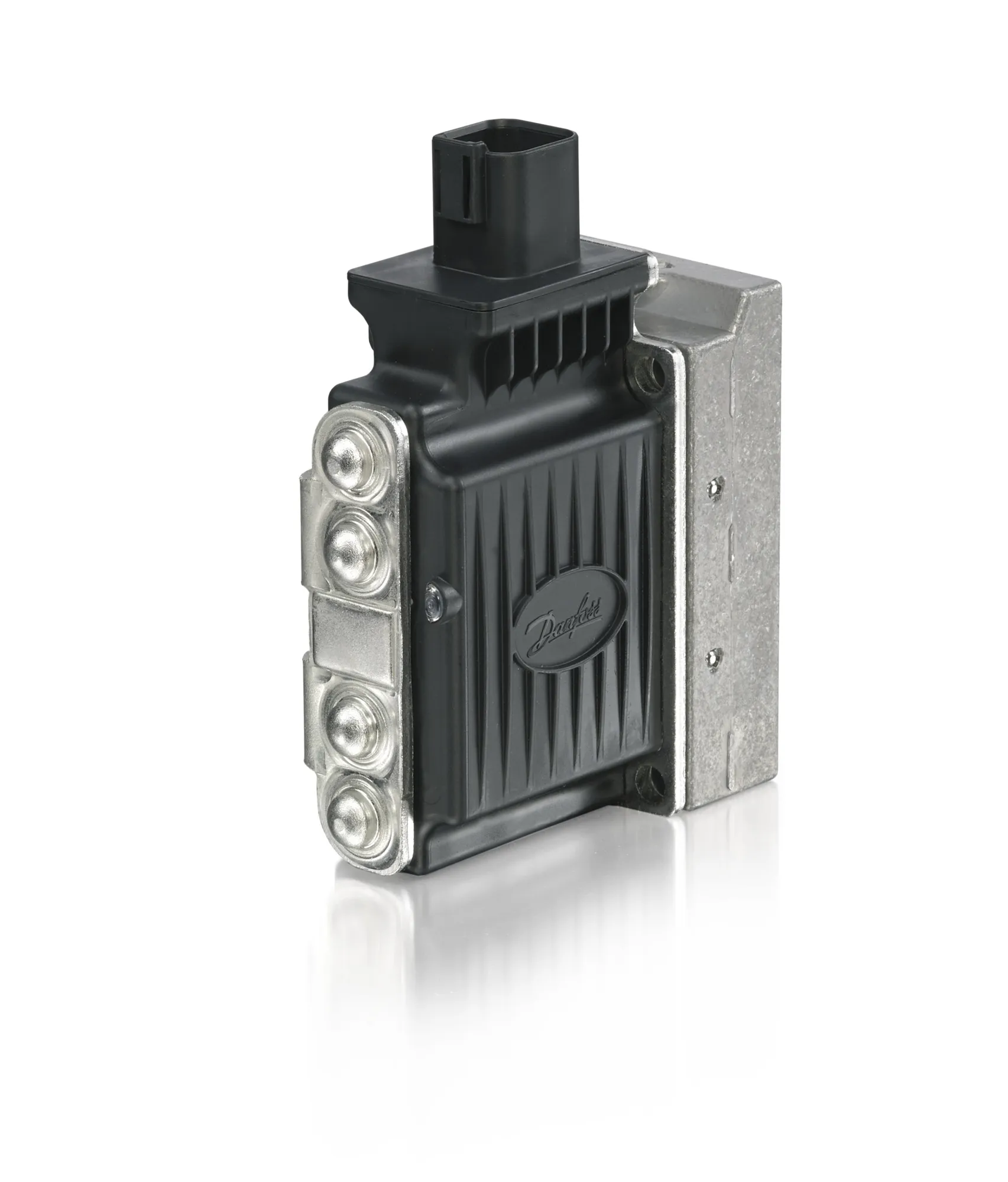

PVED32-ACTUATOR-CC-S4-2x4AMP-S-2.08 – 11043283
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PVED32-ACTUATOR-CC-S4-2x4AMP-S-2.08 – 11043283
Specification
| A Port Placement | N/A |
|---|---|
| B Port Placement | N/A |
| Can Protocol | ISOBus/J1939 |
| Certification | ISO13849 Compliant |
| Coil Power | 8 W |
| Connector Direction | 90 (Up) |
| Connector Type | 2×4 AMP JPT SAAB |
| Control Signal | CANBus |
| De Stroke Reaction A | 90 ms |
| De Stroke Reaction B | 90 ms |
| Digital Type | CC |
| Disable Function | N/A |
| Ex Application | N/A |
| Extra Function | N/A |
| Fault Reaction & Recovery | Setting |
| Float Direction | A/B Port |
| Hysteresis | 0.5% |
| Ip Rating | IP66 |
| Length | 106 |
| Manual Override | N/A |
| Marking | CE EAC |
| Max Oil Consump. Steady State | 0,1 l/min |
| Max Oil Consumption | 0,3 l/min |
| Maximum System Pressure Peaks | 60 |
| Minimum Float Position | N/A |
| Nominel A Stroke | 7 |
| Nominel B Stroke | 7 |
| On Stroke Response A | 120 ms |
| On Stroke Response B | 120 ms |
| Output Signal | CAN |
| Outward Side Interface | N/A |
| Pilot Pressure | 13.5 (PVE) |
| Pilot Pressure Full Stroke | N/A |
| Pilot Pressure Neutral | N/A |
| Port Connection Type | N/A |
| Port Size | N/A |
| Primer | N/A |
| Product Category | Obsolete |
| Product Type | N/A |
| Proposition 65 | Cancer and Reproductive Harm |
| Pvdi Connector Coding | N/A |
| Resolution | 1000 |
| Valve Side Interface | PVE32 O-Ring |
| Voltage | 11-32 |
