Danfoss (Drives) 11020268101
SM D330(00119 OLD K107543)PRIMER – 11020268101
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

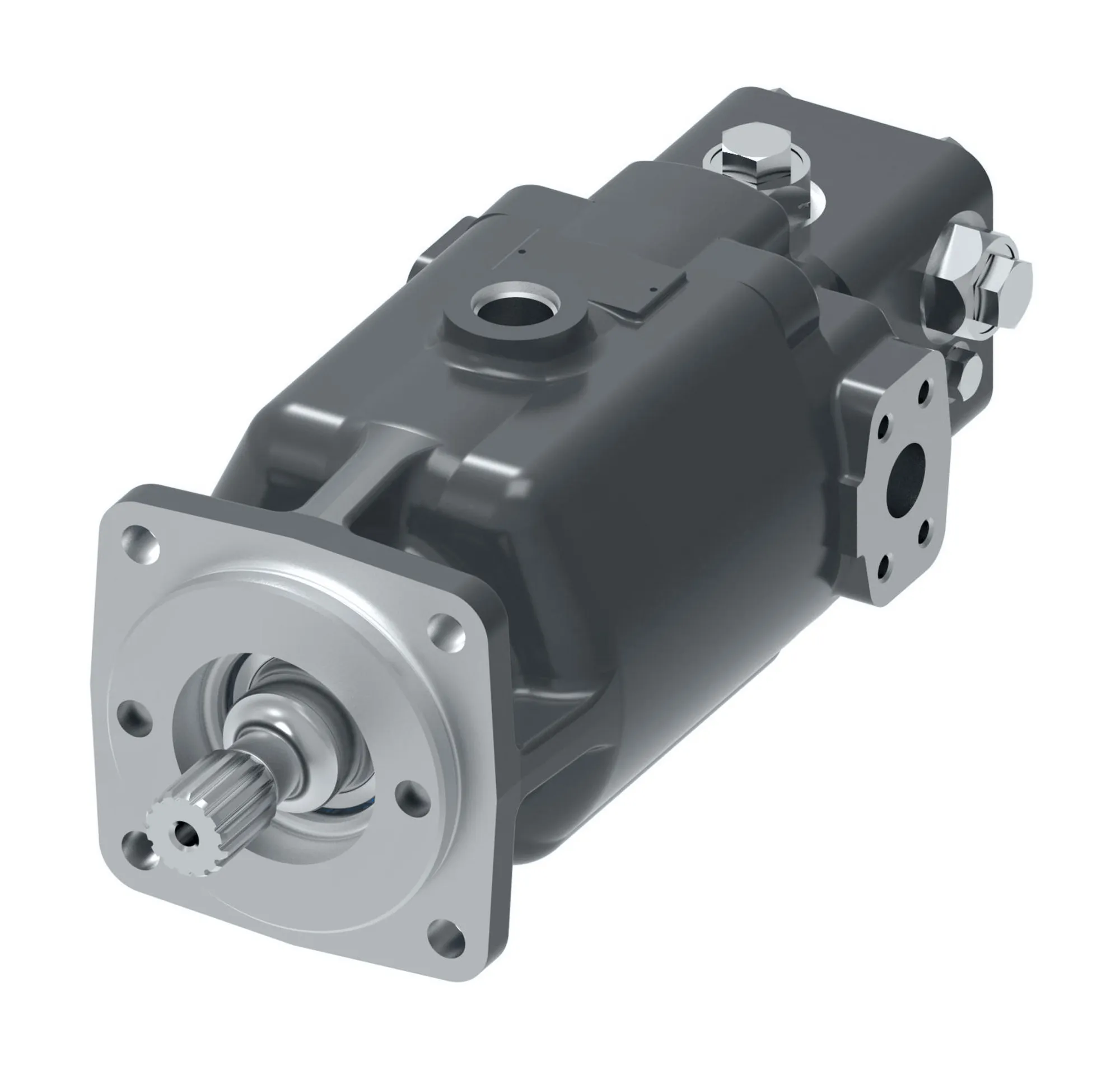

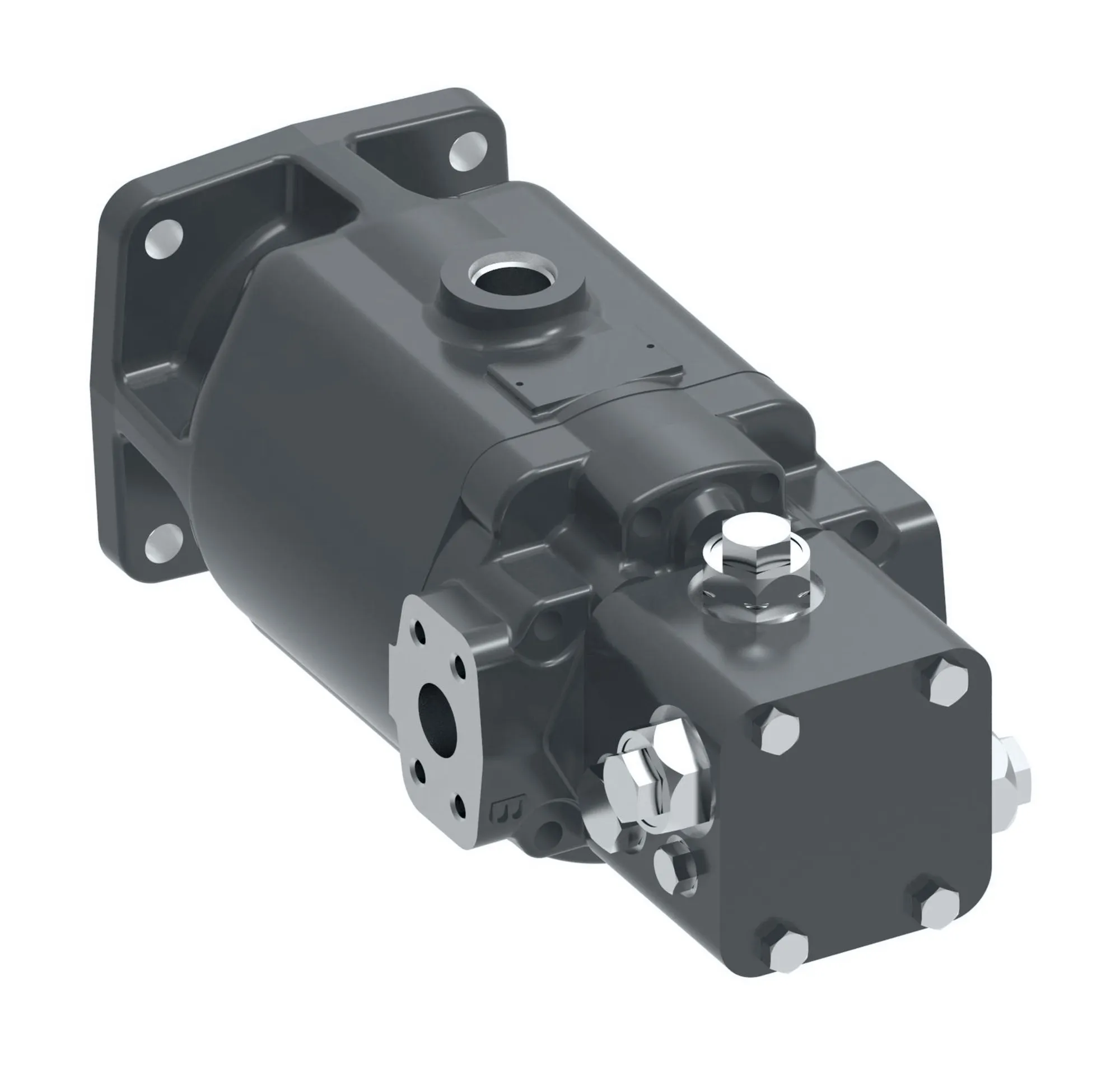

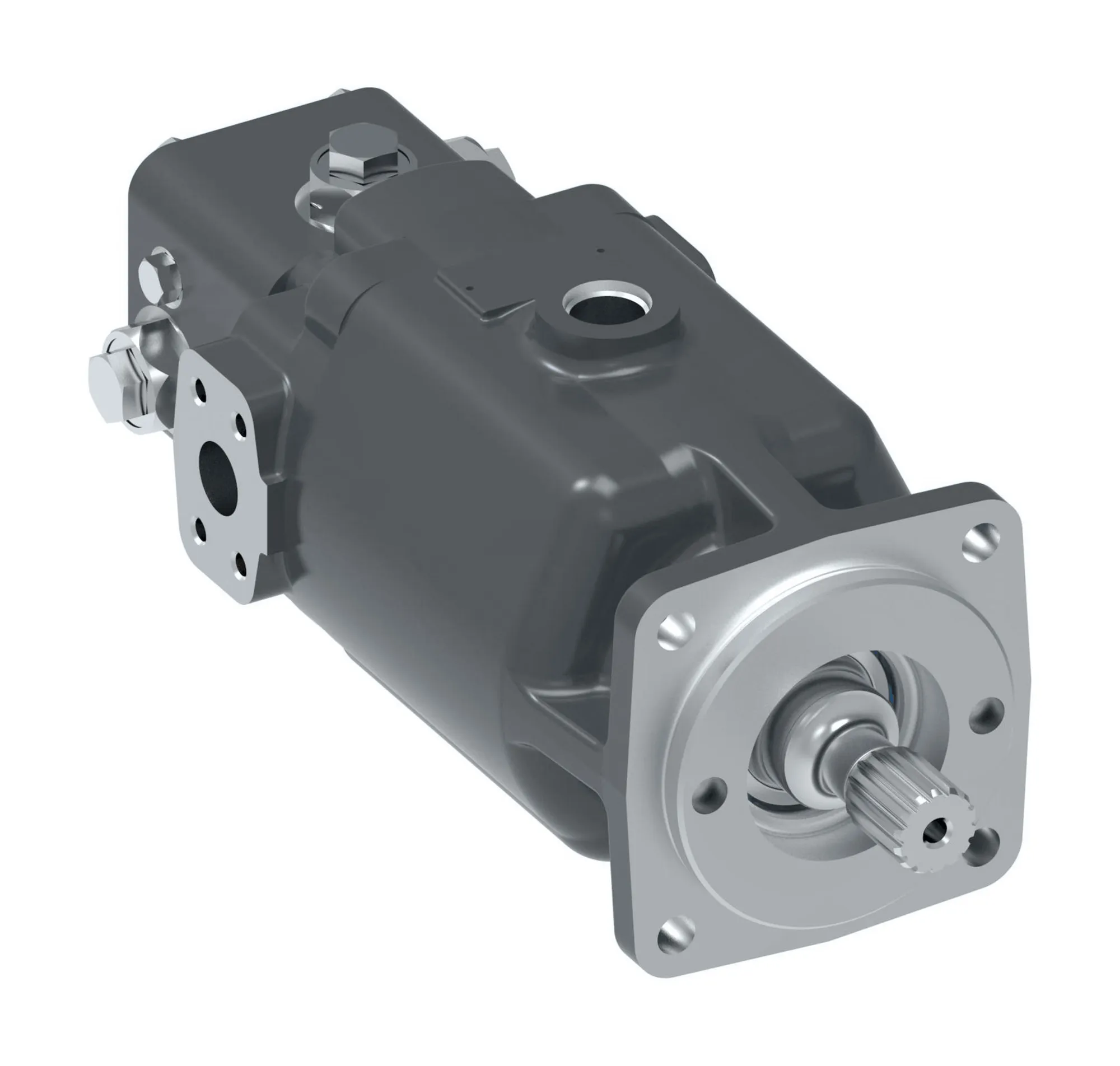

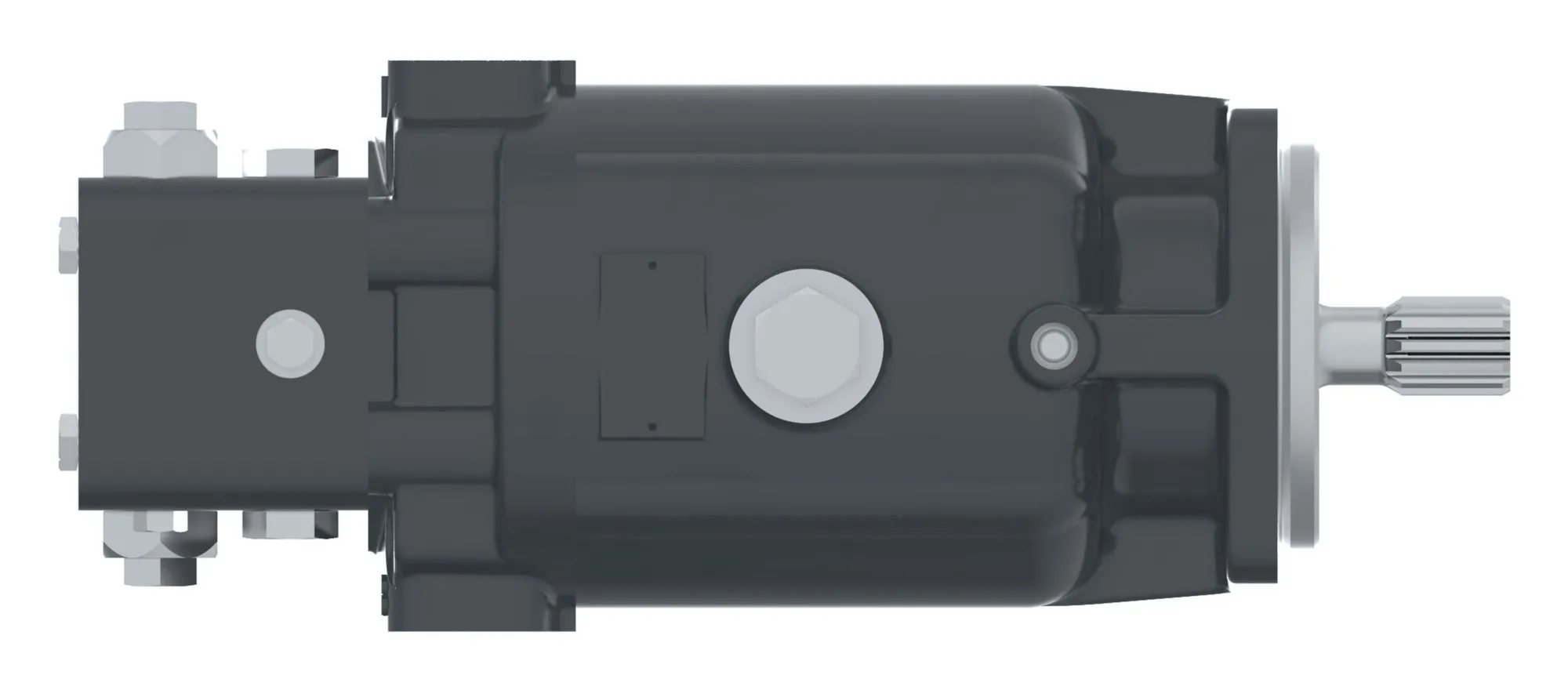

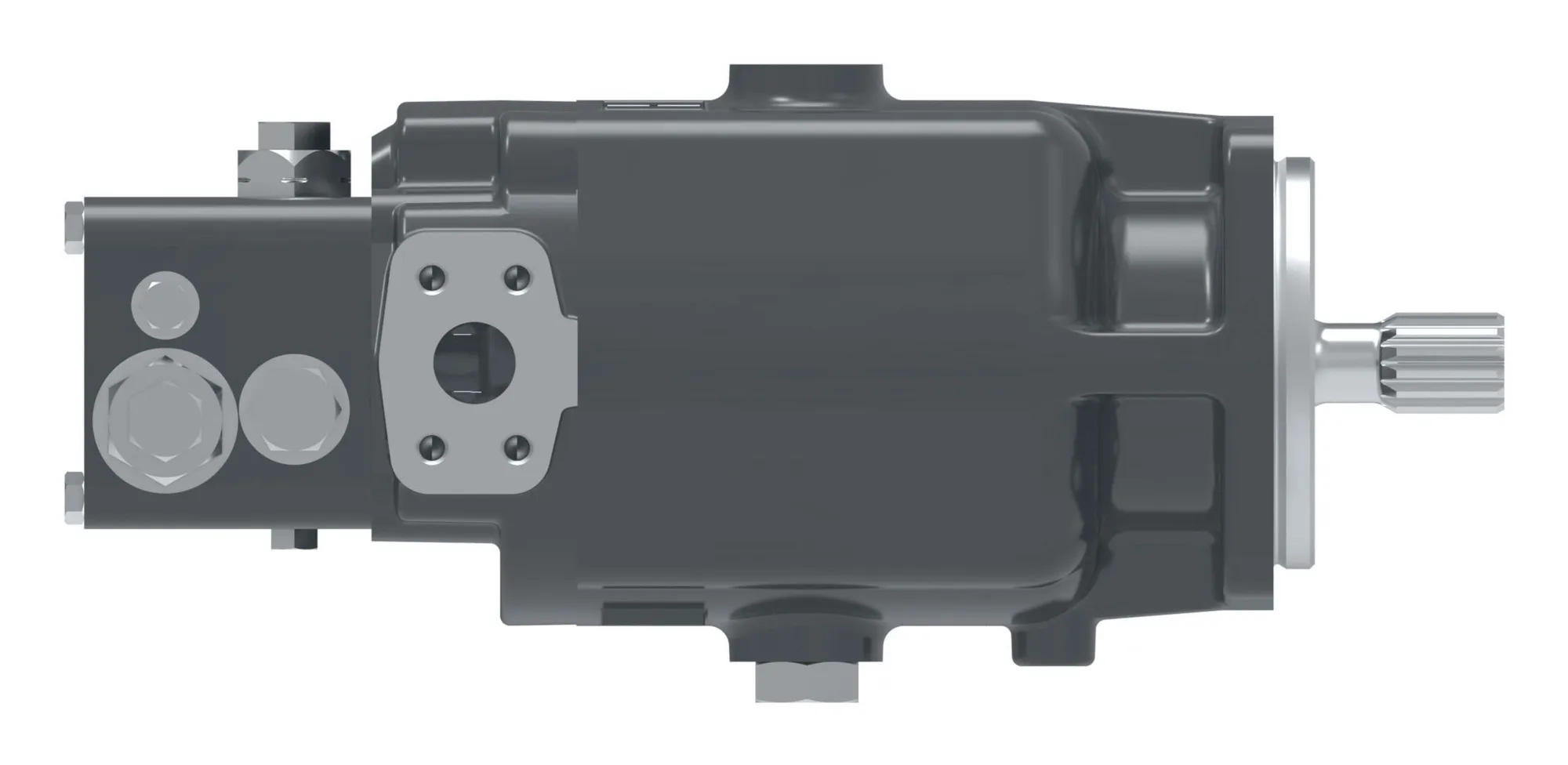

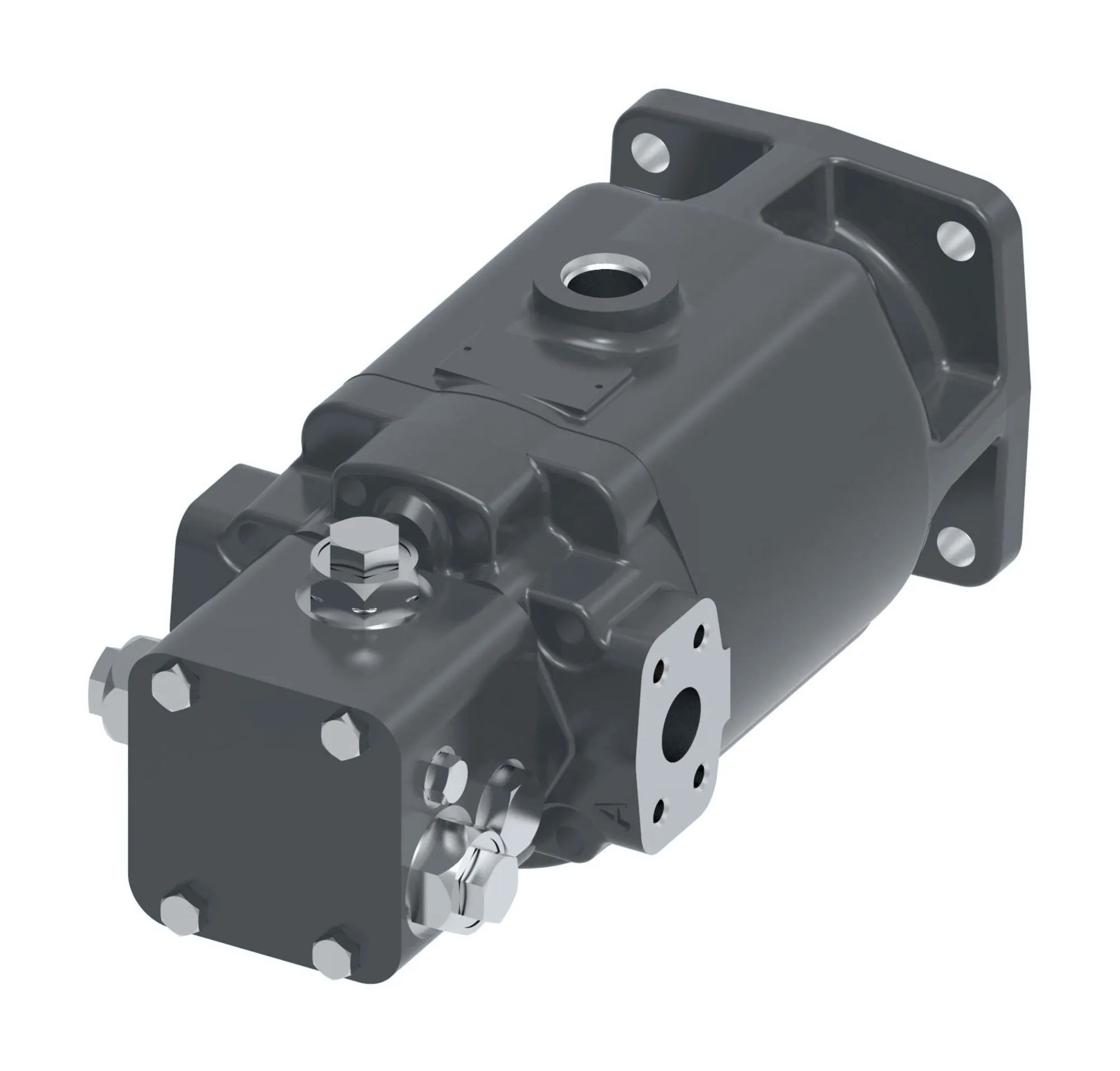

SM D330(00119 OLD K107543)PRIMER – 11020268101
Specification
| A B Main Port Size | SAE 1″ 8-M12 |
|---|---|
| Anti Reverse Valve And Setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 250 cm3/r (15.25 in3/r) |
| Flow Rate Gpm | 76.61 |
| Flow Rate Lpm | 290.0 |
| Gear Ratio | None |
| Gearbox Input Shaft Spec | None |
| Gearbox Mounting With Vehicle | None |
| Gearbox Output Shaft Spec | None |
| Maximum Output Speed Rpm | 1160 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF250 |
| Output Torque Lbf In | 8635.6 |
| Output Torque Nm | 975.7 |
| Parking Brake And Setting | Standard |
| Product Height In | 306.000 |
| Product Height Mm | 7772.400 |
| Product Length In | 391.000 |
| Product Length Mm | 9931.400 |
| Product Width In | 306.000 |
| Product Width Mm | 7772.4 |
| Relief Valve And Setting | 280bar (4061 psi) 40 lpm (10.56 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 13 bar (188 psi) |
| Working Pressure Bar | 275.0 |
| Working Pressure Psi | 3989 |
