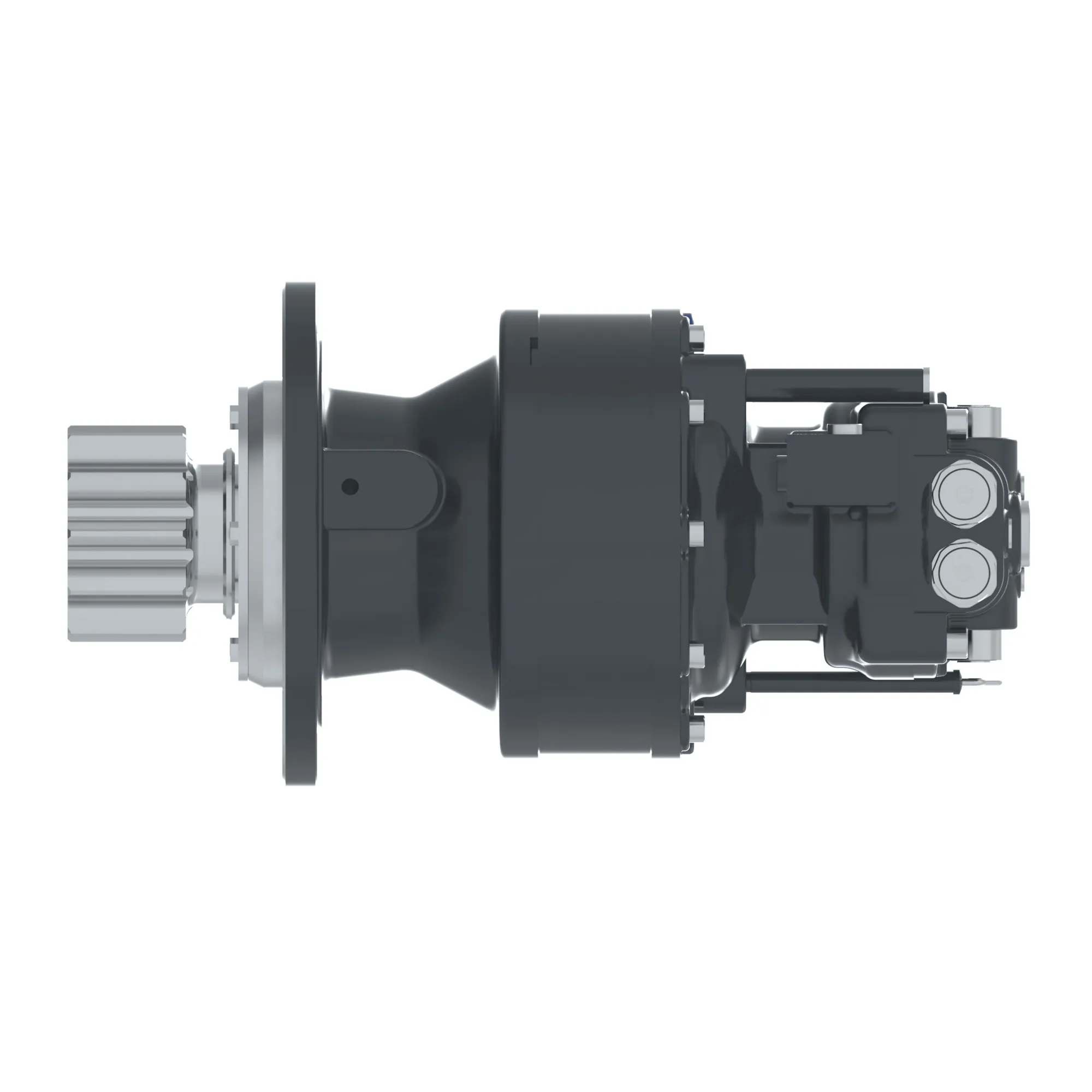

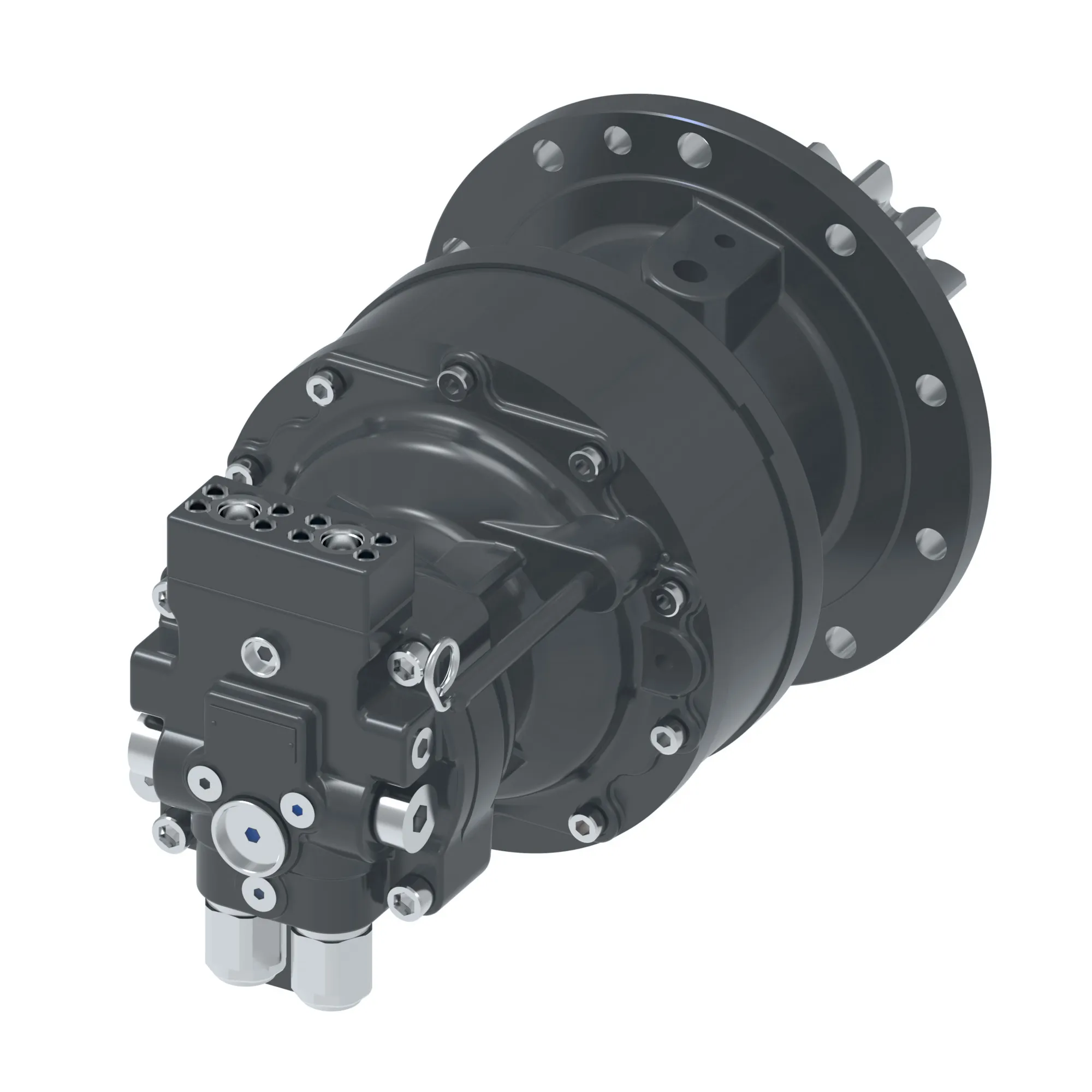

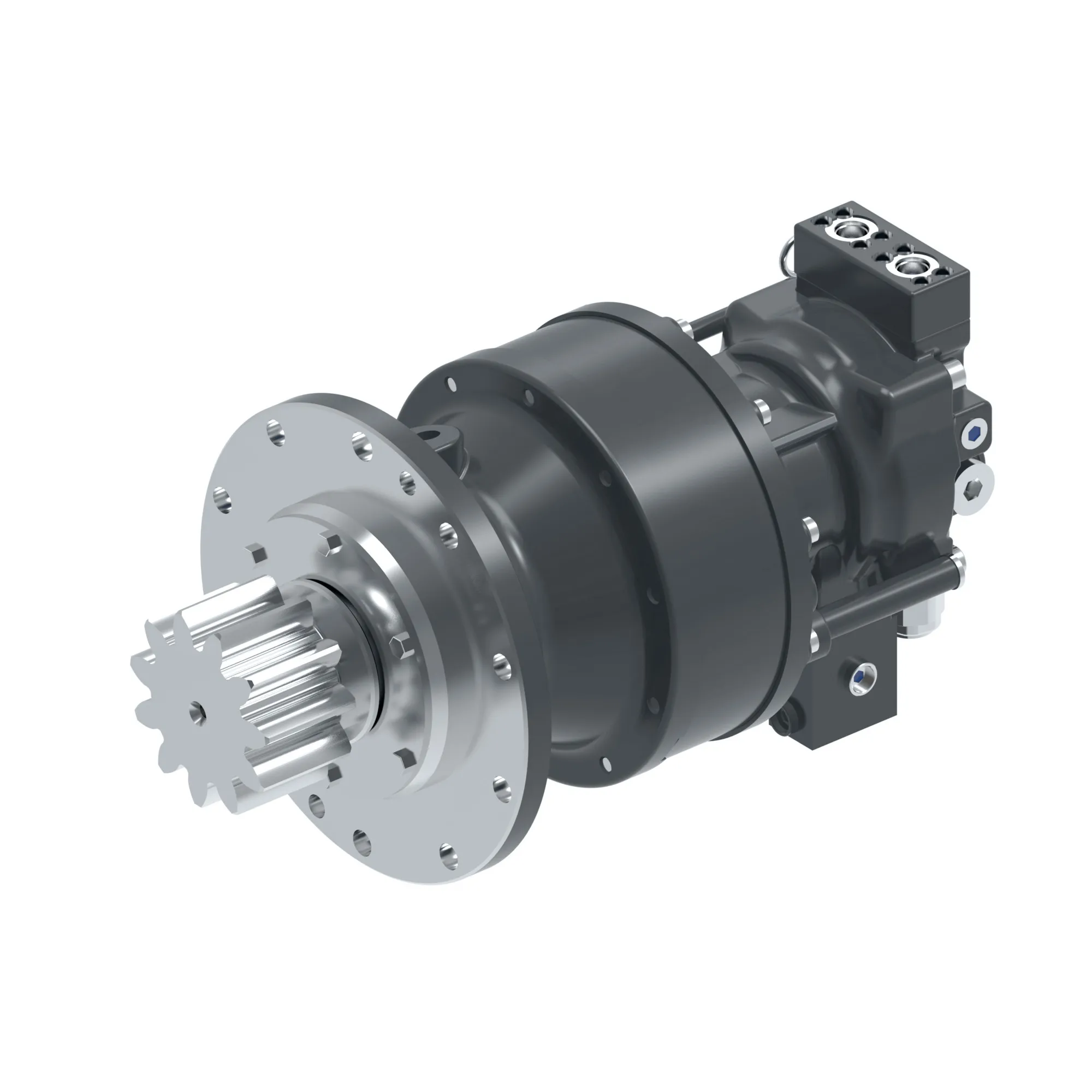

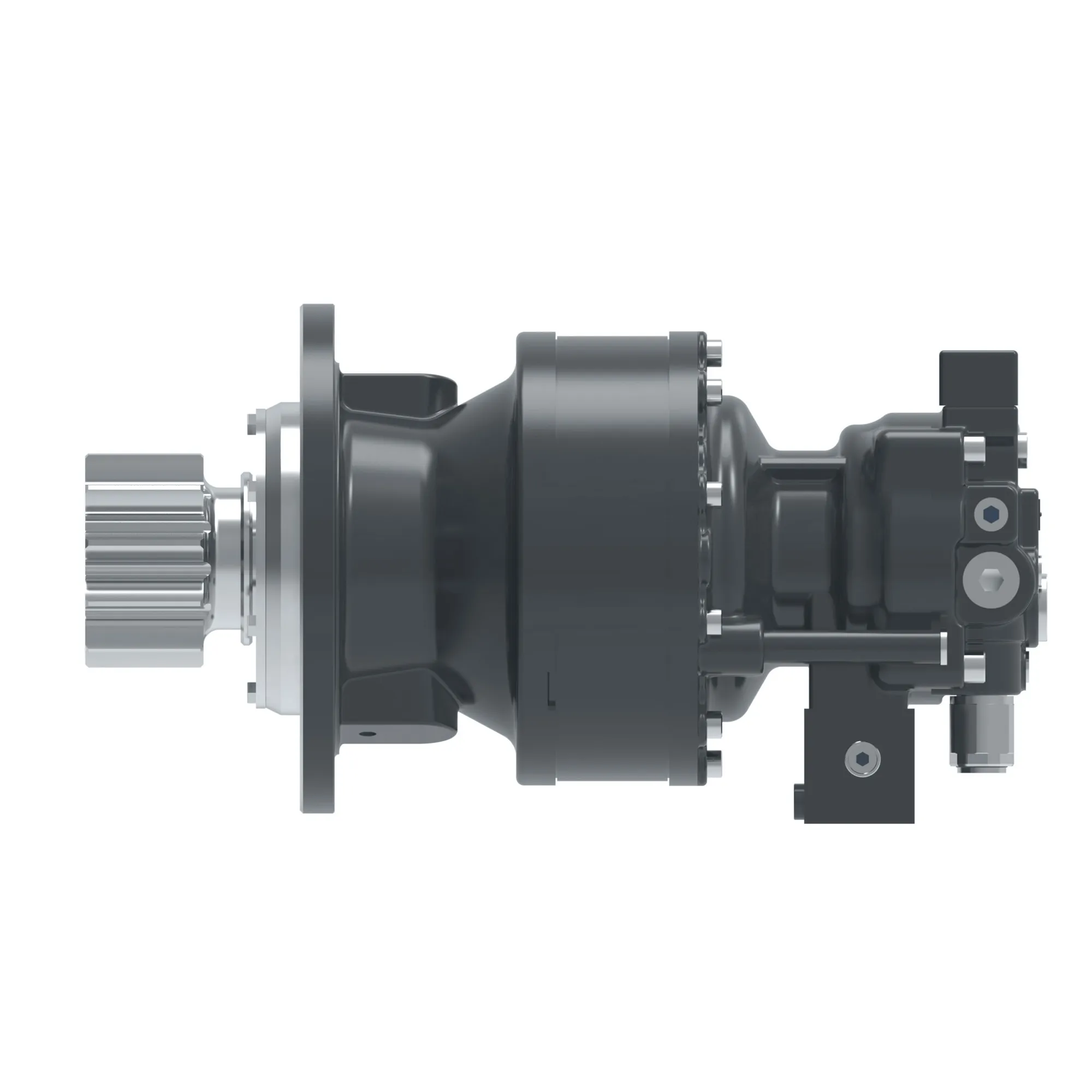

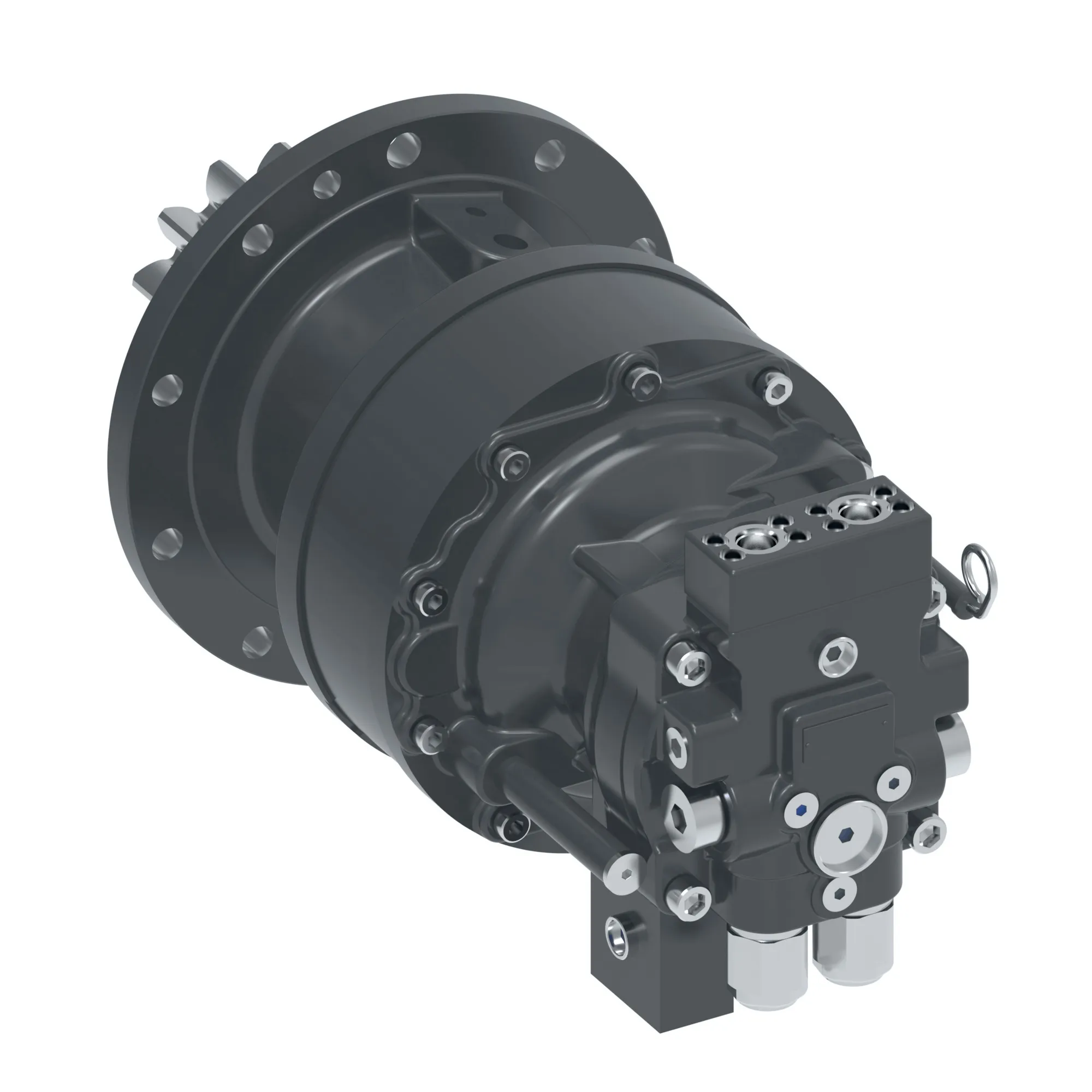

Danfoss (Drives) 11020267901
SM S55V(2401-9255E)(DIST) PRIMER – 11020267901
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SM S55V(2401-9255E)(DIST) PRIMER – 11020267901
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Reverse Valve And Setting | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 43 cm3/r (2.62 in3/r) |
| Flow Rate Gpm | 15.85 |
| Flow Rate Lpm | 60.0 |
| Gear Ratio | None |
| Gearbox Input Shaft Spec | None |
| Gearbox Mounting With Vehicle | None |
| Gearbox Output Shaft Spec | None |
| Identification | Standard namplate |
| Maximum Output Speed Rpm | 1395 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF043PS |
| Output Torque Lbf In | 1188.6 |
| Output Torque Nm | 134.3 |
| Paint | Primer + orange |
| Parking Brake And Setting | Standard |
| Product Height In | 8.770 |
| Product Height Mm | 222.758 |
| Product Length In | 16.100 |
| Product Length Mm | 408.940 |
| Product Width In | 8.770 |
| Product Width Mm | 222.758 |
| Relief Valve And Setting | 200bar (2987 psi) 40 lpm (10.56 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 5 bar (72 psi) |
| Working Pressure Bar | 196.0 |
| Working Pressure Psi | 2843 |
