Danfoss (Drives) 11020253601
SM C8T DEVICE(Liugong)46.8cc – 11020253601
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

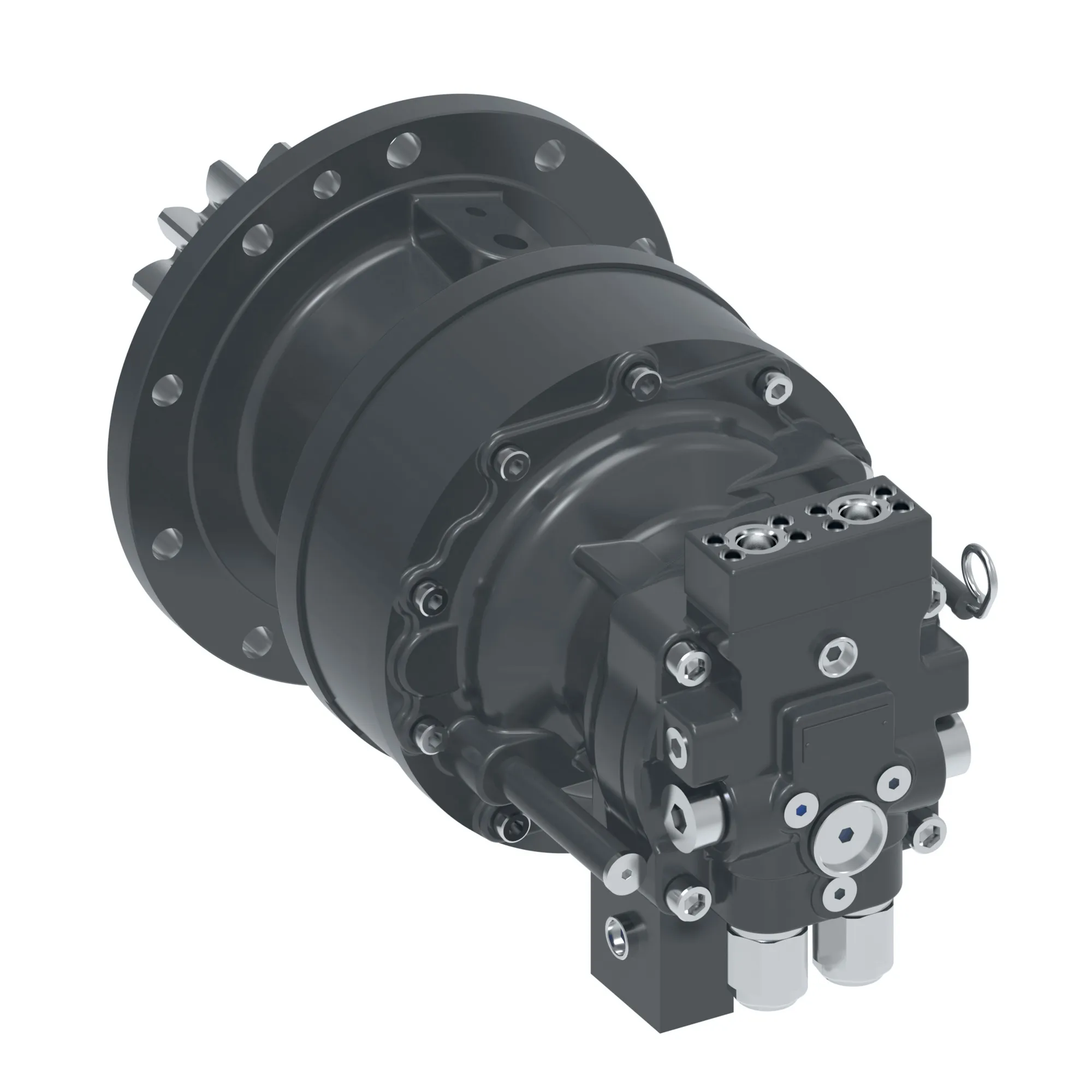

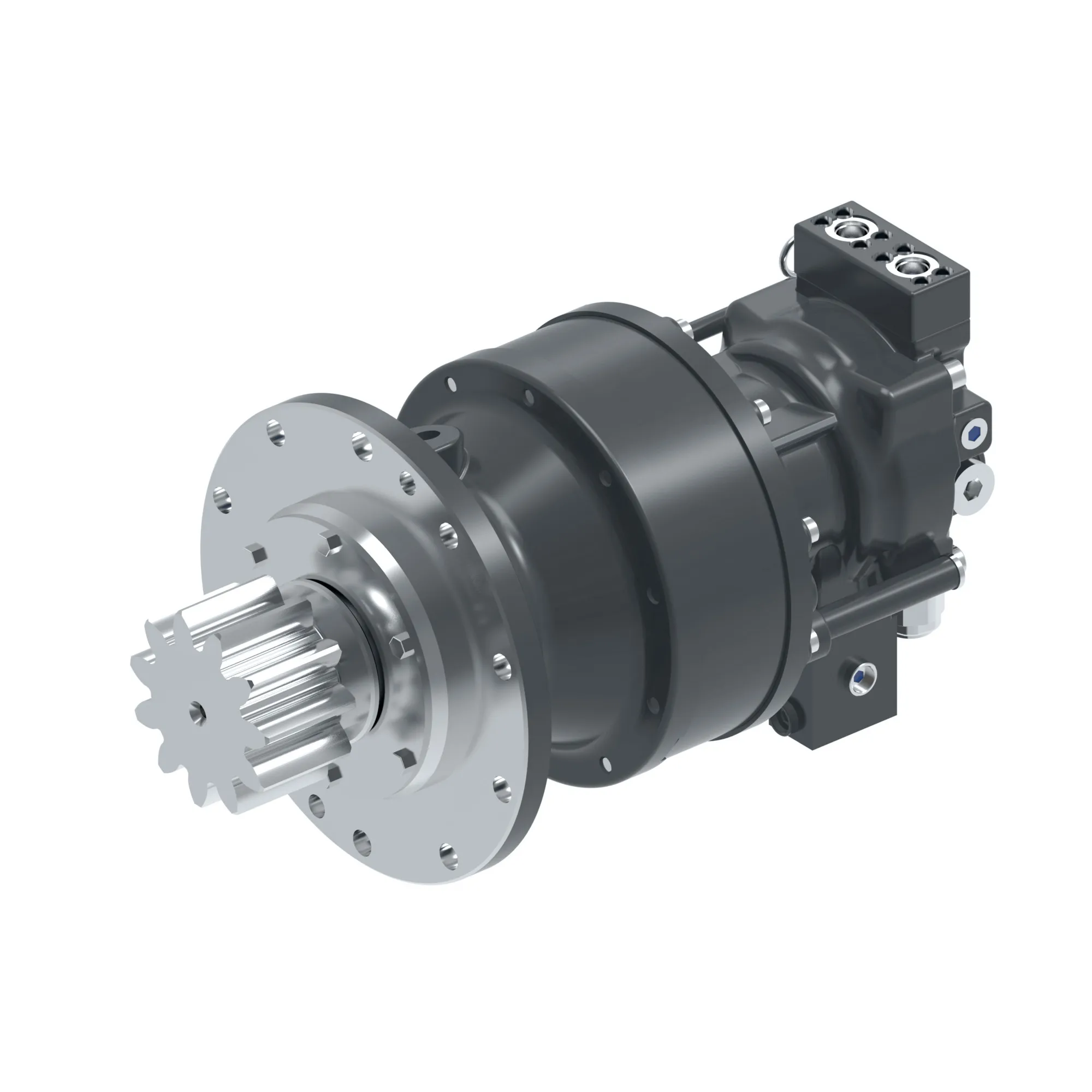

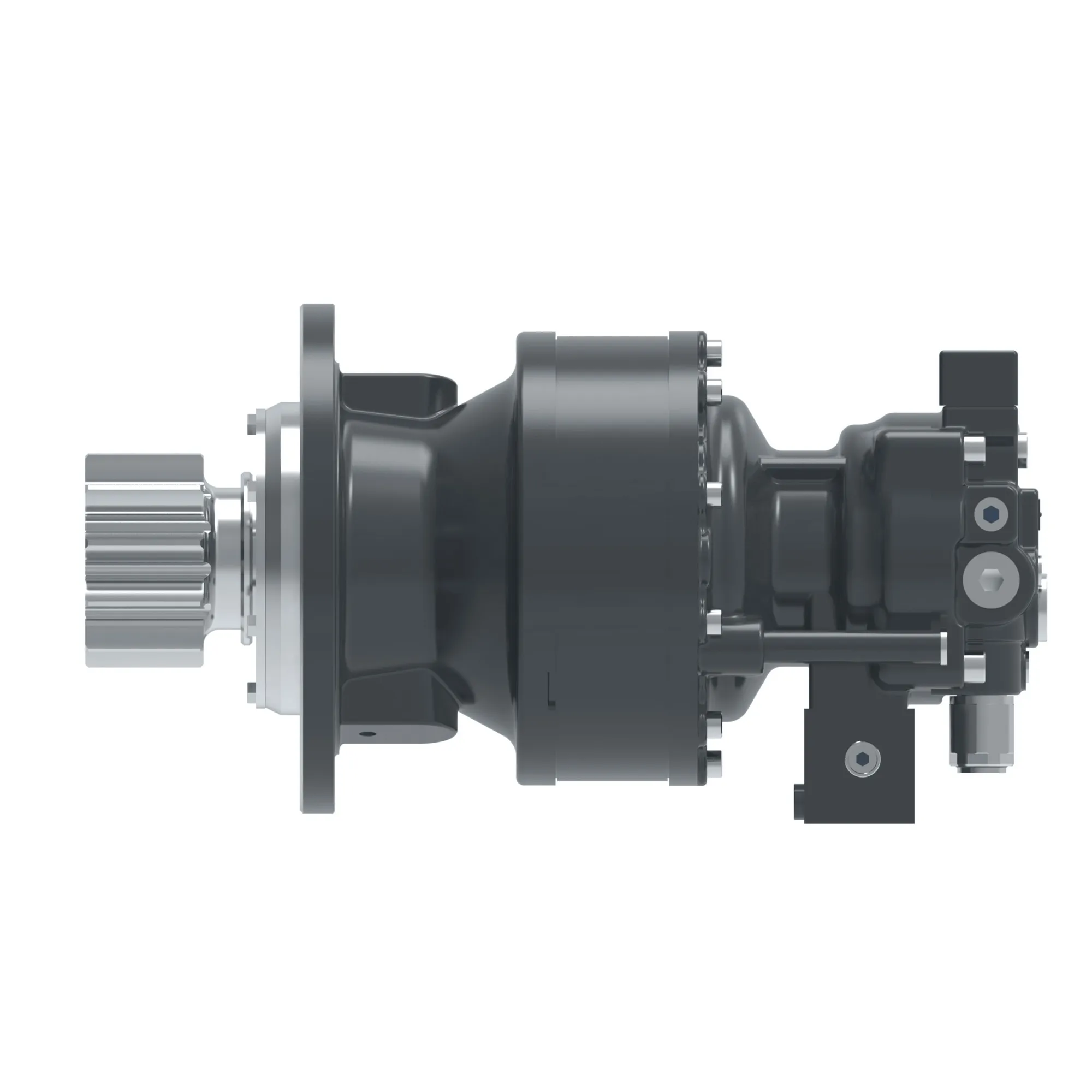

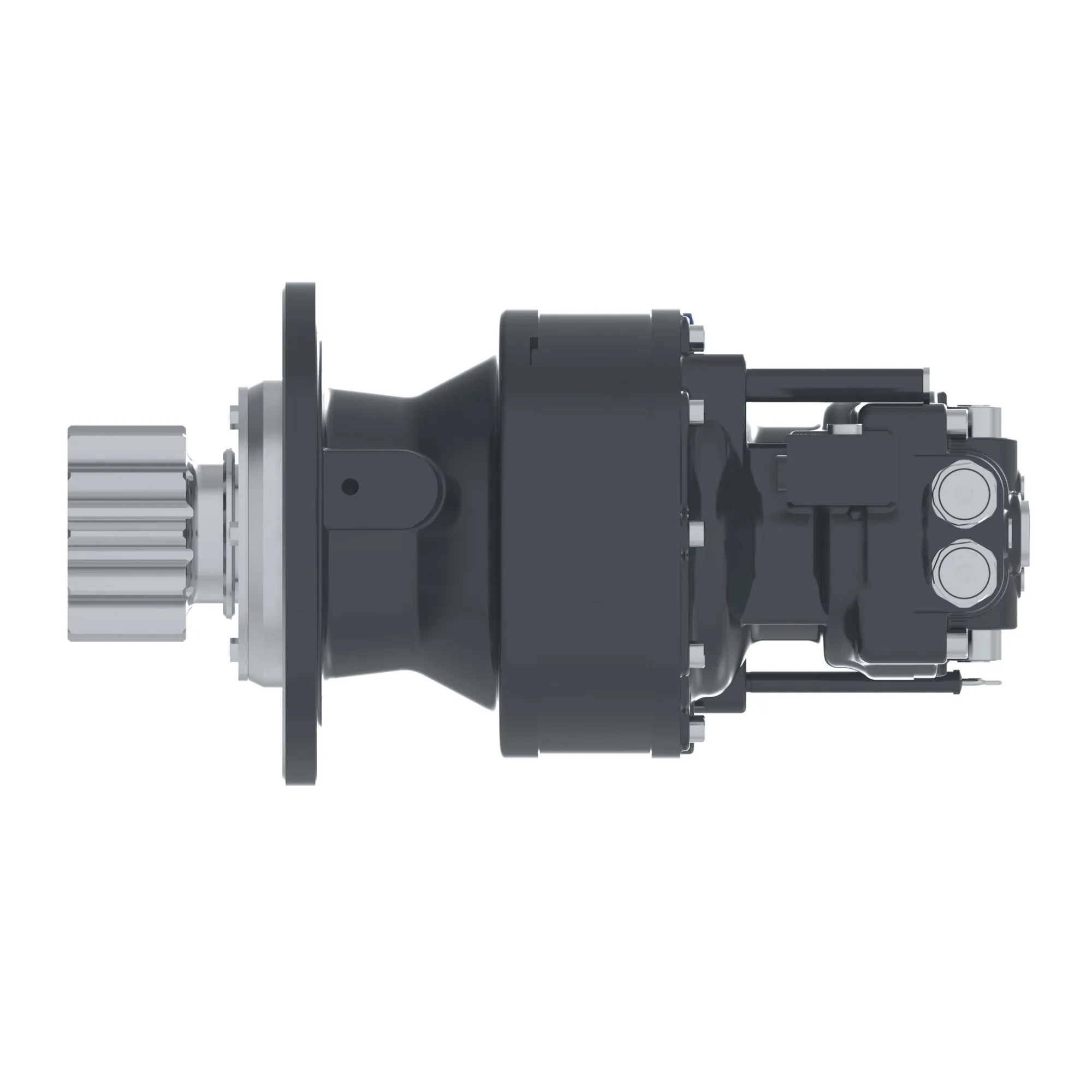

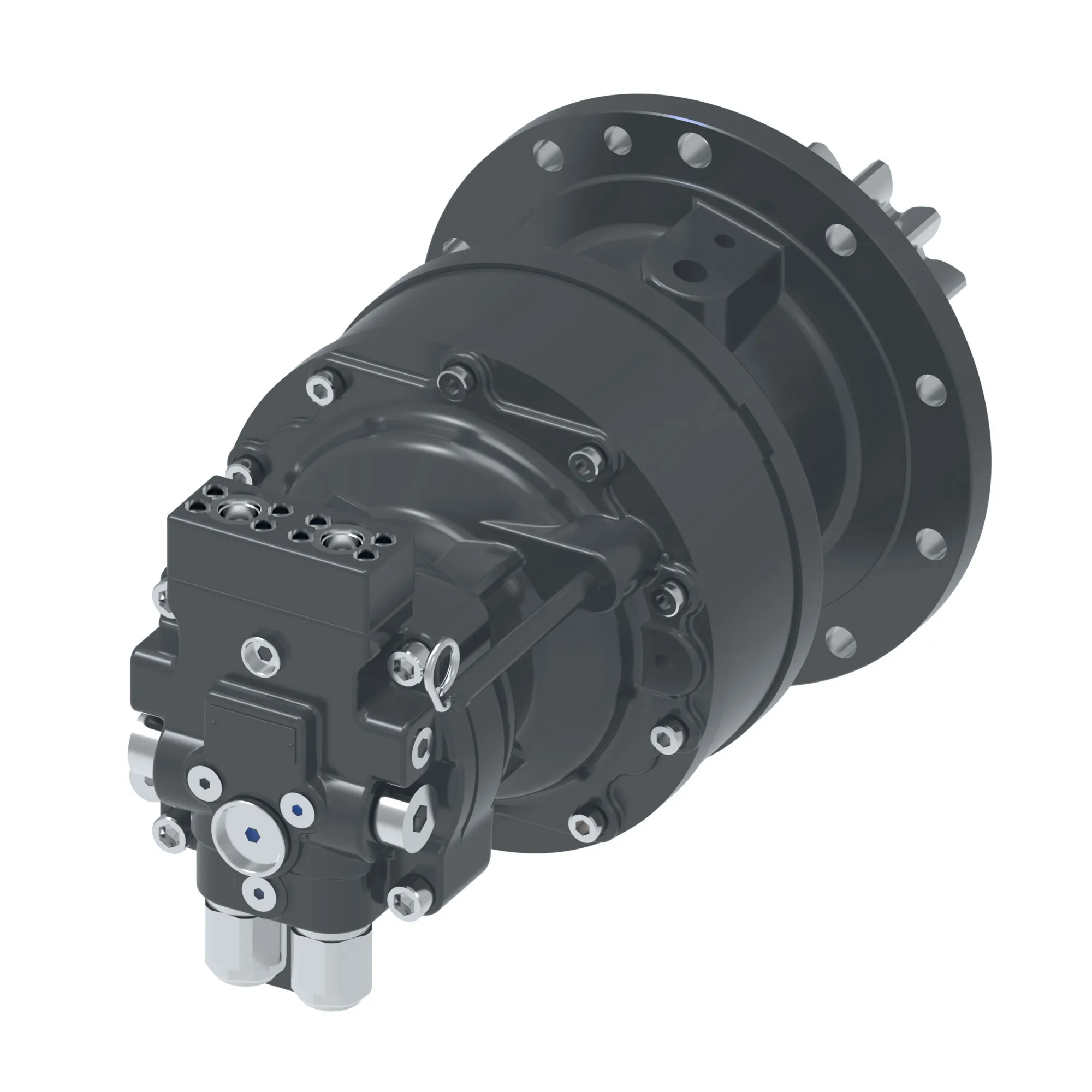

SM C8T DEVICE(Liugong)46.8cc – 11020253601
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Reverse Valve And Setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 47 cm3/r (2.86 in3/r) |
| Flow Rate Gpm | 20.87 |
| Flow Rate Lpm | 79.0 |
| Gear Ratio | 19.5 two stage |
| Gearbox Input Shaft Spec | None |
| Identification | Standard namplate |
| Maximum Output Speed Rpm | 87 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF047RR0204010011943A00A |
| Output Torque Lbf In | 28924.1 |
| Output Torque Nm | 3268.0 |
| Parking Brake And Setting | Standard |
| Product Height In | 275.000 |
| Product Height Mm | 6985.000 |
| Product Length In | 515.500 |
| Product Length Mm | 13093.700 |
| Product Width In | 275.000 |
| Product Width Mm | 6985 |
| Relief Valve And Setting | 230bar (3335 psi) 57.5 lpm (15.18 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 5 bar (72 psi) |
| Working Pressure Bar | 226.0 |
| Working Pressure Psi | 3278 |
