Danfoss (Drives) 11017729
PUMP-VAR DISPL, CW S45PVOC_J – 11017729
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

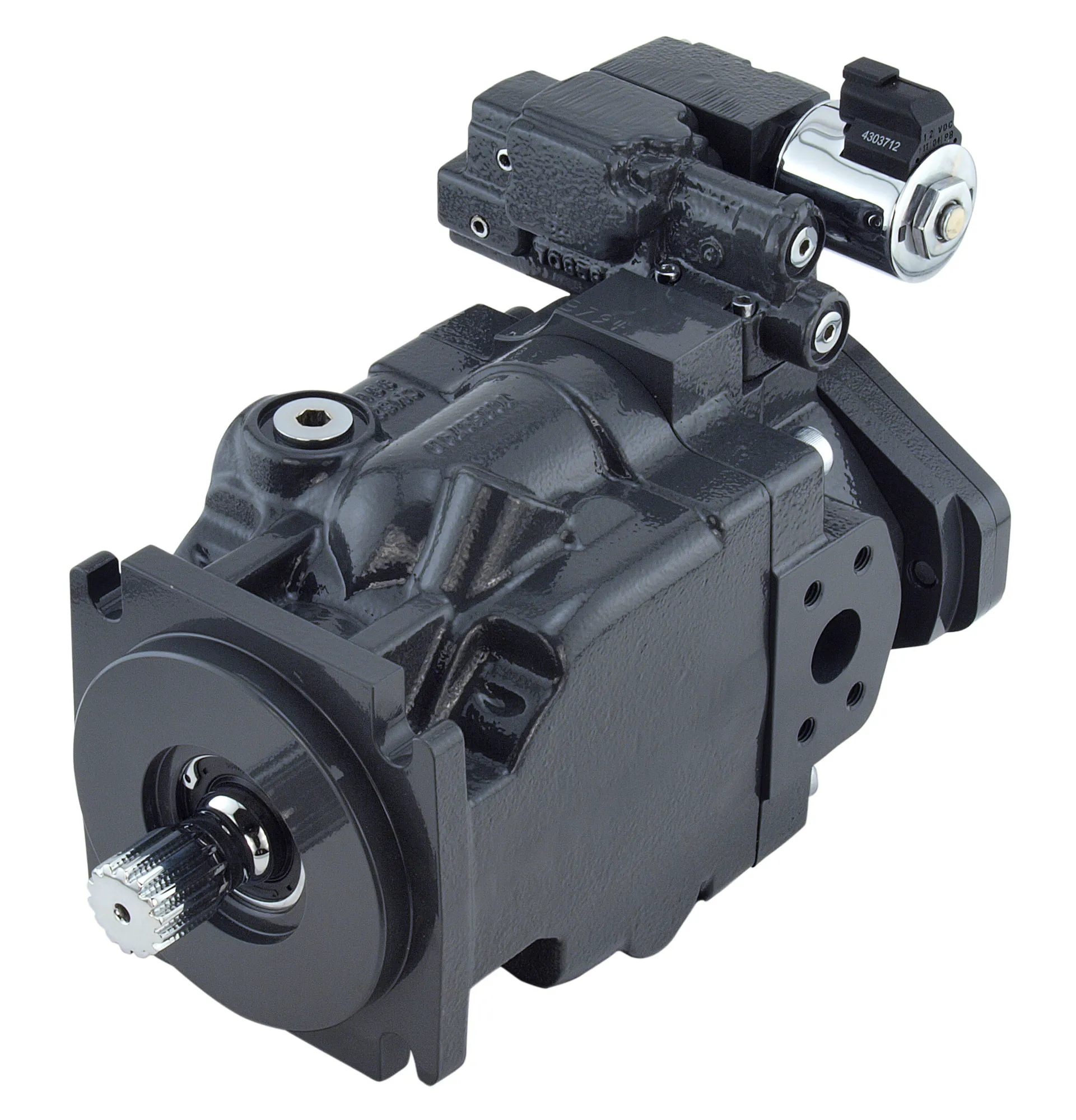

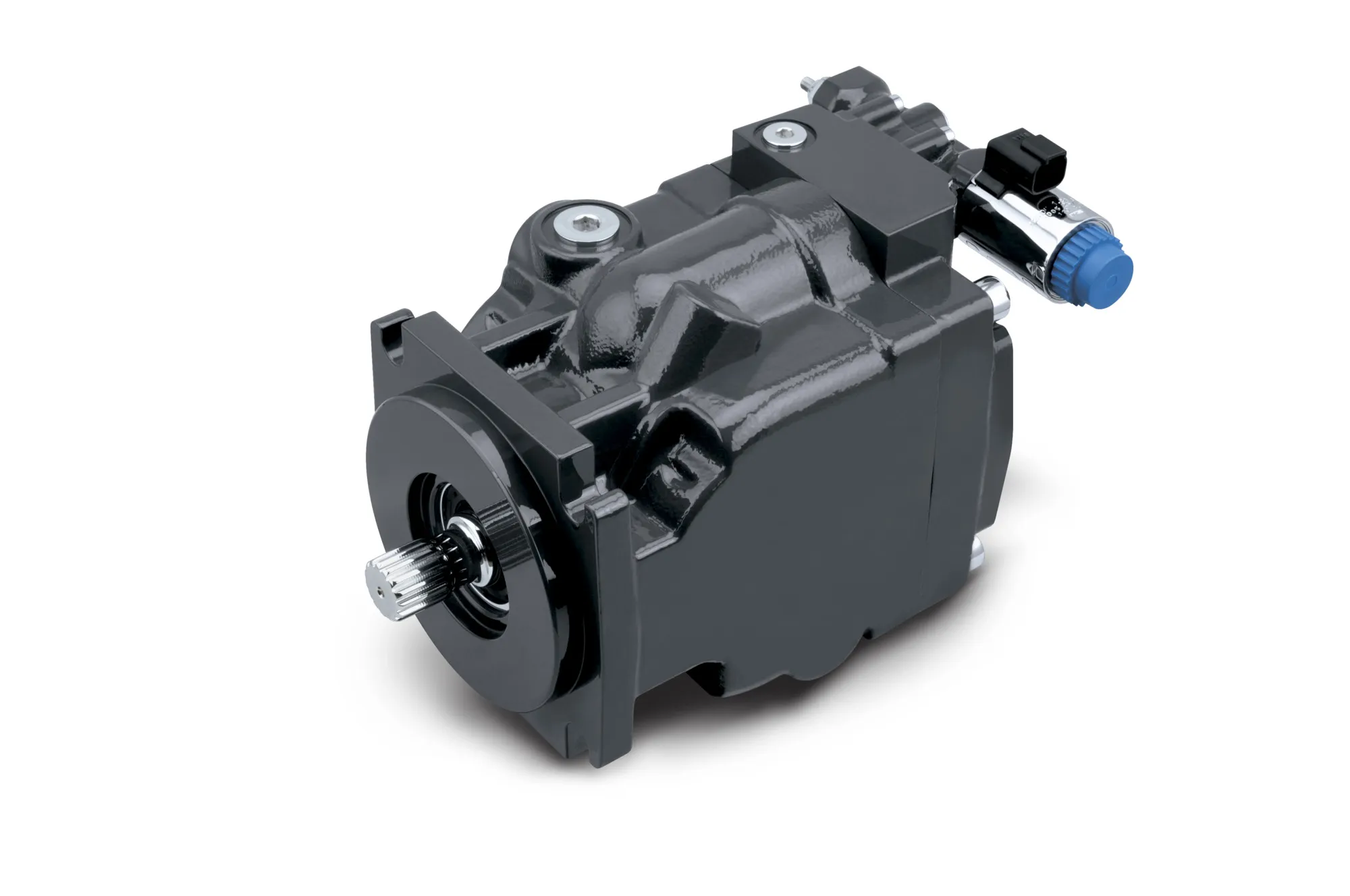

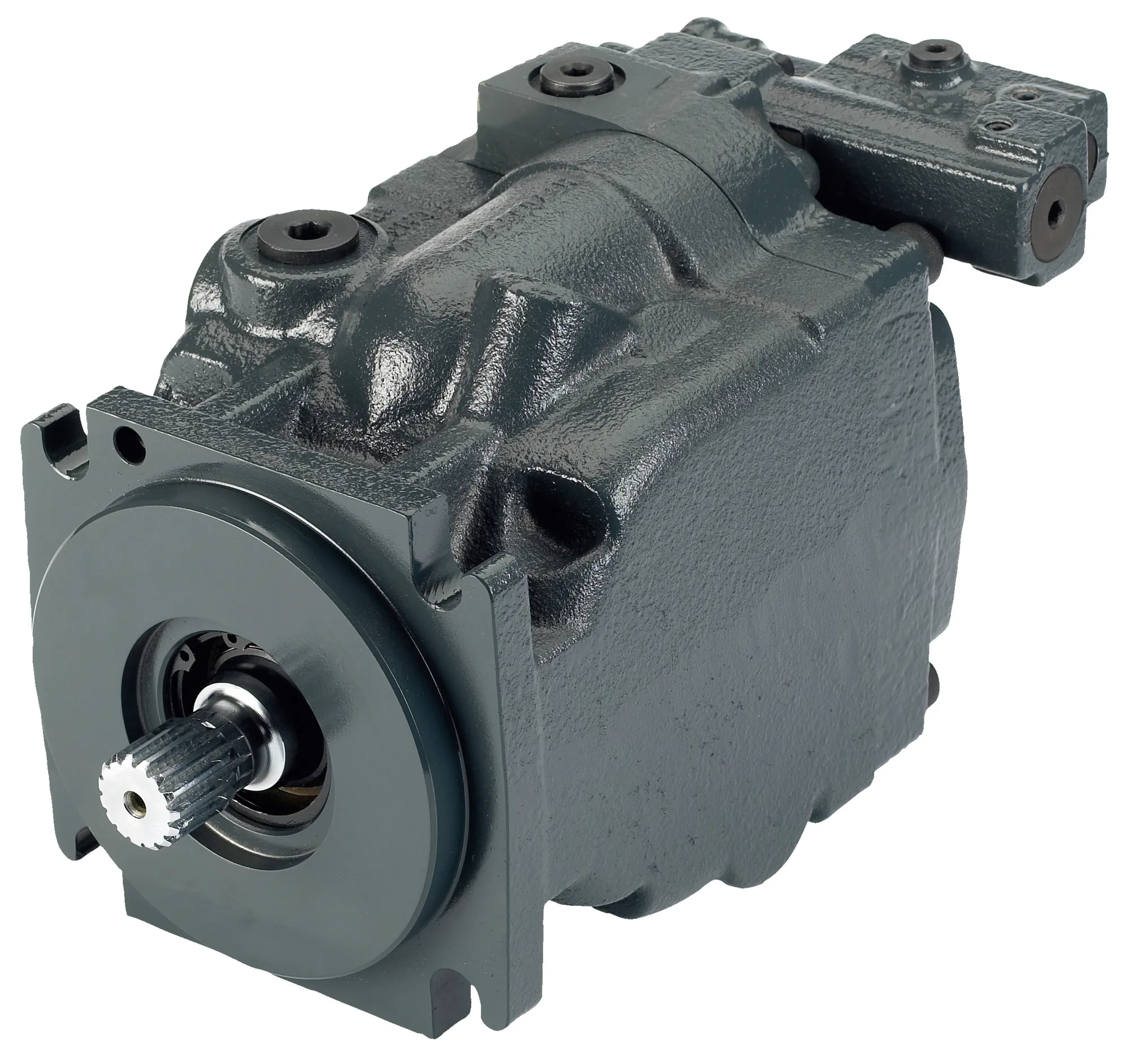

PUMP-VAR DISPL, CW S45PVOC_J – 11017729
Specification
| Frame | J frame axial piston open circuit pump |
|---|---|
| Rotation | Clockwise rotation |
| Displacement And Load Life | 60 cc/rev – 310 bar maximum continuous rated pressure |
| Control Type | Pressure compensated / load sensing [PC pressure range: 290-310 bar, LS pressure range: 10-40 bar] |
| Pressure Compensator Setting | 310 bar [4495 psi] |
| Load Sensing Setting | 25 bar [363 psi] |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | None |
| Gain Orifice | Standard orifice |
| Shaft, Auxiliary Flange, And Endcap | 15 tooth 16/32 pitch shaft, SAE-A 9 tooth auxiliary, radial, inlet: 4-bolt split flange (2 inch port, 0.5 inch threads), outlet:4-bolt split flange (1 inch port, 0.375 inch threads) |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-B 2-bolt flange, SAE O-ring ports |
| Displacement Limiter | None |
| Special Hardware | Special hardware – none |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
