Danfoss (Drives) 11010347
PUMP-VAR-DISPL CW H1PV147 – 11010347
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

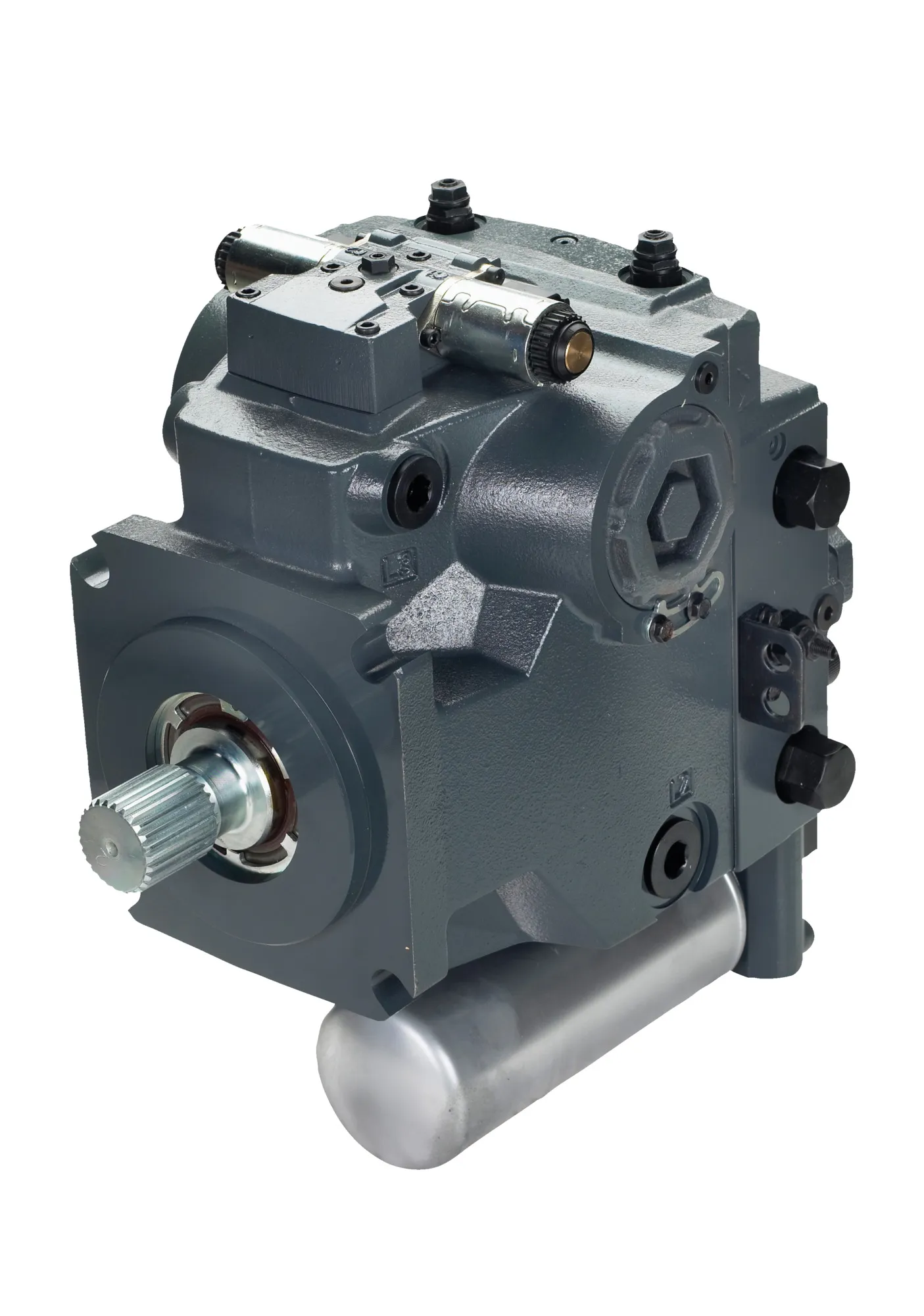

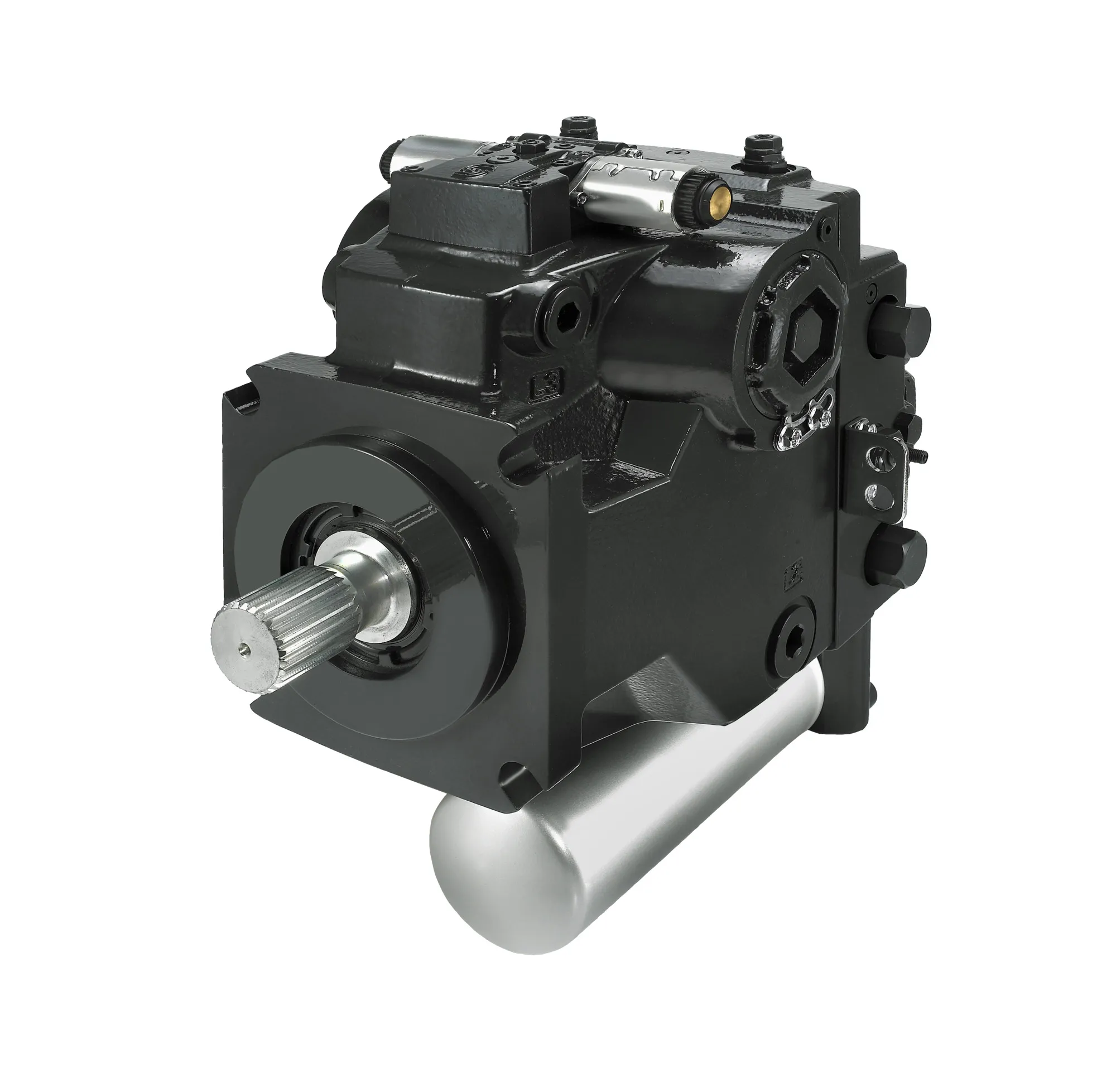

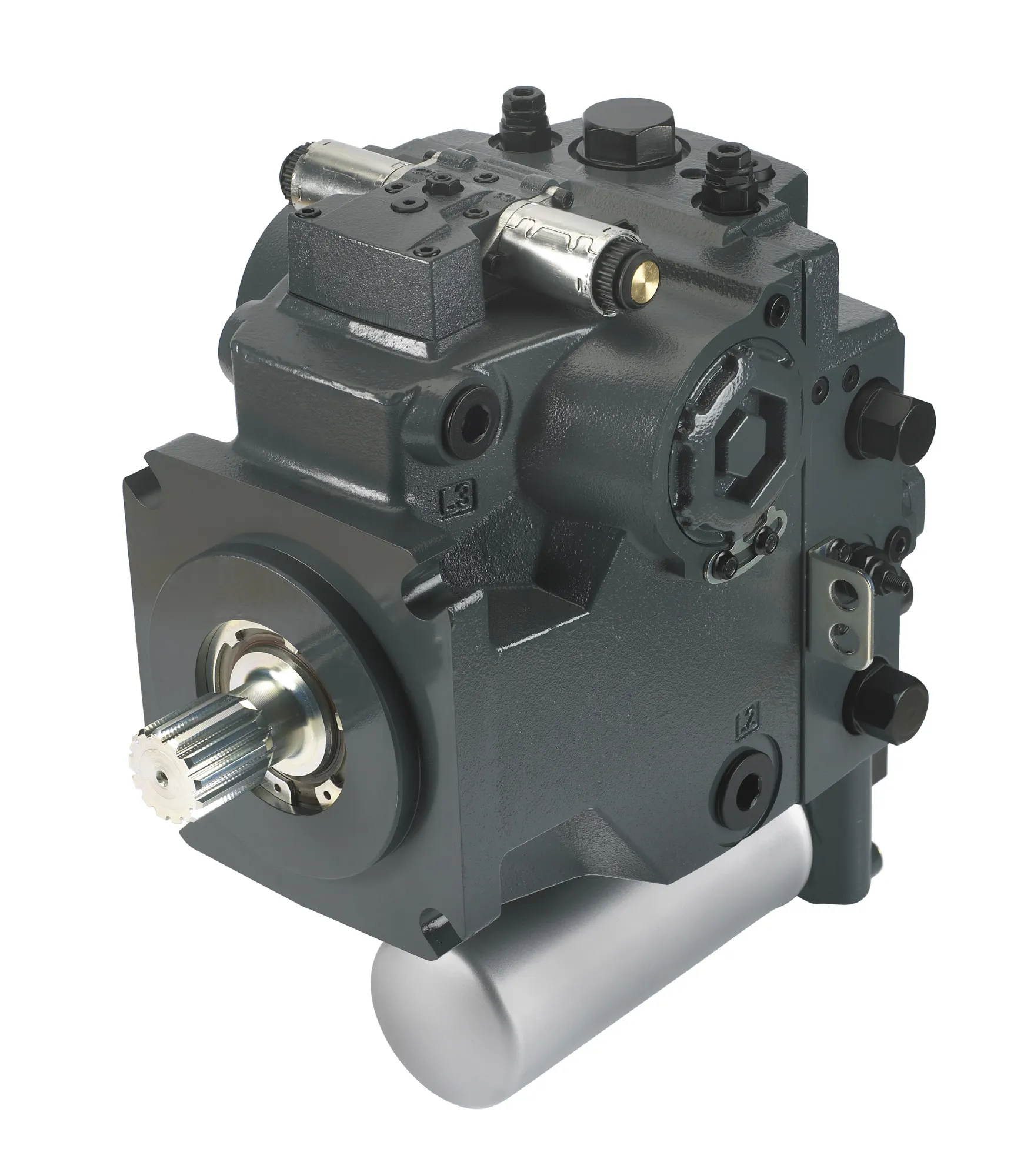

PUMP-VAR-DISPL CW H1PV147 – 11010347
Specification
| Series | H1 – Series |
|---|---|
| Product Type | Variable pump |
| Frame Size | 147cc/rev max/variable displacement |
| Rotation | Right hand – clockwise |
| Product Version | Product version C |
| Configuration Of Ports | ANSI O-ring boss port configuration |
| Control | Electrical displacement control, 12V Deutsch DT04-2P connector, manual override |
| Orifices | P = none, A+B = 1.3mm, TA+TB = none |
| Displacement Limitation | No limiters electrical displacement control/forward neutral reverse control |
| Endcap Type | Twin port, code 62 metric 4 bolt flange, integral pressure filter, D auxiliary pad |
| Mounting Flange | SAE D 4 bolt flange |
| Input Shaft | 13 tooth, 8/16 |
| Auxiliary Pad | 13 tooth, D pad |
| Protection Type Side A | Pressure limiter, high pressure relief valve |
| High Pressure Setting Side A | 400 bar |
| Protection Type Side B | High pressure relief valve + pressure limiter |
| High Pressure Setting Side B | 400 bar |
| Charge Pump | 26cc/rev |
| Filtration | Integral full flow with filter bypass sensor |
| Charge Relief Pressure Setting | 24 bar charge pressure relief valve |
| Special Hardware Features | Electrical displacement control/forward neutral reverse control/ manual displacement control valve plate, without handle |
| Paint And Nametag | Black paint, Danfoss tag A |
| Settings | Default, no special settings |
| Proposition 65 | Cancer and Reproductive Harm |
