Danfoss (Drives) 11010276201
SM XCMG 8T DEVICE – 11010276201
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

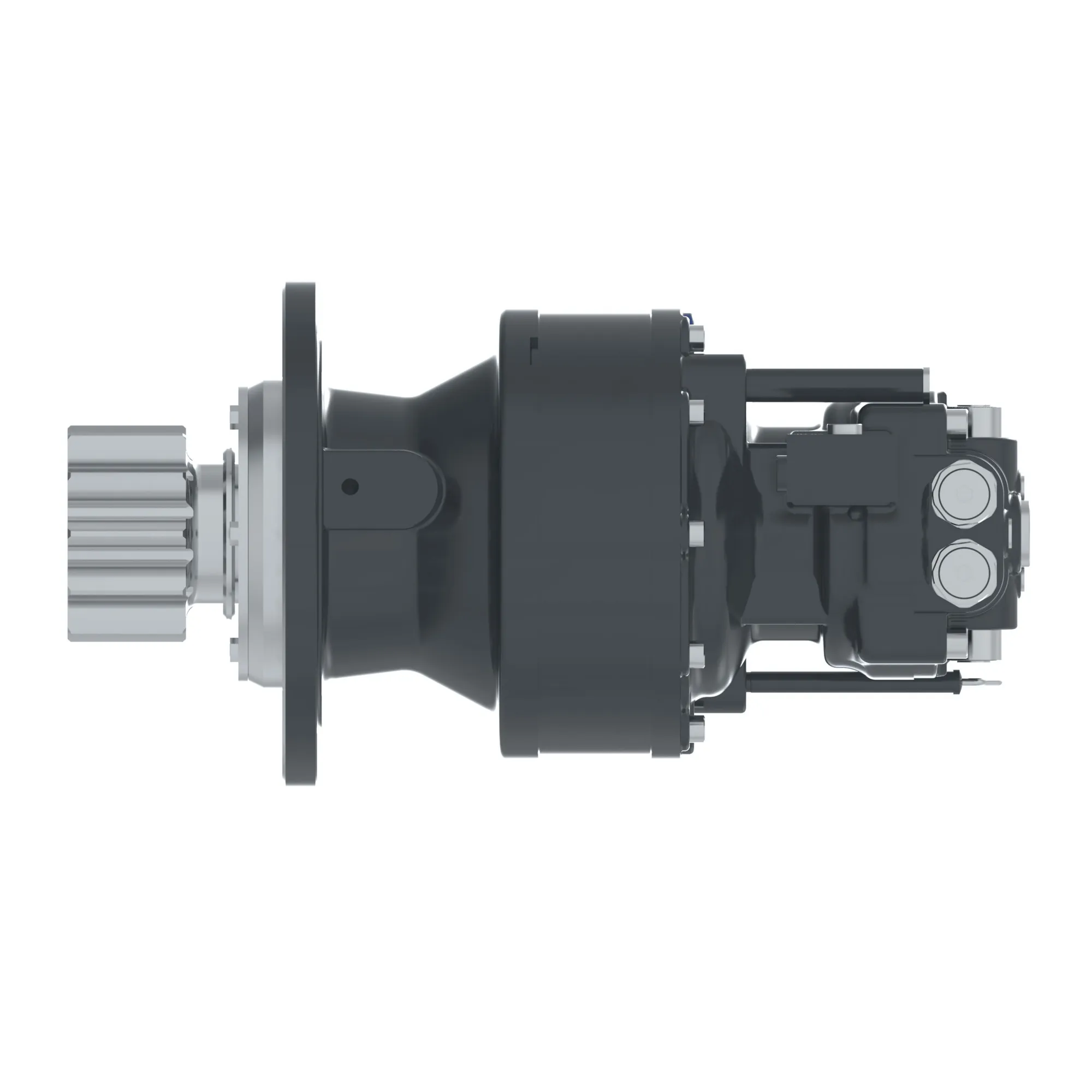

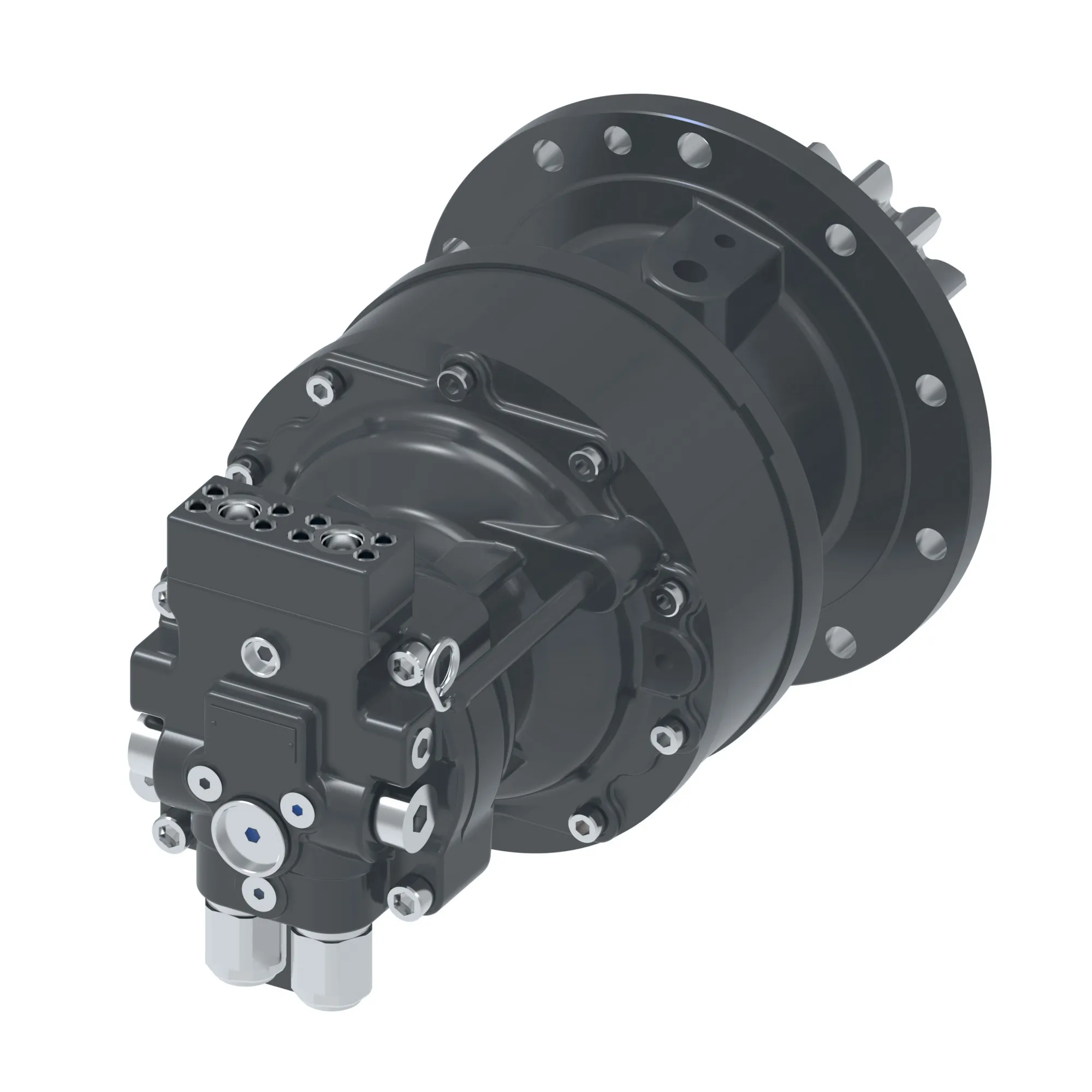

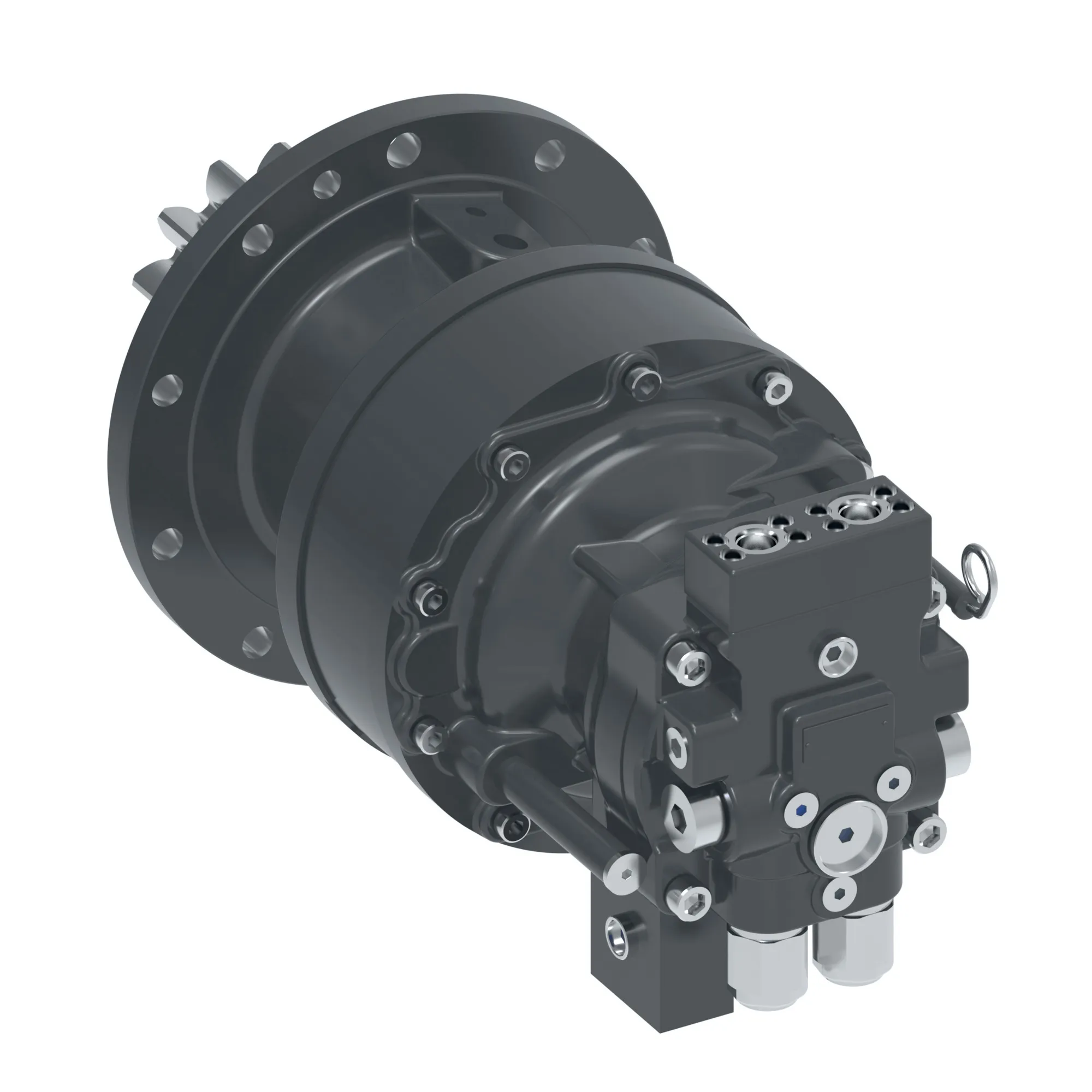

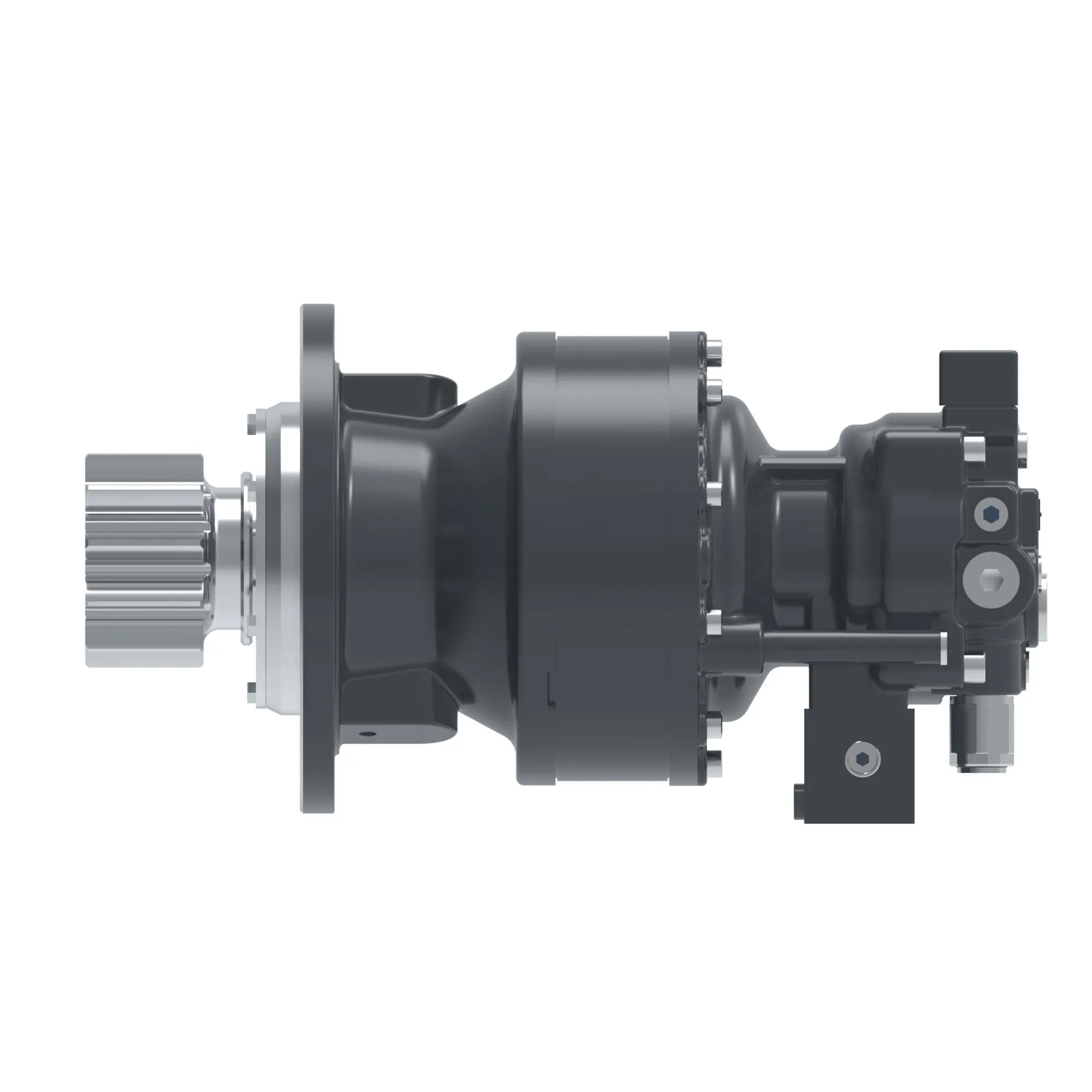

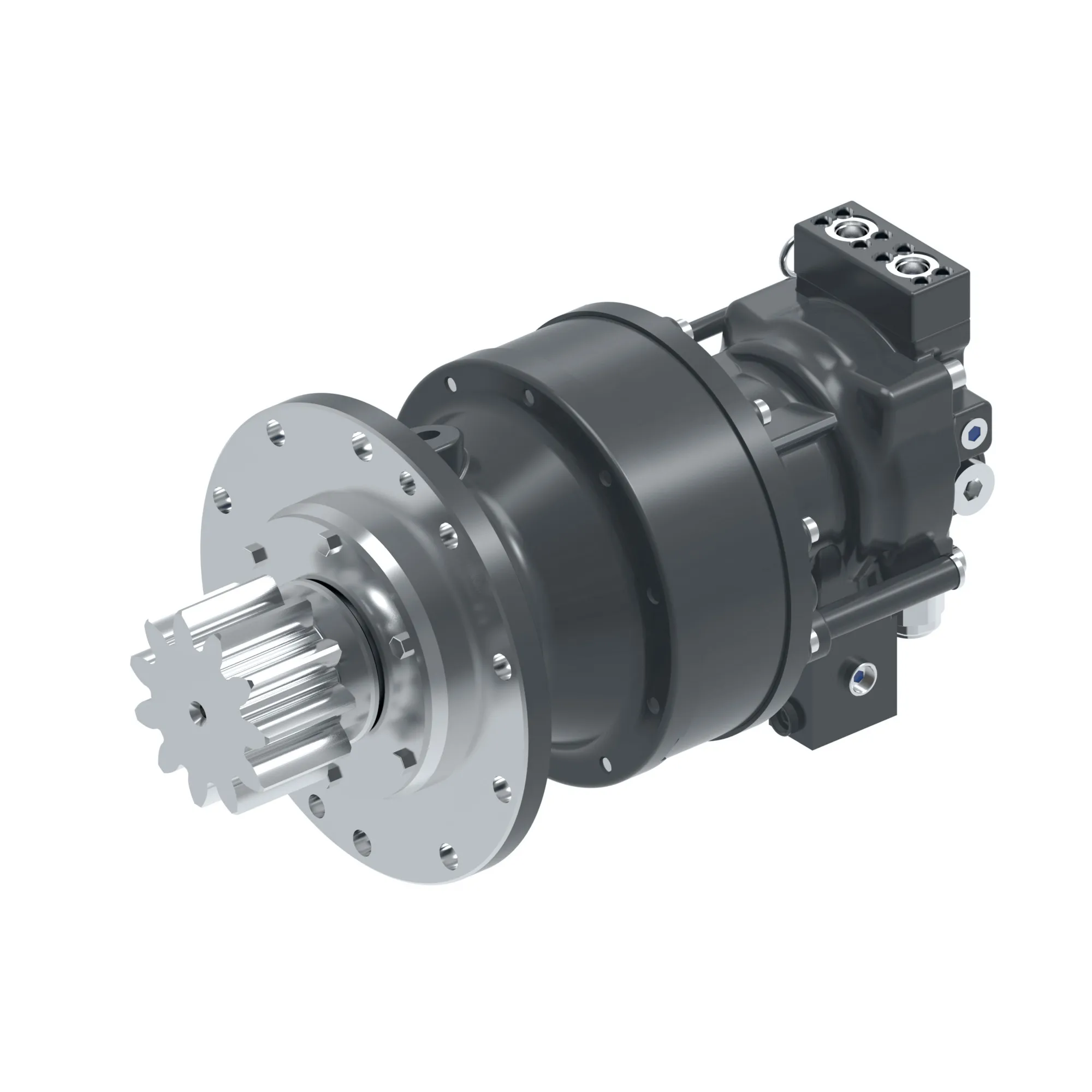

SM XCMG 8T DEVICE – 11010276201
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Reverse Valve And Setting | Built in |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 48 cm3/r (2.92 in3/r) |
| Flow Rate Gpm | 21.13 |
| Flow Rate Lpm | 80.0 |
| Gear Ratio | 19.5 two stage |
| Gearbox Input Shaft Spec | None |
| Identification | Standard namplate |
| Maximum Output Speed Rpm | 88 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF048RR0211010211900A00A |
| Output Torque Lbf In | 23896.9 |
| Output Torque Nm | 2700.0 |
| Paint | Primer + yellow |
| Parking Brake And Setting | Standard |
| Product Height In | 10.800 |
| Product Height Mm | 274.320 |
| Product Length In | 22.400 |
| Product Length Mm | 568.960 |
| Product Width In | 10.800 |
| Product Width Mm | 274.32 |
| Relief Valve And Setting | 190bar (2755 psi) 57.5 lpm (15.18 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 5 bar (72 psi) |
| Working Pressure Bar | 186.0 |
| Working Pressure Psi | 2698 |
