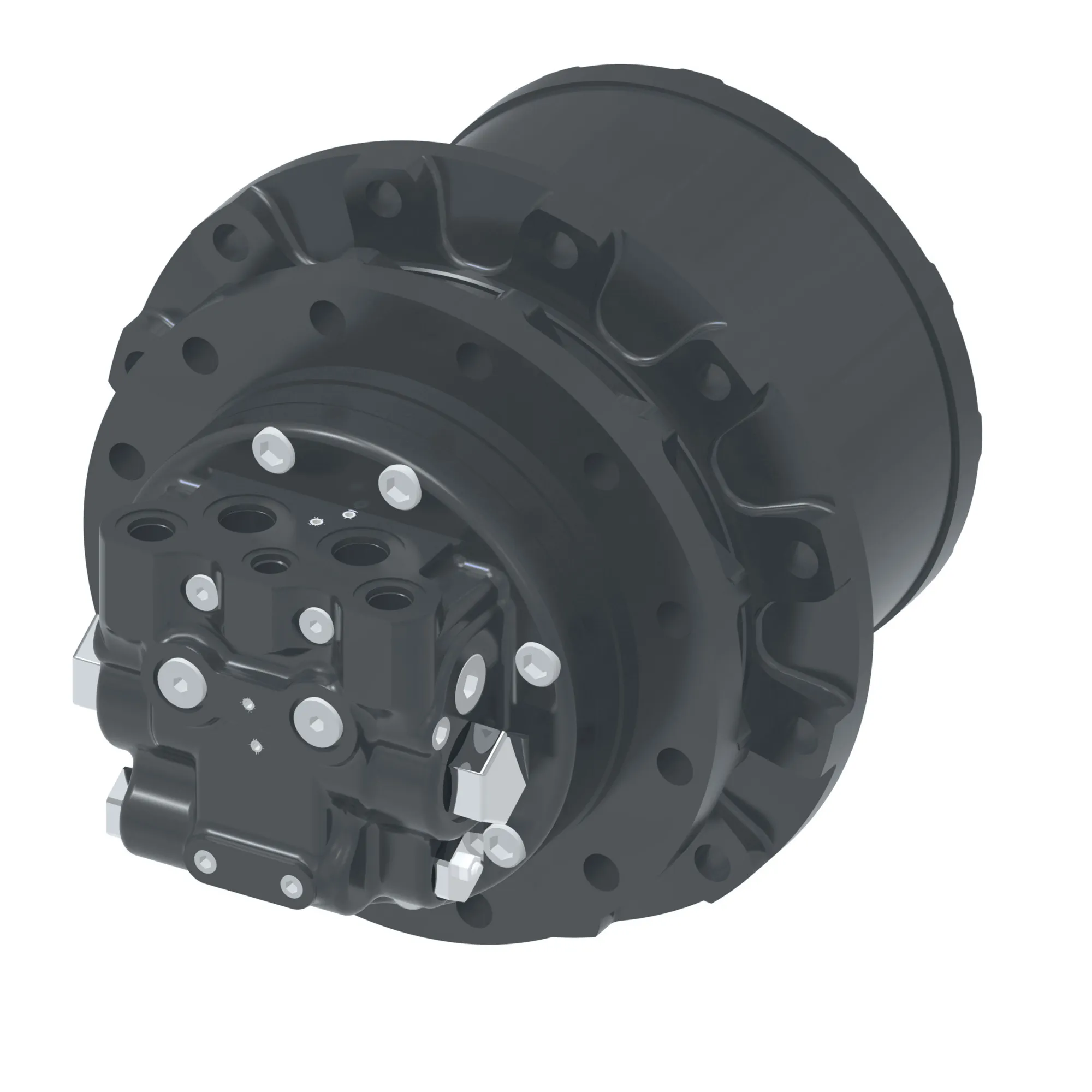

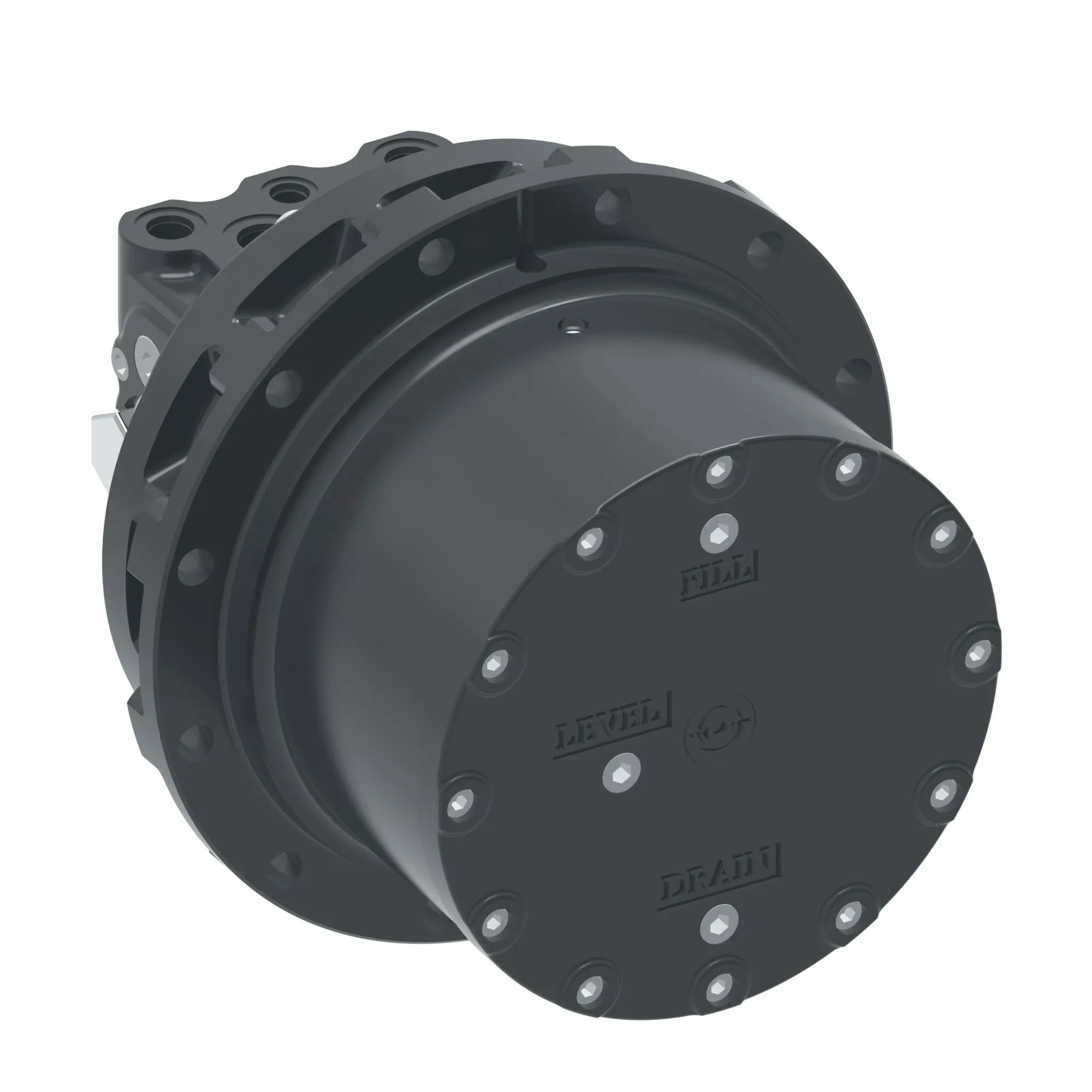

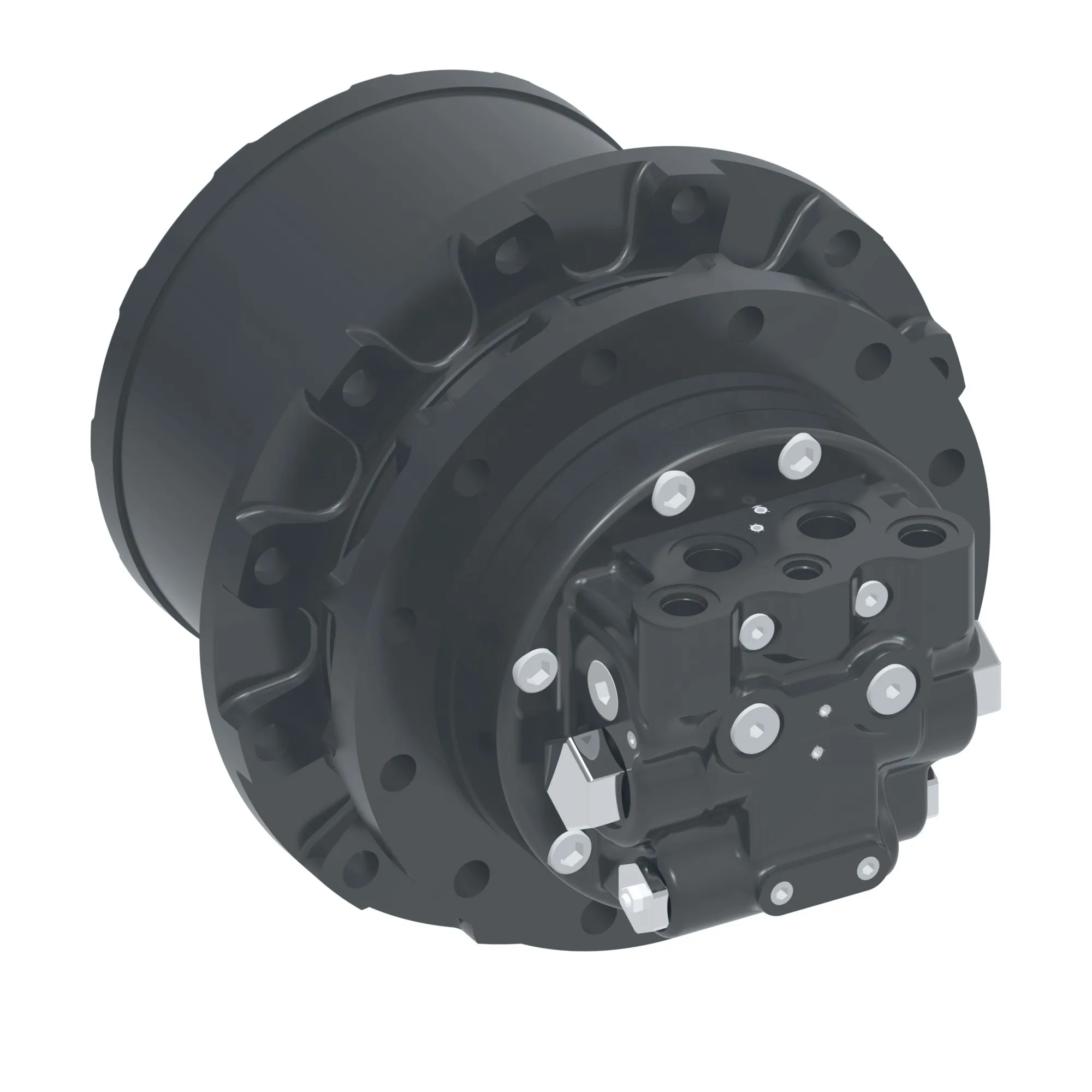

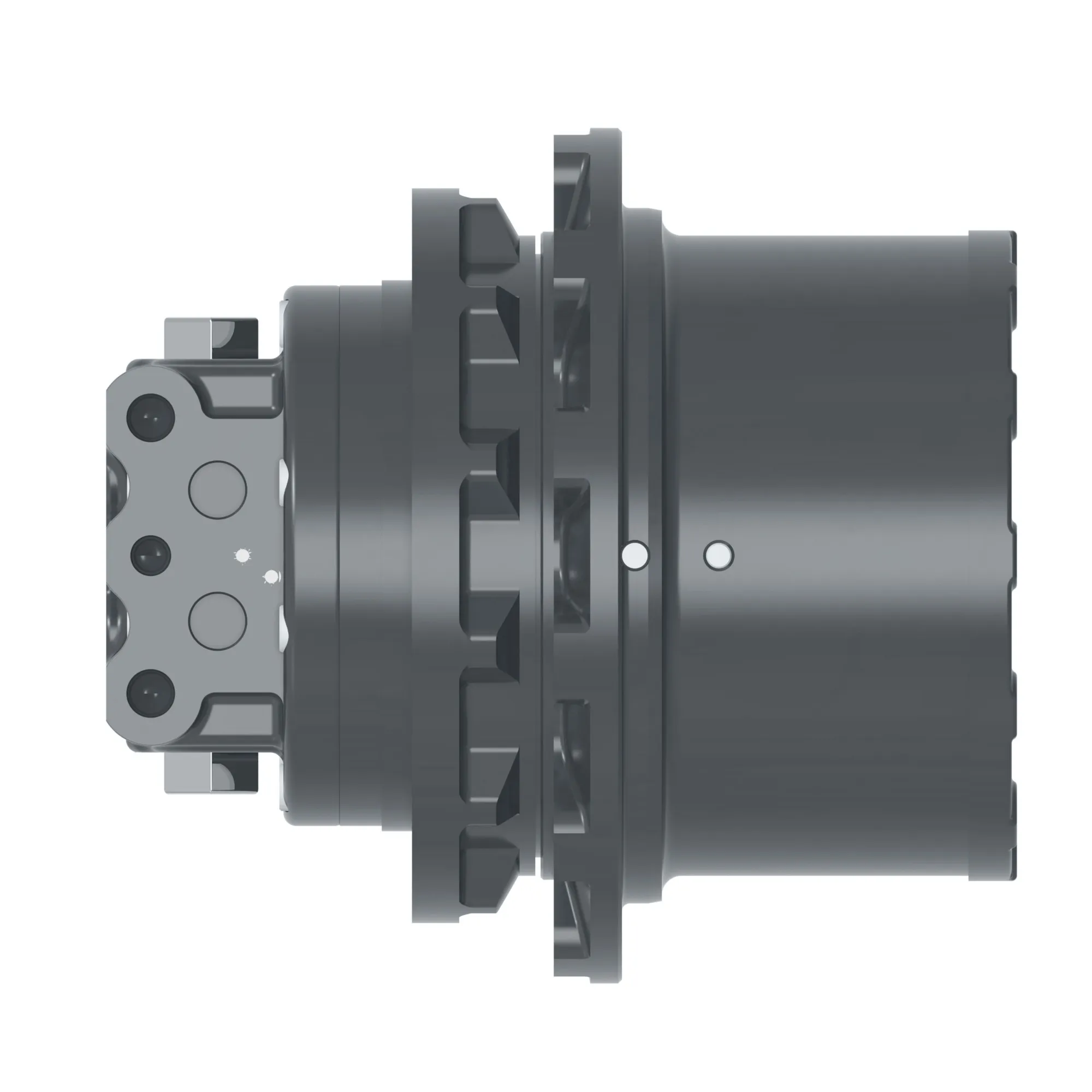

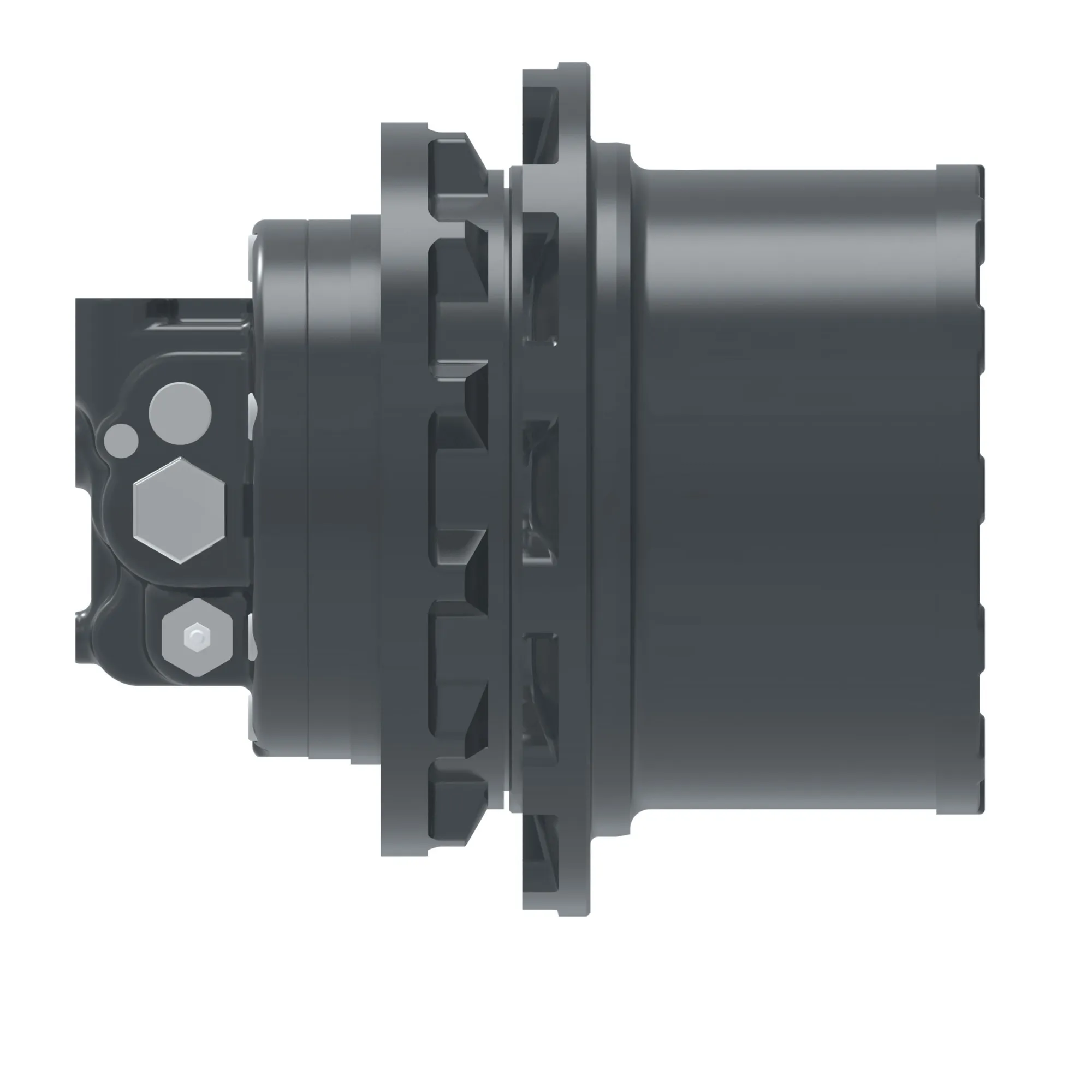

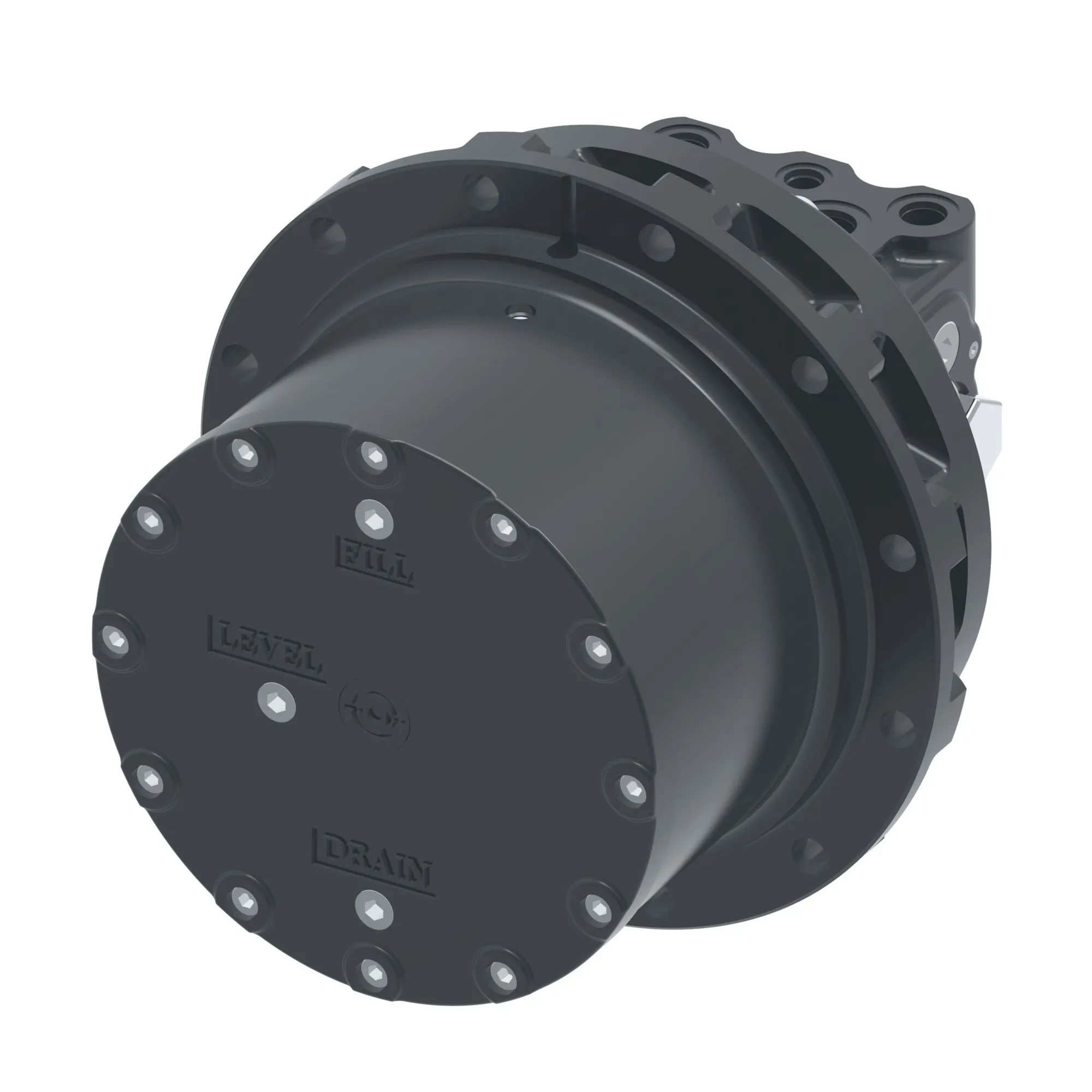

Danfoss (Drives) 11010220401
TM MACSAN7T(47/27-01-45)[reinforce] – 11010220401
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TM MACSAN7T(47/27-01-45)[reinforce] – 11010220401
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Cavitation | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Track Type | Danfoss Track Device (motor+gear box) |
| Design Code | First version |
| Device Mounting | Standard |
| Displacement (1St 2Nd) | 46.6 27.5 cm3/r (2.84 1.68 in3/r) |
| Flow Rate Gpm | 21.66 |
| Flow Rate Lpm | 82.0 |
| Gear Ratio | 45.5 two stage |
| Gearbox Mounting | Standard |
| Identification | Standard nameplate (Danfoss) |
| Maximum Output Speed Rpm | 2982 |
| Motor Mounting | Standard |
| Motor Shaft | Standard |
| Old Model Code | JMV047RR020302004600A00A |
| Output Torque Lbf In | 82107.9 |
| Output Torque Nm | 9277.0 |
| Paint | Standard: black |
| Parking Brake Setting | 8.8 bar (128 psi) |
| Product Height In | 11.800 |
| Product Height Mm | 299.720 |
| Product Length In | 13.800 |
| Product Length Mm | 350.520 |
| Product Width In | 11.800 |
| Product Width Mm | 299.72 |
| Relief Valve Setting | 275bar (3983psi) 10lpm (2.6gpm |
| Special Requirement | None |
| Two Speed Setting | Manual two speed, standard |
| Working Pressure Bar | 274.0 |
| Working Pressure Psi | 3974 |
