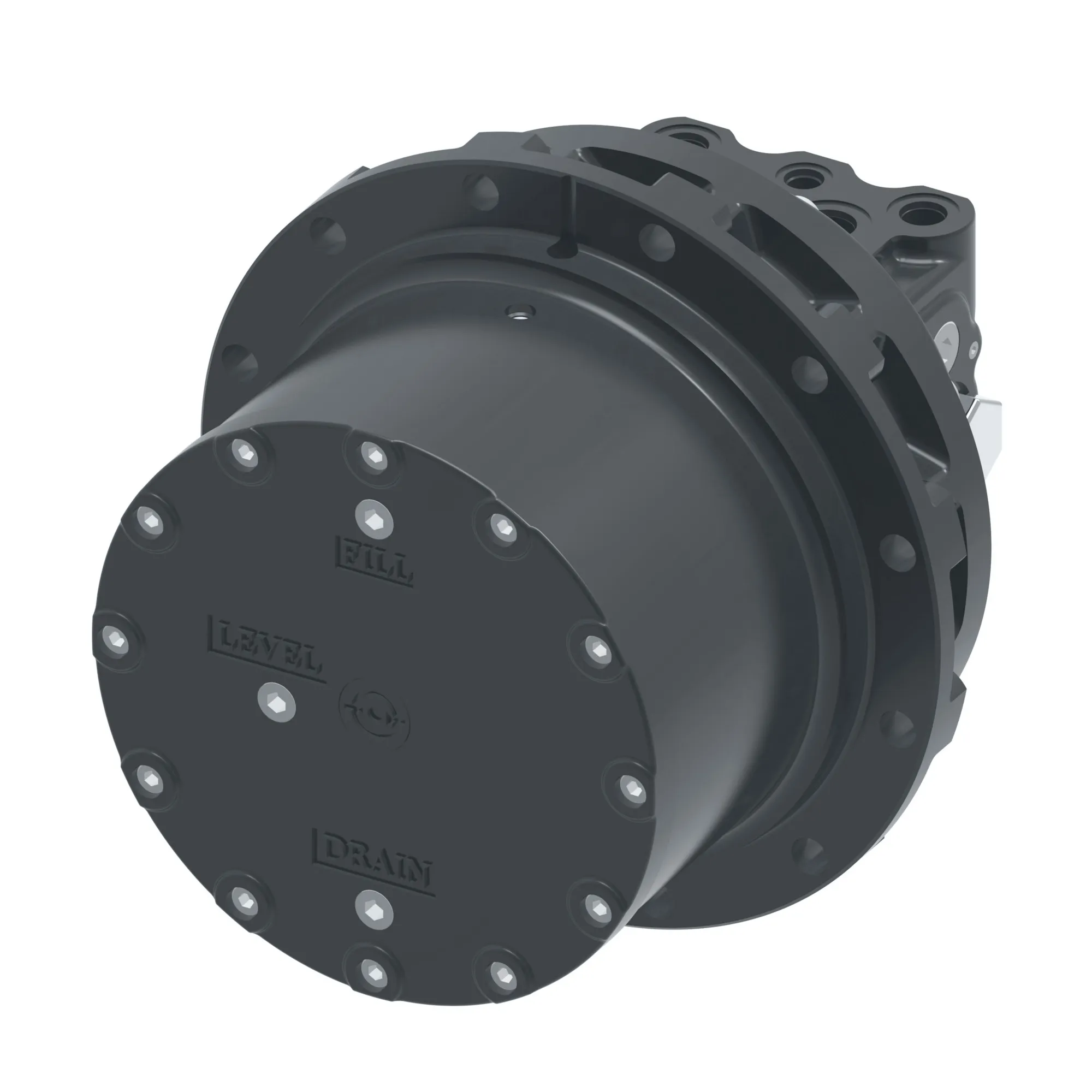

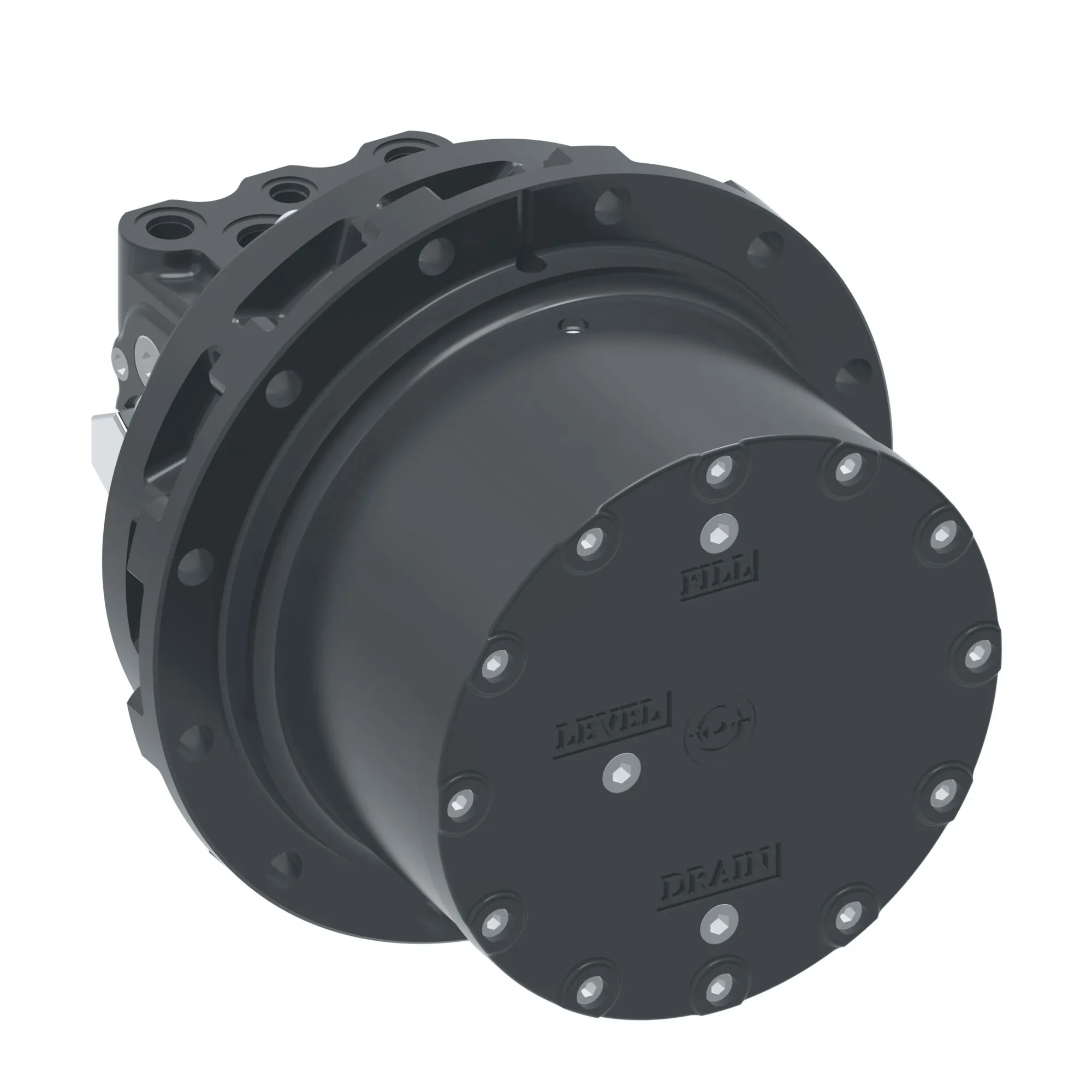

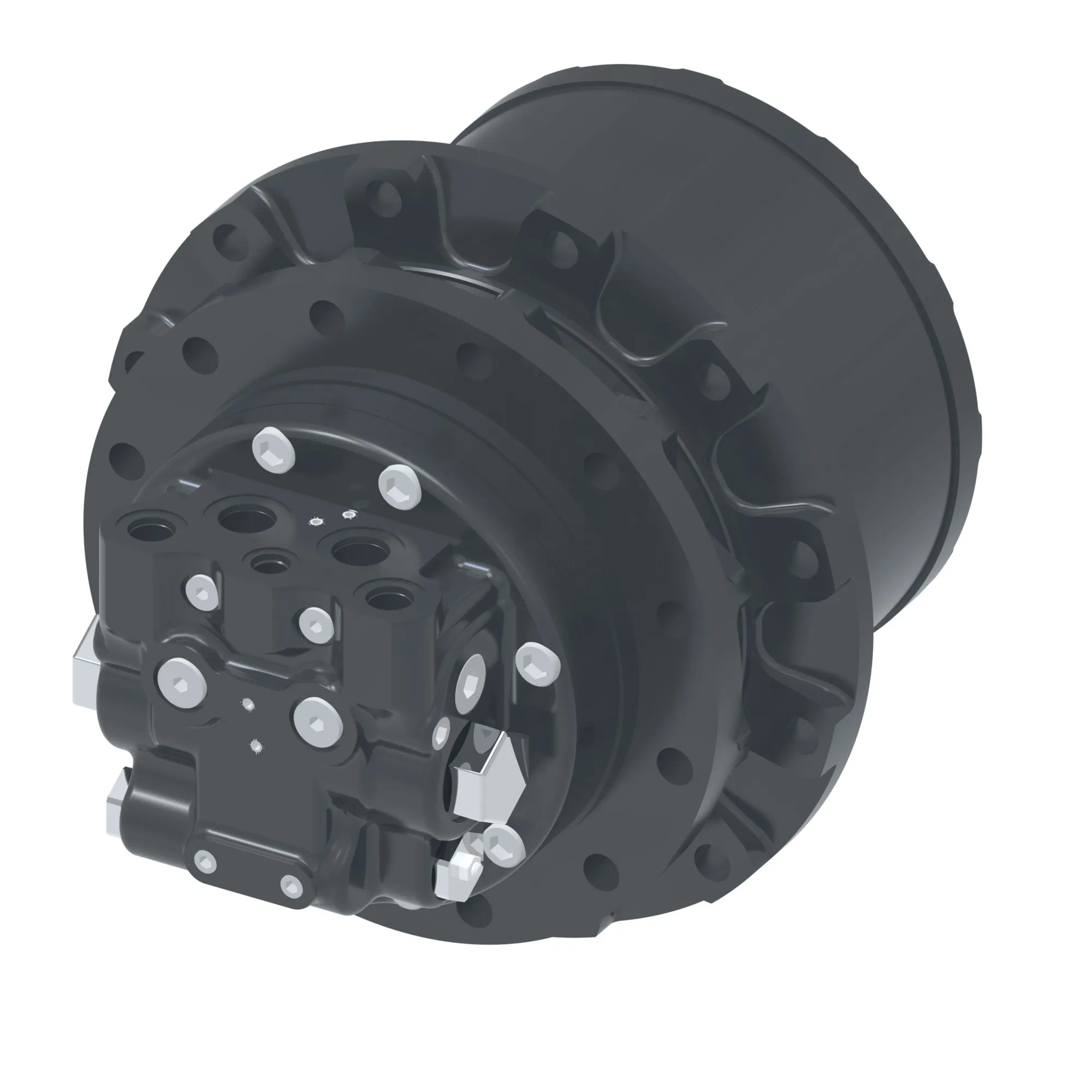

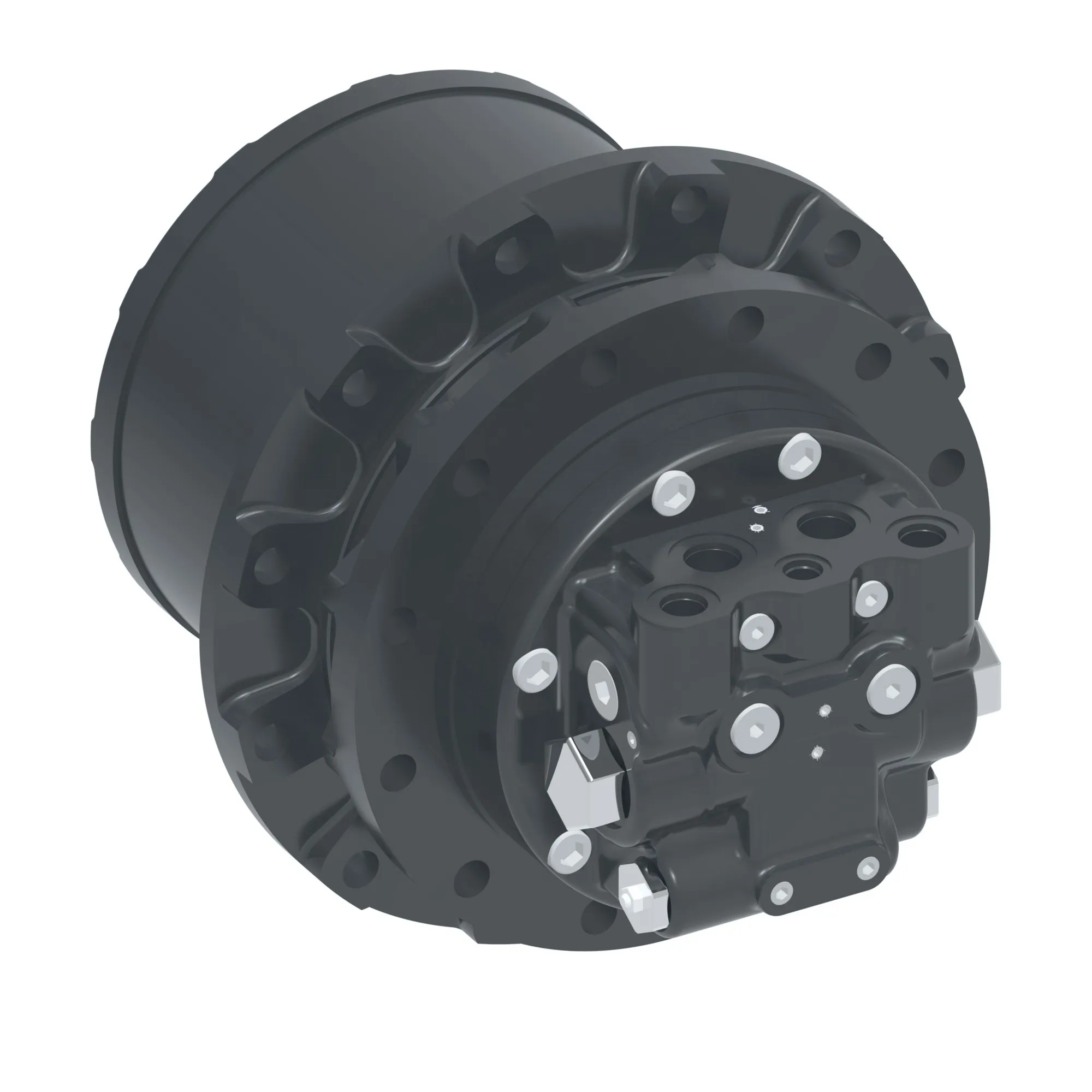

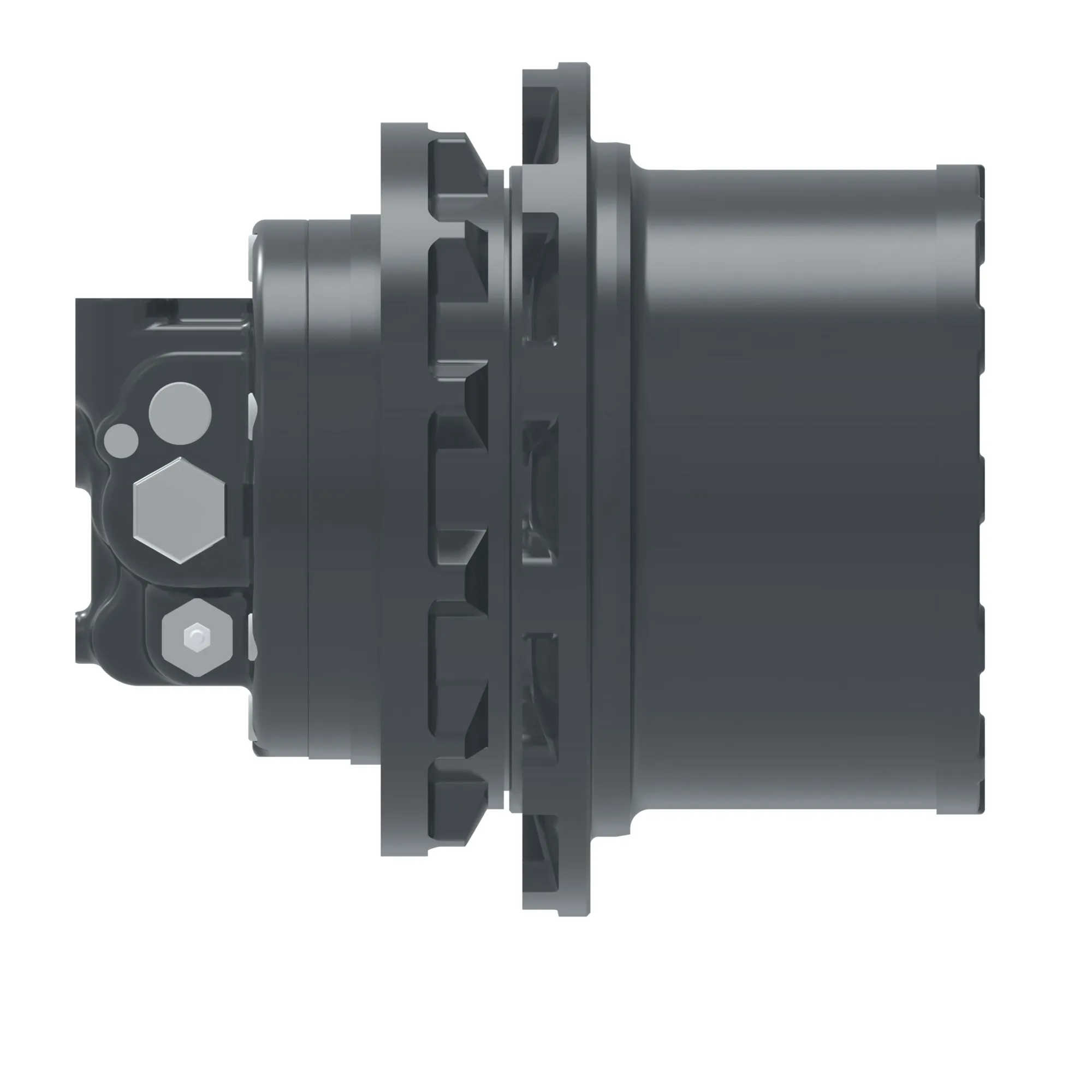

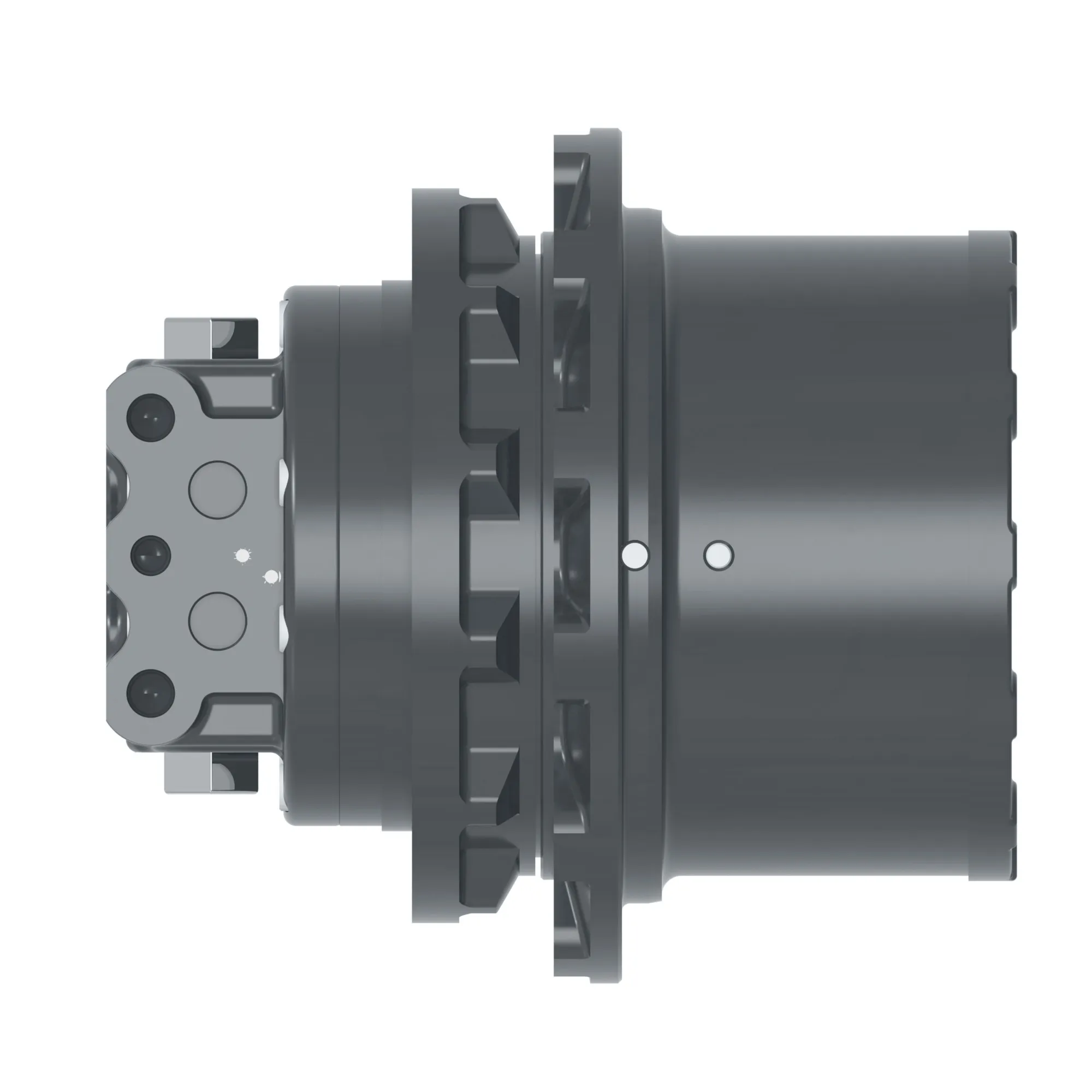

Danfoss (Drives) 11010008701
TM Liugong 3.5T(21/11-01-54) – 11010008701
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TM Liugong 3.5T(21/11-01-54) – 11010008701
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Cavitation | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Track Type | Danfoss Track Device (motor+gear box) |
| Design Code | First version |
| Device Mounting | Standard |
| Displacement (1St 2Nd) | 21 11.2 cm3/r (1.28 0.68 in3/r) |
| Flow Rate Gpm | 9.25 |
| Flow Rate Lpm | 35.0 |
| Gear Ratio | 53.7 two stage |
| Gearbox Mounting | Standard |
| Identification | Standard nameplate (Danfoss) |
| Maximum Output Speed Rpm | 3125 |
| Motor Mounting | Standard |
| Motor Shaft | Standard |
| Old Model Code | JMV021RR020101005361A00A |
| Output Torque Lbf In | 34257.5 |
| Output Torque Nm | 3870.6 |
| Paint | Standard: black |
| Parking Brake Setting | 6.5 bar (94 psi) |
| Product Height In | 9.130 |
| Product Height Mm | 231.902 |
| Product Length In | 10.300 |
| Product Length Mm | 261.620 |
| Product Width In | 9.130 |
| Product Width Mm | 231.902 |
| Relief Valve Setting | 216bar (3129psi) 40lpm (10.6gp |
| Special Requirement | None |
| Two Speed Setting | Manual two speed, standard |
| Working Pressure Bar | 216.0 |
| Working Pressure Psi | 3133 |
