Danfoss (Drives) 11008912

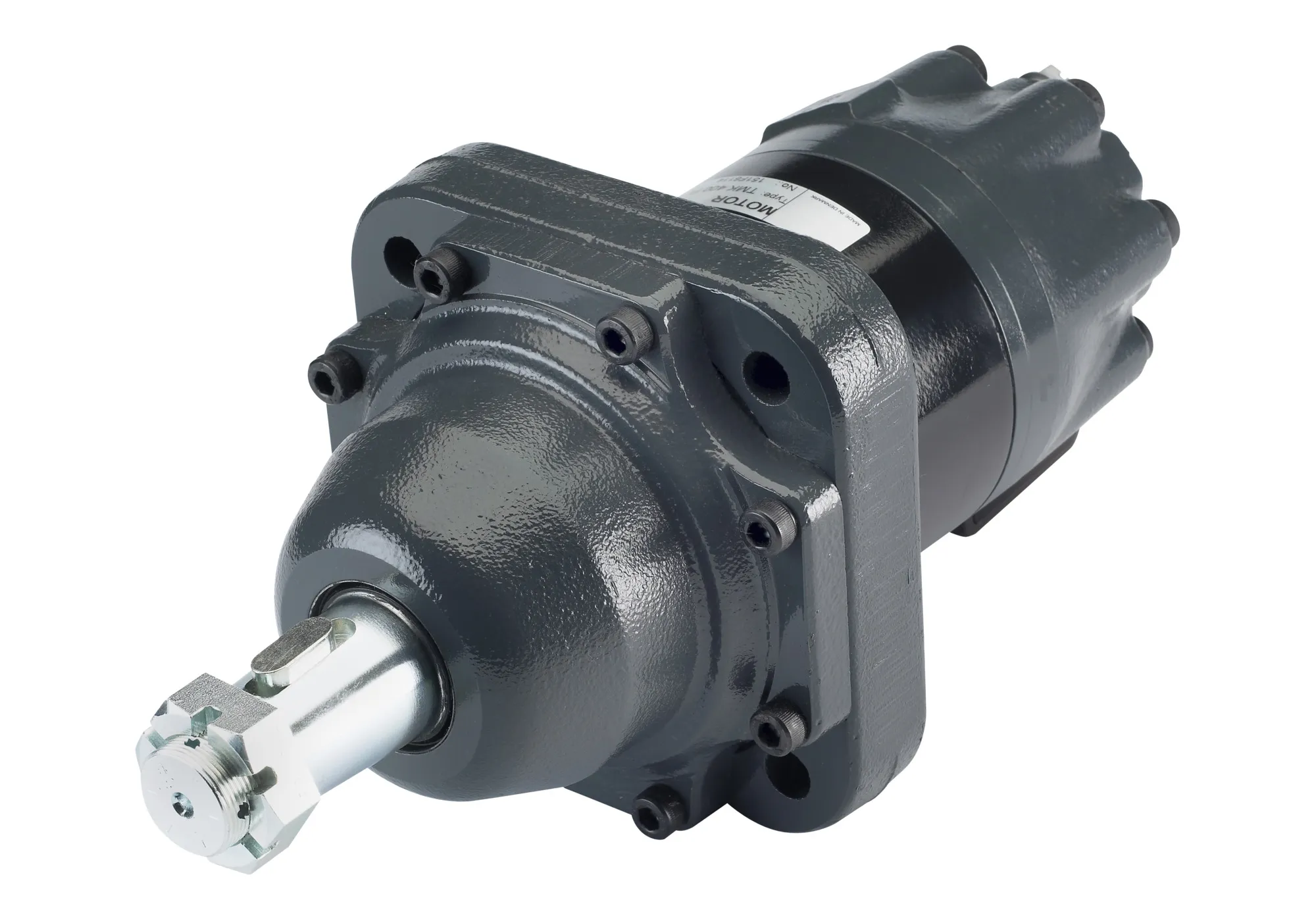

TMK 315 FL HYDRAULIC MOTOR – 11008912
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TMK 315 FL HYDRAULIC MOTOR – 11008912
Specification
| Model Code | TMK-0315-E-BA-G30-EB-2D-G27-A-A-2B-0-B-NN-AAE19-NN-NN-NN-SP-NNN |
|---|---|
| Motor Series | TMK Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 315 |
| Geometric Displacement [Cm3/R [In3/R]] | 315.3 [19.23] |
| Motor Type | Motor – Brake |
| Motor Function | Brake – Low release pressure |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 140.0 x 11.0, 161.9, 14.4 [5.51 x 0.43, 6.37, 0.57] |
| Shaft Type | TAPERED |
| Shaft Dimension | Dia. 1 1/2 inch, 1:8 SAE J501, 1 – 20 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 3/8 x 1 inch, B.S. 46 |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Endport – staggered |
| Main Port Dimension | 7/8 – 14 UNF-2B SAE O-Ring port, |
| Drain Port Dimension | 7/16-20 UNF-2B O-Ring port |
| Brake Release Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring Port |
| Painted | Yes |
| Paint Information | Painted, Black, Medium gloss |
| Special Features Hardware | Standard |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 151F0142 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 00 |
| Delete Model Code | Yes |
| Proposition 65 | Cancer and Reproductive Harm |
