Description

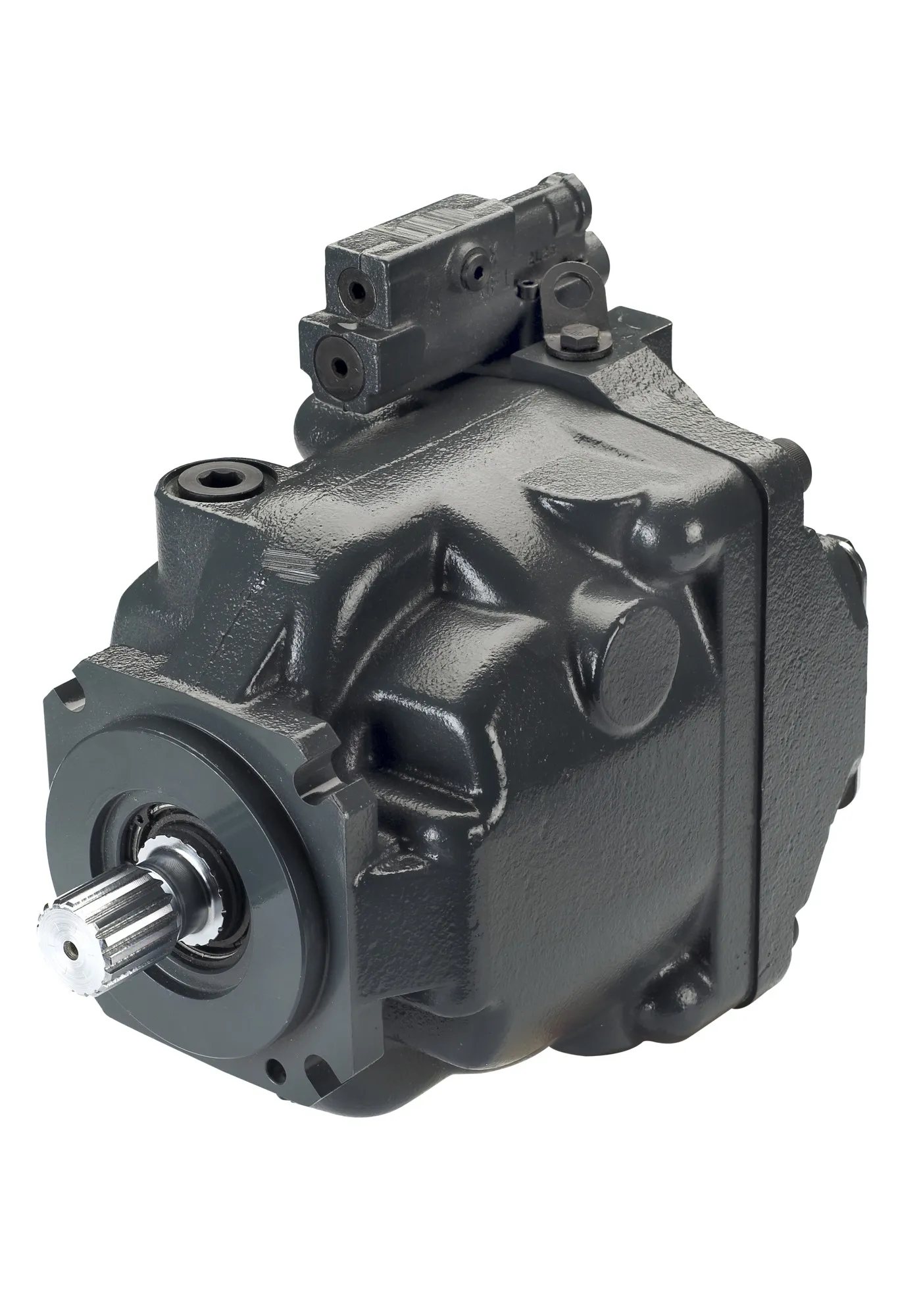

PUMP-VAR-DISPL CW S45PVOC130 – 11002268
Specification
| Frame | E frame axial piston open circuit pump |
|---|---|
| Rotation | Clockwise rotation |
| Displacement And Load Life | 130 cc/rev – 310 bar maximum continuous rated pressure |
| Control Type | Pressure compensated [PC pressure range: 100-280 bar, LS pressure range: 10-40 bar] |
| Pressure Compensator Setting | 130 bar [1885 psi] |
| Load Sensing Setting | Not applicable |
| Torque Limiter Setting | Not applicable |
| Choke Orifice | None |
| Gain Orifice | Standard orifice |
| Shaft, Auxiliary Flange, And Endcap | 1.5 inch straight key shaft, no auxiliary, axial, inlet: 4-bolt split flange (2.5 inch port, 0.5 inch threads), outlet: 4-bolt split flange (1.25 inch port, 0.5 inch threads) |
| Shaft Seal, Front Flange, And Housing Ports | Single Viton shaft seal, SAE-C 4-bolt flange, SAE O-ring ports |
| Displacement Limiter | None |
| Special Hardware | Special hardware – none |
| Special Features | Black paint, Danfoss tag |
| Proposition 65 | Cancer and Reproductive Harm |
