Danfoss (Drives) 110-1247-006

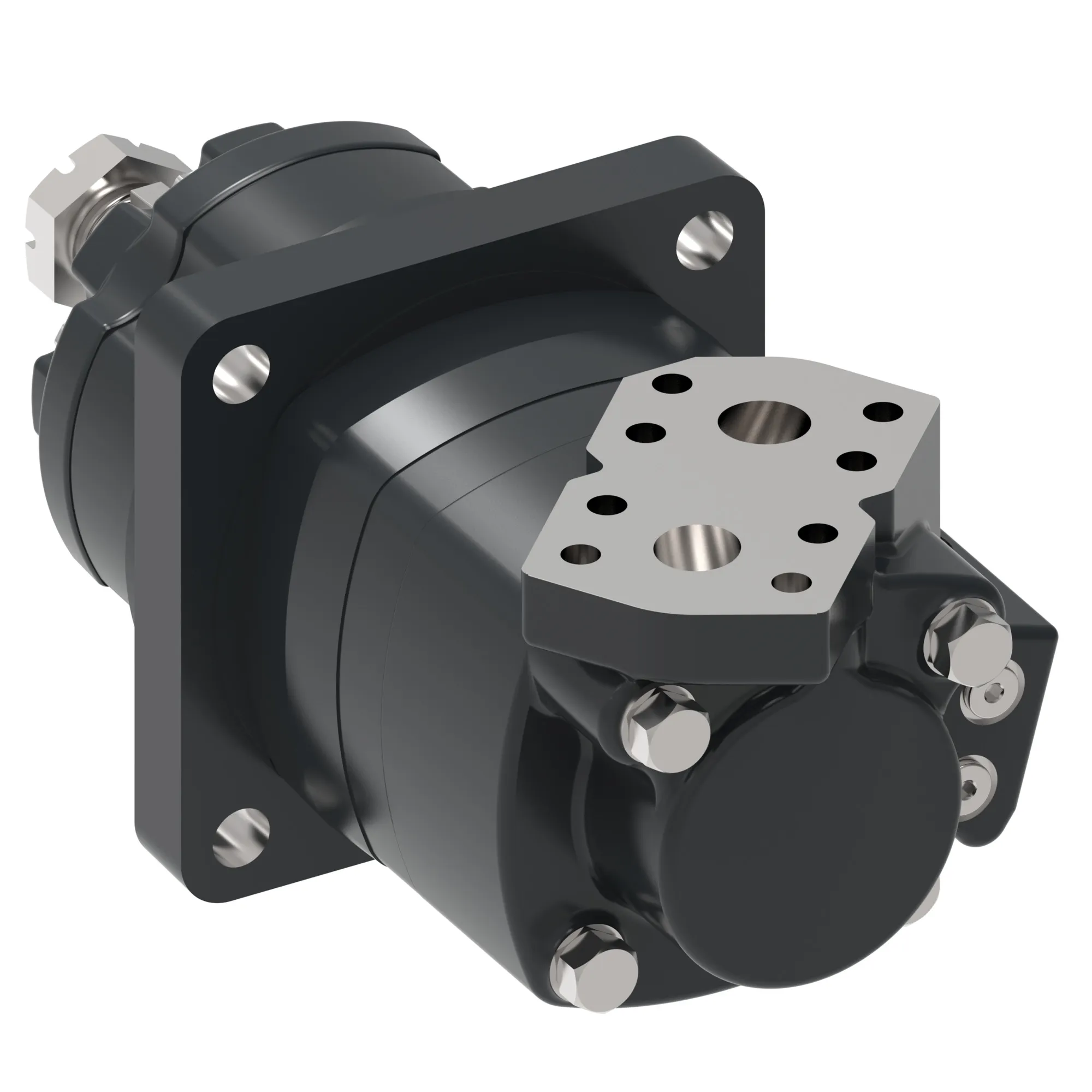

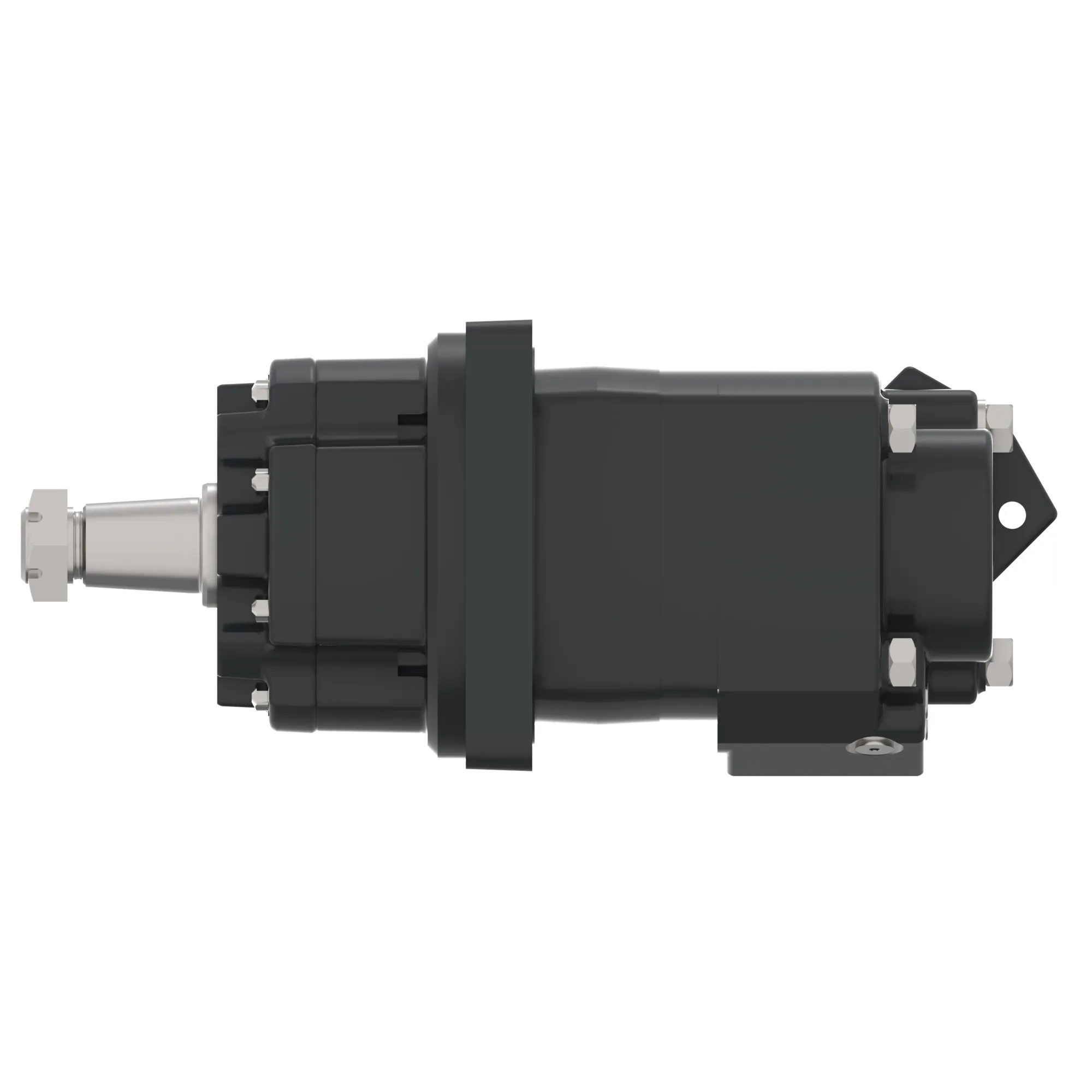

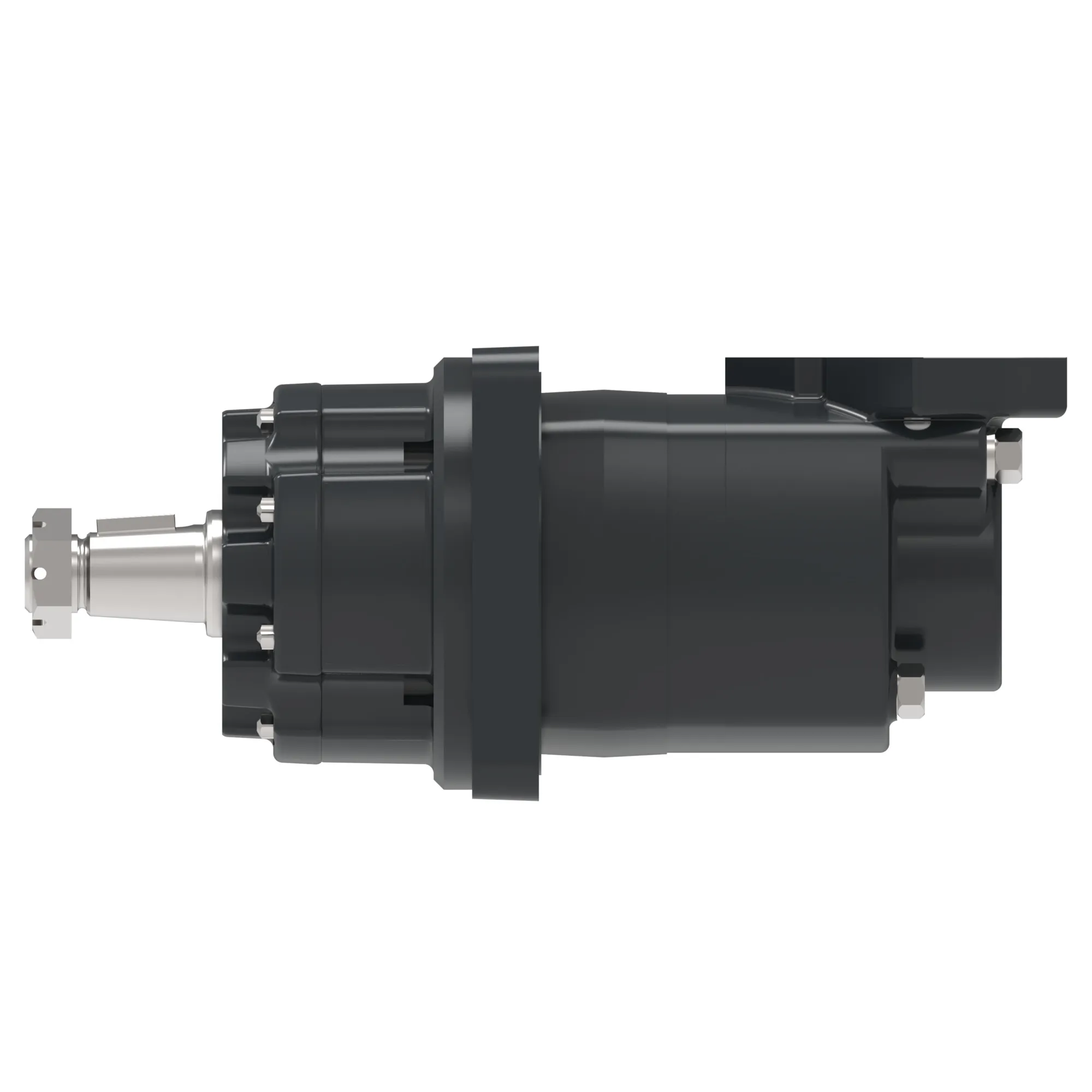

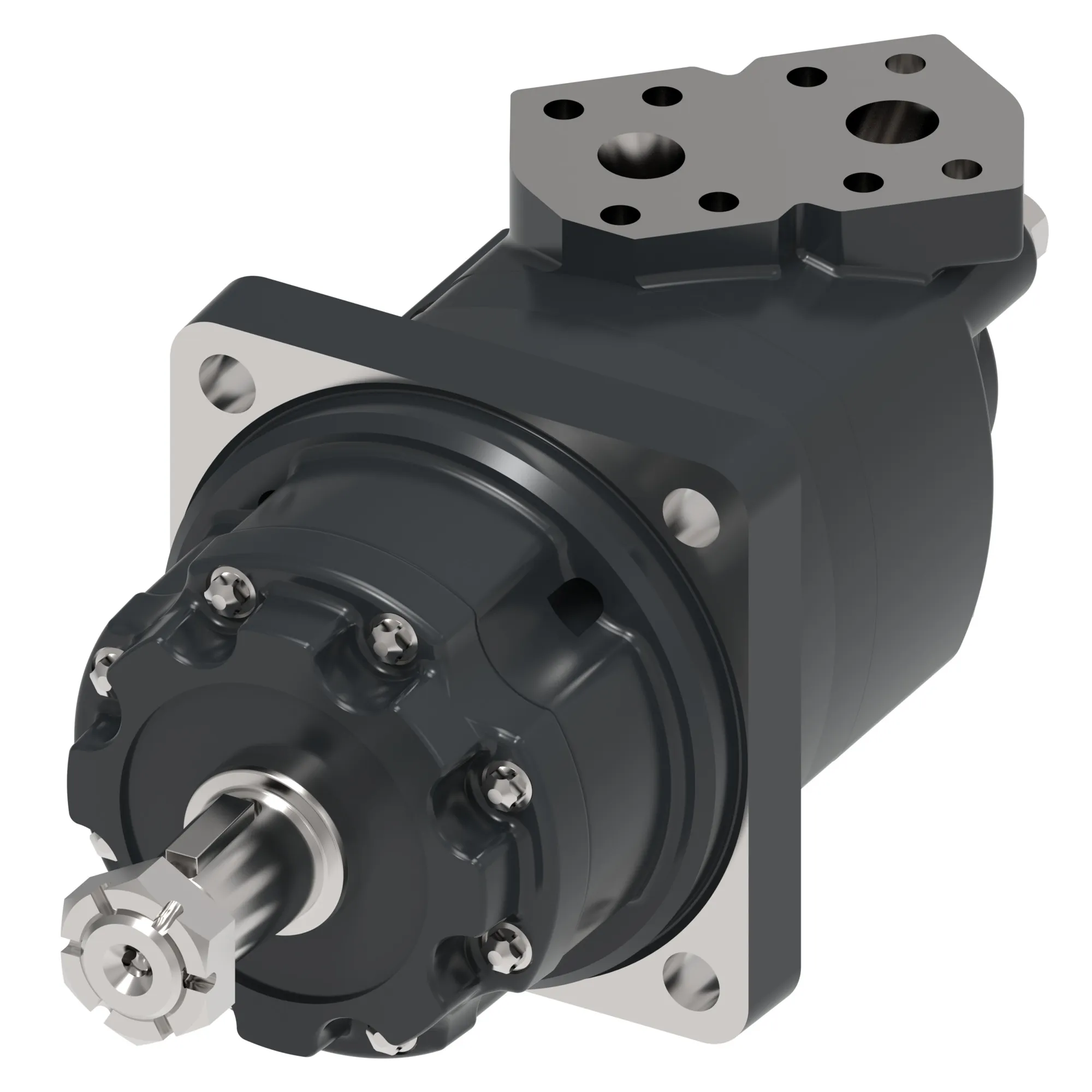

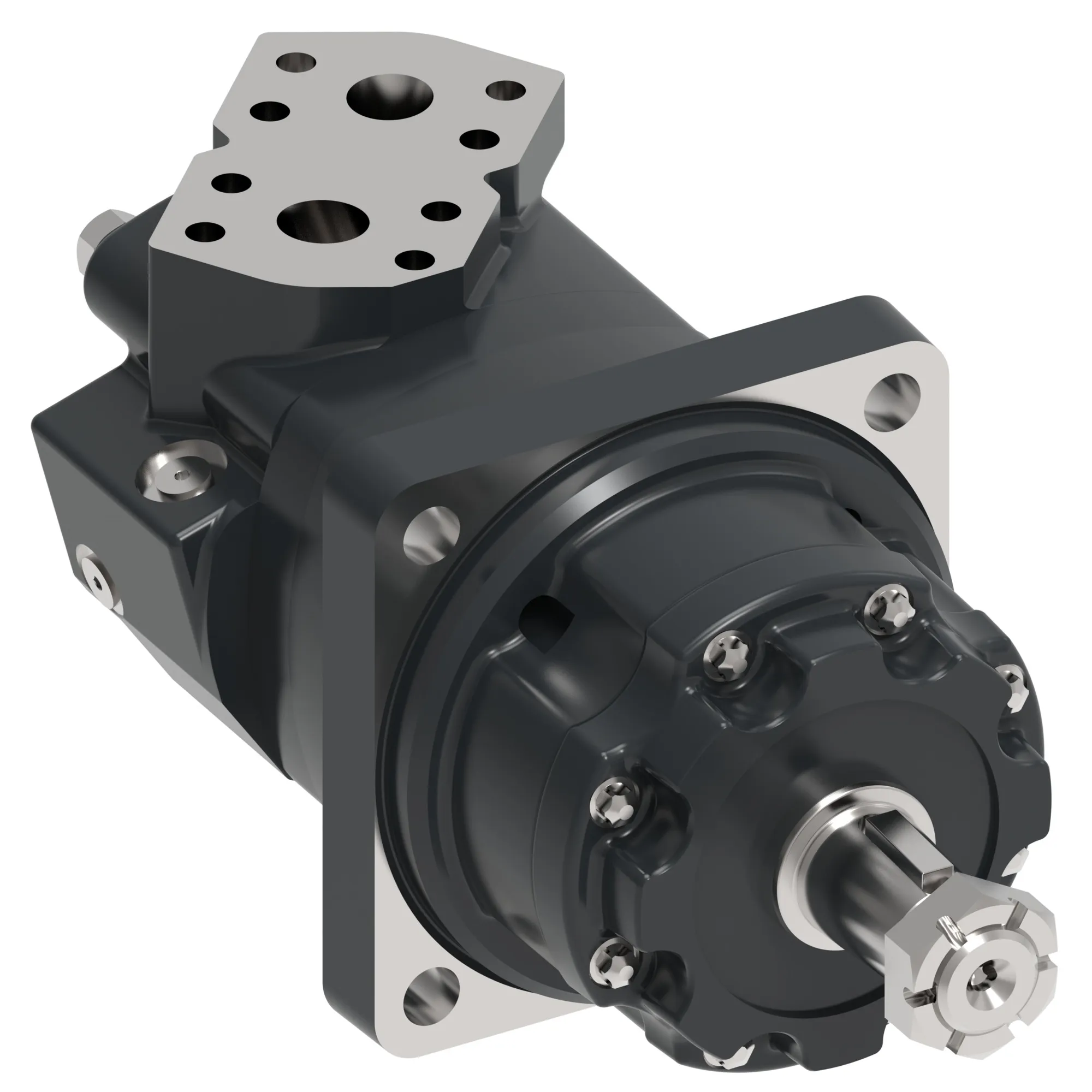

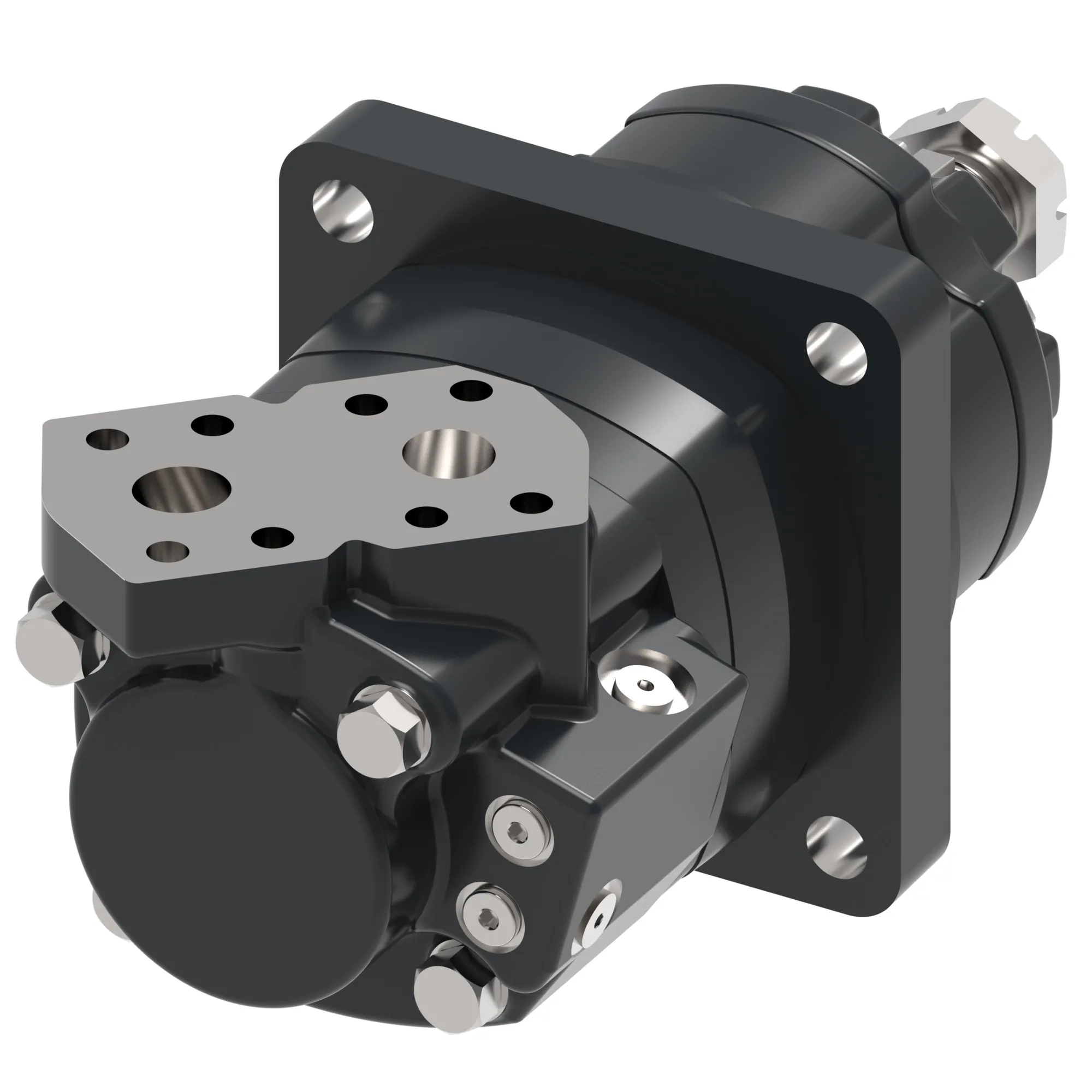

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200008000000AN00F – 110-1247-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200008000000AN00F – 110-1247-006
Specification
| Model Code | M04301AC02AB0200008000000AN00F |
|---|---|
| Motor Series | 4000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 495 |
| Geometric Displacement [Cm3/R [In3/R]] | 492.6 [30.06] |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 139.7 x 9.1, 165.1, 14.3 [5.50 x 0.36, 6.50, 0.56] |
| Shaft Dimension | Dia. 1 5/8 inch, 1:8, 1 1/4 – 18 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 7/16 x 1 1/4 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss – Spec. Component |
| Special Features Assembly | Standard |
| Dust Seal | Extreme duty seal guard |
| Shaft Seal | FPM viton – Standard |
| Seal Kit | No data available |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Sub Brand | Char-Lynn |
