Danfoss (Drives) 110-1232-006

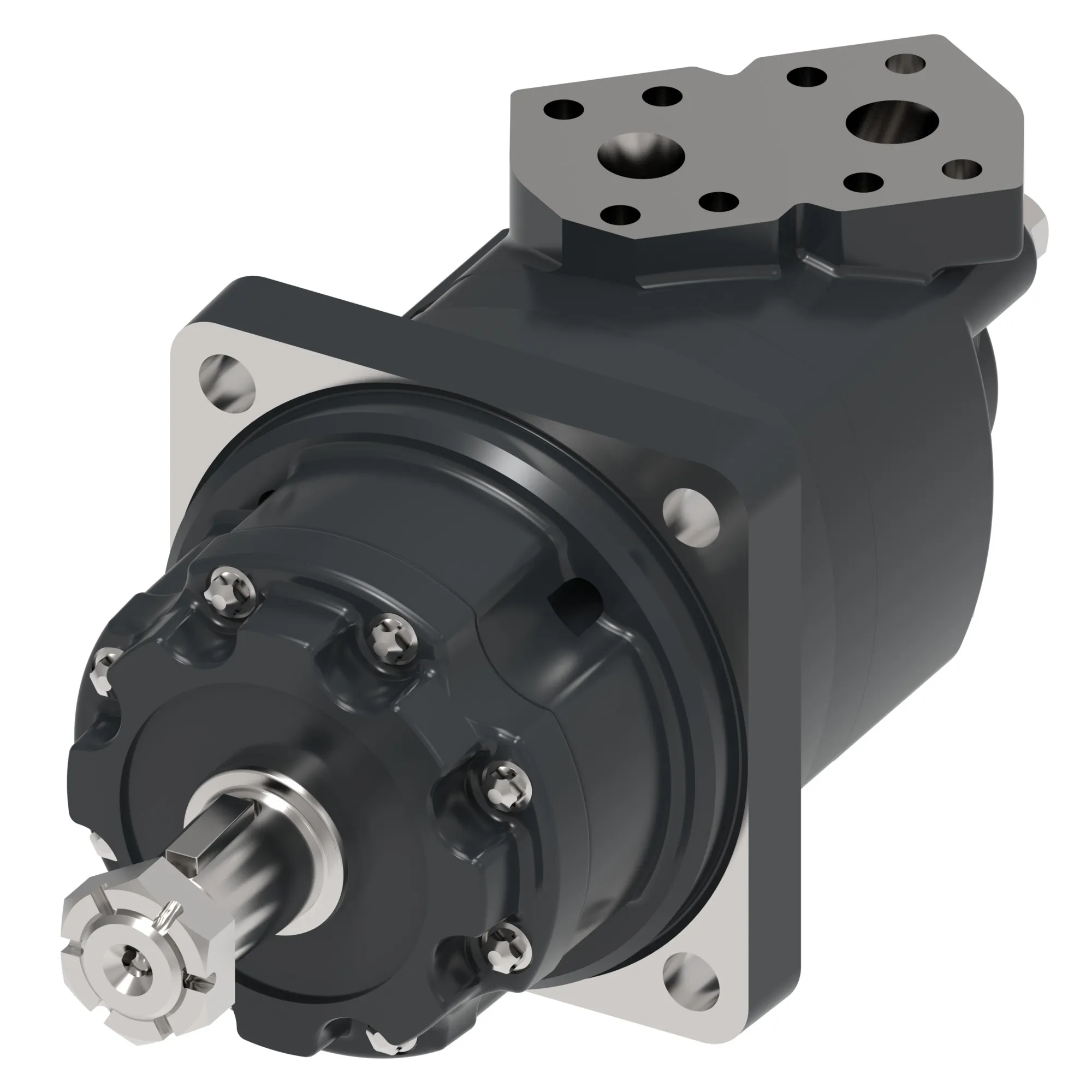

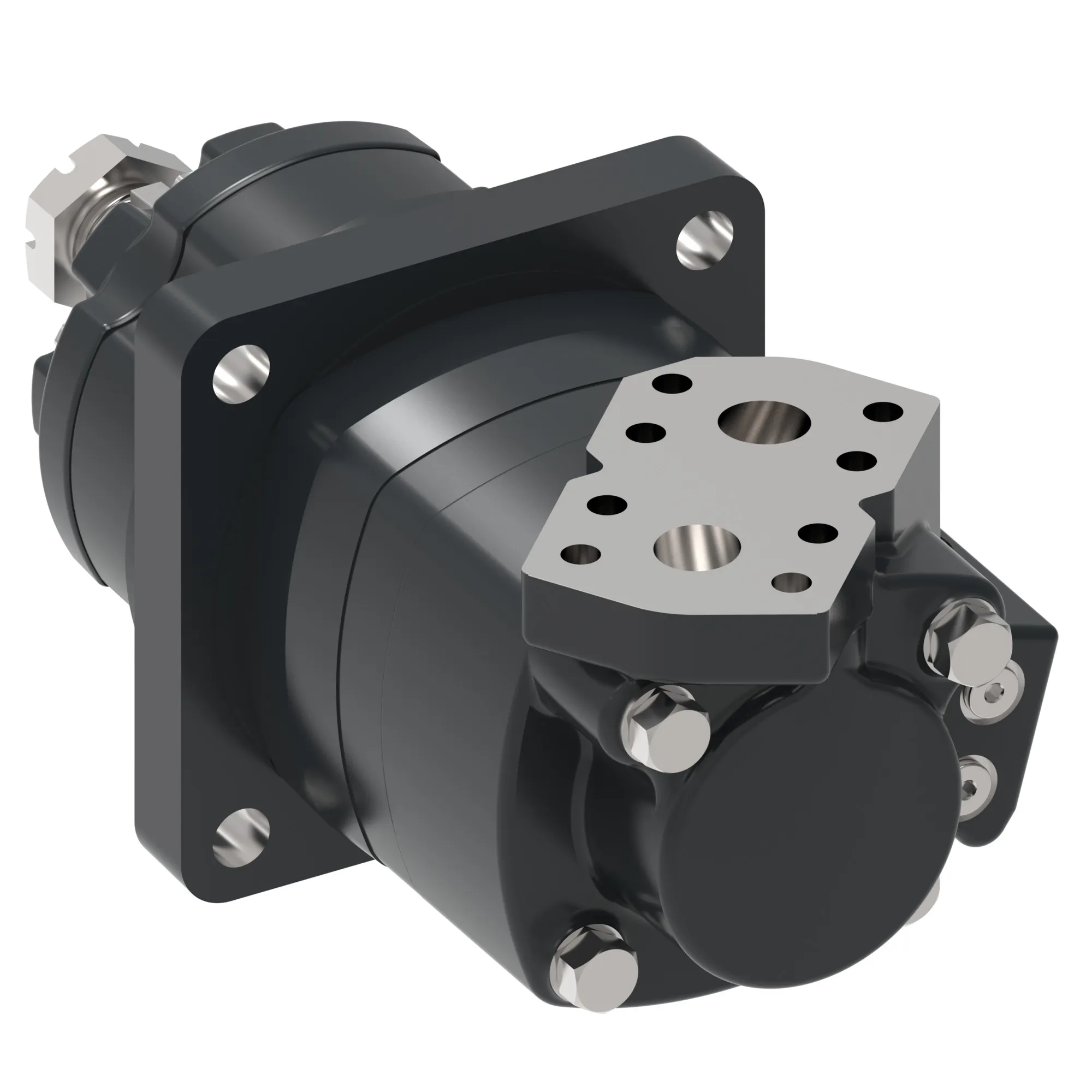

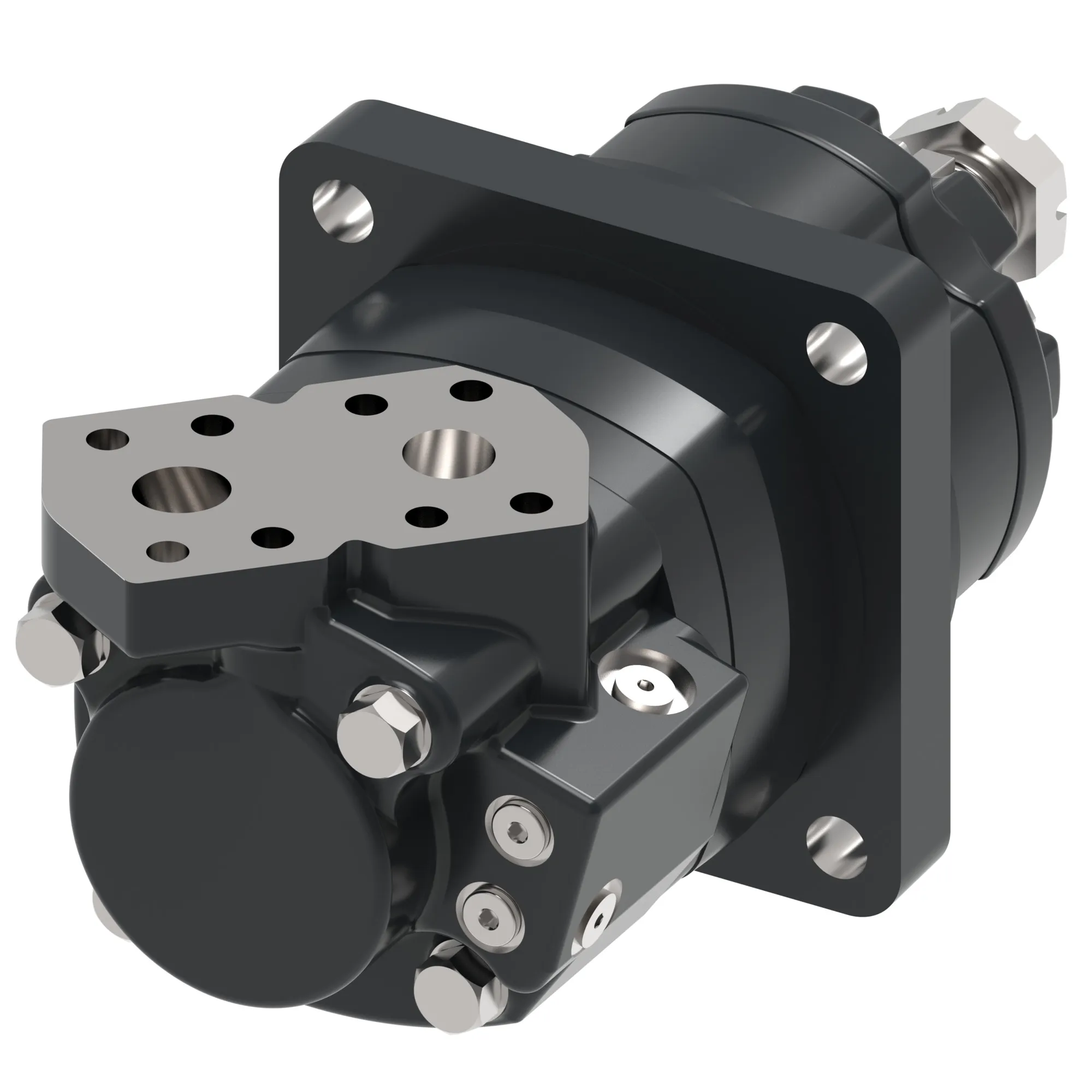

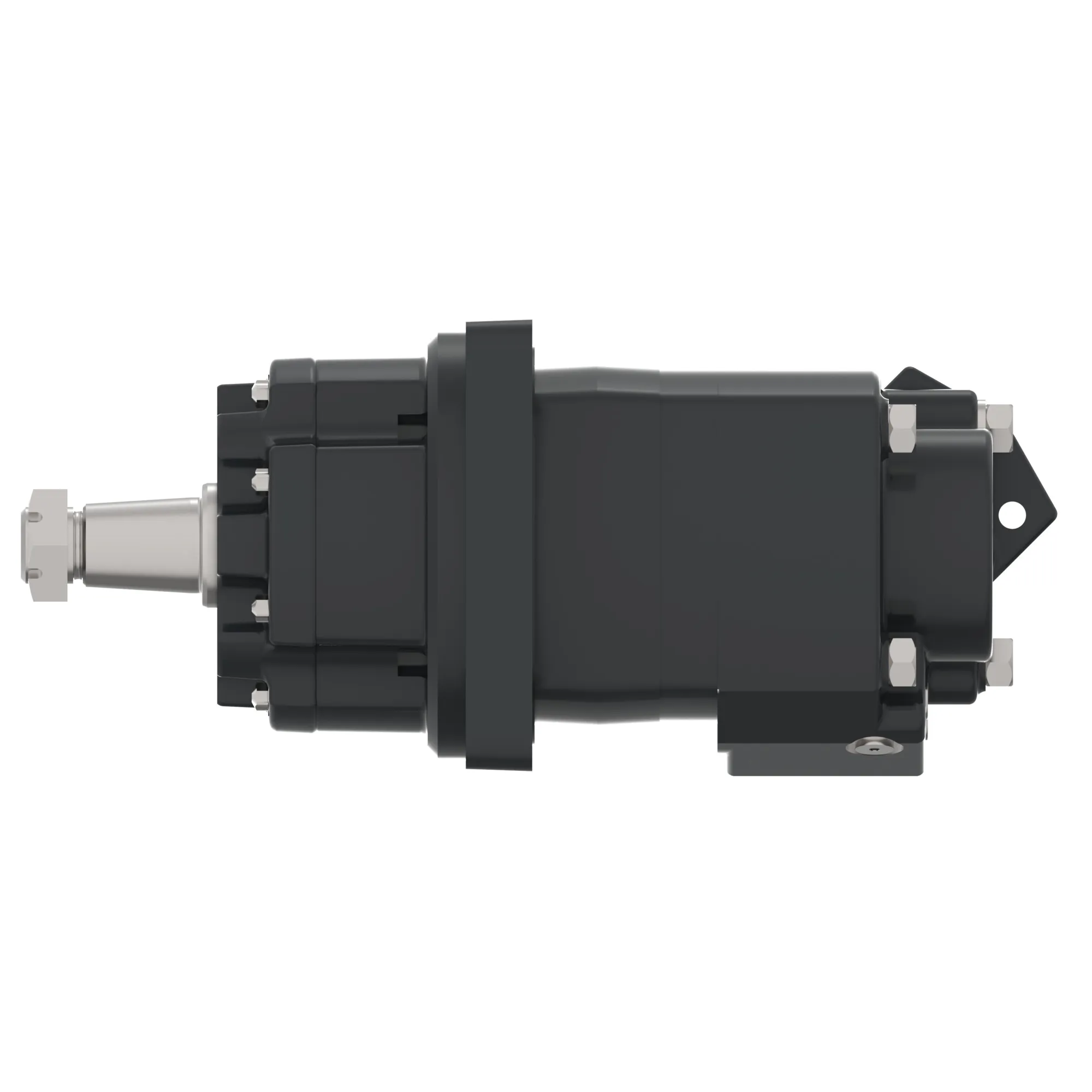

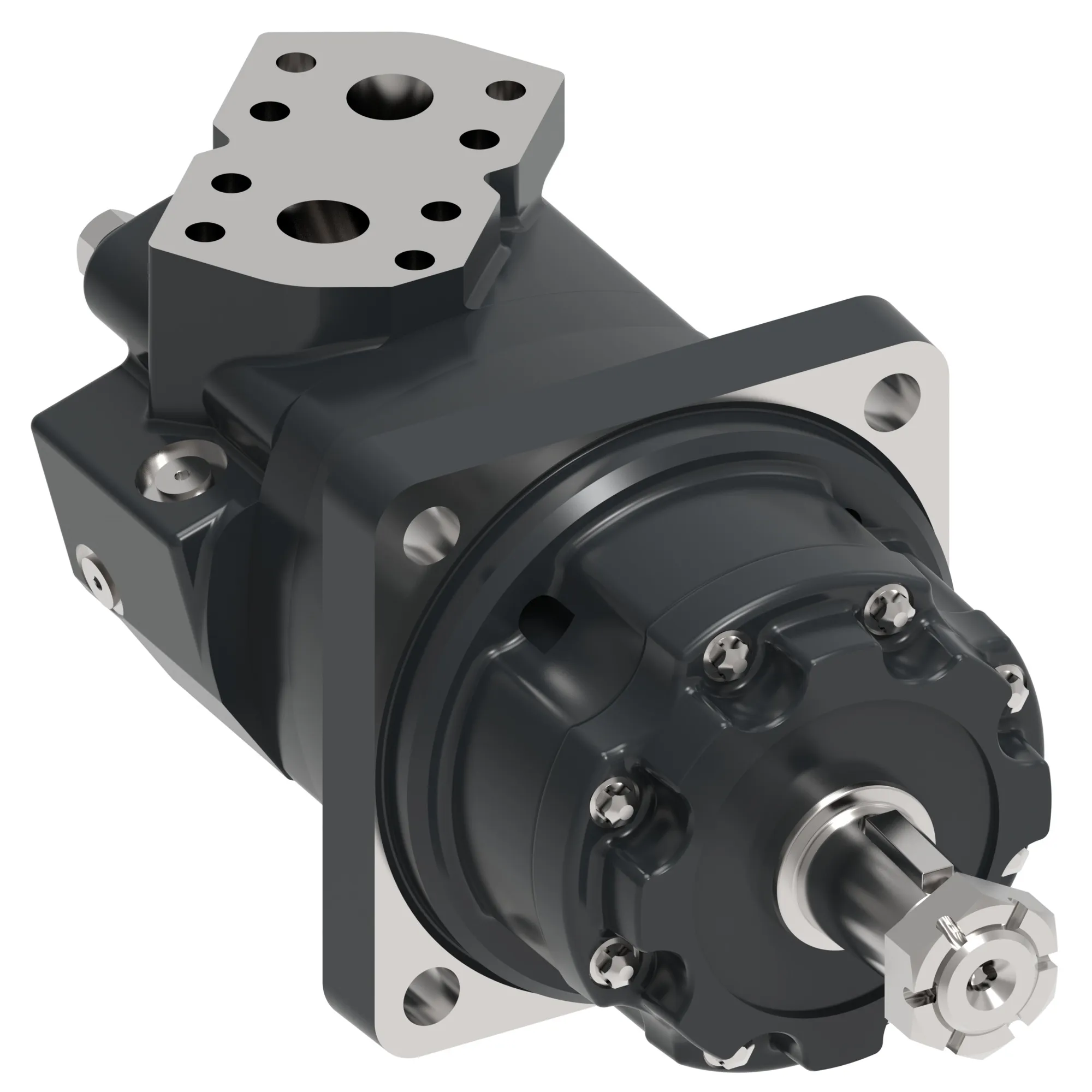

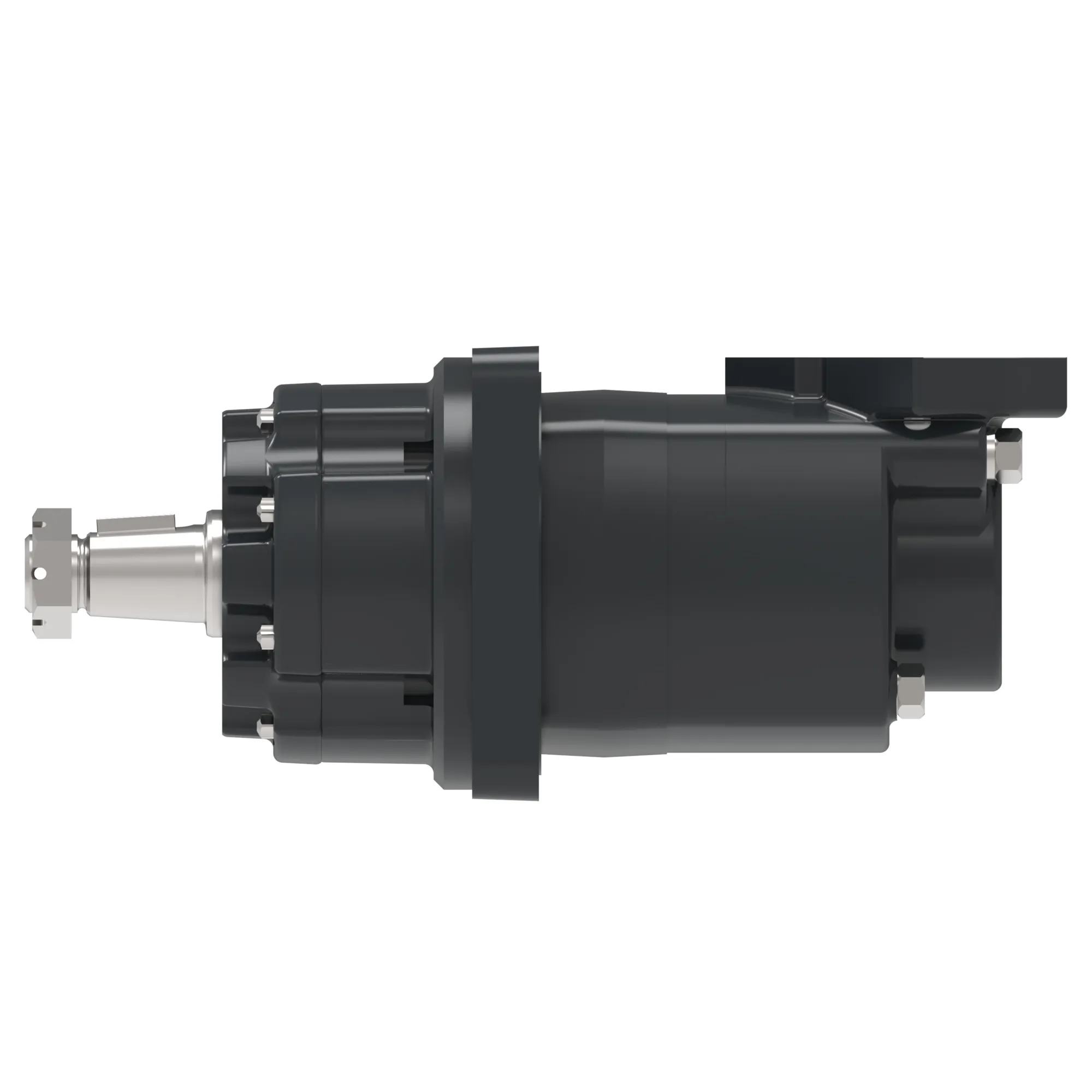

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AD02AB06D0004000600AD00F – 110-1232-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AD02AB06D0004000600AD00F – 110-1232-006
Specification
| Model Code | M04080AD02AB06D0004000600AD00F |
|---|---|
| Motor Series | 4000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Motor Size | 130 |
| Geometric Displacement [Cm3/R [In3/R]] | 130.3 [7.95] |
| Motor Type | Wheel |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Wheel |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 9.1, 147.6, 1/2 – 13 UNC-2B [5.00 x 0.36, 5.81, 1/2 – 13 UNC-2B] |
| Shaft Dimension | Dia. 1 5/8 inch, 1:8, 1 1/4 – 18 UNEF-2A thread in shaft end |
| Shaft Key | Square key, 7/16 x 1 1/4 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Seal Guard |
| Shaft Seal | NBR – Standard |
| Seal Kit | 61290-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | No |
| Hydraulic Valve Function | Low pressure relief @ 11.0 bar [160 psi] |
| Sensor | None |
| Packaging | Bulk box |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
