Danfoss (Drives) 11.545-20-20

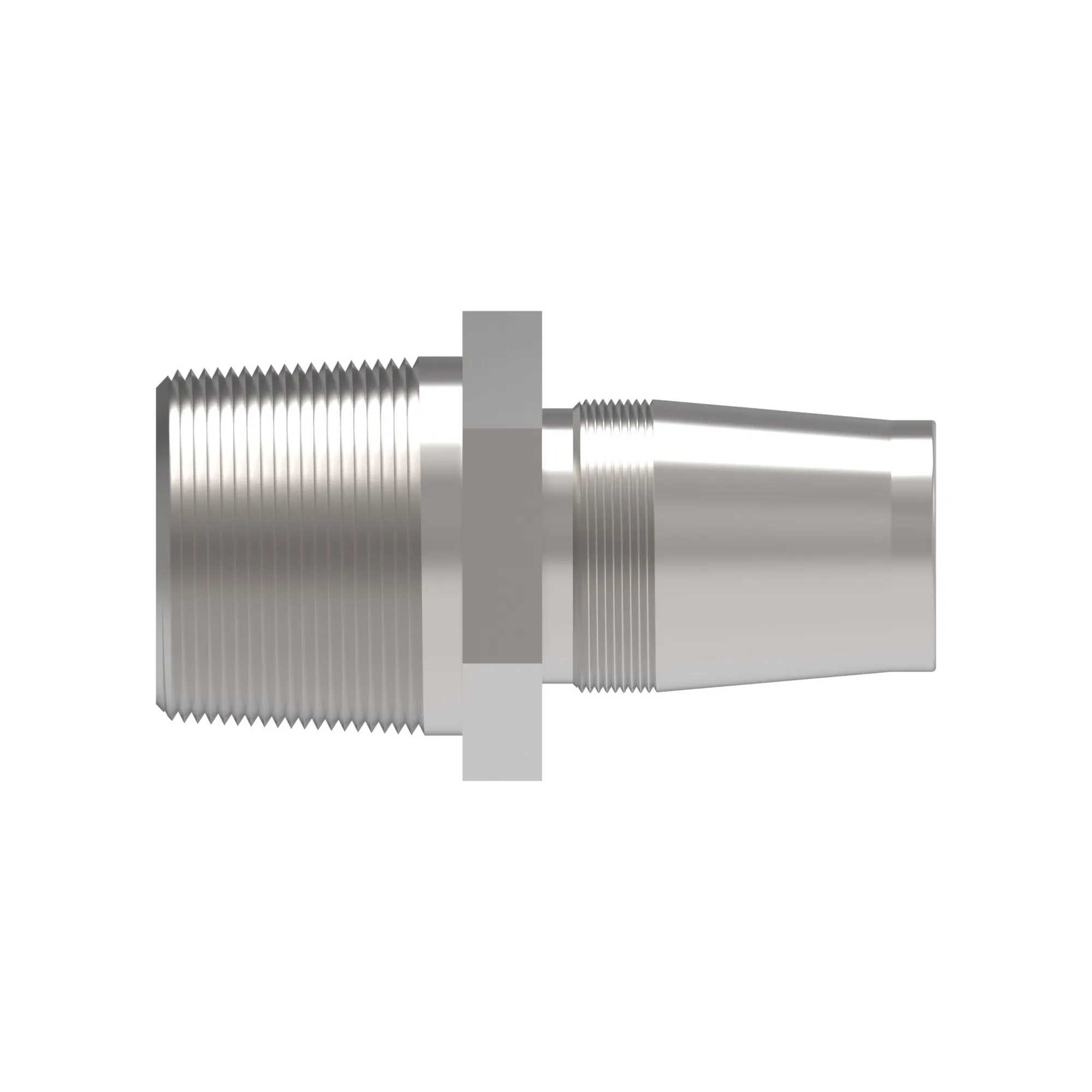

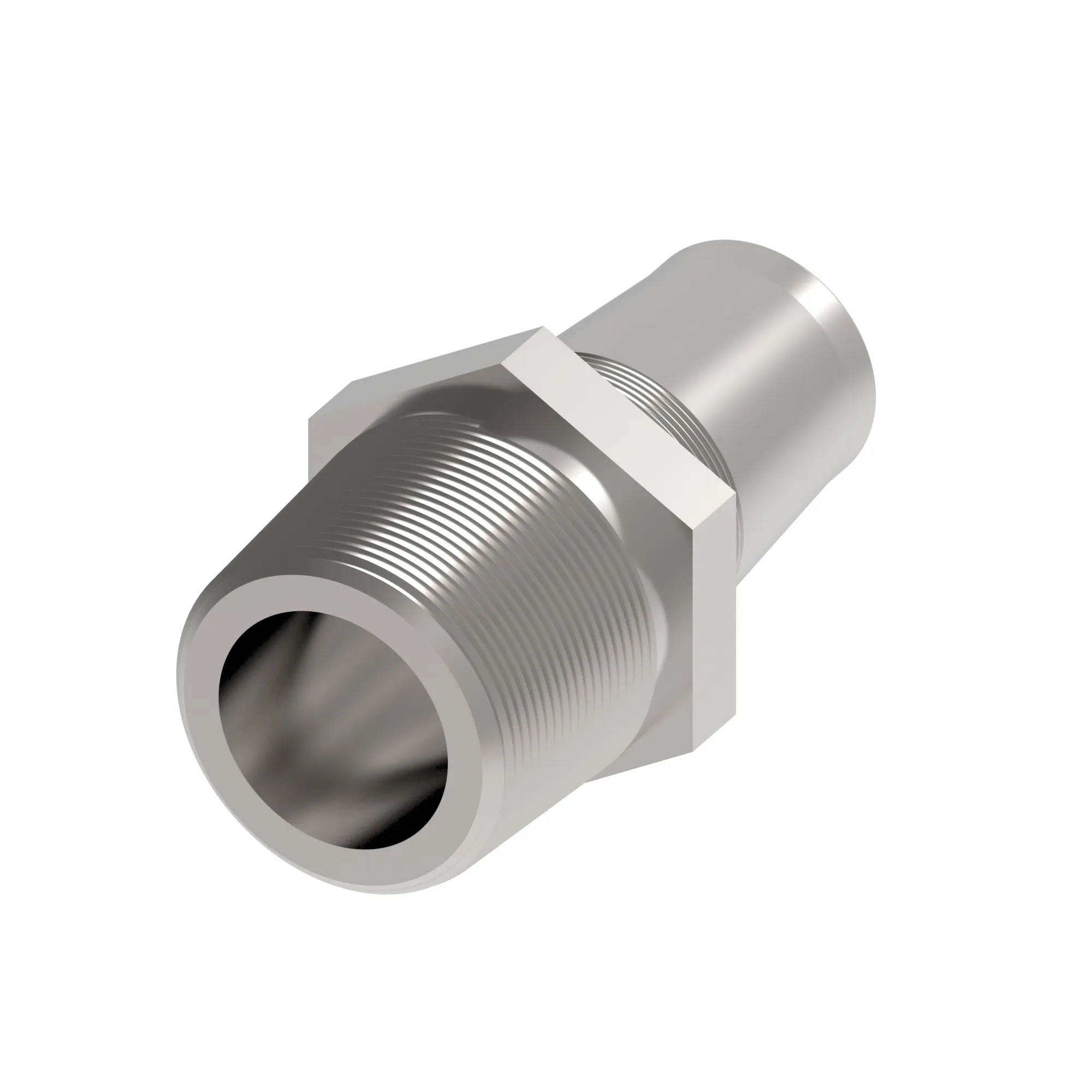

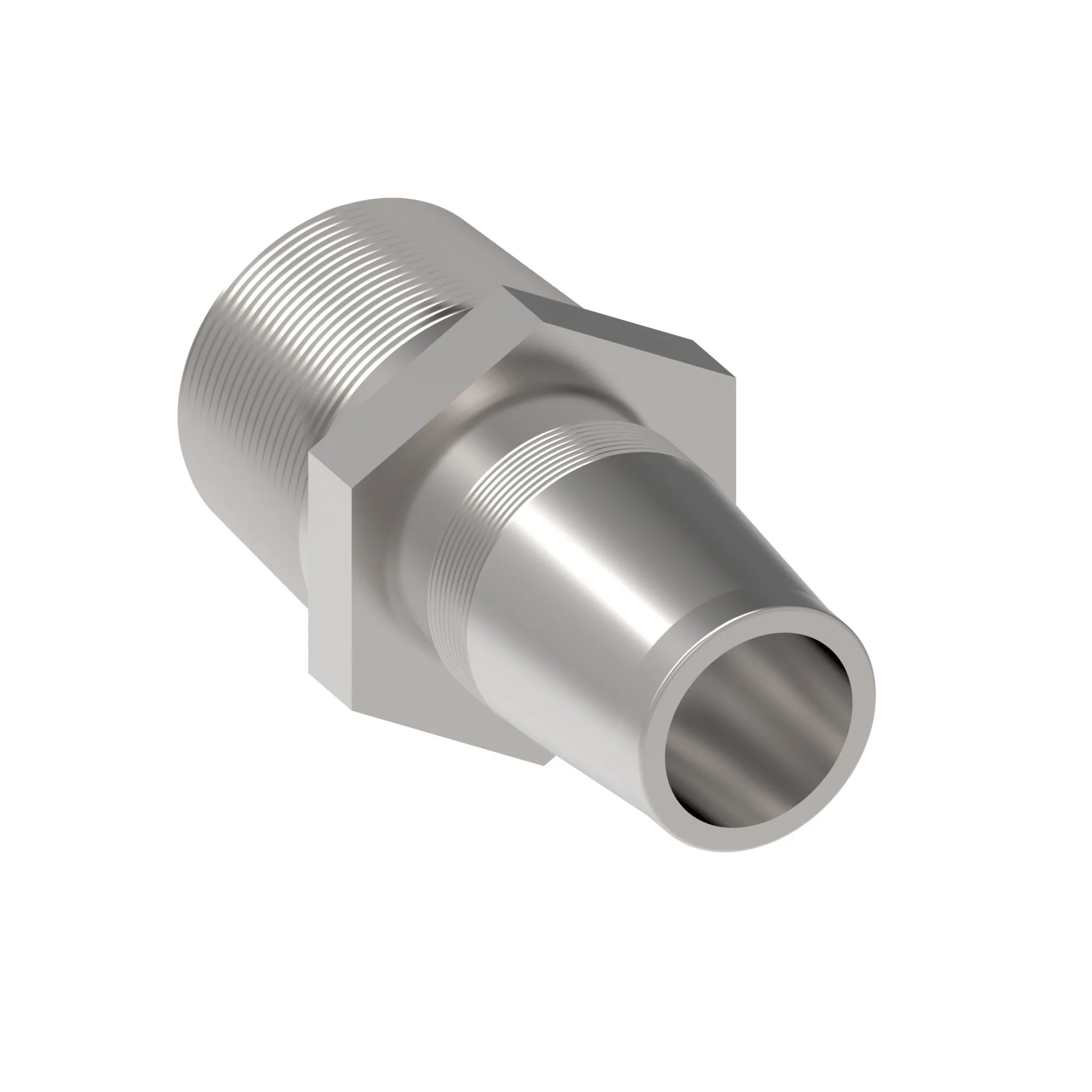

HOSE NIPPLE, SR/20, BSPT-M/20, CS, STR – 11.545-20-20
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE, SR/20, BSPT-M/20, CS, STR – 11.545-20-20
Specification
| A Dimension In | 3.241 |
|---|---|
| A Dimension Mm | 82.310 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Aeroquip by Danfoss |
| Compatible Hose Id In | 1.250 |
| Compatible Hose Id Mm | 31.800 |
| Compatible Hoses | 1503 |
| Construction Style | Reusable |
| End Size 1 | -20 |
| End Type 1 | Male pipe BSPT |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.811 |
| Hex Size 1 Mm | 46.000 |
| Hex Size 2 In | 0.000 |
| Hose Cut Off Factor In | 1.921 |
| Hose Cut Off Factor Mm | 48.810 |
| Hose Size | -20 |
| Inside Diameter In | 1.042 |
| Inside Diameter Mm | 26.470 |
| Product Height In | 2.090 |
| Product Height Mm | 53.086 |
| Product Length In | 3.240 |
| Product Length Mm | 82.296 |
| Product Material | Carbon steel |
| Product Width In | 1.810 |
| Product Width Mm | 45.974 mm |
| Series | Socketless |
| Thread Sealant | Yes |
| Thread Size 1 | R 1 1/4 |
| Working Temperature Max C | 121 |
| Working Temperature Max F | 250 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
