Danfoss (Drives) 11.420-8-6

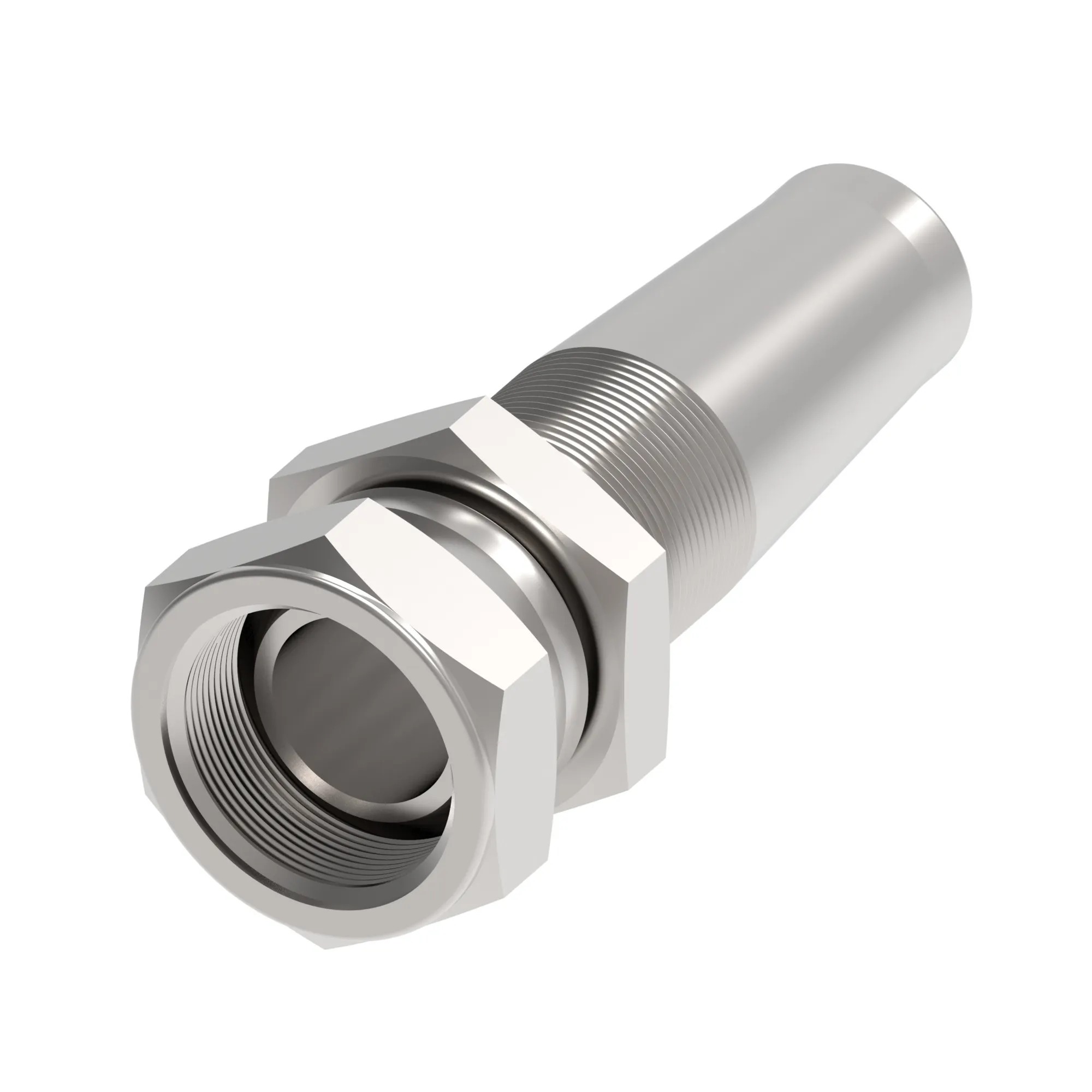

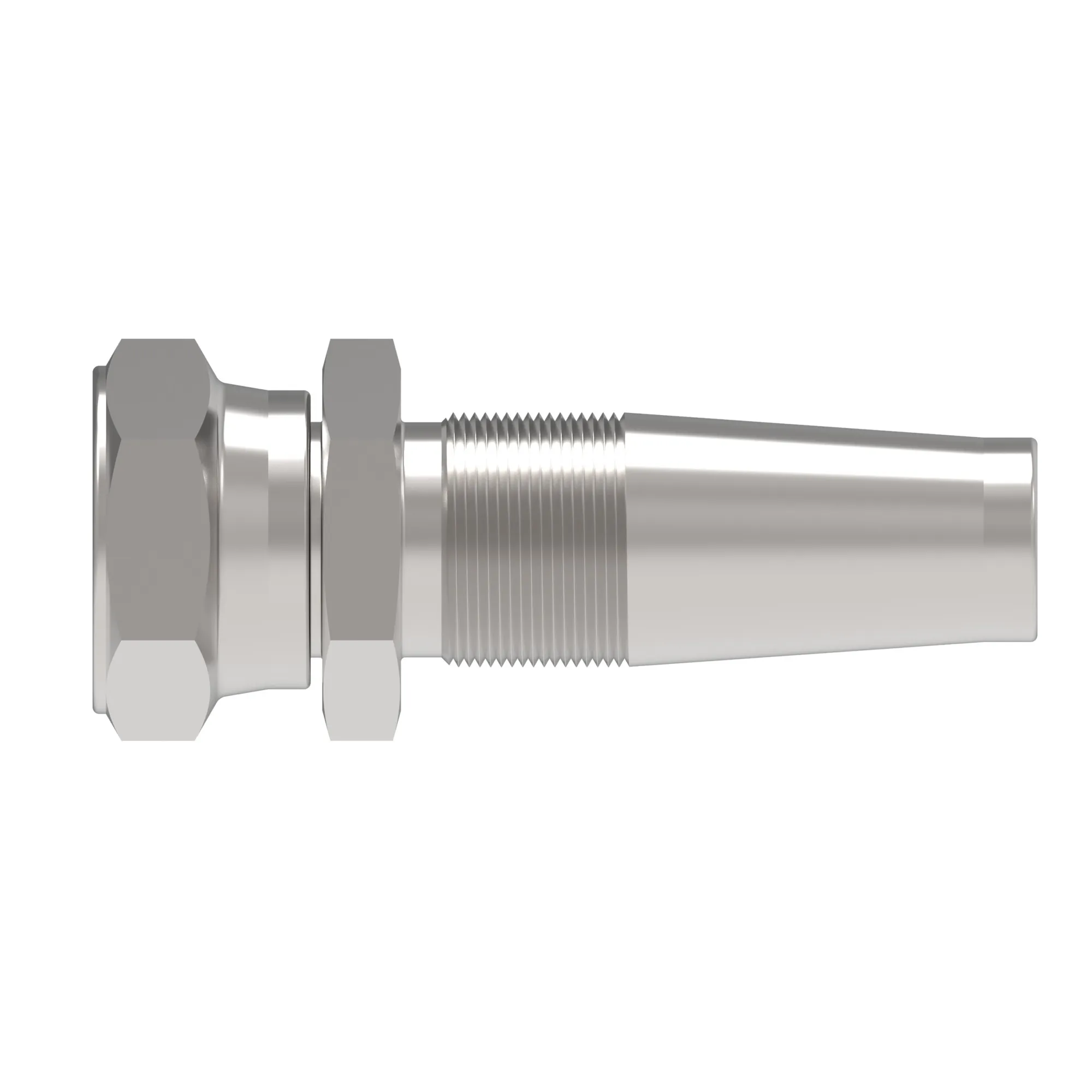

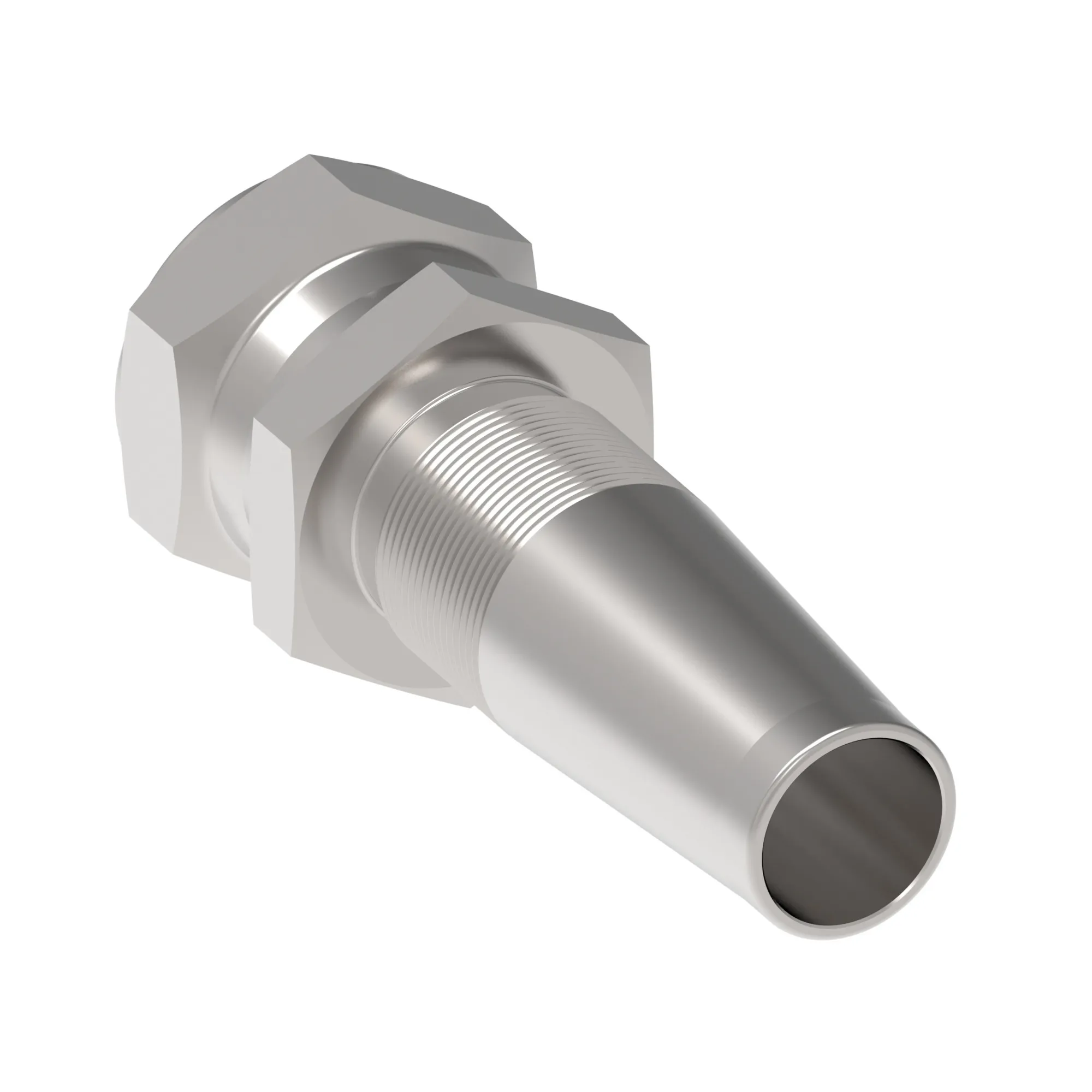

HOSE NIPPLE ASSY, SR/06, BF/08, CS, STR – 11.420-8-6
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY, SR/06, BF/08, CS, STR – 11.420-8-6
Specification
| A Dimension In | 2.736 |
|---|---|
| A Dimension Mm | 69.500 |
| Angle Shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible Hose Id In | 0.380 |
| Compatible Hose Id Mm | 9.500 |
| Construction Style | Reusable |
| End Connection Torque | 55-70 lb-ft(75-95 Nm) |
| End Size 1 | -8 |
| End Type 1 | Female BSPP swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 1.060 |
| Hex Size 1 Mm | 26.924 |
| Hex Size 2 In | 1.060 |
| Hex Size 2 Mm | 27.000 |
| Hose Cut Off Factor In | 1.318 |
| Hose Cut Off Factor Mm | 33.500 |
| Hose Size | -6 |
| Inside Diameter In | 0.314 |
| Inside Diameter Mm | 8.000 |
| Product Height In | 1.230 |
| Product Height Mm | 31.242 |
| Product Length In | 2.740 |
| Product Length Mm | 69.596 |
| Product Material | Carbon steel |
| Product Width In | 1.230 |
| Product Width Mm | 31.242 |
| Series | Socketless |
| Thread Sealant | No |
| Thread Size 1 | G 1/2 |
| Working Pressure Max Bar | 360 |
| Working Pressure Max Psi | 5300 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
