Danfoss (Drives) 11.139-4-4

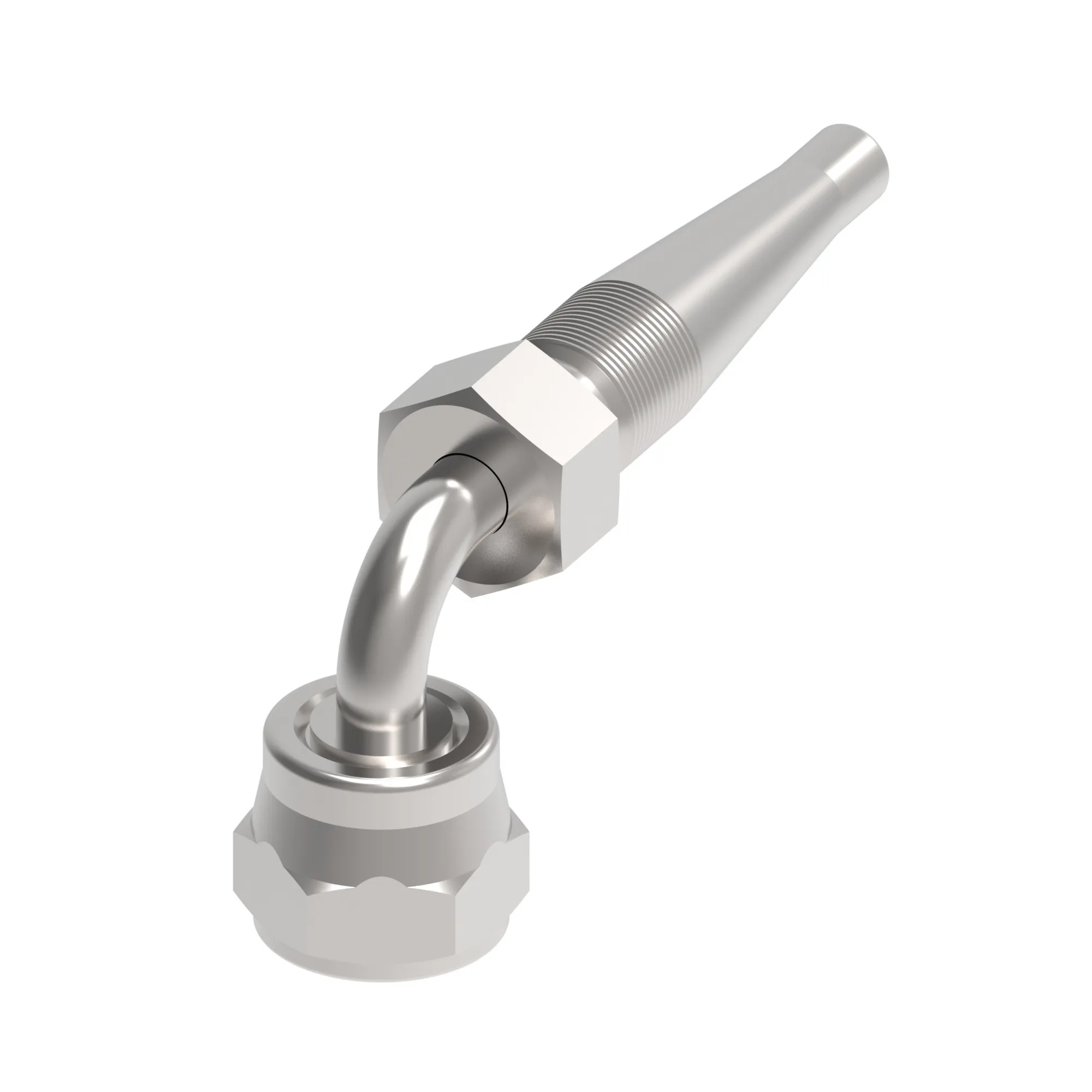

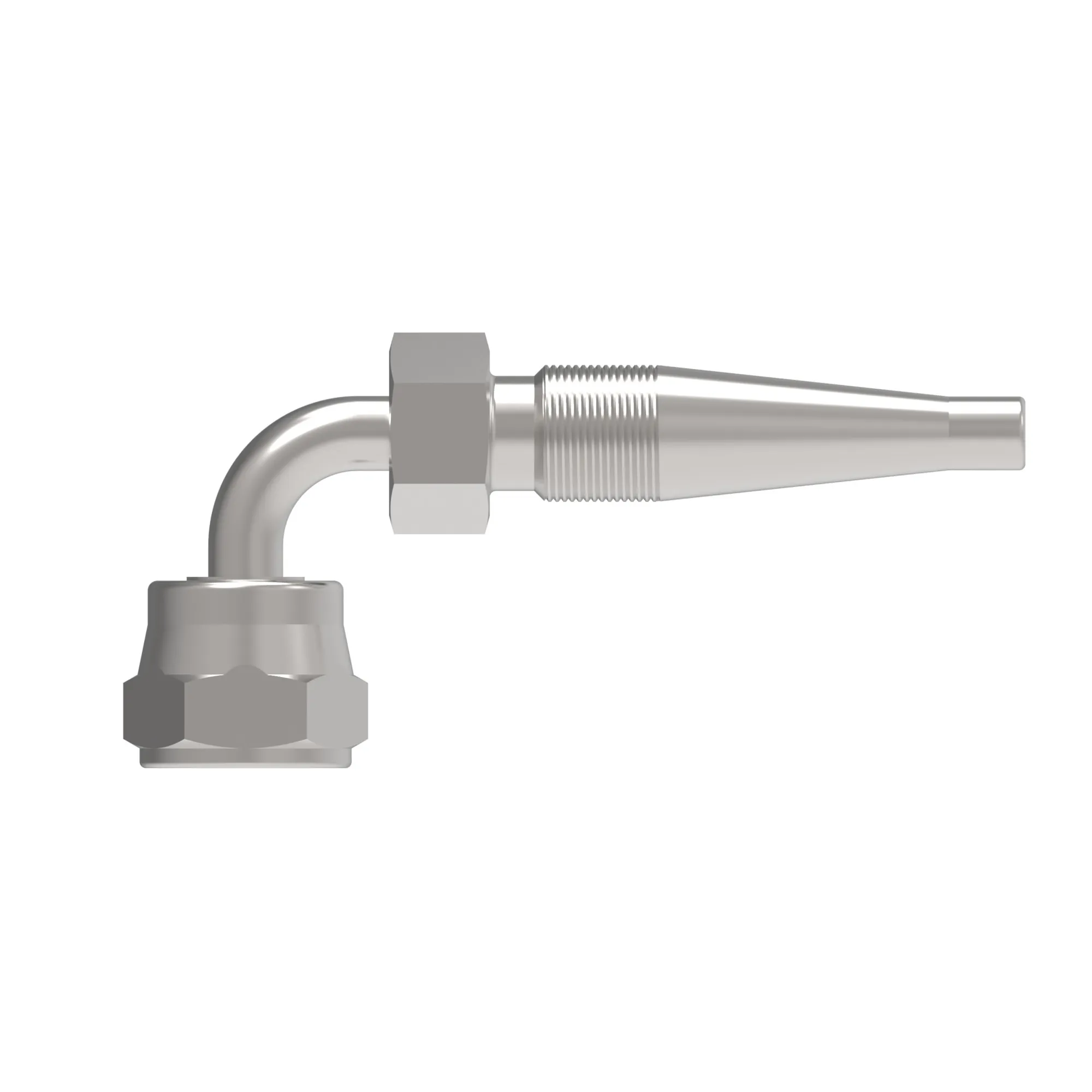

HOSE NIPPLE ASSY, SR/04, BF/04, CS, STR – 11.139-4-4
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY, SR/04, BF/04, CS, STR – 11.139-4-4
Specification
| A Dimension In | 2.460 |
|---|---|
| A Dimension Mm | 62.500 |
| Angle Shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Construction Style | Reusable |
| Drop Dimension In | 0.874 |
| Drop Dimension Mm | 22.20 |
| End Connection Torque | 19-23 lb-ft(25-30 Nm) |
| End Size 1 | -4 |
| End Type 1 | Female BSPP swivel |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.669 |
| Hex Size 1 Mm | 17.000 |
| Hex Size 2 In | 0.551 |
| Hex Size 2 Mm | 14.000 |
| Hose Cut Off Factor In | 1.791 |
| Hose Cut Off Factor Mm | 45.500 |
| Hose Size | -4 |
| Inside Diameter In | 0.157 |
| Inside Diameter Mm | 4.000 |
| Product Height In | 1.140 |
| Product Height Mm | 1.140 |
| Product Length In | 2.790 |
| Product Length Mm | 70.866 |
| Product Material | Carbon steel |
| Product Width In | 0.670 |
| Product Width Mm | 17.018 mm |
| Series | Socketless |
| Thread Sealant | No |
| Thread Size 1 | G 1/4 |
| Tube Od 1 In | 0.236 |
| Tube Od 1 Mm | 6.000 |
| Working Pressure Max Bar | 450 |
| Working Pressure Max Psi | 6550 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
