Danfoss (Drives) 11.008-8-4

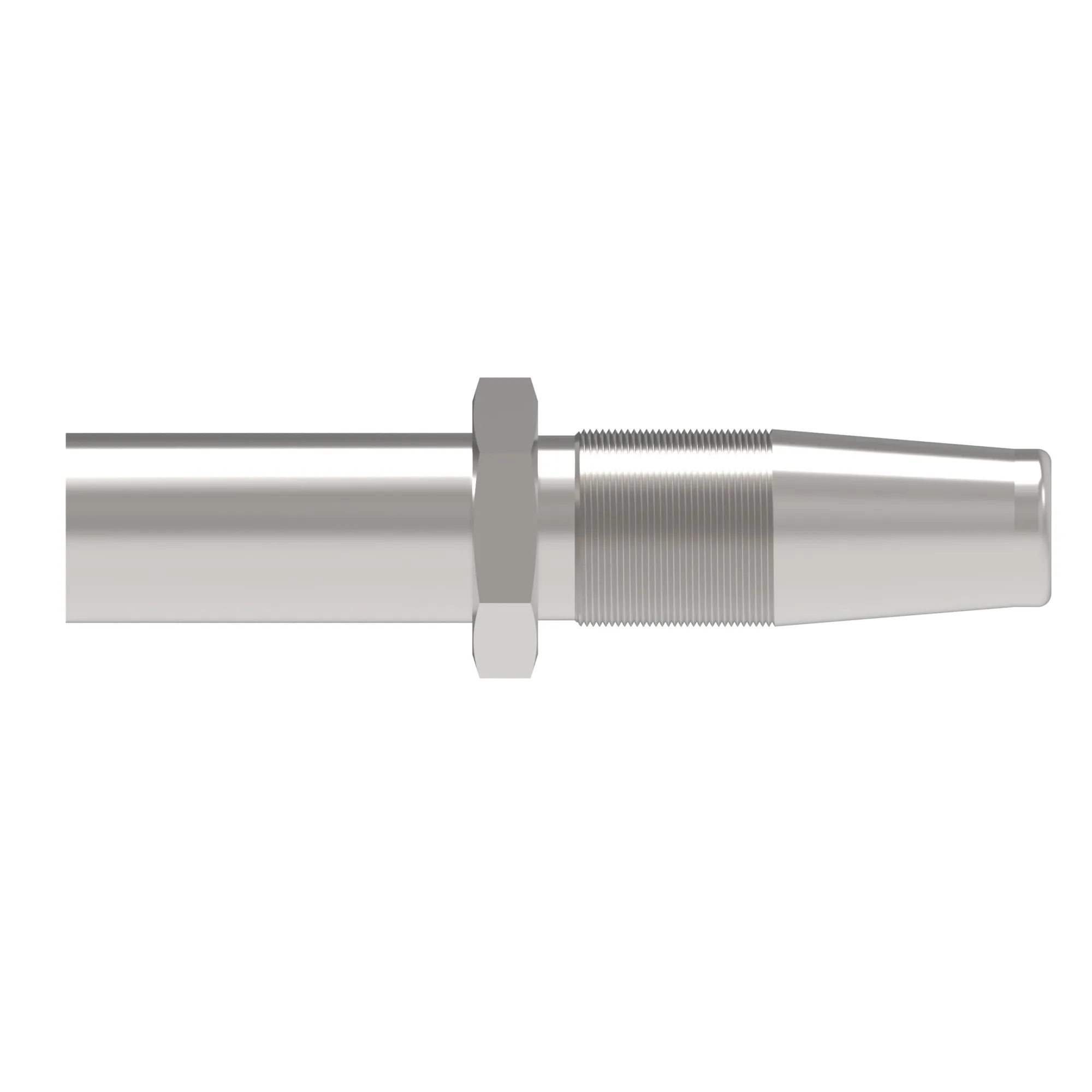

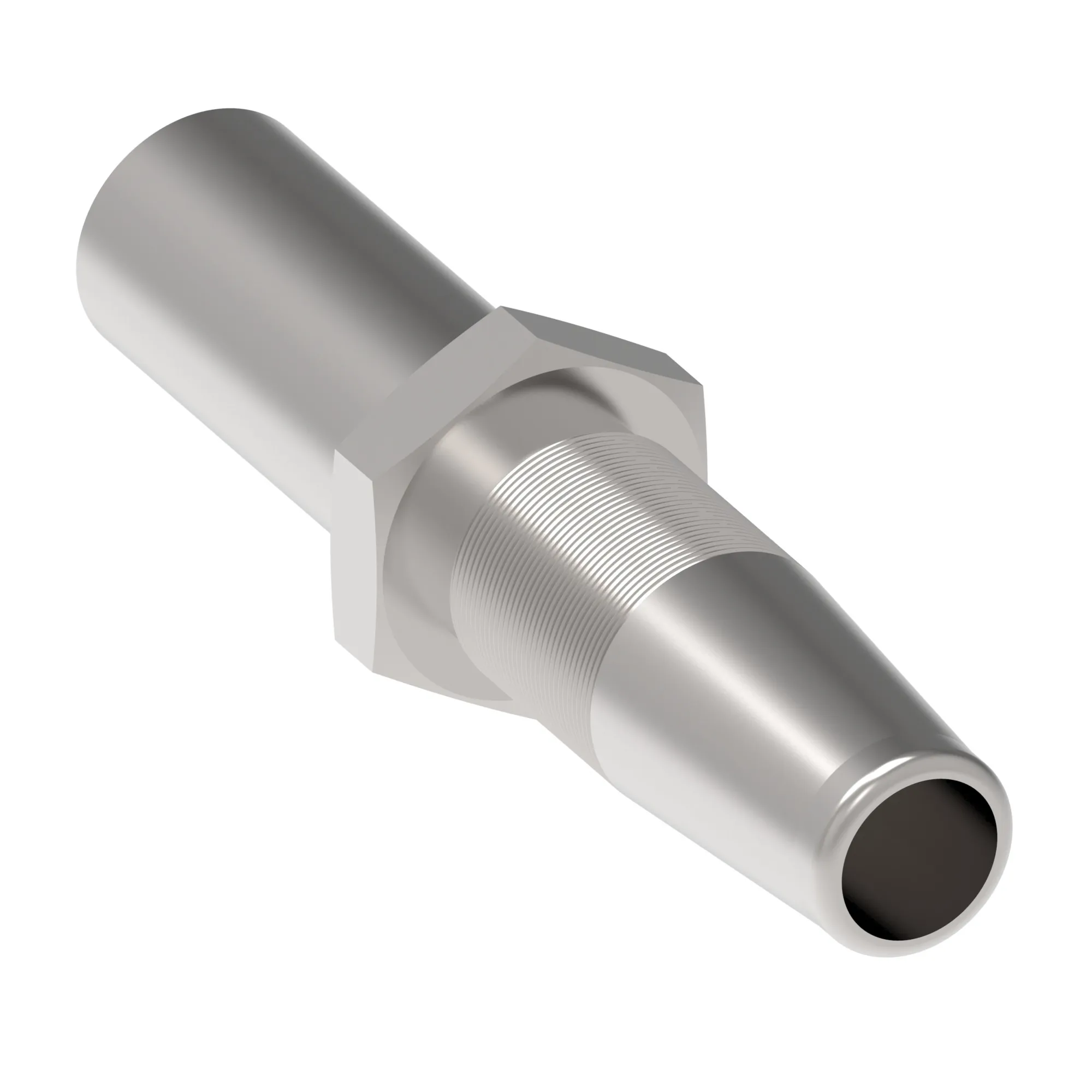

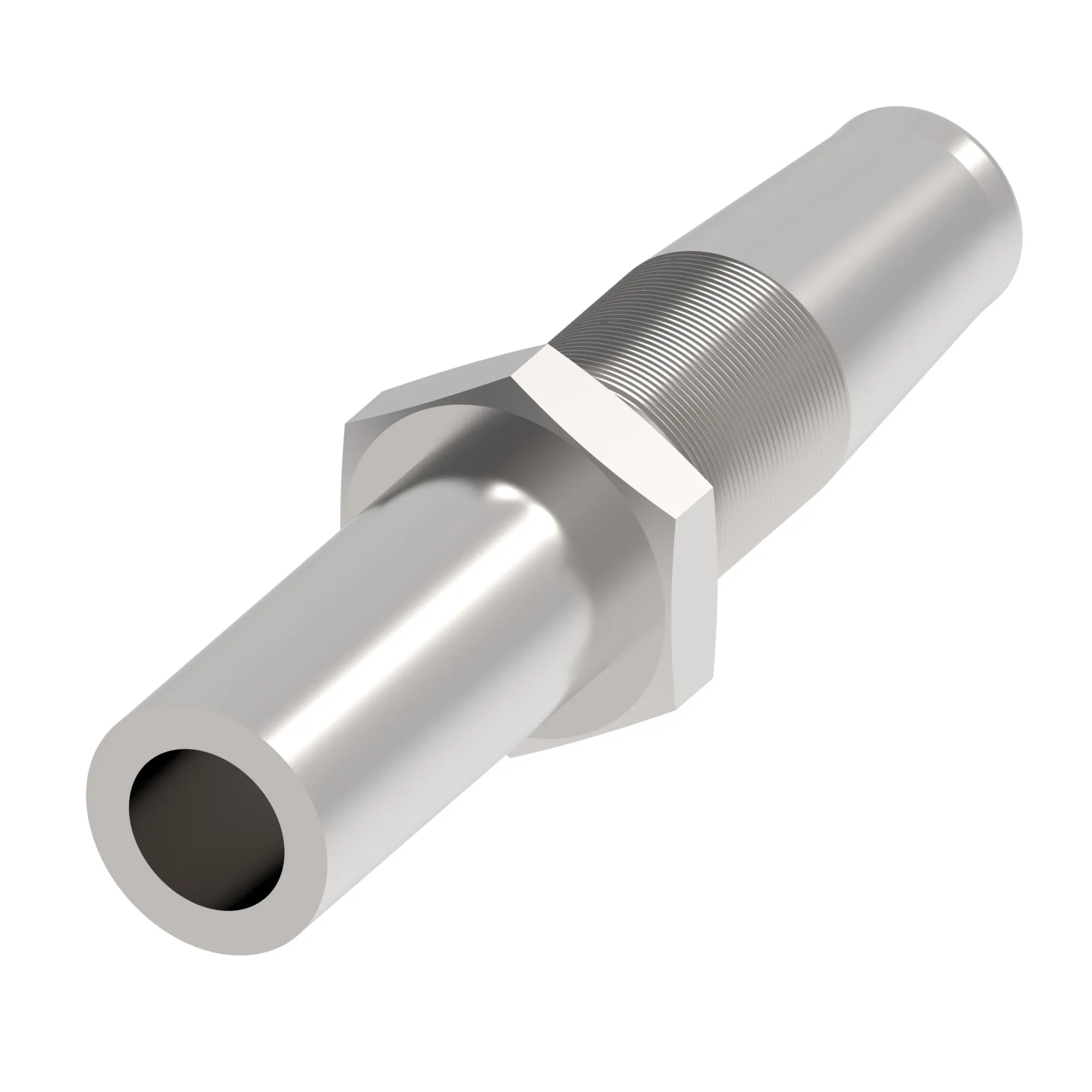

HOSE NIPPLE ASSY,SR/04,STPIPE/08,CS,STR – 11.008-8-4
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,SR/04,STPIPE/08,CS,STR – 11.008-8-4
Specification
| A Dimension In | 2.910 |
|---|---|
| A Dimension Mm | 74.000 |
| Angle Shape | Straight |
| Compatible Hose Id In | 0.250 |
| Compatible Hose Id Mm | 6.400 |
| Construction Style | Reusable |
| End Size 1 | -8 |
| End Type 1 | Standpipe Metric |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 0.470 |
| Hex Size 1 Mm | 11.938 |
| Hose Cut Off Factor In | 1.680 |
| Hose Cut Off Factor Mm | 42.900 |
| Hose Size | -4 |
| Inside Diameter In | 0.150 |
| Inside Diameter Mm | 4.000 |
| Product Height In | 0.470 |
| Product Height Mm | 11.938 |
| Product Length In | 2.910 |
| Product Length Mm | 73.914 |
| Product Material | Carbon steel |
| Product Width In | 0.470 |
| Product Width Mm | 11.938 mm |
| Series | Socketless |
| Thread Sealant | No |
| Working Pressure Max Bar | 400 |
| Working Pressure Max Psi | 5800 |
