Danfoss (Drives) 10Z-S70
Hose End (perm) 1S/1R Str F. ORS Swvl – 10Z-S70
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

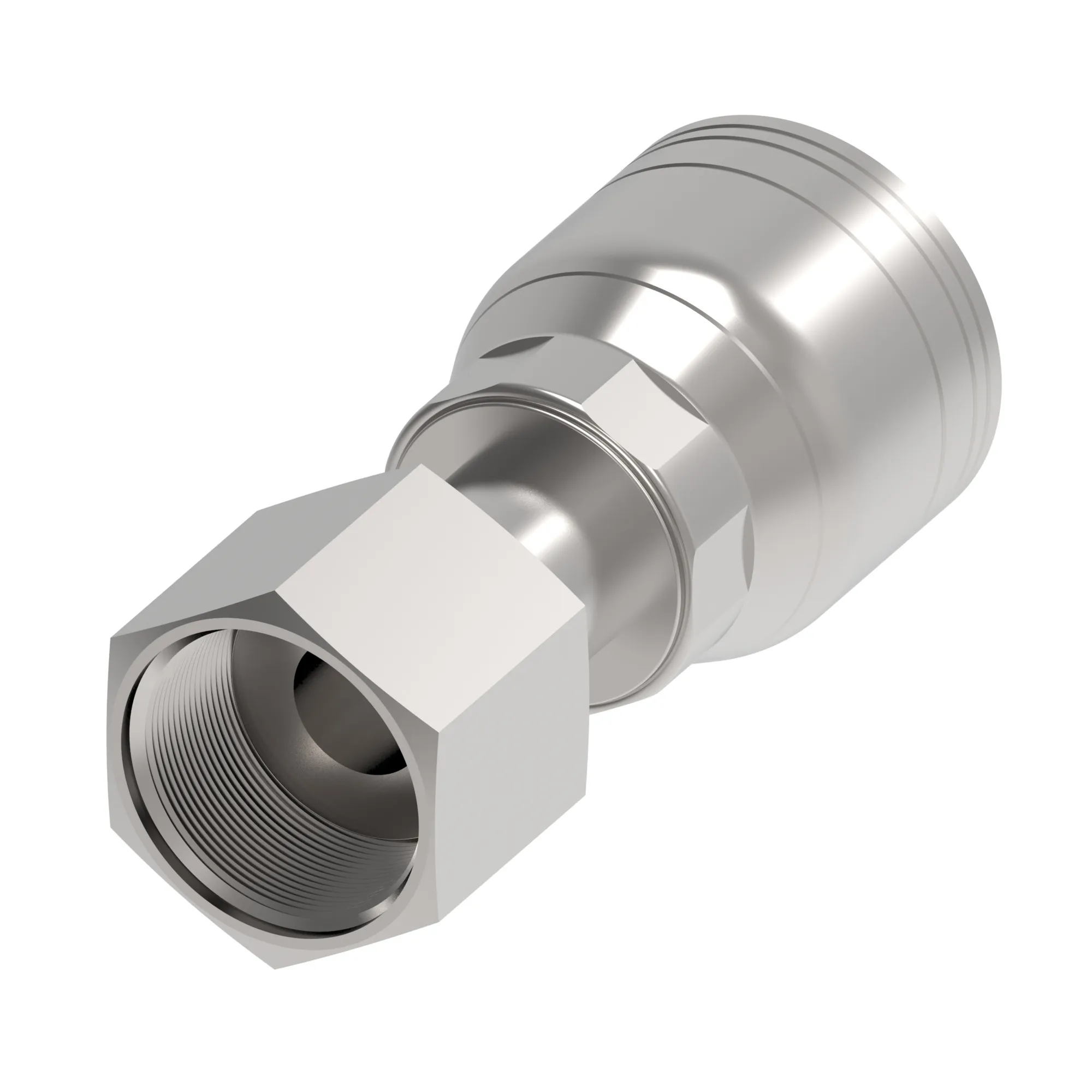

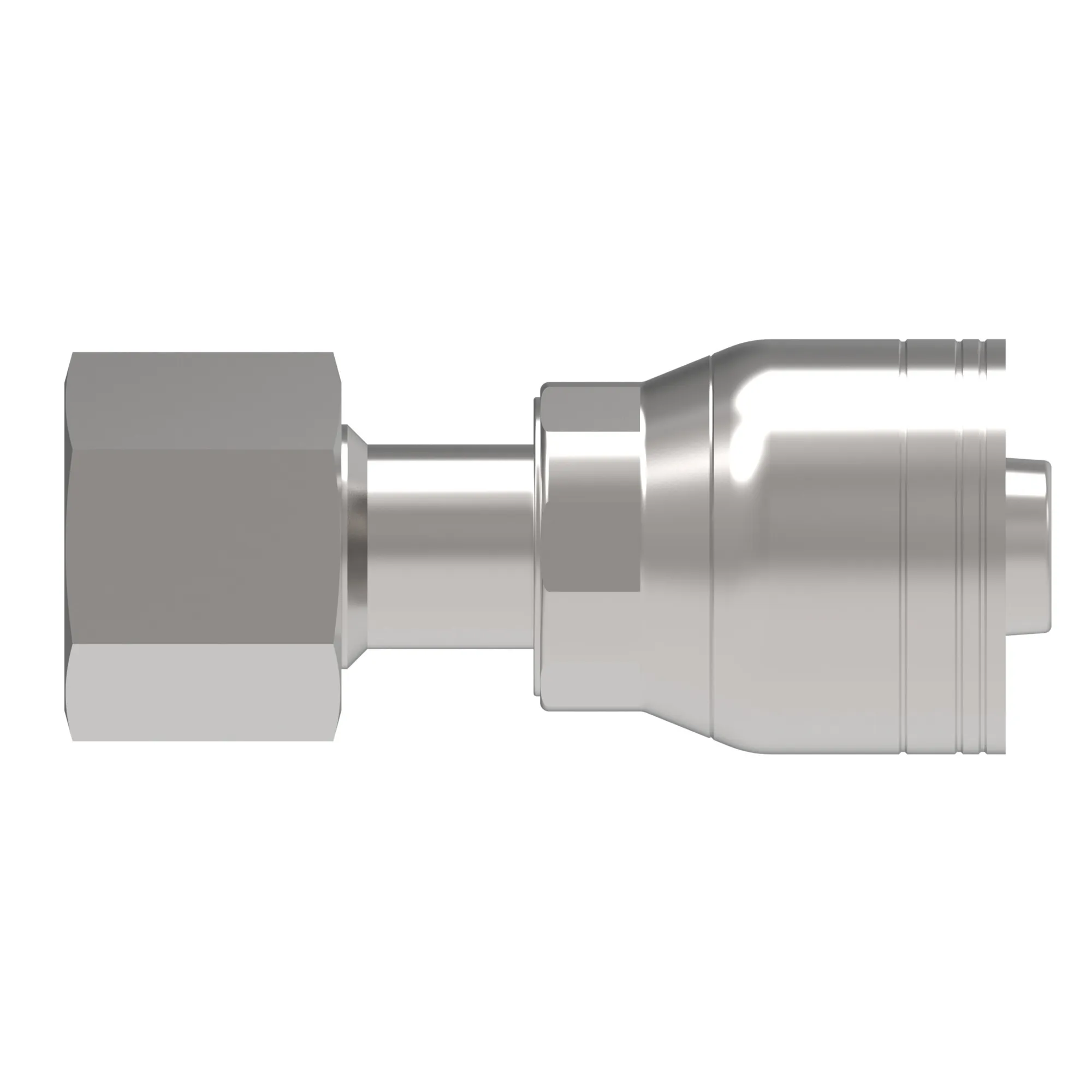

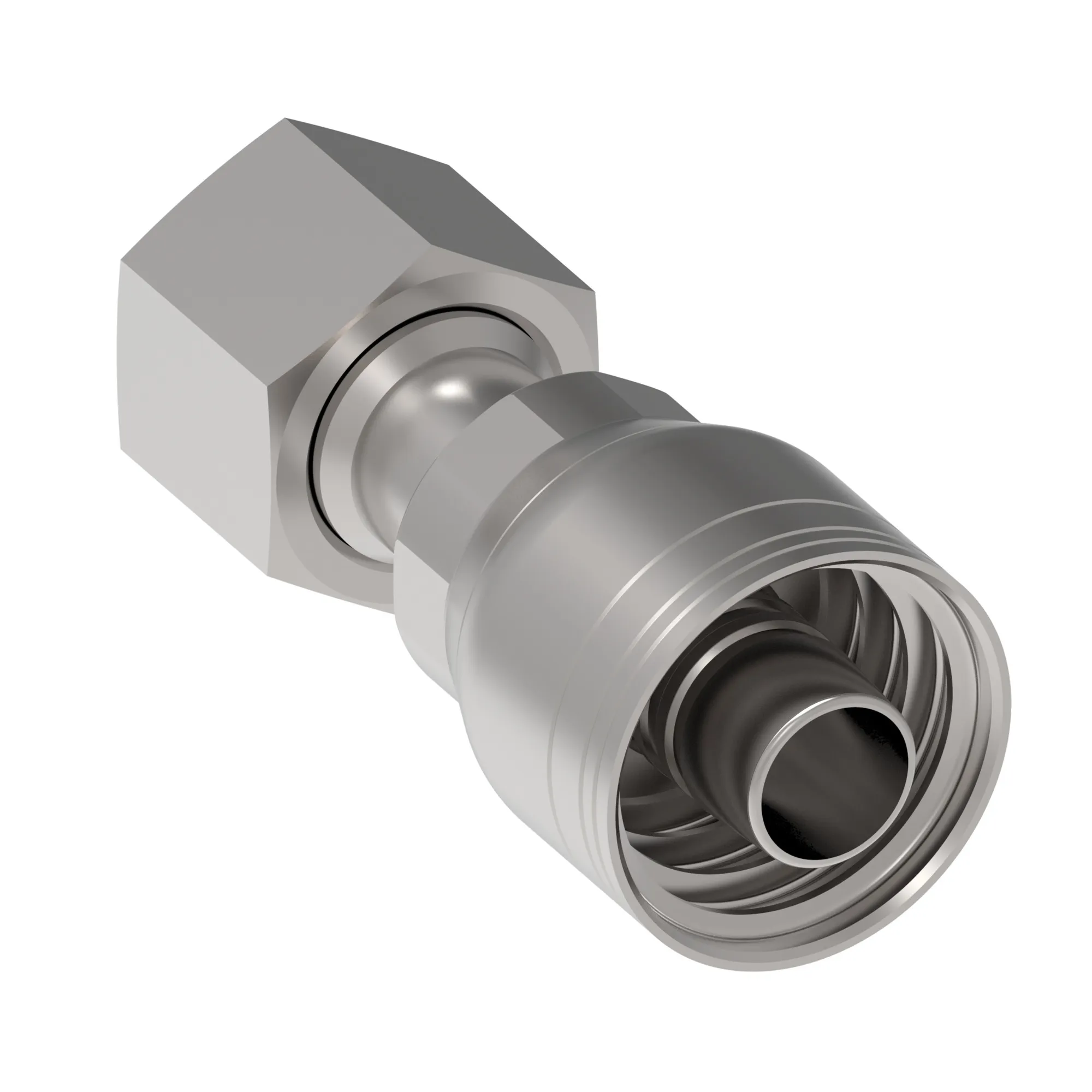

Hose End (perm) 1S/1R Str F. ORS Swvl – 10Z-S70
Specification
| E A N/ U P C | 639789291875 |
|---|---|
| Angle Shape | Straight |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.630 |
| Compatible Hose Id Mm | 16.002 |
| Compatible Tube Od In | 0.63 |
| Compatible Tube Od Mm | 16.002 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| End Size 1 | -16 |
| End Type 1 | Female ORFS swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 1.125 |
| Hex Size 1 Mm | 26.924 |
| Hex Size 2 In | 1.130 |
| Hex Size 2 Mm | 28.702 |
| Hose Cut Off Factor In | 1.610 |
| Hose Cut Off Factor Mm | 40.894 |
| Hose Size | -10 |
| Inside Diameter In | 0.450 |
| Inside Diameter Mm | 11.430 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 0.630 |
| Tube Od 1 Mm | 16.002 |
