Fast delivery within 72 Hours
Danfoss (Drives) 10Z-L22
Hose End (perm) SAE 38 30 DEG, FEM SWVL – 10Z-L22
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

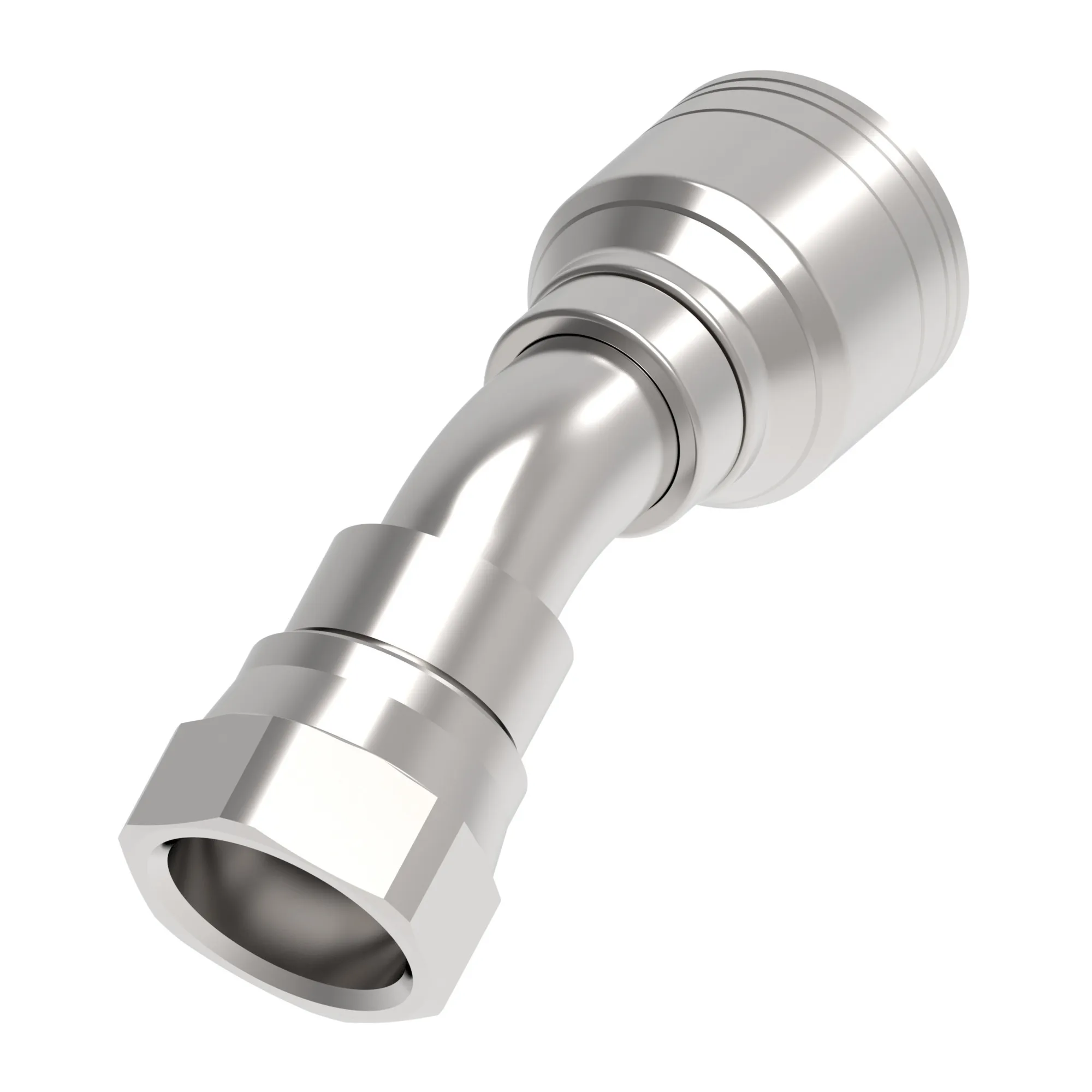

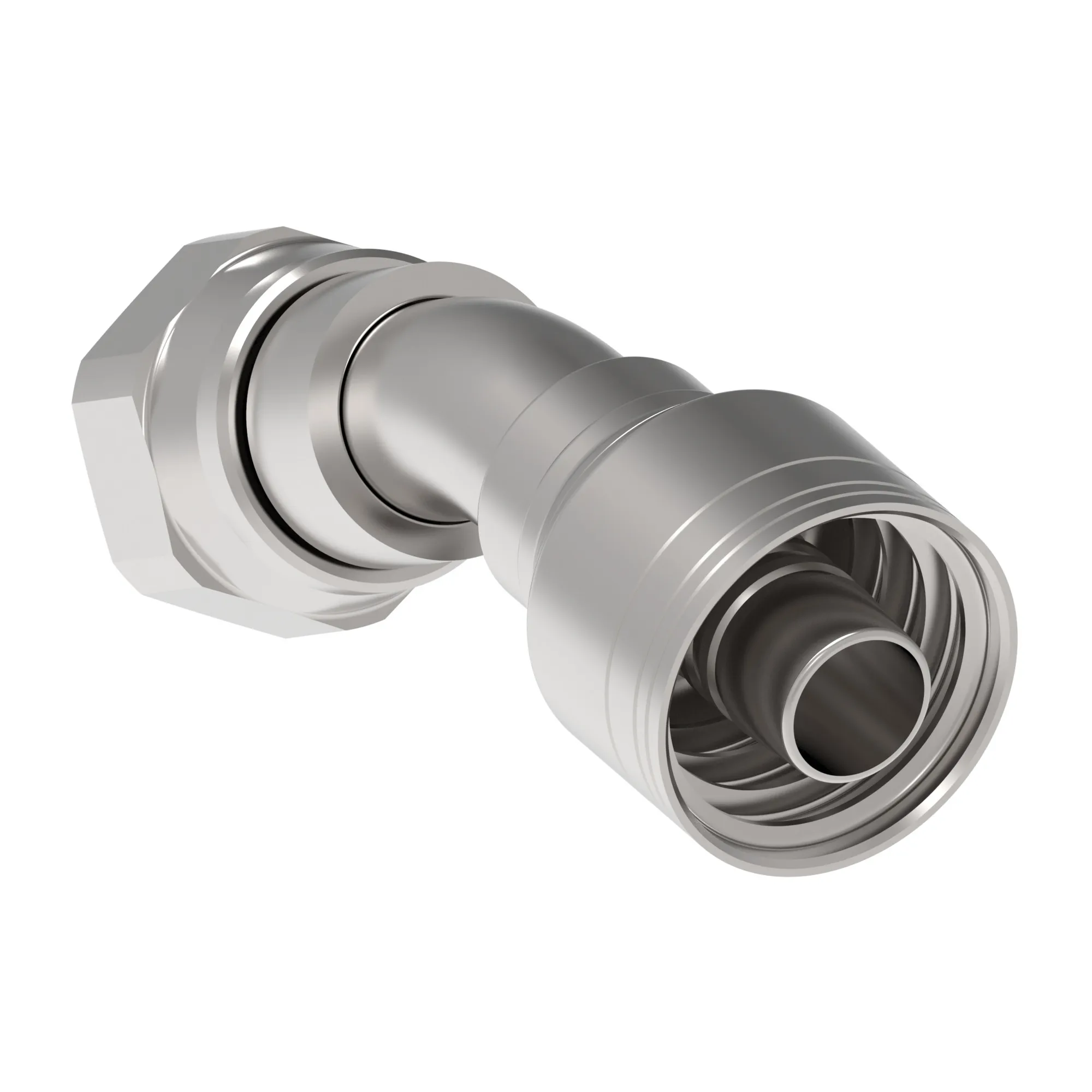

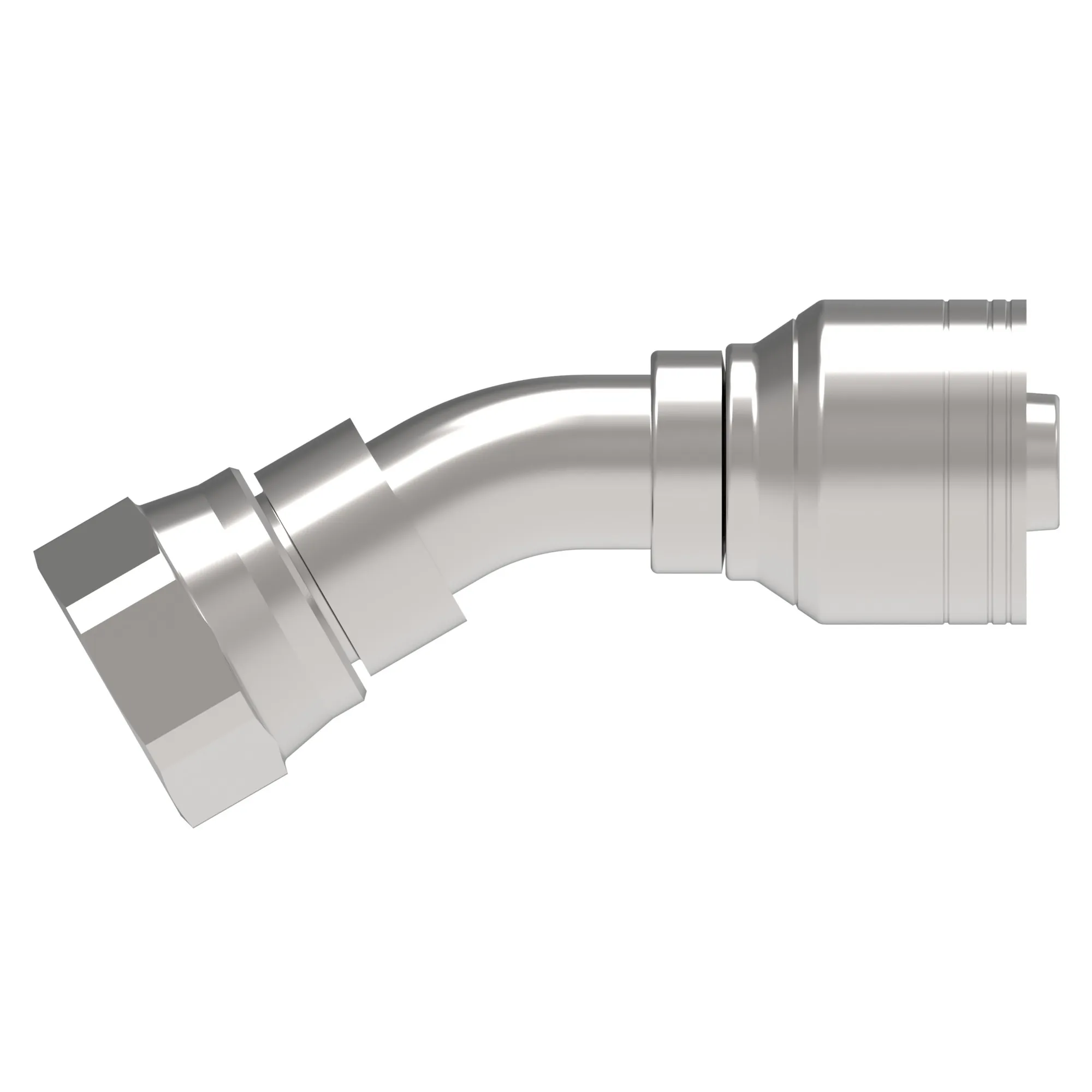

Hose End (perm) SAE 38 30 DEG, FEM SWVL – 10Z-L22
Specification
| E A N/ U P C | 639789322241 |
|---|---|
| Angle Shape | 30 Degree |
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.630 |
| Compatible Hose Id Mm | 16.002 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 0.690 |
| Drop Dimension Mm | 17.53 |
| End Size 1 | -12 |
| End Type 1 | Female 37 degree swivel |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 0.250 |
| Hex Size 1 Mm | 6.350 |
| Hose Cut Off Factor In | 2.380 |
| Hose Cut Off Factor Mm | 60.452 |
| Hose Size | -10 |
| Inside Diameter In | 0.510 |
| Inside Diameter Mm | 12.954 |
| Product Material | Carbon steel |
| Thread Sealant | No |
