Danfoss (Drives) 10Z-68D-BG
Ftng (perm), DKOL – 10Z-68D-BG
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

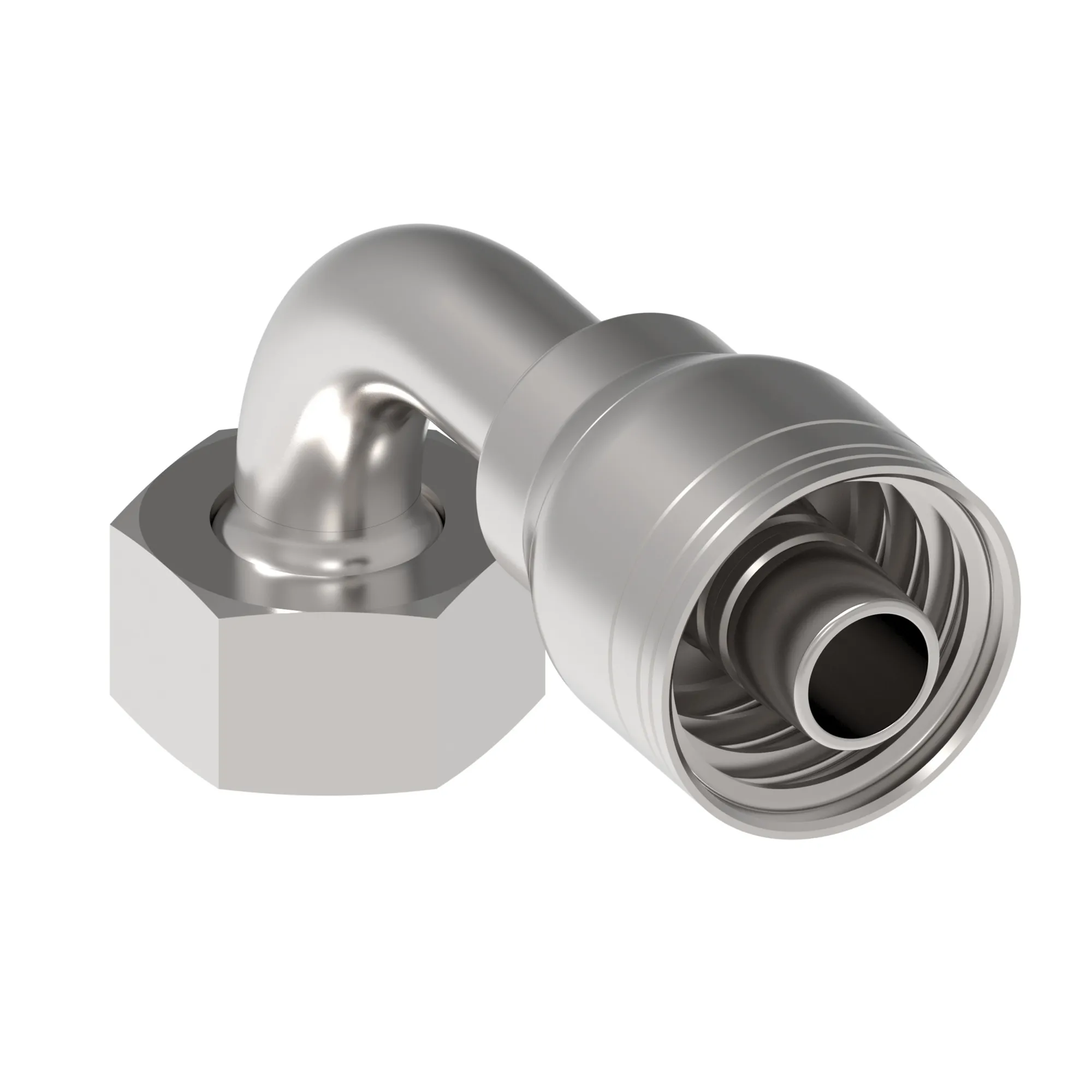

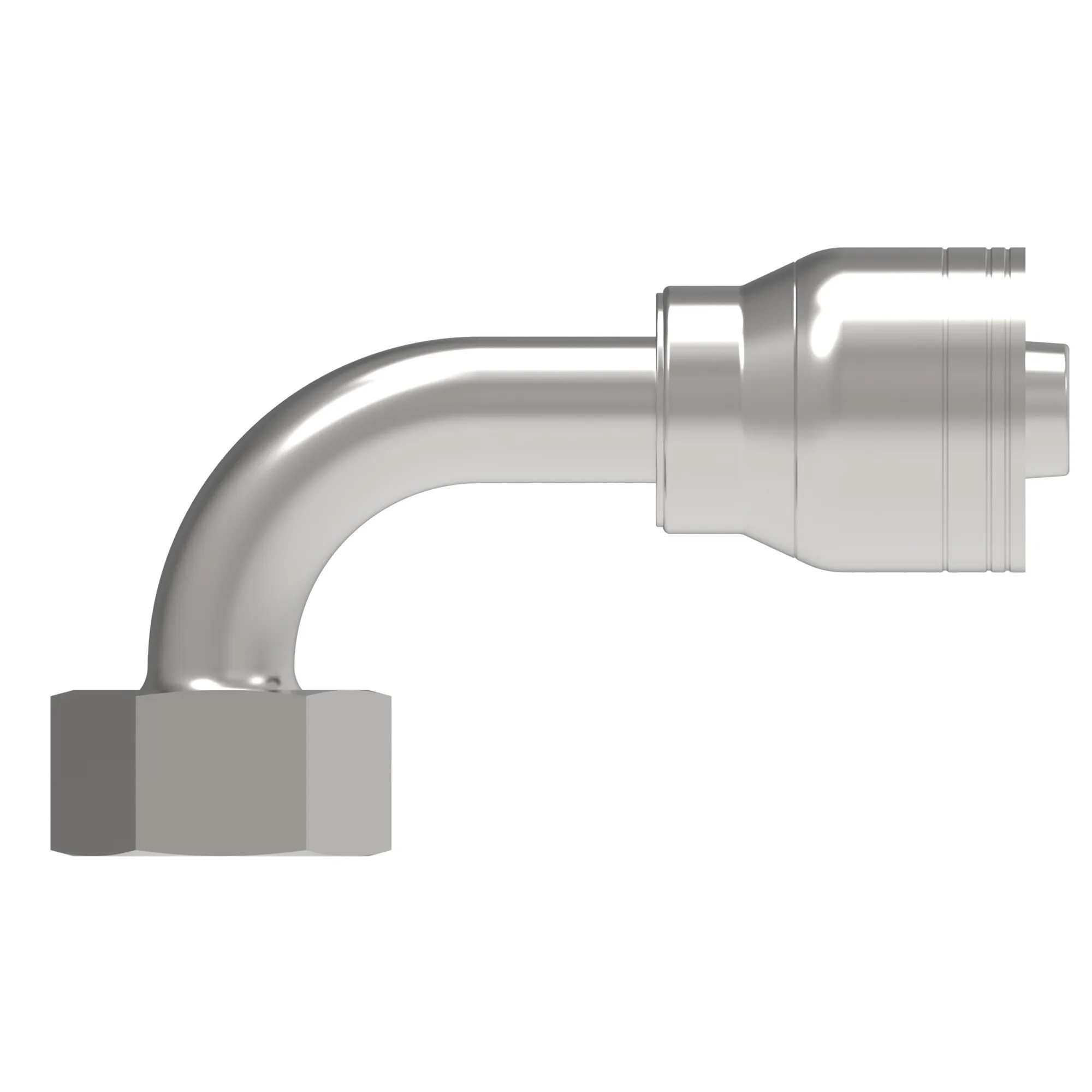

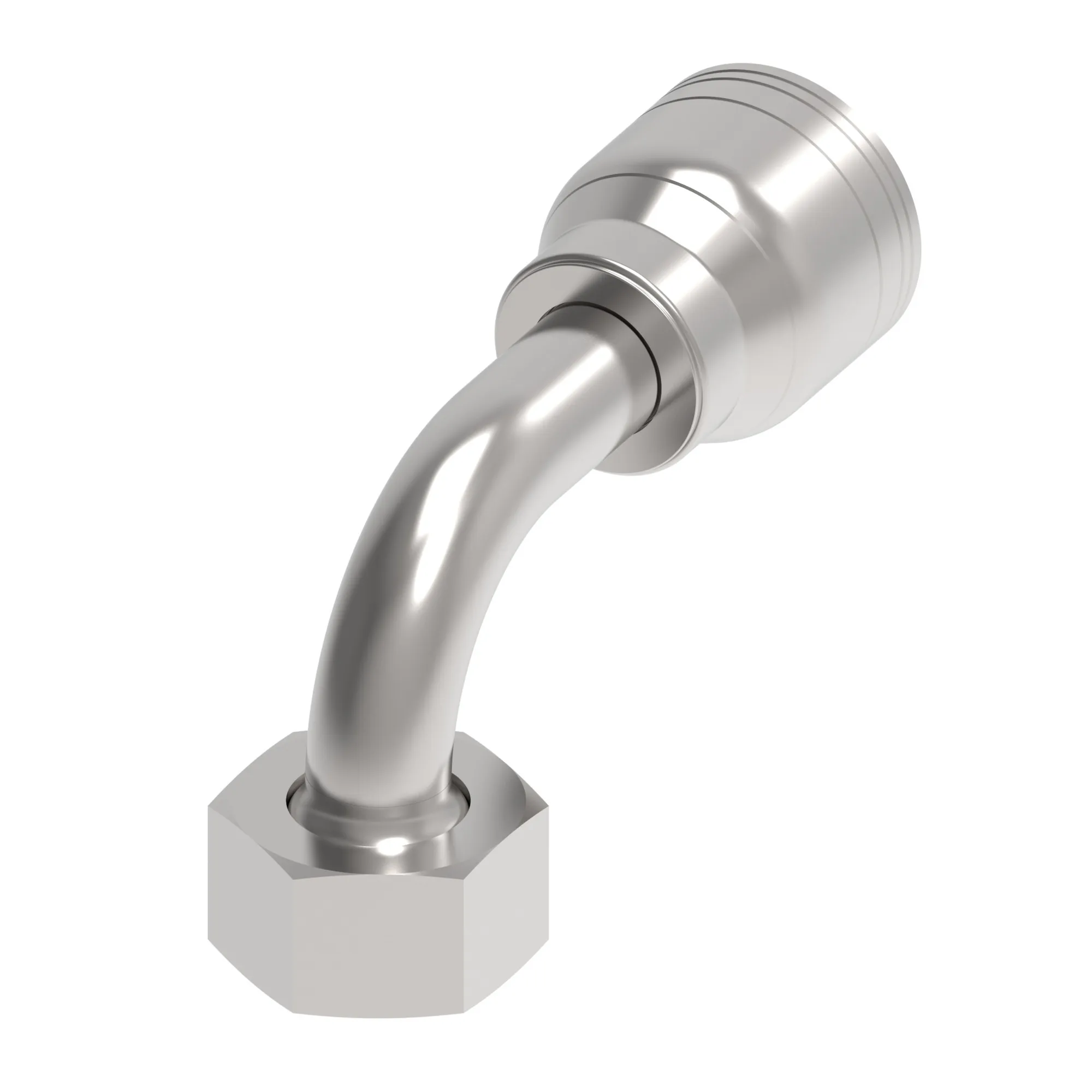

Ftng (perm), DKOL – 10Z-68D-BG
Specification
| Angle Shape | 90 Degree |
|---|---|
| Brand | Weatherhead by Danfoss |
| Compatible Hose Id In | 0.630 |
| Compatible Hose Id Mm | 16.002 |
| Compatible Tube Od In | 1.00 |
| Compatible Tube Od Mm | 25.400 |
| Compliances | SAE J1176 |
| Construction Style | Crimp |
| Drop Dimension In | 2.000 |
| Drop Dimension Mm | 46.0 |
| Finish Plating | Dura-Kote |
| Hex Size 1 In | 1.260 |
| Hex Size 1 Mm | 32.0 |
| Hose Cut Off Factor In | 2.240 |
| Hose Cut Off Factor Mm | 56.896 |
| Hose Size | -10 |
| Inside Diameter In | 0.500 |
| Inside Diameter Mm | 12.700 |
| Product Material | Carbon steel |
| Thread Sealant | No |
| Tube Od 1 In | 1.000 |
| Tube Od 1 Mm | 25.400 |
