Danfoss (Drives) 10K41BS192

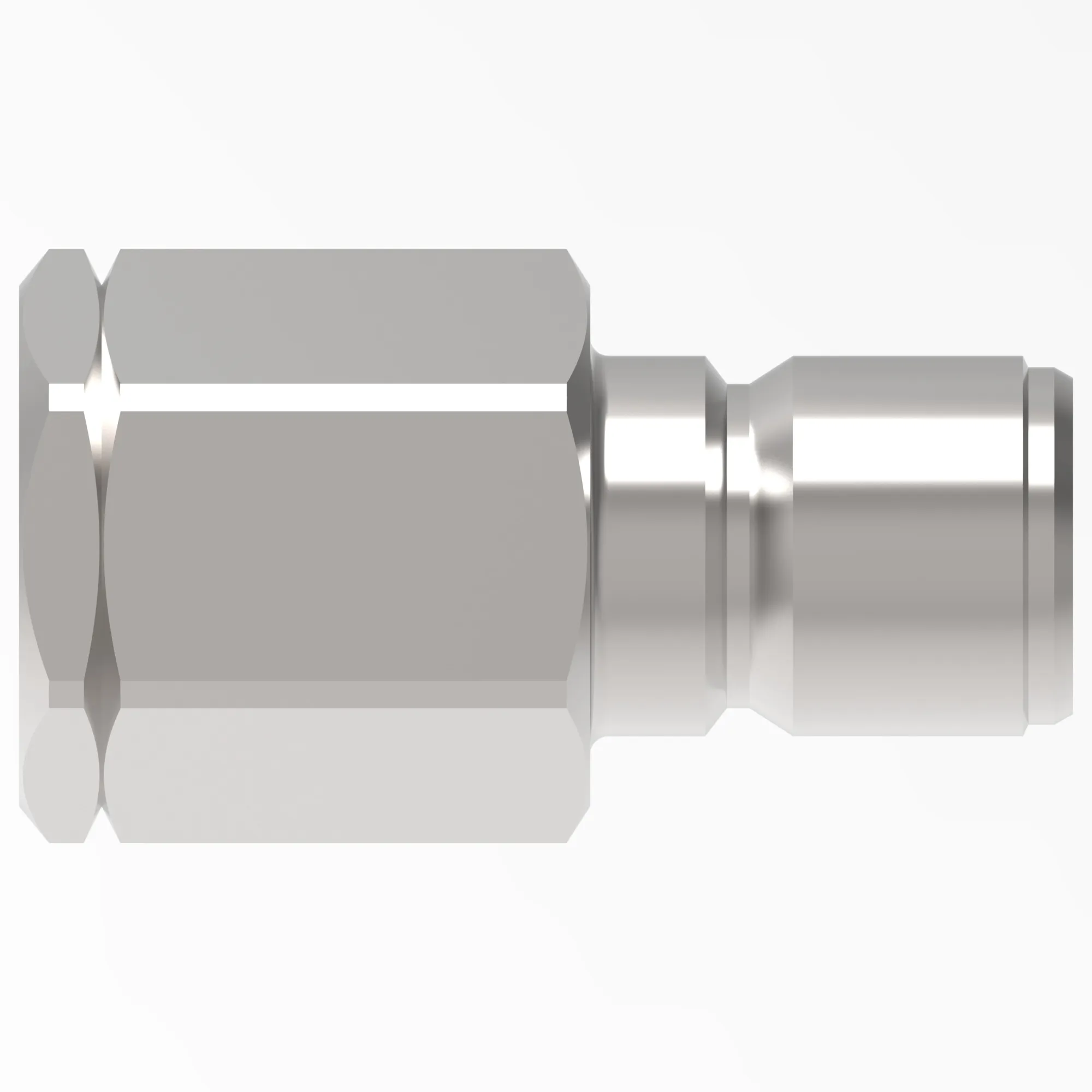

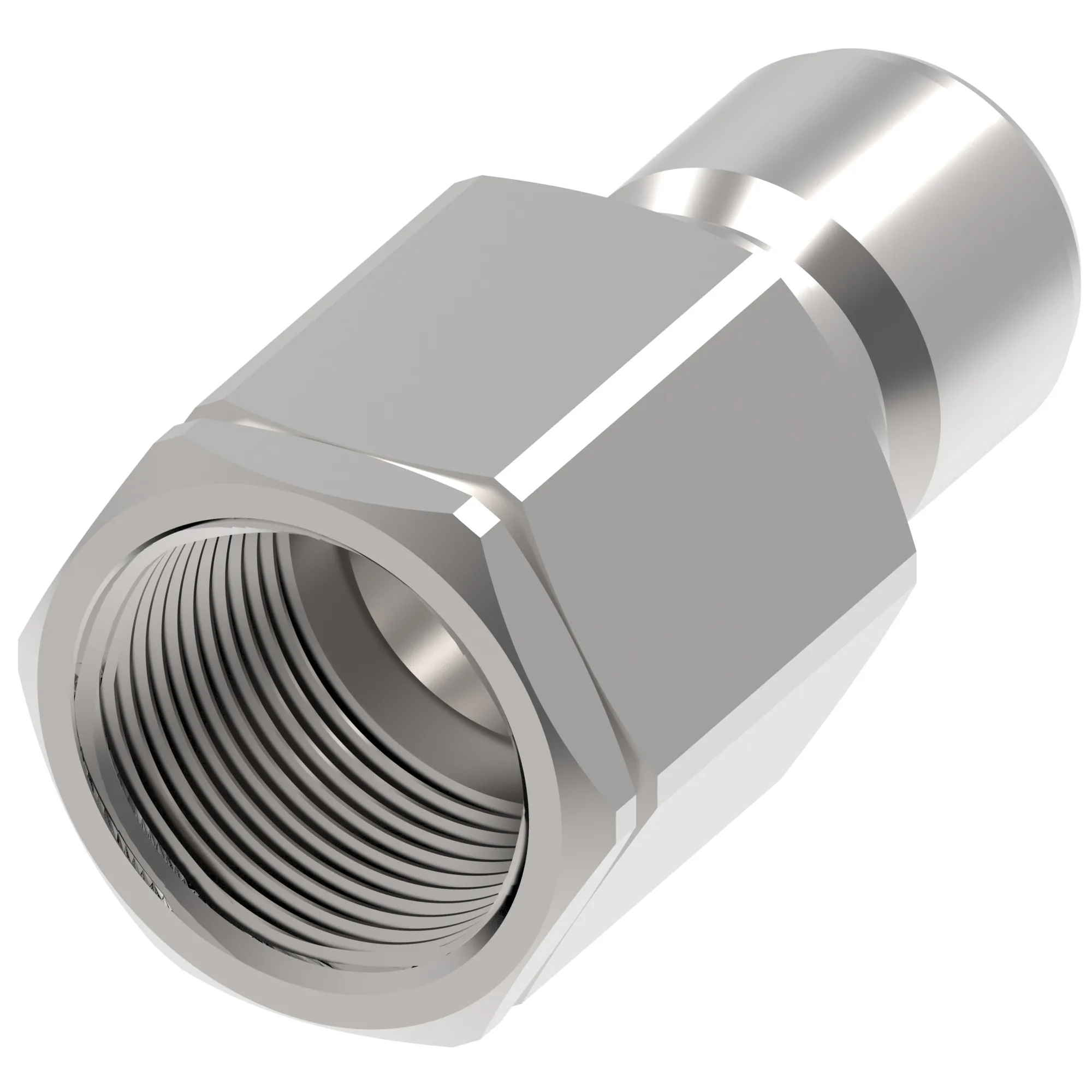

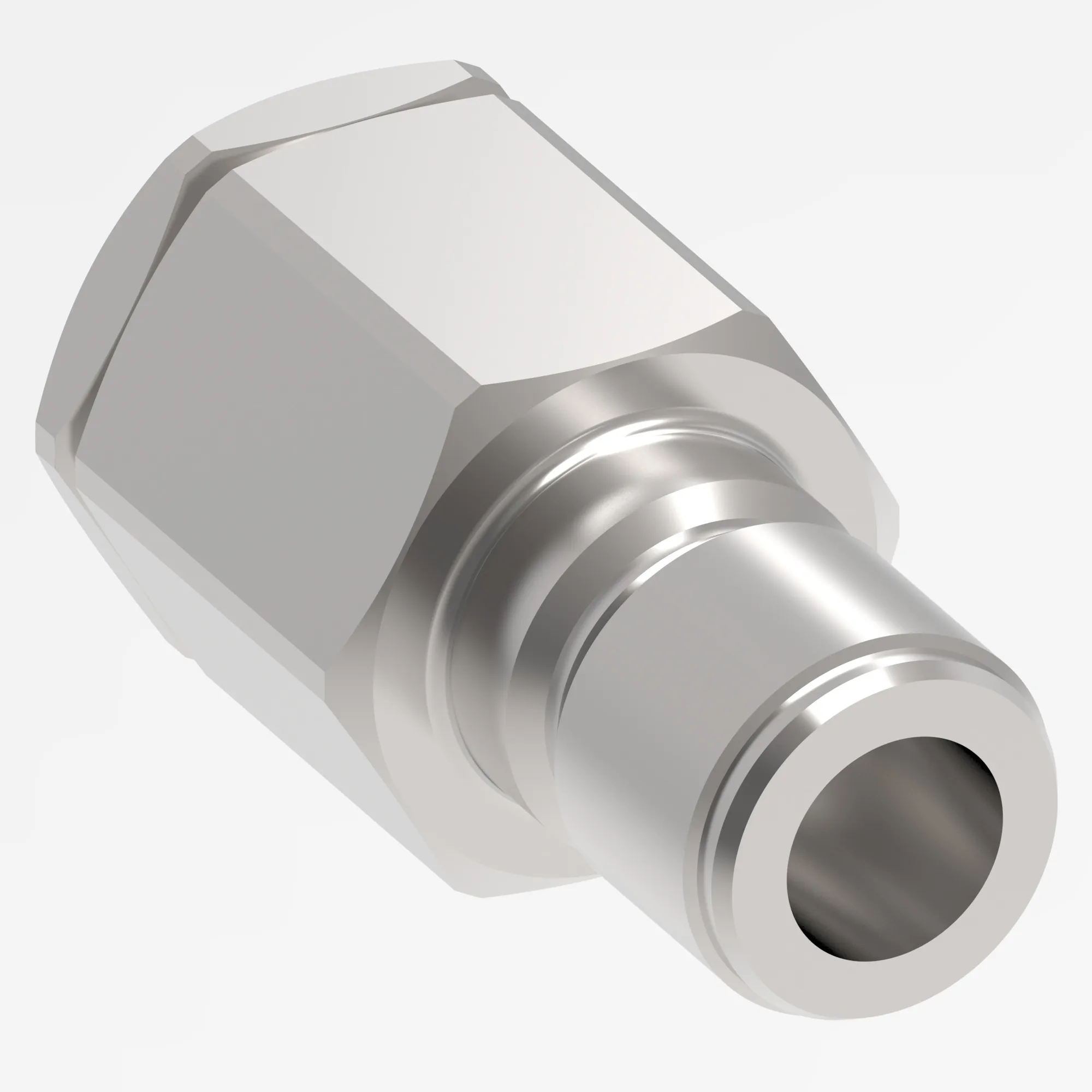

COUPLING,HK,M,1″1/4,CS,-20BSP,EPDM – 10K41BS192
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
COUPLING,HK,M,1″1/4,CS,-20BSP,EPDM – 10K41BS192
Specification
| E A N/ U P C | 678146196651 |
|---|---|
| Air Inclusion Max Cc | 48.00 |
| Air Inclusion Max In3 | 2.93 |
| Angle Shape | Straight |
| Application | Aerospace, Agriculture, Chemical, Construction, Consumer products, Fluid transfer, Food and beverage, General industry, Hvac, Hydraulics, Law enforcement/rescue, Medical, Military, Oil and gas, Transportation, Trucks |
| Body Size | 1 1/4″ |
| Brand | Danfoss |
| Certifications | ISO 7241-1 Series B |
| Connection Style | Manual connect |
| End Size 1 | -20 |
| End Size 2 | -20 |
| End Type 1 | Male push to connect |
| End Type 2 | Female BSPP swivel |
| Finish Plating | Zinc |
| Flow Rate Gpm | 76.00 |
| Flow Rate Lpm | 287.69 |
| Fluid Compatibility | Hydraulic fluid |
| Fluid Loss Cc | 48.00000 |
| Fluid Loss In3 | 2.92900 |
| Hex Size 1 In | 2.380 |
| Hex Size 1 Mm | 60.452 |
| Item Type | Male half |
| Latch Type | Push/pull |
| Product Material | Carbon steel |
| Safety Locking Mechanism | None |
| Seal Material | Ethylene propylene (EPDM) |
| Sub Brand | Hansen |
| Thread Size 1 | G 1 1/4 |
| Thread Size 2 | G 1 1/4 |
| Valve Type | 2 way |
| Working Pressure Max Psi | 2900 |
| Working Pressure Max Bar | 200 |
| Working Temperature Max C | 149 |
| Working Temperature Max F | 300 |
| Working Temperature Min C | -54 |
| Working Temperature Min F | -65 |
