Danfoss (Drives) 10FFS37BS143
COUPLING,FF,F,3/8,CS,-6BSPP,FKM – 10FFS37BS143
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

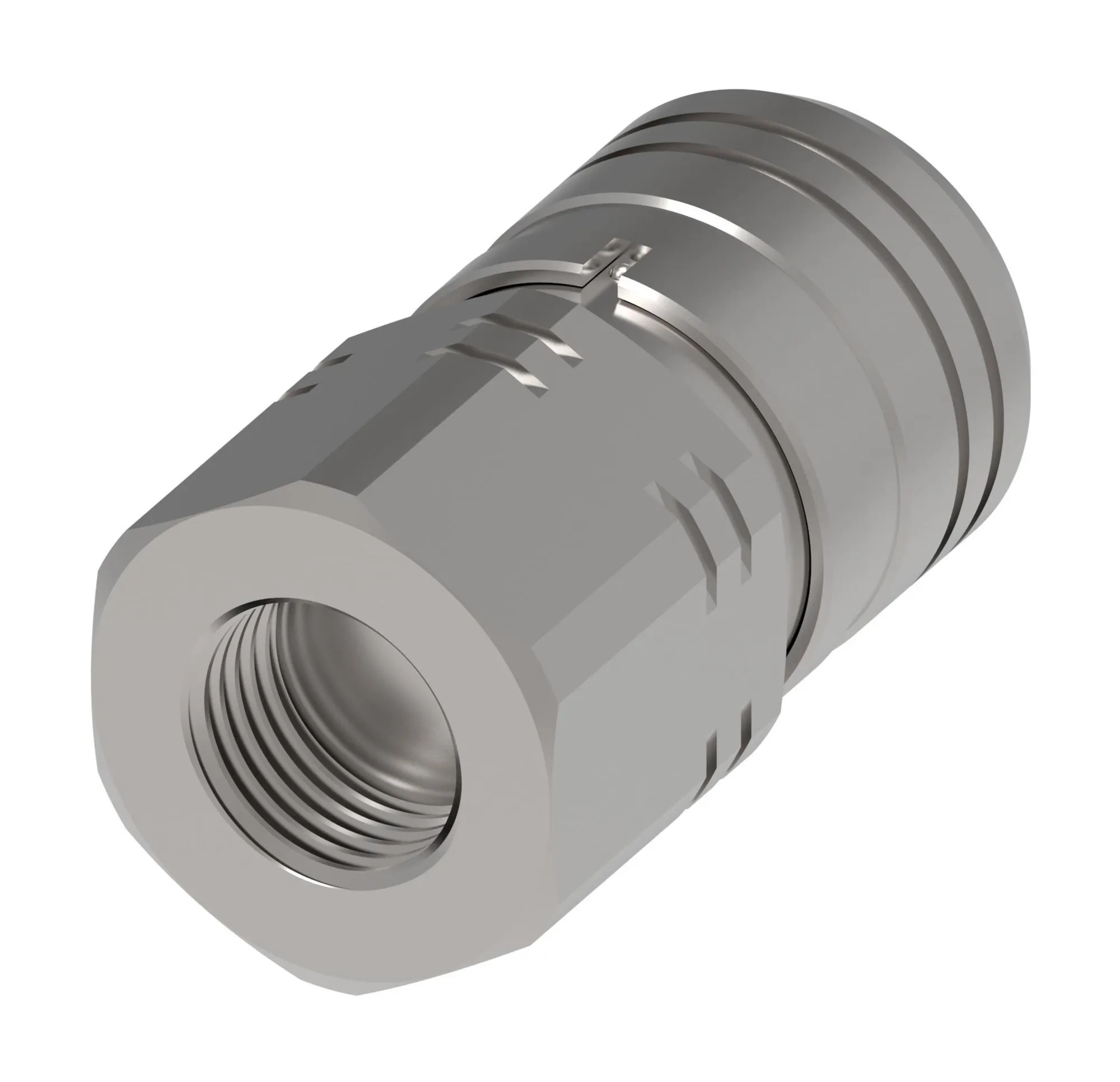

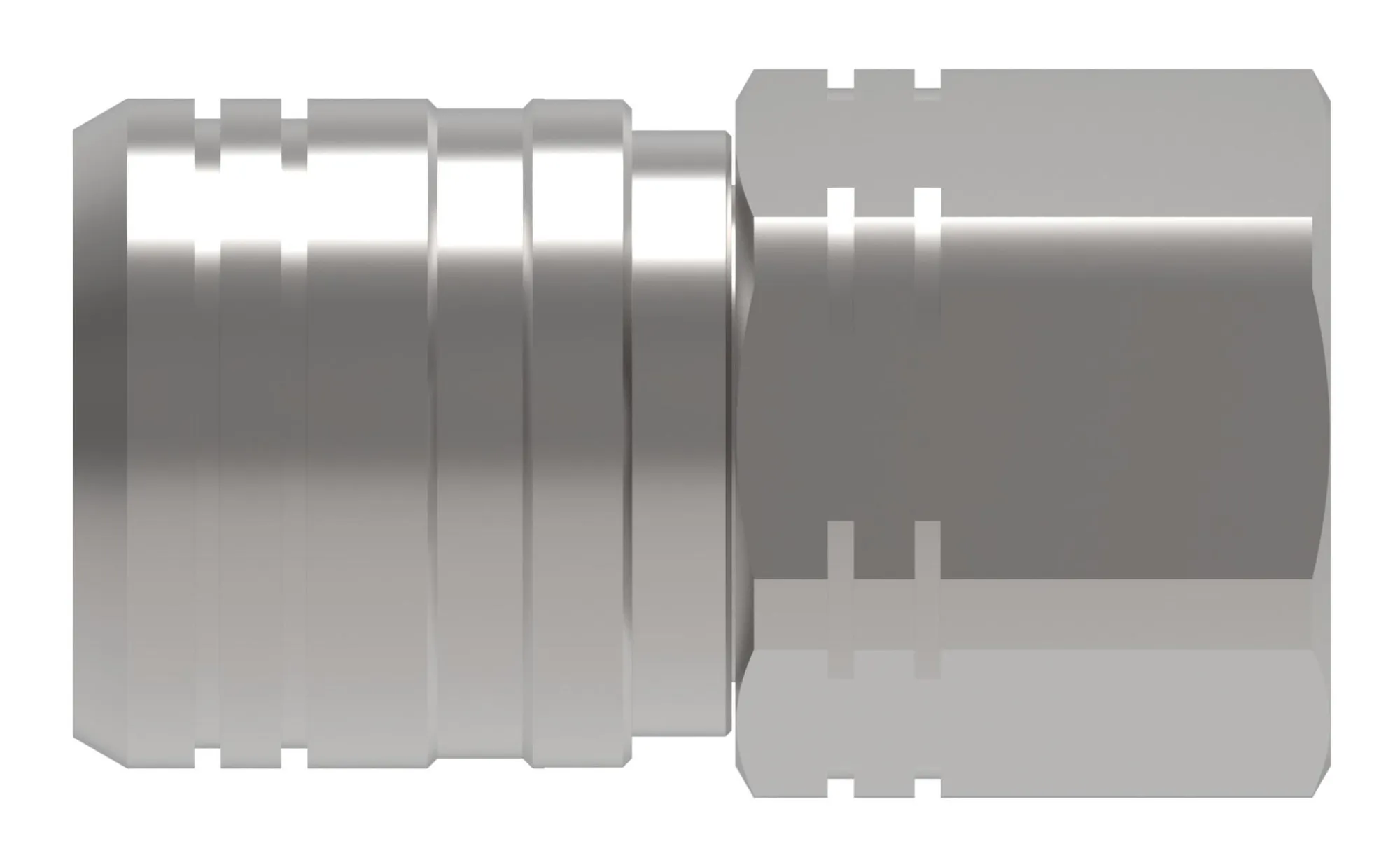

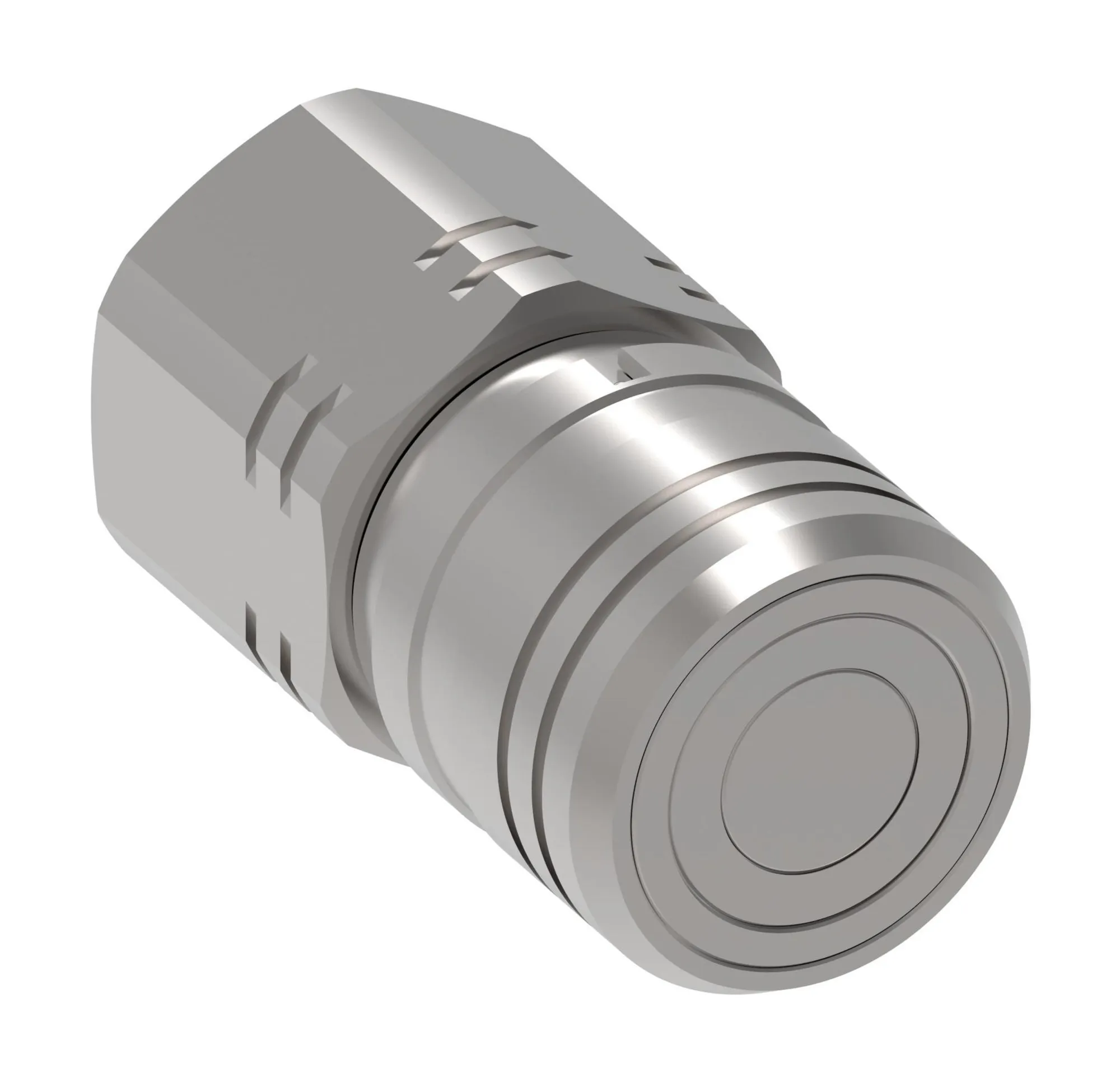

COUPLING,FF,F,3/8,CS,-6BSPP,FKM – 10FFS37BS143
Specification
| Air Inclusion Max Cc | 0.01 |
|---|---|
| Angle Shape | Straight |
| Application | Agriculture, Building material, Commercial vehicles, Fluid transfer, Hydraulics, Road vehicles |
| Body Size | 3/8 |
| Brand | Danfoss |
| Burst Pressure Min Psi | 20300 |
| Certifications | ISO 16028 |
| Compliances | REACH, RoHS Compliant |
| Connection Style | Manual connect |
| End Size 1 | -6 |
| End Type 1 | Female BSPP port washer seal. |
| Finish Plating | Guardian sealtm |
| Flow Rate Gpm | 10.60 |
| Fluid Compatibility | Hydraulic fluid |
| Fluid Loss Cc | 0.00600 |
| Hex Size 1 In | 1.060 |
| Item Type | Female half |
| Latch Type | Push to connect |
| Product Material | Carbon steel |
| Safety Locking Mechanism | Sleeve lock |
| Seal Material | Fluorocarbon (FKM) |
| Sub Brand | Hansen |
| Thread Size 1 | G 3/8 |
| Torque Lbs Ft | 31.50 |
| Valve Type | 2 way |
| Working Pressure Max Psi | 5800 |
| Working Temperature Max F | 392 |
| Working Temperature Min F | -4 |
