Danfoss (Drives) 109-1724-006

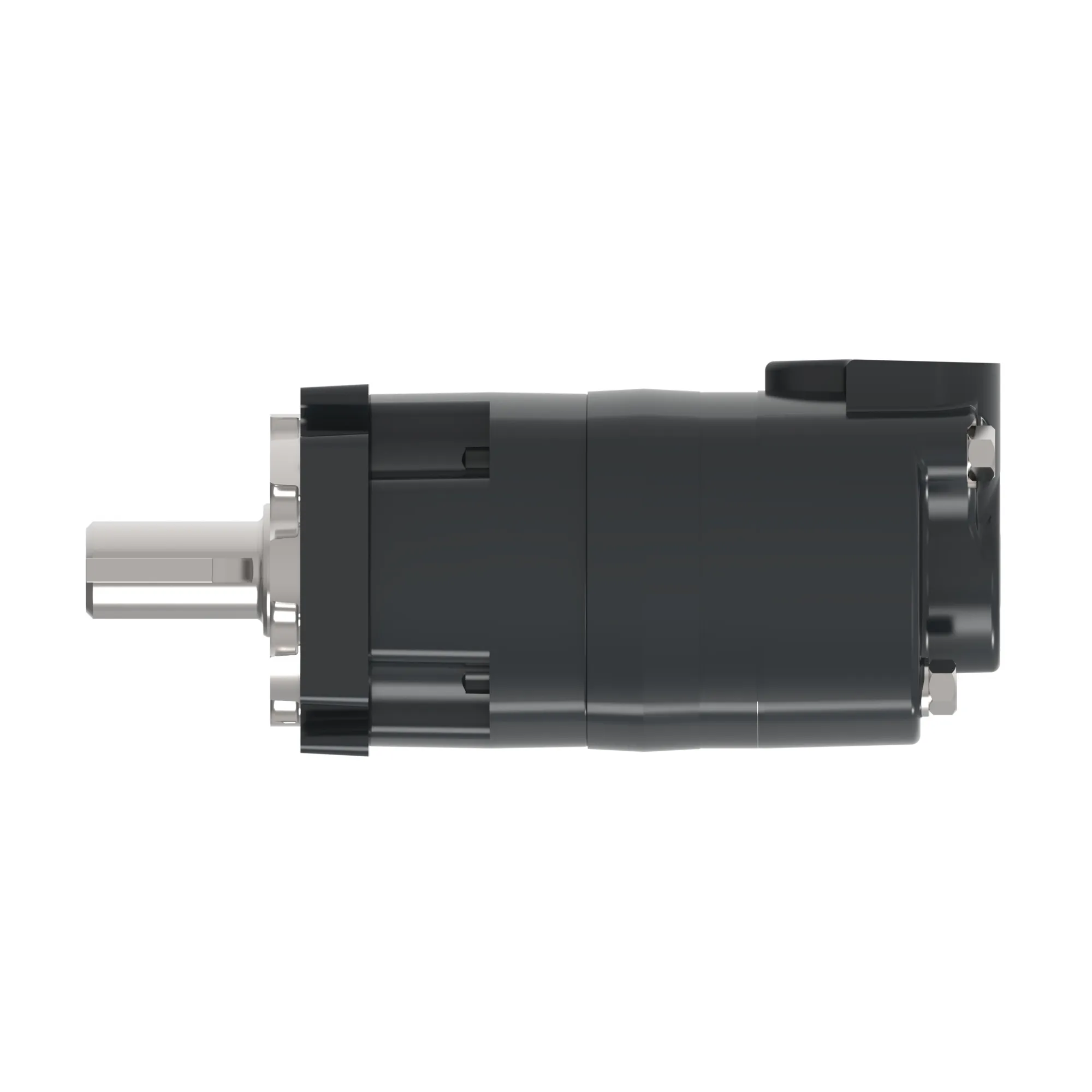

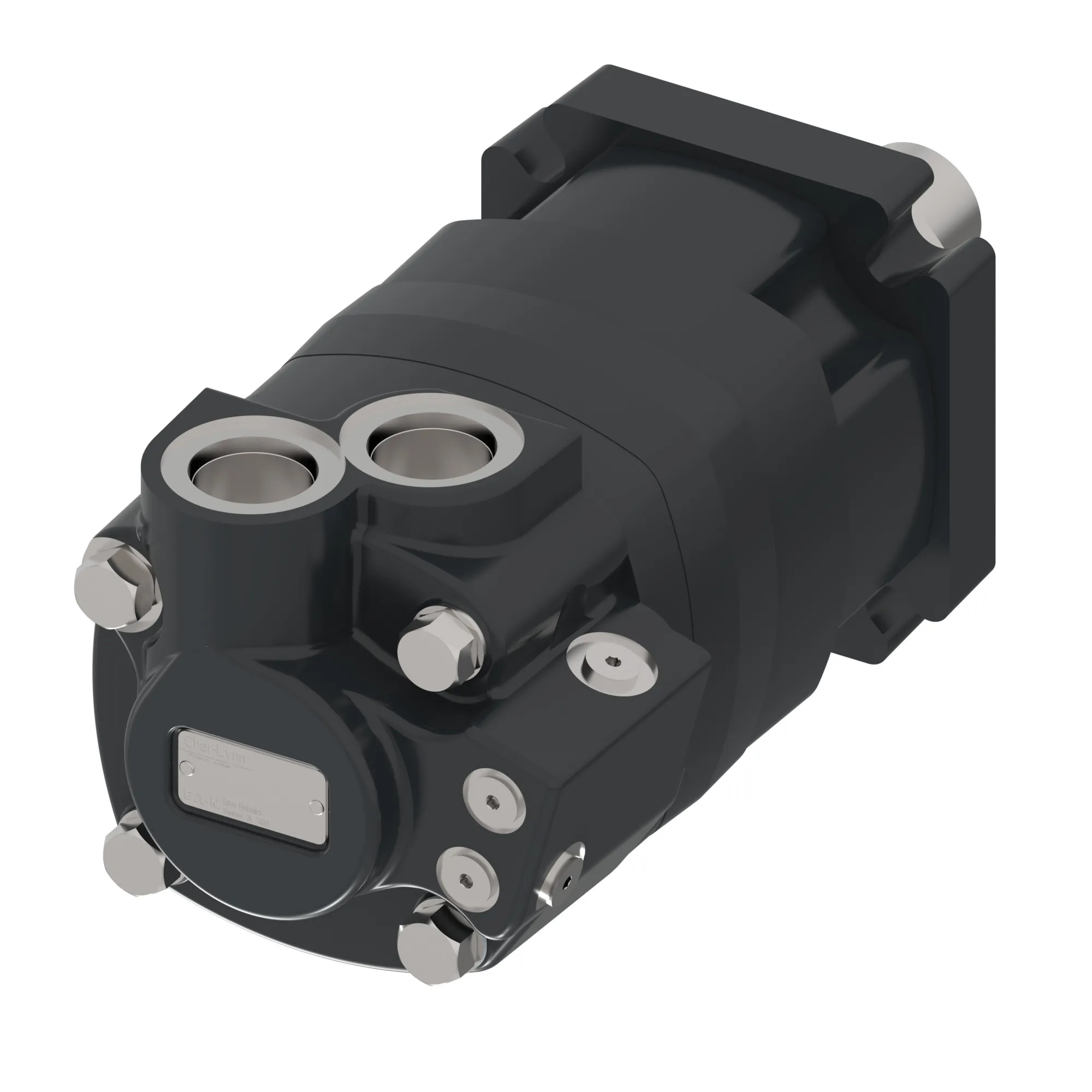

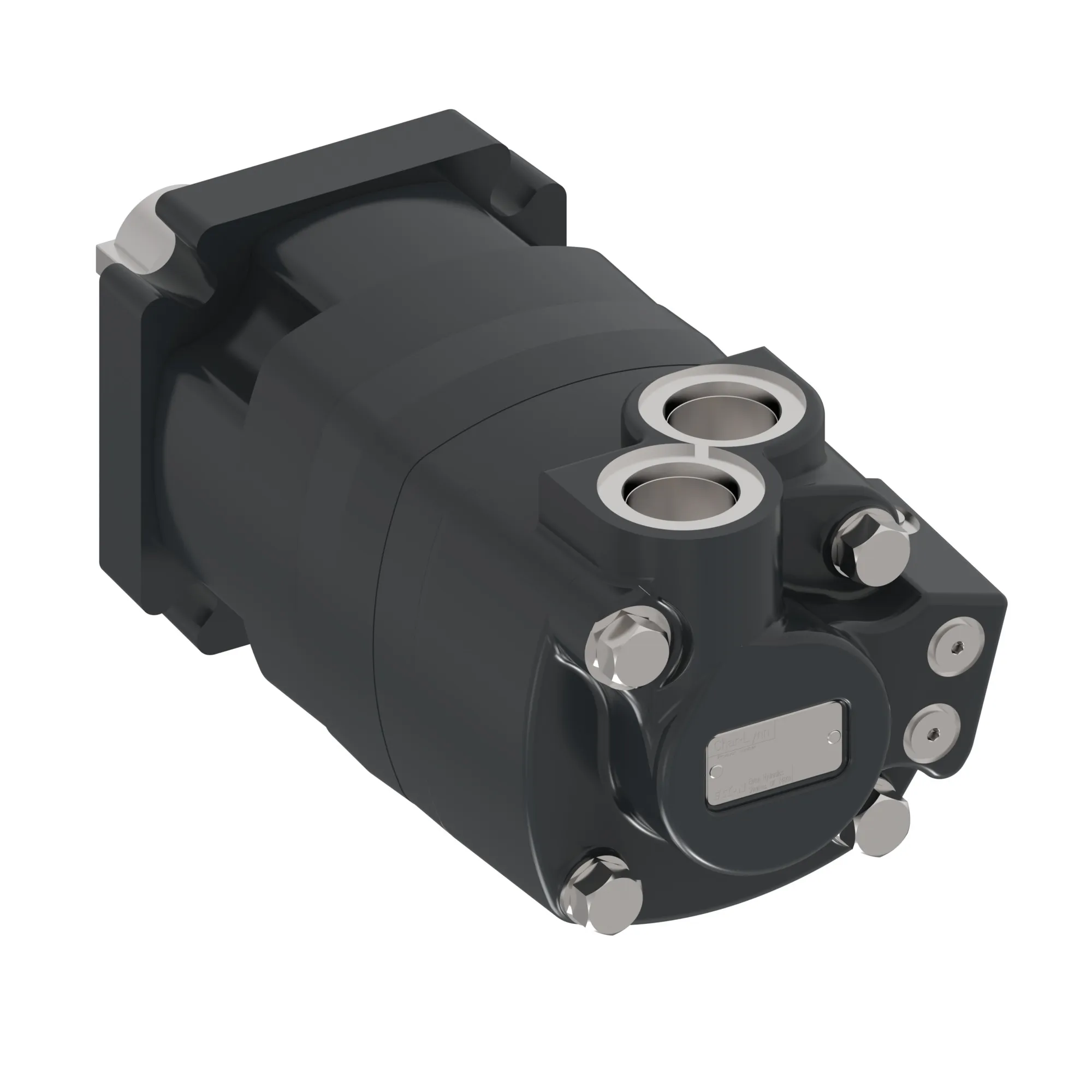

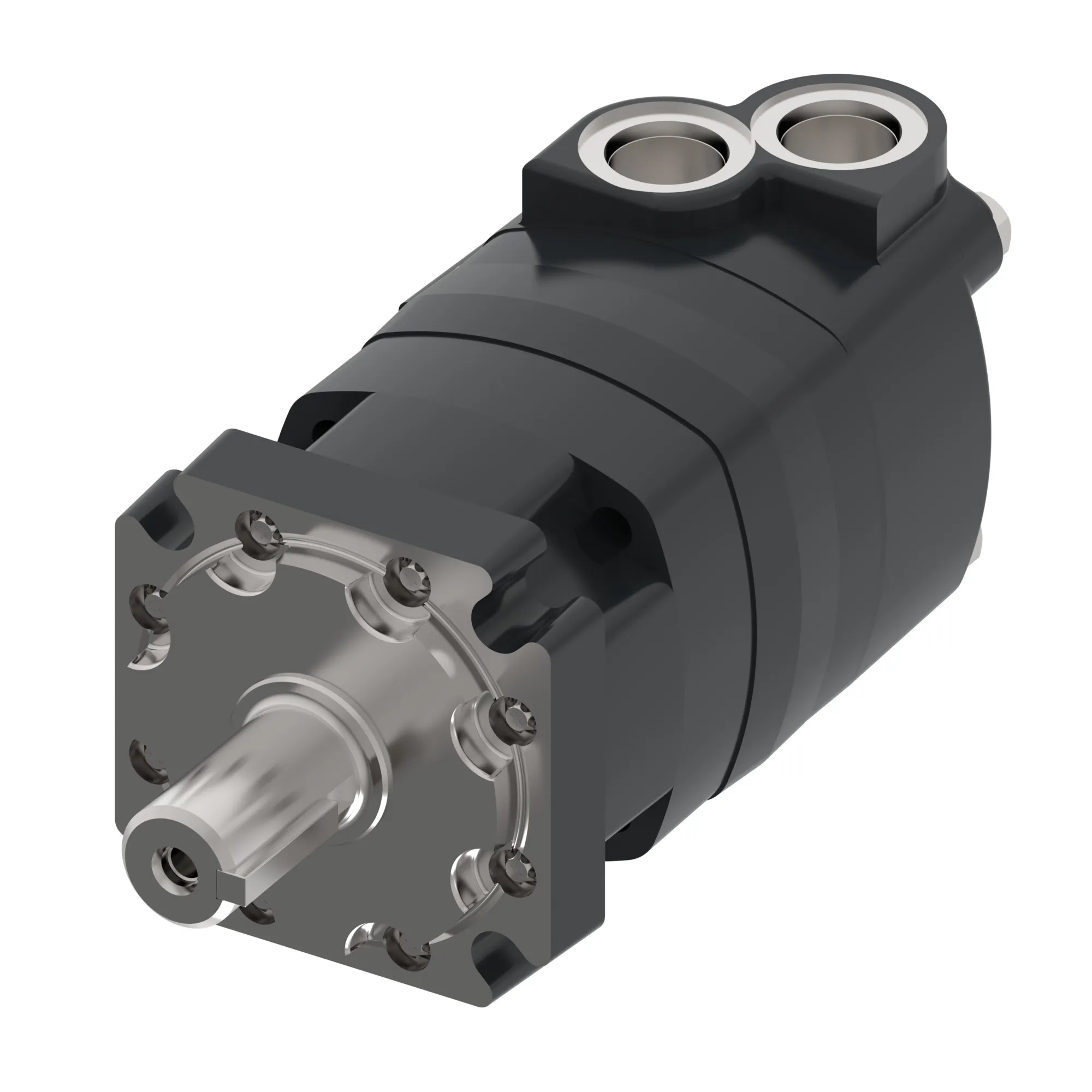

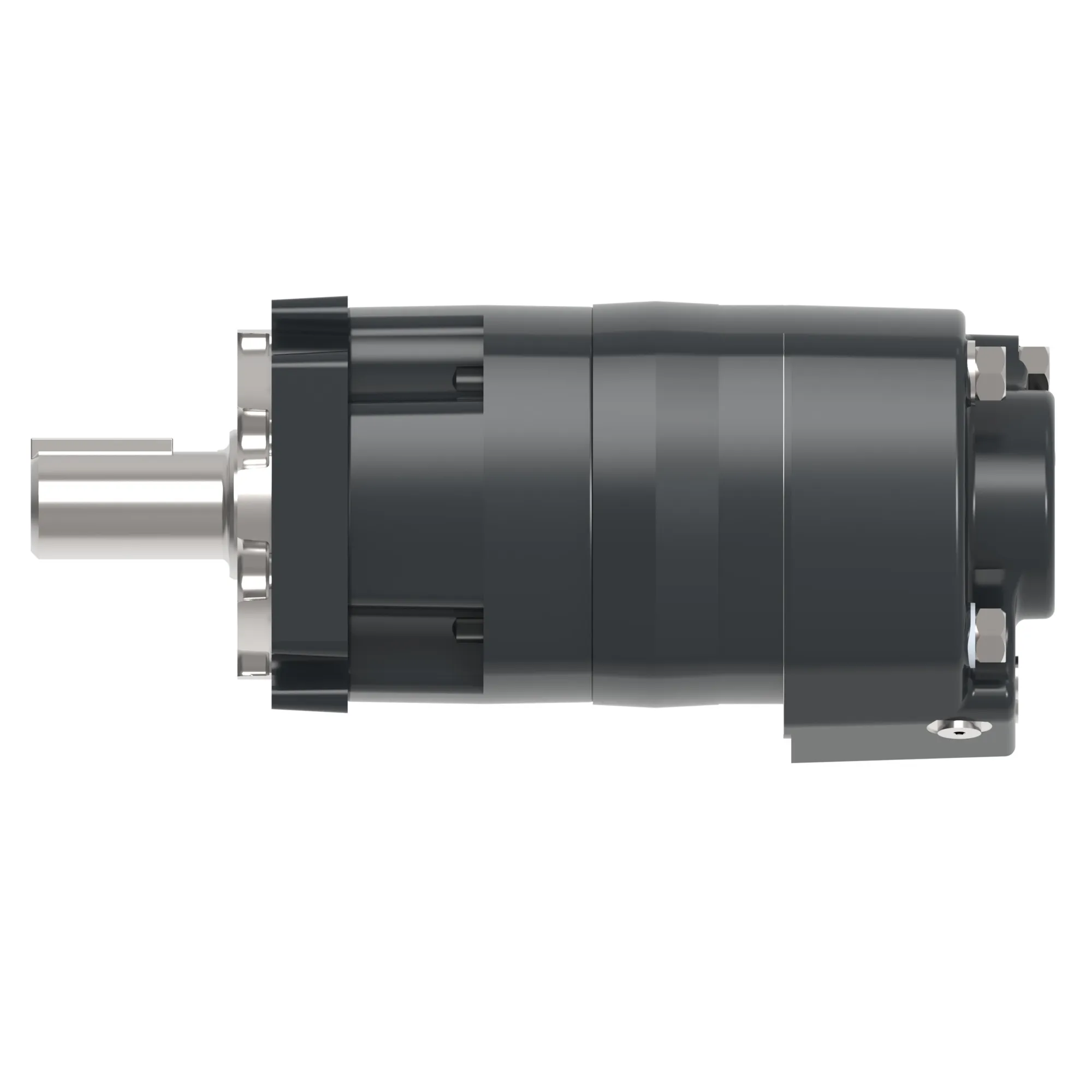

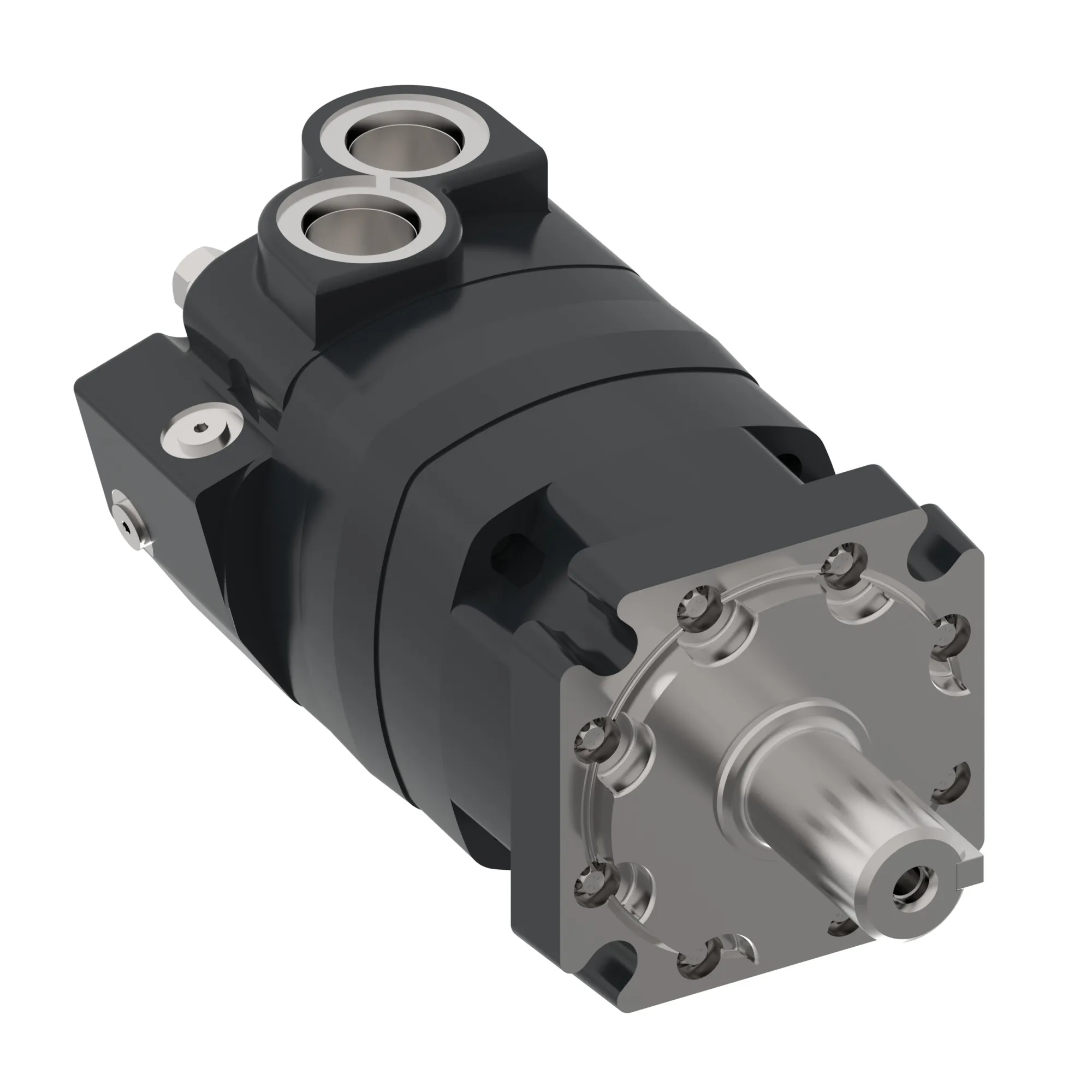

4K MOTOR/HP, M04099AB01AB020000A0000000000F – 109-1724-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
4K MOTOR/HP, M04099AB01AB020000A0000000000F – 109-1724-006
Specification
| Model Code | M04099AB01AB020000A0000000000F |
|---|---|
| Motor Series | 4000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 4 s p102 b127 h15 |
| Motor Size | 160 |
| Geometric Displacement [Cm3/R [In3/R]] | 162.2 [9.90] |
| Motor Type | Standard |
| Motor Function | Standard |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 101.6 x 8.0, 127.0, 14.7 [4.00 x 0.32, 5.00, 0.58] SAE B |
| Shaft Type | Straight |
| Shaft Dimension | Dia. 1 1/4 inch, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | Square key, 5/16 x 1 5/8 inch |
| Main Port Thread Type | UN / UNF |
| Main Port Style | Sideport – staggered |
| Main Port Dimension | 1 1/16 – 12 UN-2B SAE O-Ring port |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | No |
| Paint Information | n/a |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | HNBR – High pressure |
| Seal Kit | 9901015-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Standard |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Low Pressure Relief | None |
| Output Shaft Type | Str 1.25in 3/8-16 s5/16×1 5/8 |
| Seal Options | HP SHAFT SEAL |
| Series | 4000 series |
