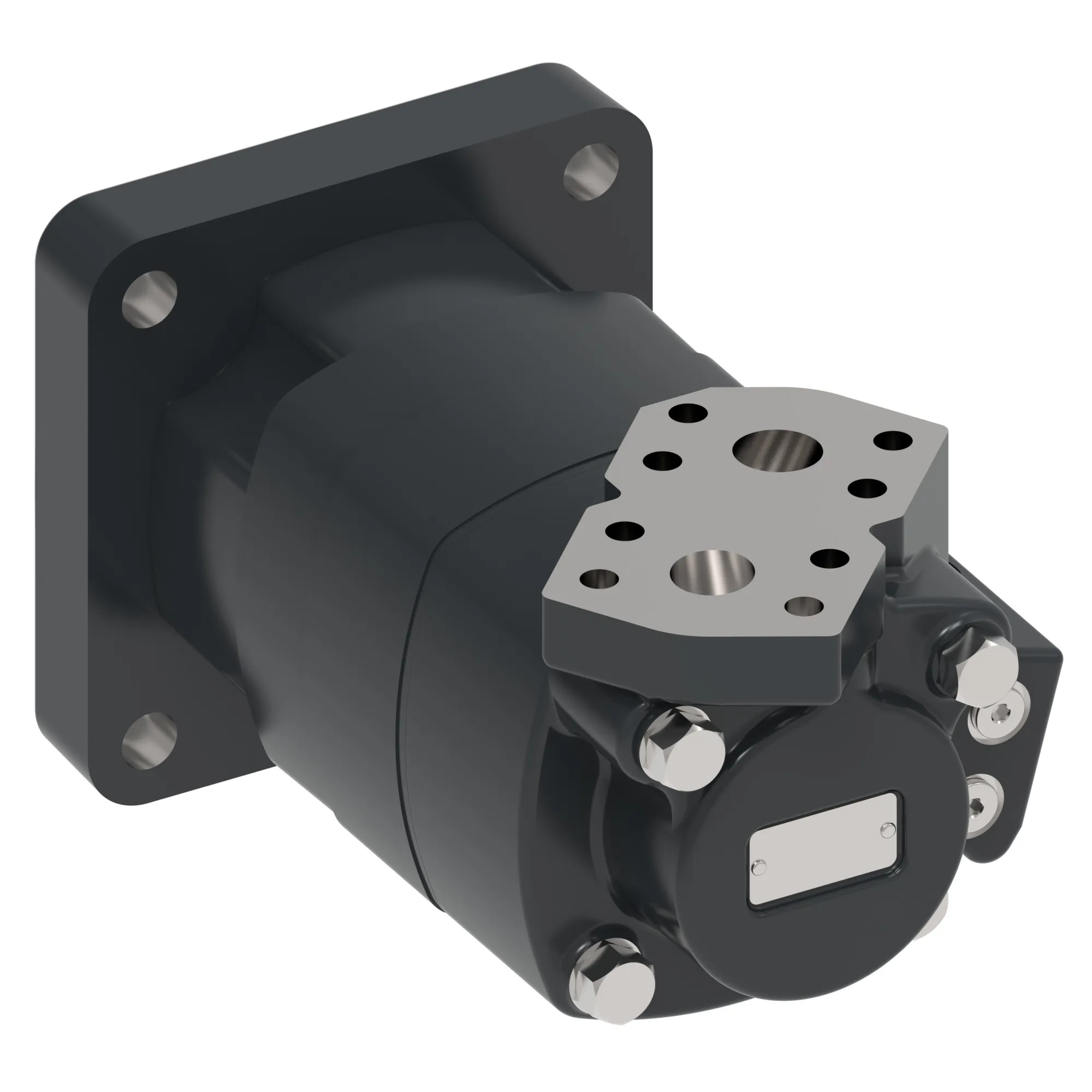

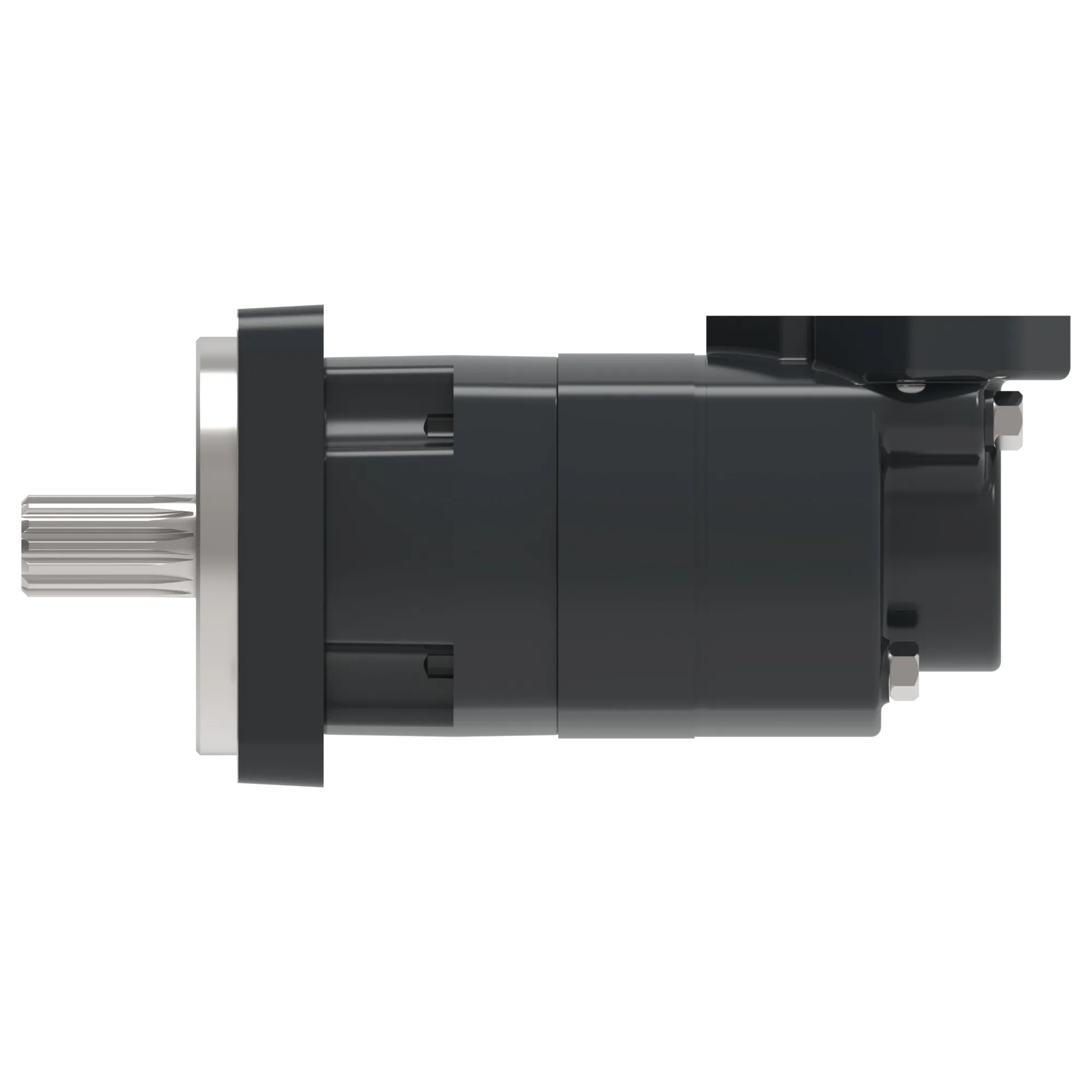

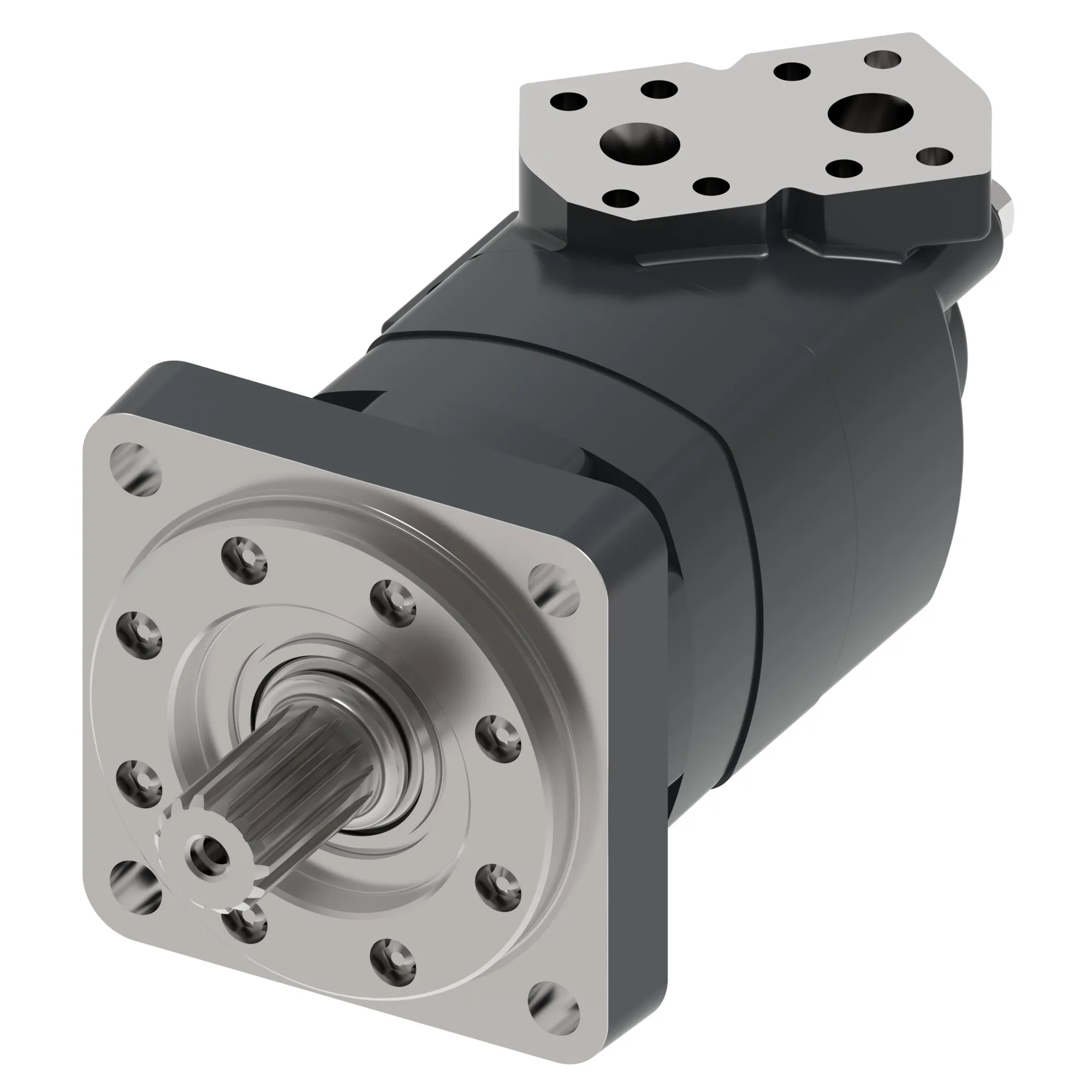

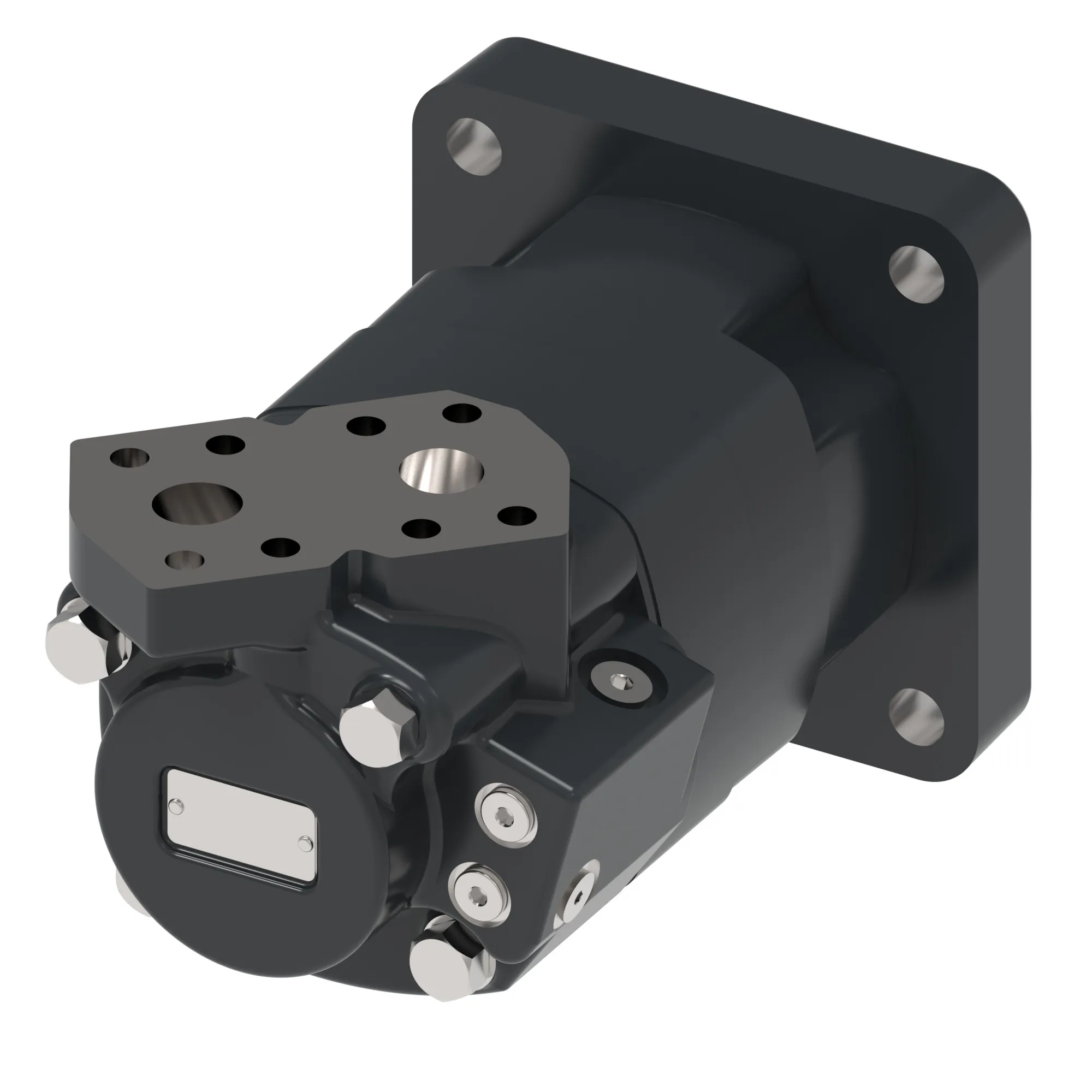

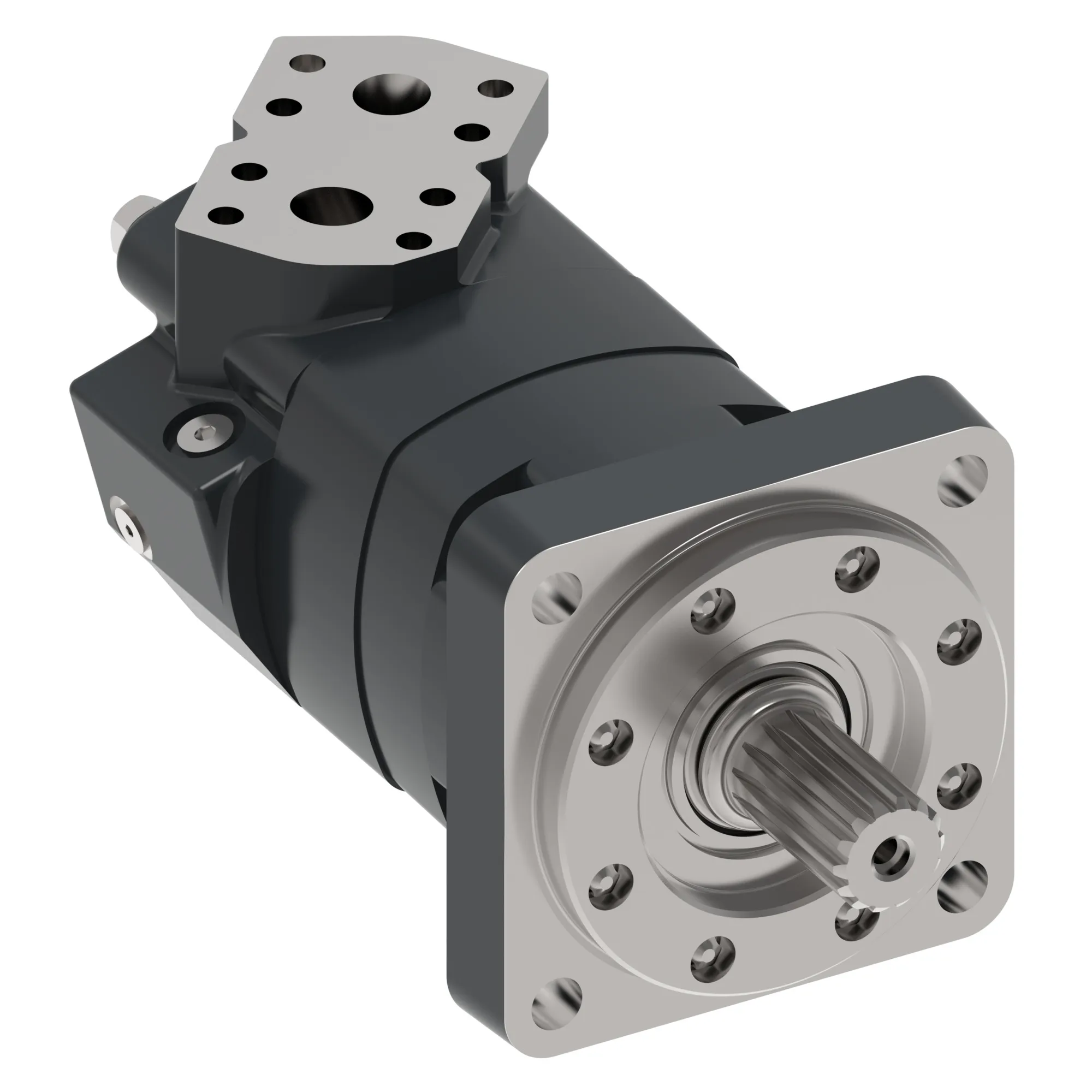

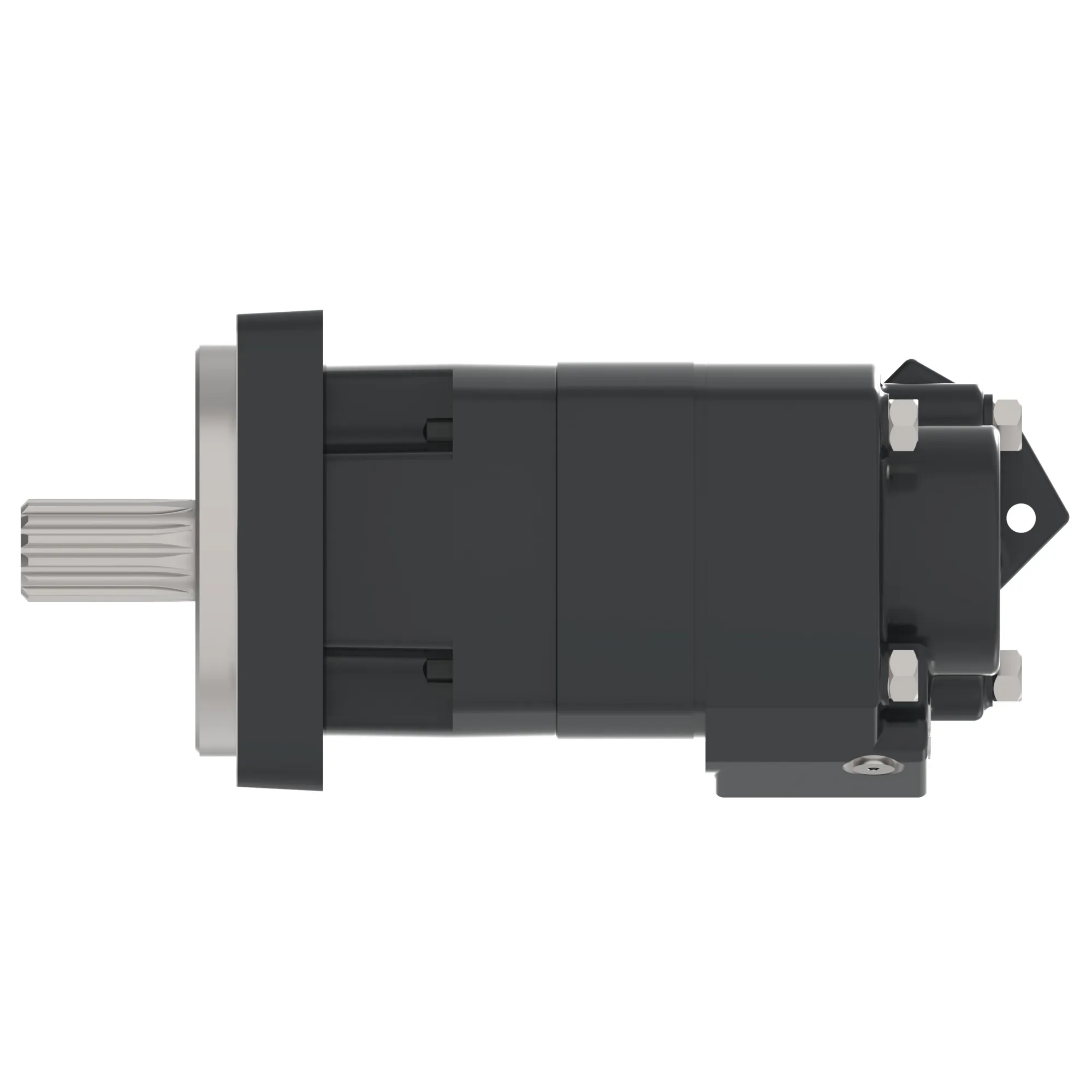

Danfoss (Drives) 109-1712-006
MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AF03AD020002A001700AA00F – 109-1712-006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AF03AD020002A001700AA00F – 109-1712-006
Specification
| Model Code | M04080AF03AD020002A001700AA00F |
|---|---|
| Motor Series | 4000 Series |
| Valve System | Disc valve with valve drive |
| Orbital Gearwheel Set Type | Geroler |
| Mounting Type | 4 S P127 B162 H14 |
| Motor Size | 130 |
| Geometric Displacement [Cm3/R [In3/R]] | 130.3 [7.95] |
| Motor Type | Standard |
| Motor Function | Noise optimized |
| Mounting Flange Type | 4 Bolt – Square |
| Mounting Flange Dimension [Pilot Dia X Height, Bolt Circle Dia, Hole [Mm [Inch]]] | 127.0 x 12.5, 161.9, 14.3 [5.00 x 0.49, 6.38, 0.56] SAE C |
| Shaft Type | Splined |
| Shaft Dimension | Dia. 1 1/4 inch, 14T, 3/8 – 16 UNC-2B thread in shaft end |
| Shaft Key | n/a |
| Main Port Thread Type | Manifold |
| Main Port Style | Special |
| Main Port Dimension | 0.750 inch drilled hole, 3/8 – 16 UNC-2B block mounting threads – Spec. Component |
| Drain Port Dimension | 7/16 – 20 UNF-2B SAE O-Ring port |
| Brake Release Port Dimension | n/a |
| Painted | Yes |
| Paint Information | Primer, Black, Low gloss |
| Special Features Assembly | Standard |
| Dust Seal | Standard |
| Shaft Seal | HNBR – High pressure |
| Seal Kit | 9901015-000 |
| Front Bearing Type | Tapered roller bearing |
| Rear Bearing Type | Tapered roller bearing |
| Orbital Gearwheel Set | Free running – Spec. Component |
| Check Valve Function | Yes |
| Hydraulic Valve Function | None |
| Sensor | None |
| Packaging | Single pack |
| Name Tag | Danfoss name tag |
| Design Code | 06 |
| Brand | Danfoss |
| Low Pressure Relief | None |
| Output Shaft Type | Spl 14t 12/24 3/8-16 sp38 |
| Seal Options | HP SHAFT SEAL |
| Series | 4000 series |
| Sub Brand | Char-Lynn |
