Danfoss (Drives) 10811L-22-08Z

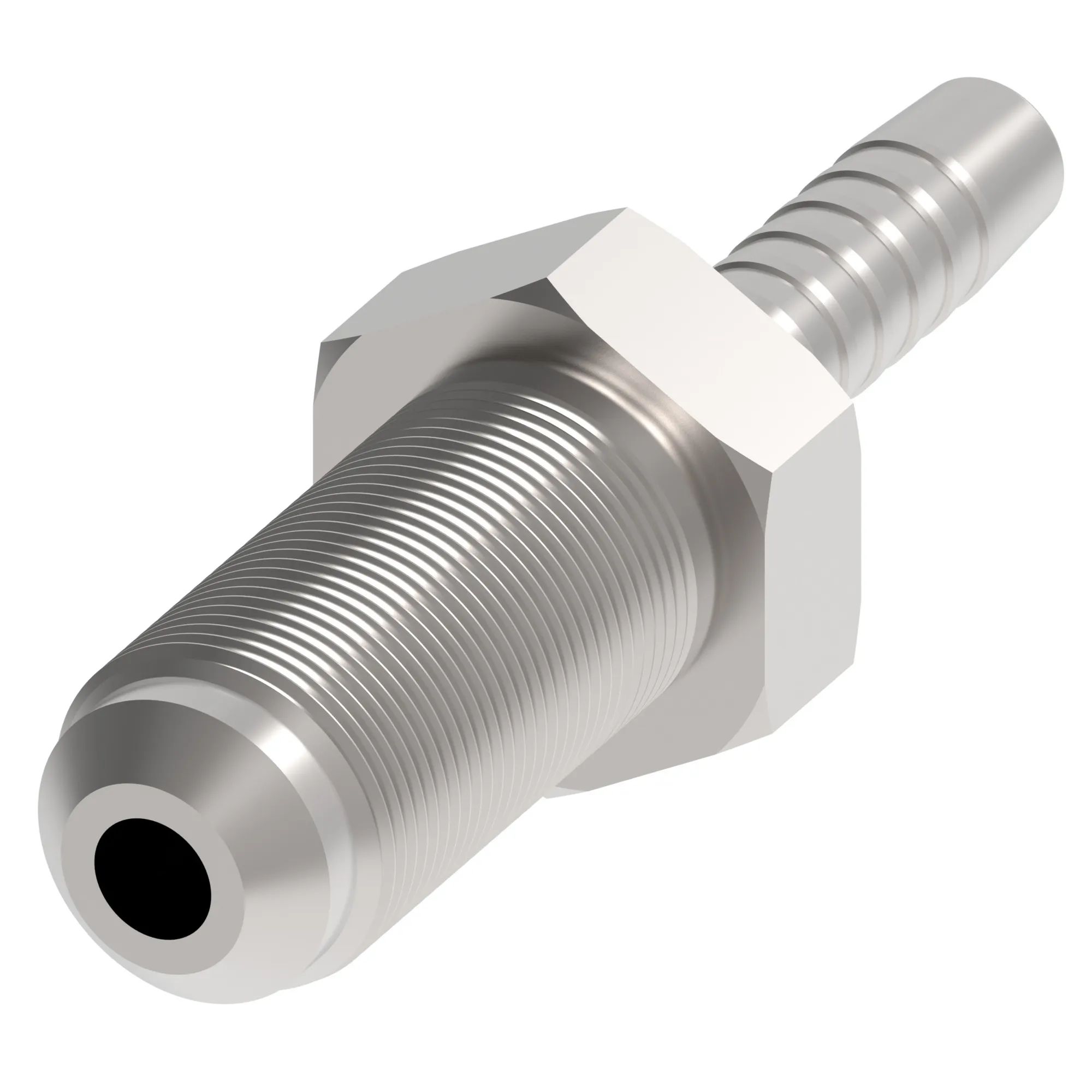

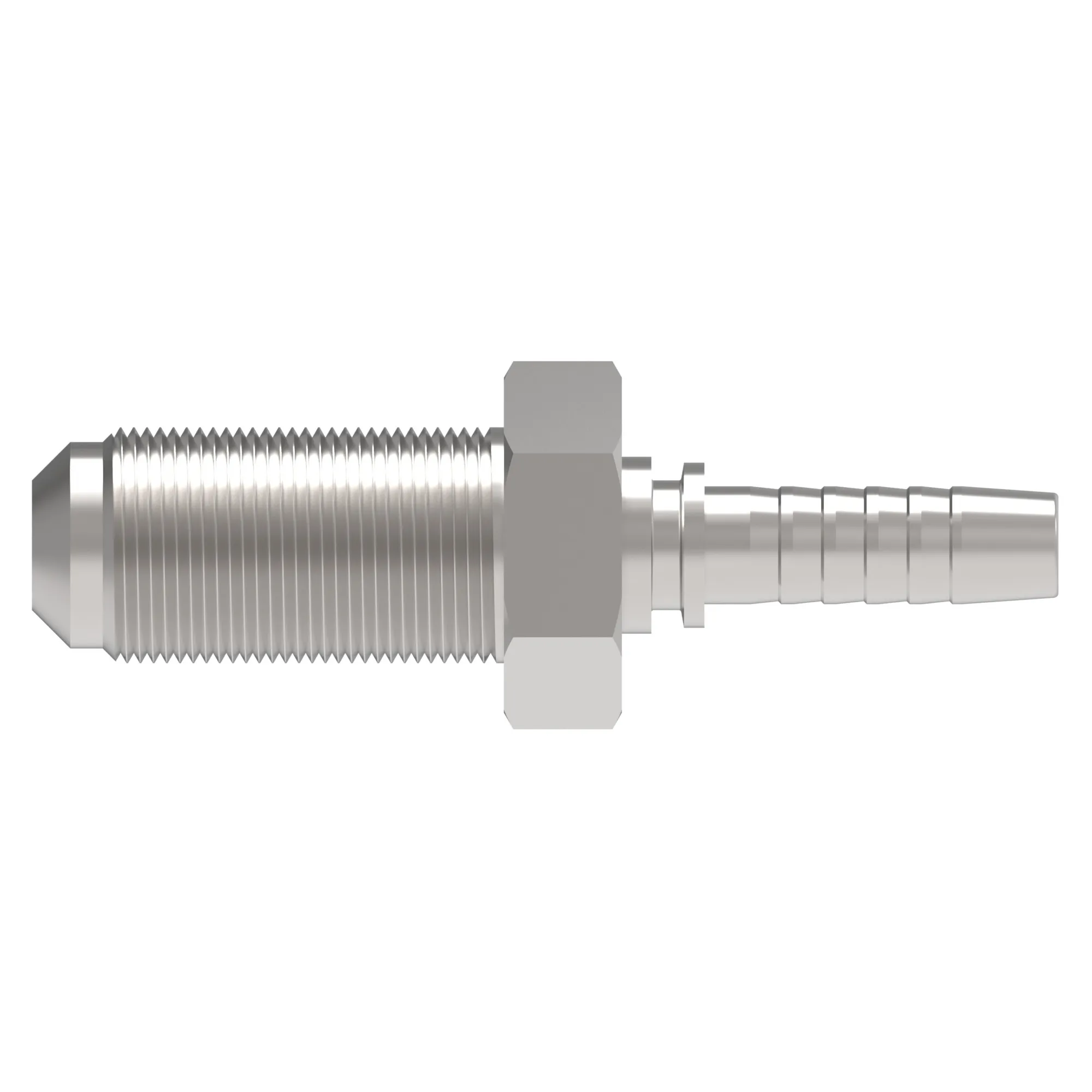

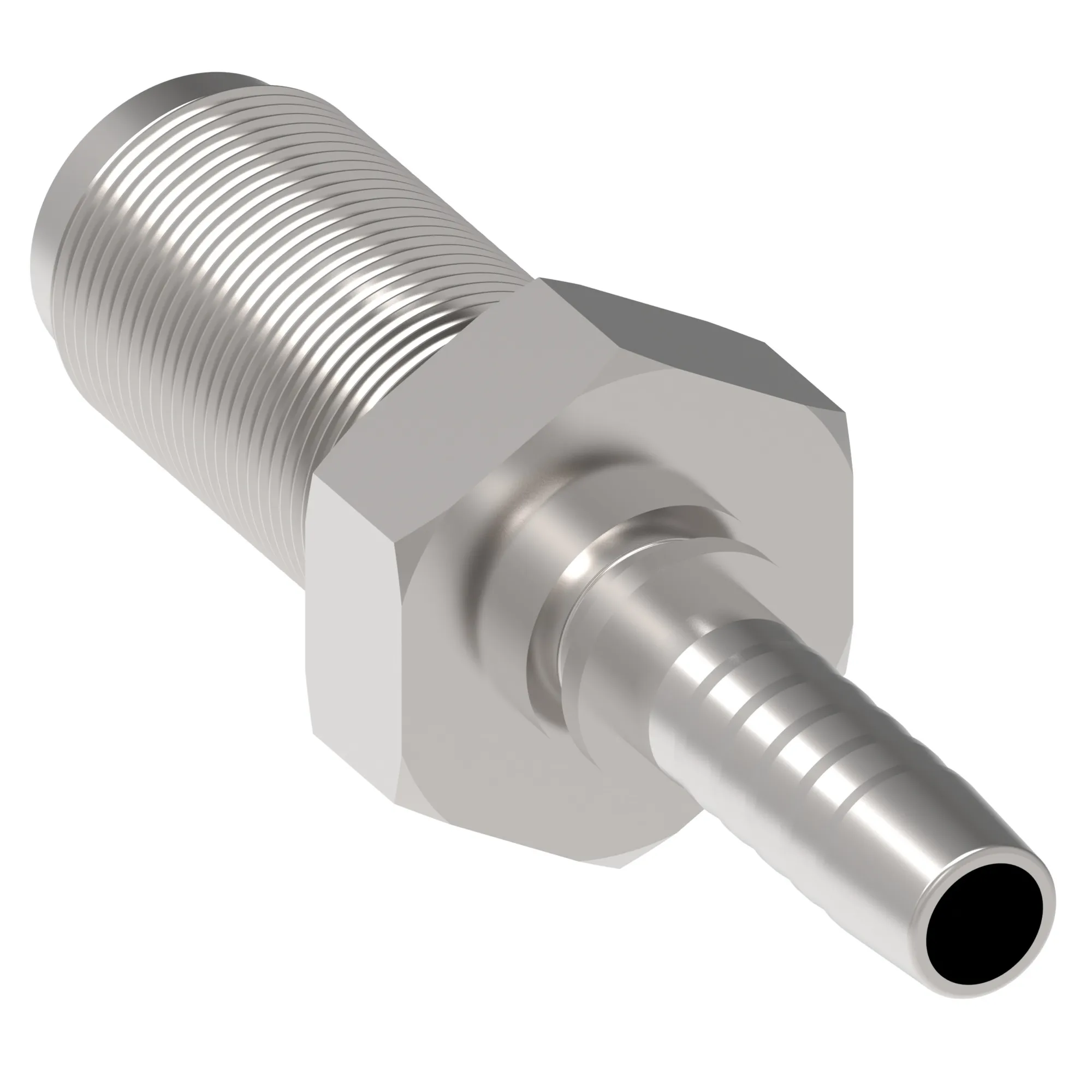

HOSE NIPPLE ASSY,2P/08,M45D-M/22,CS,STR – 10811L-22-08Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/08,M45D-M/22,CS,STR – 10811L-22-08Z
Specification
| A Dimension In | 3.700 |
|---|---|
| A Dimension Mm | 94.000 |
| Angle Shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 0.500 |
| Compatible Hose Id Mm | 12.700 |
| Construction Style | Crimp |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.060 |
| Hex Size 1 Mm | 26.924 |
| Hex Size 2 In | 1.063 |
| Hex Size 2 Mm | 27.000 |
| Hose Cut Off Factor In | 2.460 |
| Hose Cut Off Factor Mm | 62.500 |
| Hose Size | -8 |
| Inside Diameter In | 0.3900 |
| Inside Diameter Mm | 10.0000 |
| Product Height In | 1.220 |
| Product Height Mm | 30.988 |
| Product Length In | 3.700 |
| Product Length Mm | 93.980 |
| Product Material | Carbon steel |
| Product Width In | 1.060 |
| Product Width Mm | 26.924 mm |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | M22X1.5 |
