Danfoss (Drives) 1069X4X1

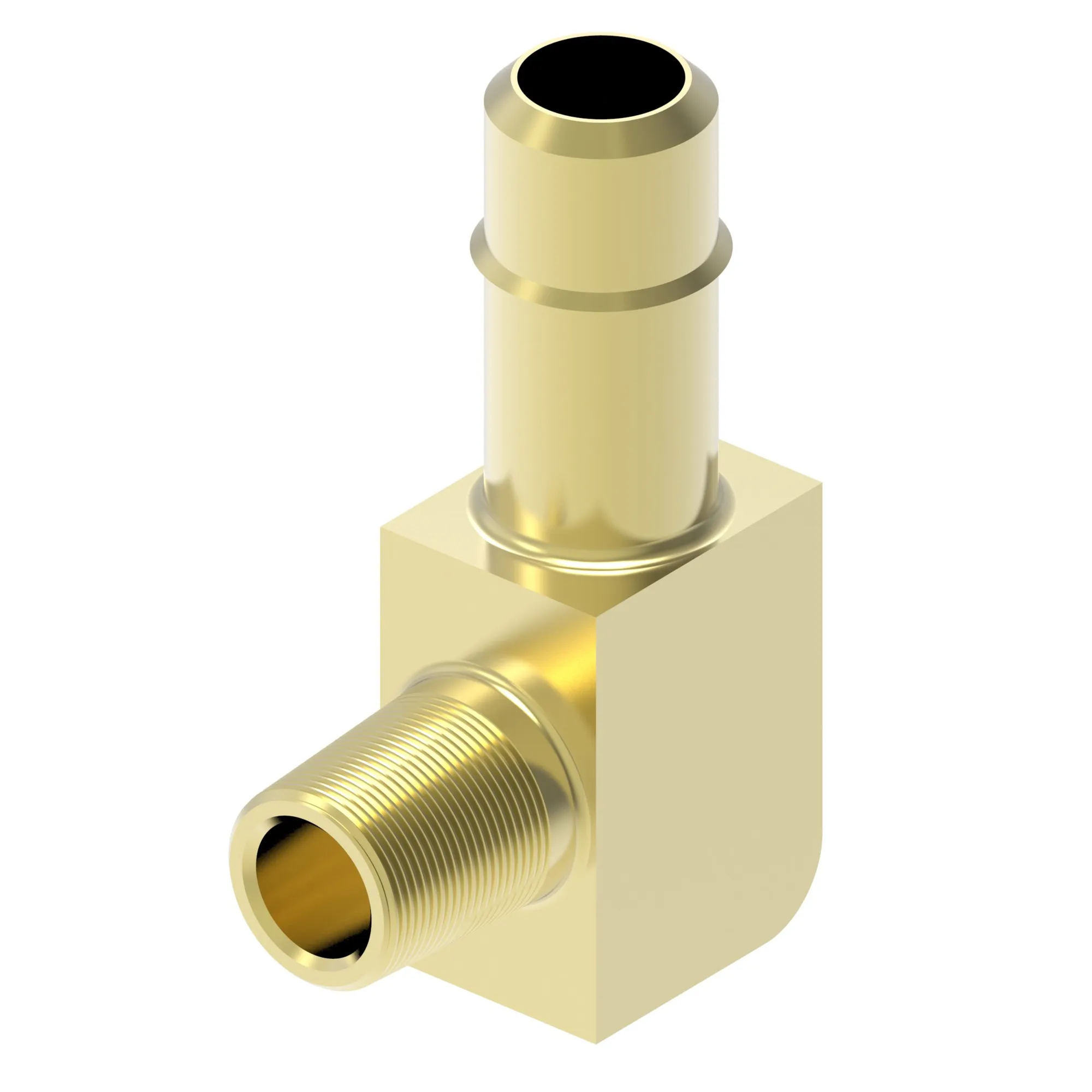

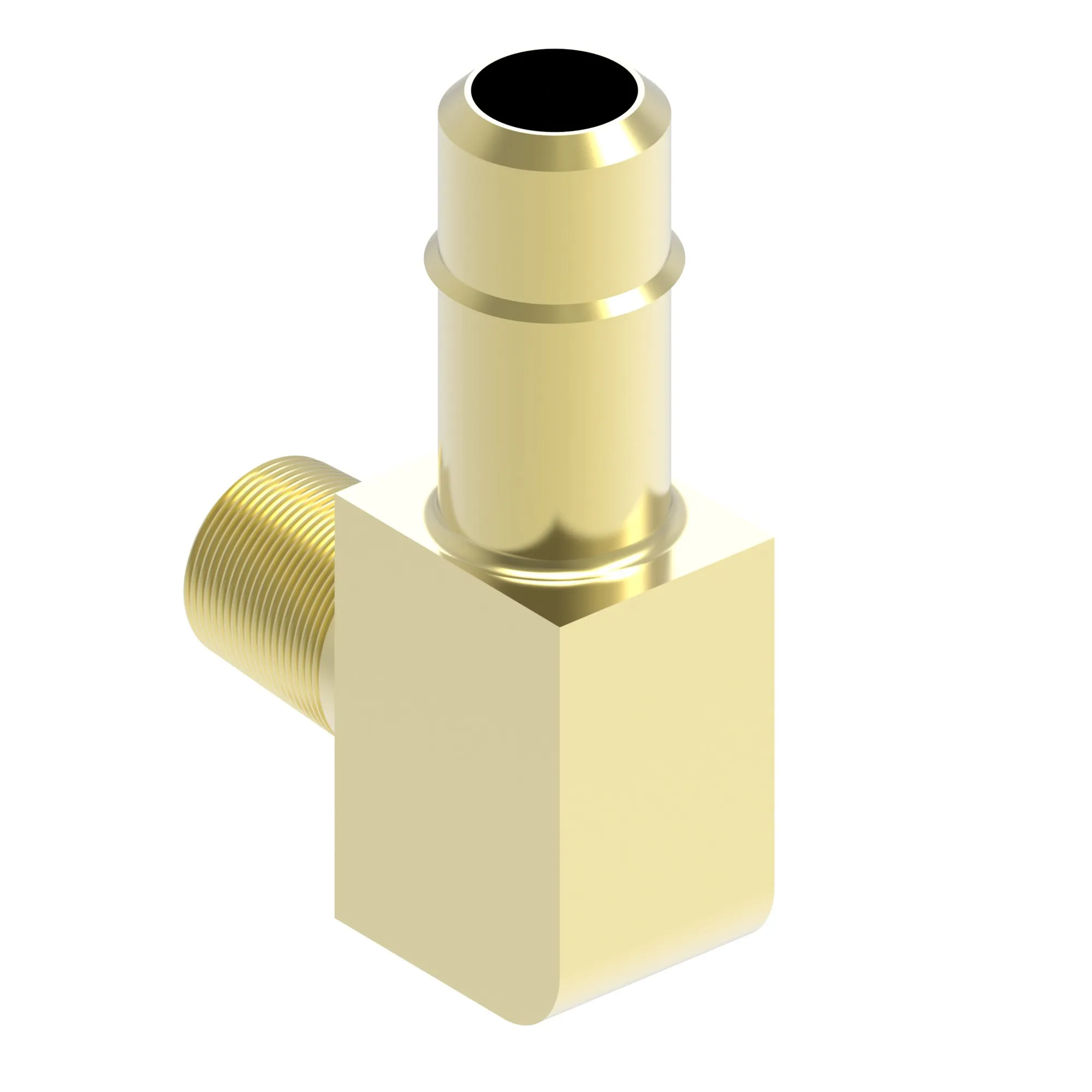

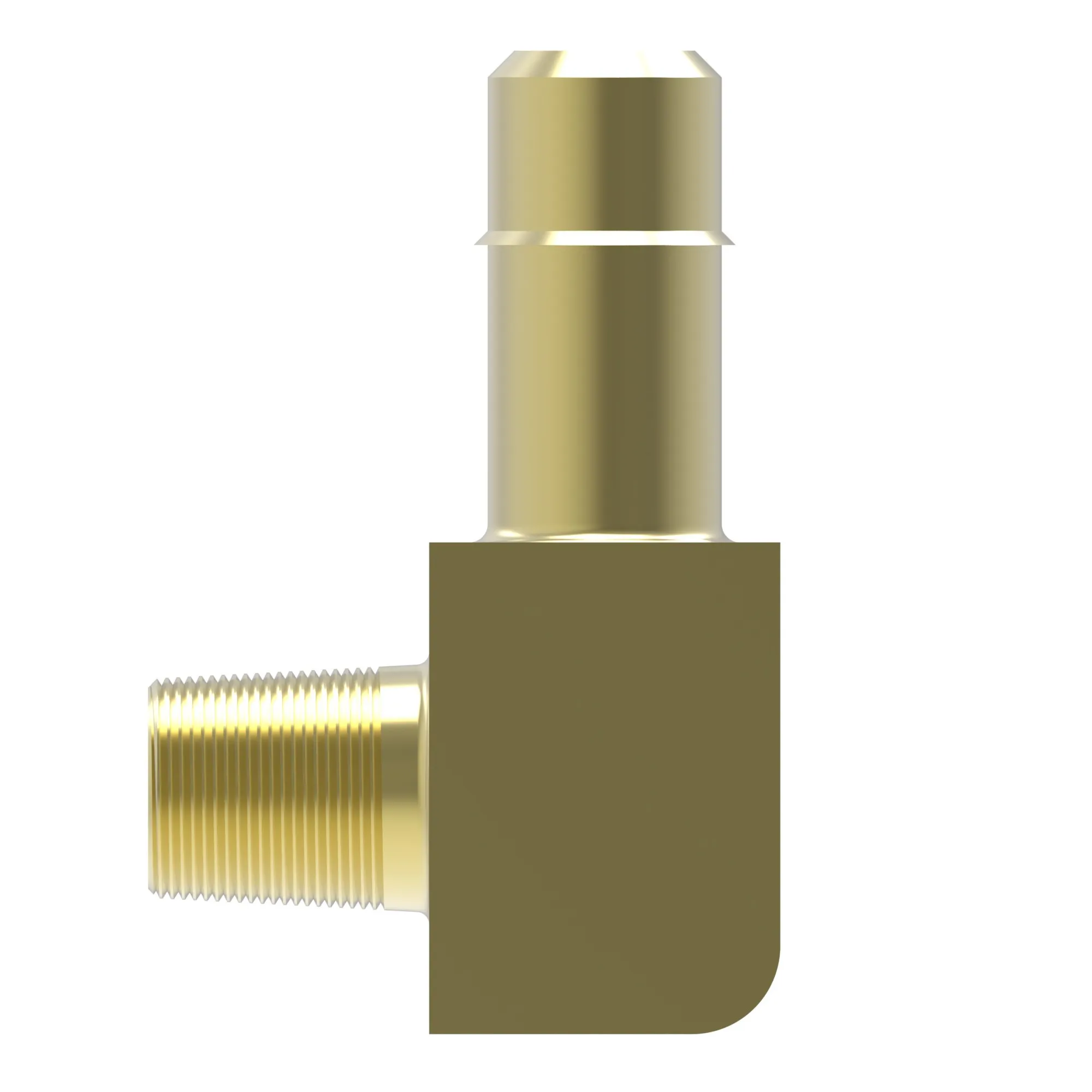

Adapter Brass Mini Barb 90Deg -4Tx-1 MP – 1069X4X1
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Adapter Brass Mini Barb 90Deg -4Tx-1 MP – 1069X4X1
Specification
| E A N/ U P C | 725975735107 |
|---|---|
| Angle Shape | 90 Degree |
| Brand | Danfoss |
| Drop Dimension In | 0.580 |
| Drop Dimension Mm | 14.70 |
| End Type 1 | Male pipe (NPTF) |
| End Type 2 | Male barb |
| Hex Size 1 In | 0.340 |
| Hex Size 1 Mm | 8.600 |
| Item Type | Adapter-elbow |
| Product Material | Brass |
| Thread Sealant | No |
| Tube Outside Diameter 1 In | 0.160 |
| Tube Outside Diameter 1 Mm | 4.1 |
| Tube Outside Diameter 2 In | 0.130 |
| Tube Outside Diameter 2 Mm | 3.3 |
| Working Temp Max C | 121 |
| Working Temp Max F | 250 |
| Working Temp Min C | -54 |
| Working Temp Min F | -65 |
